Embedded Mini PC F17H-J4125
Model: F17H-J4125
Anti-vibration & shock proof, industrial grade design for 7/24 use
Flexible expansion for I/O ports
4x COM ports (RS232, RS485)
3x display ports (2 x HDMI + 1 x DP)
4x USB3.0, 2x USB2.0
Support 4G LTE module
Support TPM 2.0 (optional)
12V ~ 64V wide range power input
Wide temperature -10~65°C
Support Din rail, Embedded, Stand, Mount installation
Data Sheet 1
Send InquiryThe Mini PC F17H-J4125, armed with a Celeron J4125 CPU and boasting I/O ports with 4xCOM, 2HDMI, DP, 2LAN, 6*USB, and DC, offers several distinct advantages when utilized in a KIOSK. Its compact size ensures easy integration into various setups without occupying excessive space. The powerful Celeron J4125 CPU guarantees smooth performance, allowing for seamless operation of KIOSK machine.
-
Part No.F17H-J4125
-
-
Processor
CPU
Intel Celeron J4125
Core Number
4 Cores / 4 Threads
Frequency
2.0GHz
Max Turbo Frequency
2.7GHz
Chipset
Gemini Lake
-
Memory
Technology
1*DDR4L slot
Max. Capacity
16GB
-
Storage
M.2 SATA
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SATA
HDD 500GB/1TB/2TB (Optional )
-
Graphics
Graphics
Intel UHD Graphics 600
-
Audio
Audio
HD Audio realtek ALC 662
-
Network
LAN
10/100/1000Mbps adaptive RTL 8111E
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
4G module
support 4G module with available sim slot
-
I/O Interface
Front

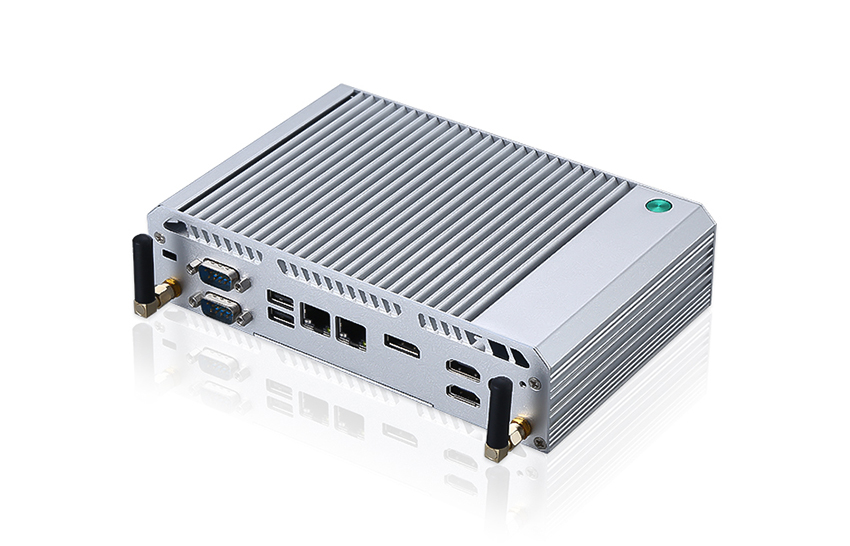

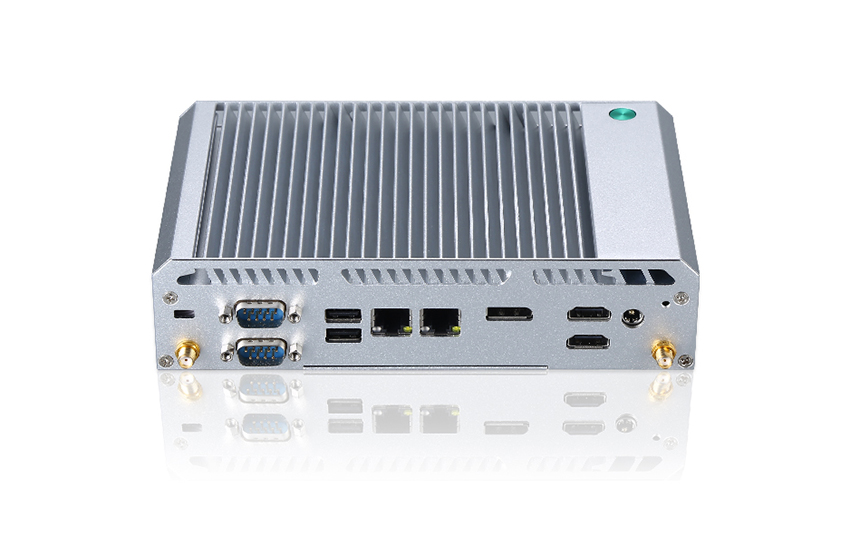

2*HDMI, 1*DP, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
Rear

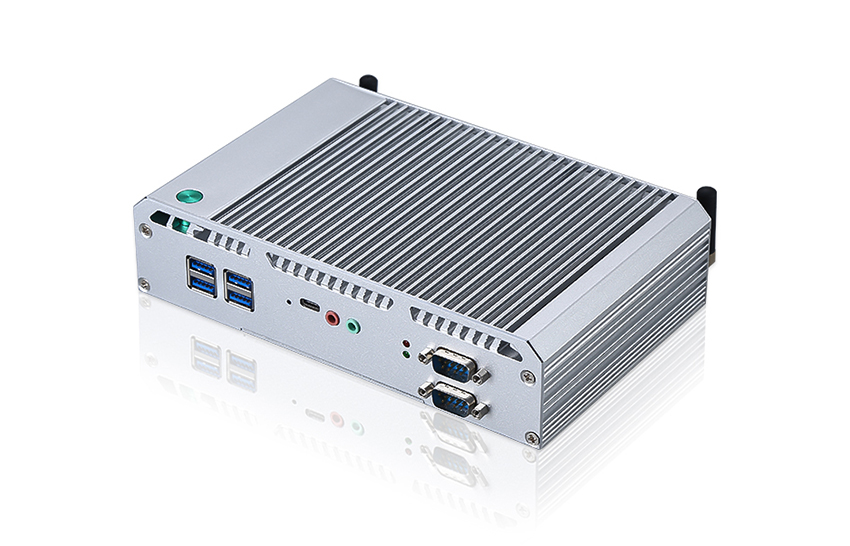

4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
Extendable
I/O
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
Module
4G LTE , WIFI+Bluetooth Module (Mini PCIE)
-
Power
Input
AC100-240V.50-60HZ DC
Output
12V-5A
Wide Voltage
12-64V phoenix connector（Optional）
-
Operating System
Windows/Linux
-
Physical

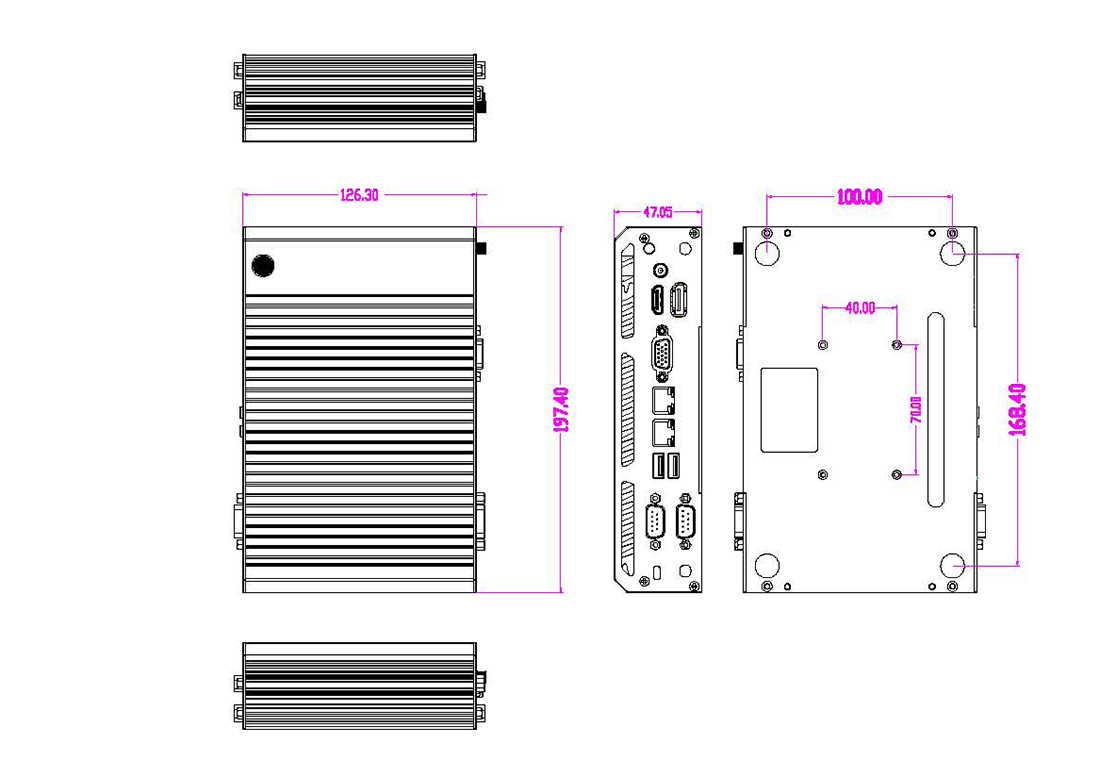

Dimension
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0KG
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Desk / Wall Mount / Embedded / DIN Rail
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~65 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
F17H-J4125
Intel Celeron J4125
-
Core Number
F17H-J4125
4 Cores / 4 Threads
-
Frequency
F17H-J4125
2.0GHz
-
Max Turbo Frequency
F17H-J4125
2.7GHz
-
Chipset
F17H-J4125
Gemini Lake
-
Technology
F17H-J4125
1*DDR4L slot
-
Max. Capacity
F17H-J4125
16GB
-
M.2 SATA
F17H-J4125
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
SATA
F17H-J4125
HDD 500GB/1TB/2TB (Optional )
-
Graphics
F17H-J4125
Intel UHD Graphics 600
-
Audio
F17H-J4125
HD Audio realtek ALC 662
-
LAN
F17H-J4125
10/100/1000Mbps adaptive RTL 8111E
-
Wireless
F17H-J4125
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
4G module
F17H-J4125
support 4G module with available sim slot
-
Front
F17H-J4125
2*HDMI, 1*DP, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
-
Rear
F17H-J4125
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
I/O
F17H-J4125
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
-
Module
F17H-J4125
4G LTE , WIFI+Bluetooth Module (Mini PCIE)
-
Input
F17H-J4125
AC100-240V.50-60HZ DC
-
Output
F17H-J4125
12V-5A
-
Wide Voltage
F17H-J4125
12-64V phoenix connector（Optional）
-
F17H-J4125
Windows/Linux
-
Dimension
F17H-J4125
L 197.4mm*W 126.3mm*H 47.5mm
-
Weight(Net)
F17H-J4125
1.0KG
-
Color
F17H-J4125
Black
-
Cooling Method
F17H-J4125
Fanless Passive Cooling
-
Mounting Options
F17H-J4125
Desk / Wall Mount / Embedded / DIN Rail
-
Certification
F17H-J4125
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
F17H-J4125
-10~65 ℃
-
Storage Temperature
F17H-J4125
-10~60 ℃
-
Operation Humidity
F17H-J4125
0~95% (No Condensation)
-
Storage Humidity
F17H-J4125
0~95% (No Condensation)
