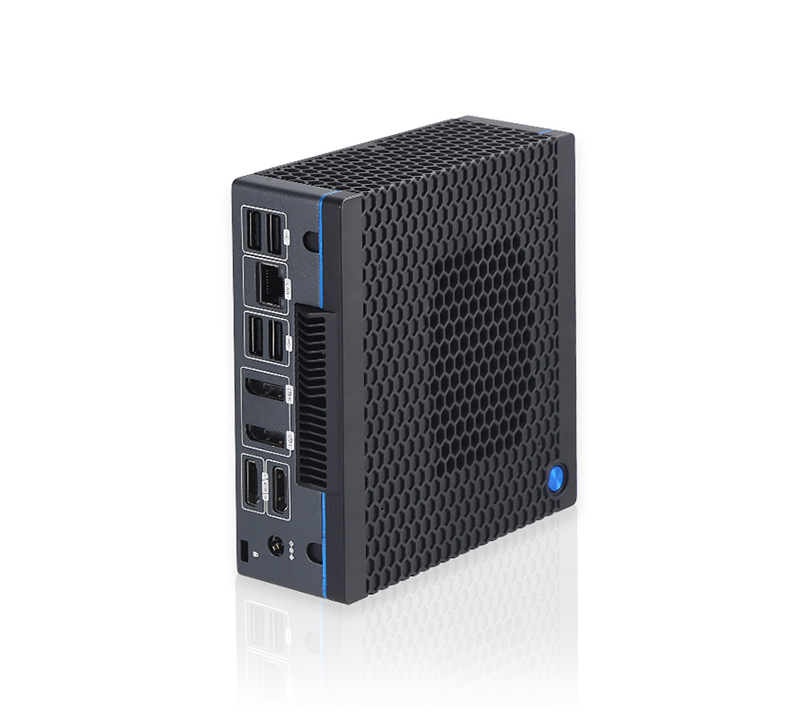

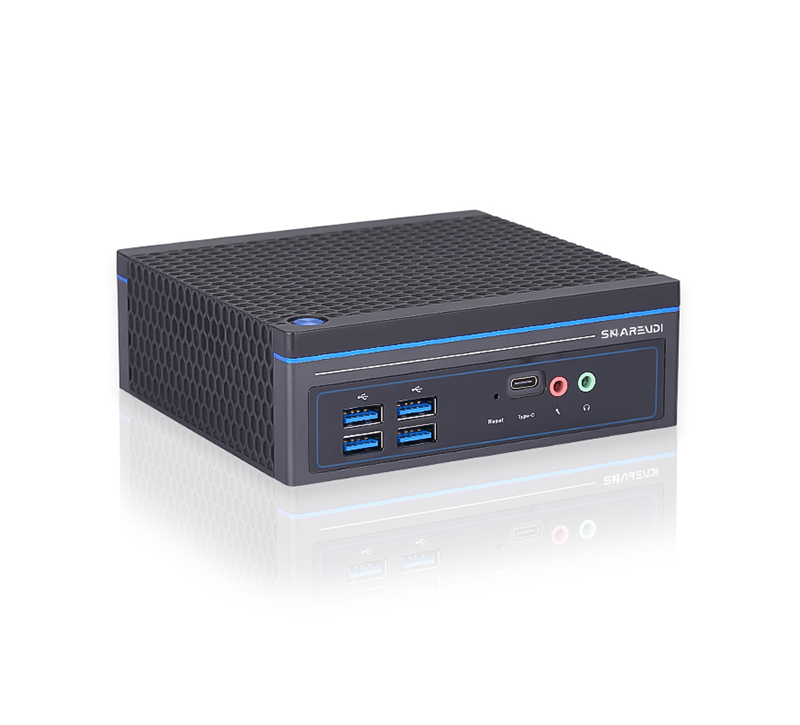

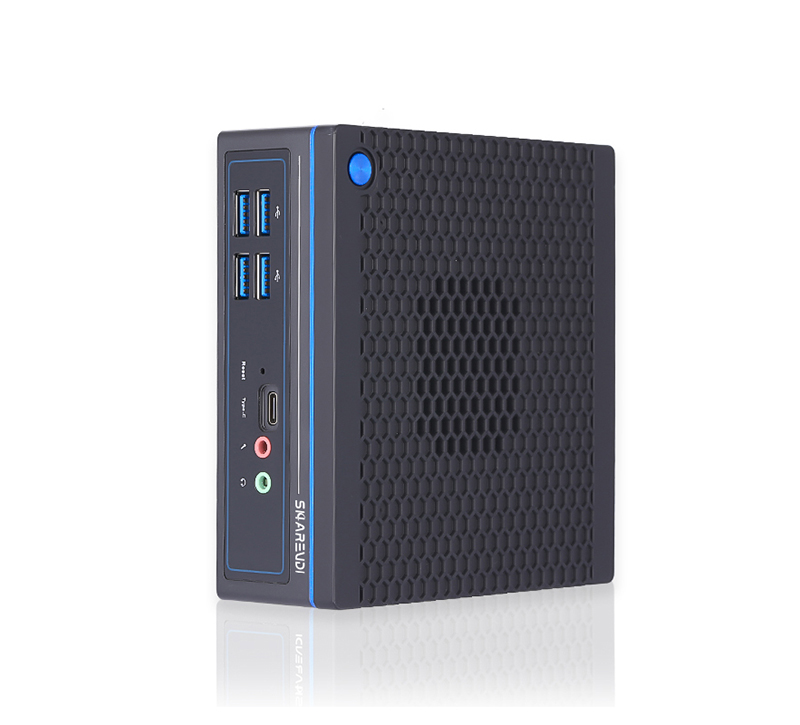

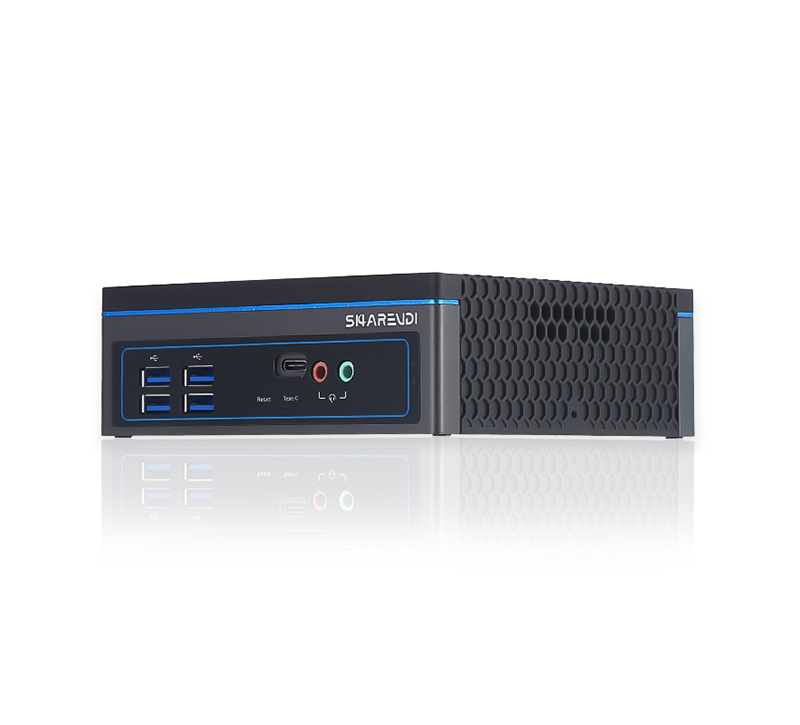

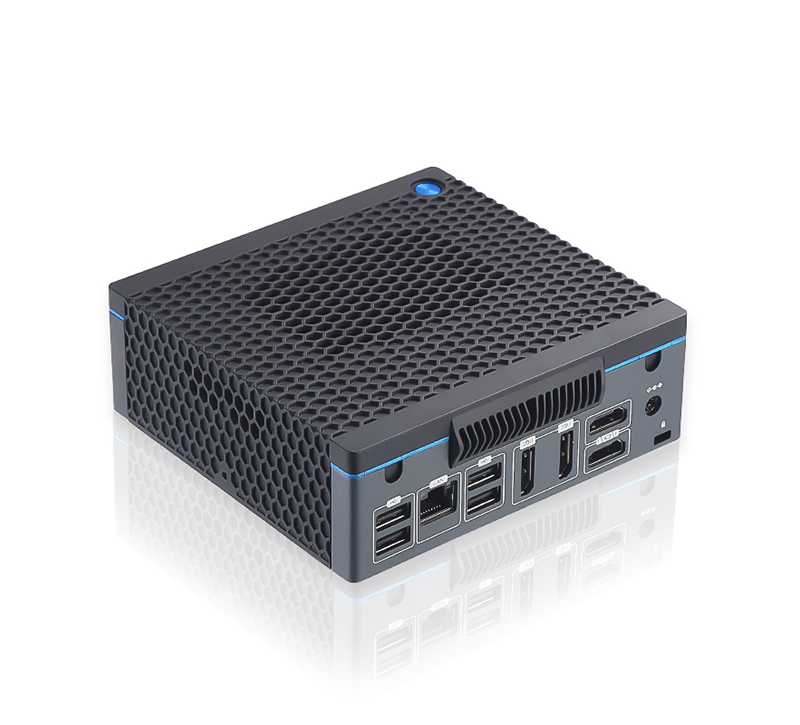

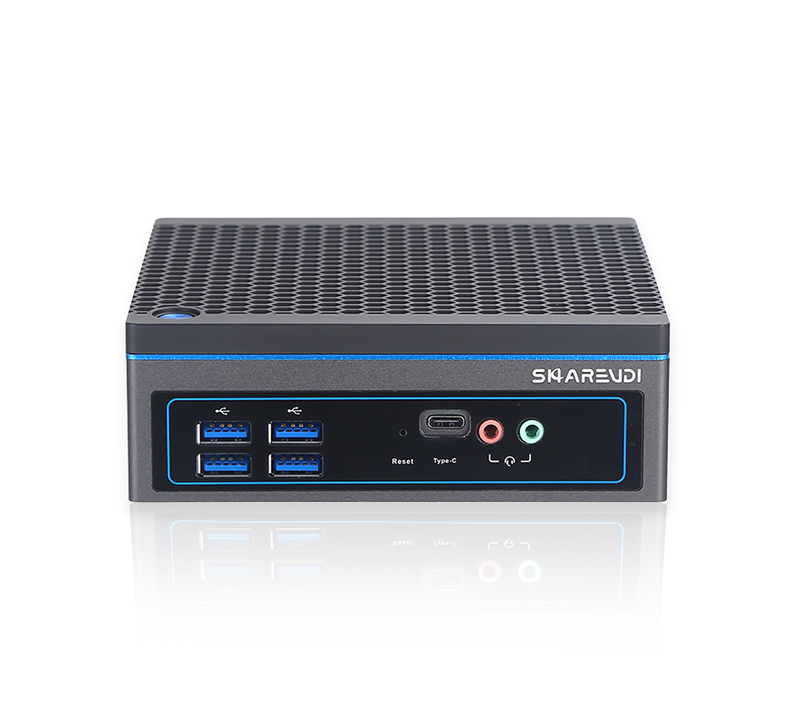

NUC Mini PC F14H-11th Gen
Model: F14H-11th
Intel Core i3 1115G4/ i5 1145G7 processor
2xHDMI+2xDP, support 4 displays
NUC compact design L 133.8mm*W 126.6mm*H 46mm
Support 2.4GHz / 5GHz dual-band WiFi
Support Win 10 / Win 11
Include VESA Mount
Data Sheet 1
Send InquiryThe NUC Mini PC F14H, equipped with CPUs like i3 1115G4 and i5 1145G7, and featuring 2xHDMI and 2xDP.Its powerful CPUs enable it to run medical software smoothly. Through the 2xHDMI and 2xDP ports, it can connect to multiple displays, facilitating enhanced data viewing. It also facilitates seamless communication and data sharing within the Hospital/Healthcare office by ensuring stable network connections. Moreover, it offers efficient data processing and storage capabilities for medical records and analysis.
-
Part No.K5-F14H
-
-
Processor
CPU
Intel Core i5 1145G7 2.60GHz-4.40GHz
Core Number
4 Cores / 8 Threads
Frequency
8 MB
Max Turbo Frequency
Chipset
-
Storage
mSATA
SSD (M.2 2280 SATA)
SATA
Optional HDD
-
Graphics
Graphics
Intel® Iris® Xe Graphics
-
Audio
Audio
HD Audio realtek ALC 269
-
Network
LAN
Wireless
-
I/O Interface
Front
1*POWER ON/OFF,USB3.0*4,1*Reset,1*Type-C,1*SPK,1*MIC
Rear
4*USB2.0,1*RJ45 Gigabit LAN,2*DP,2*HDMI,1*DC12V Input
-
Extendable
I/O Ports
4*USB3.0、4*USB2.0、2*HDMI、2*DP、1*RJ45、1*DC、1*MIC-IN、1*LINE-OUT、1*TYPE-C 、1*CLS
Module
-
Power
Input
Output
-
Operating System
Windows 10、11
-
Physical
Dimension
L 133.8mm*W 126.6mm*H 46mm
Weight(Net)
0.65kg
Color
Black
Cooling Method
Active cooling (air cooling)
Mounting Options
Certification
-
Environment
Operating Temperature
Storage Temperature
Operation Humidity
Storage Humidity
-
Memory
Technology
2*DDR4L slot,
Max. Capacity
32G
-
CPU
K5-F14H
Intel Core i5 1145G7 2.60GHz-4.40GHz
-
Core Number
K5-F14H
4 Cores / 8 Threads
-
Frequency
K5-F14H
8 MB
-
Max Turbo Frequency
K5-F14H
-
Chipset
K5-F14H
-
mSATA
K5-F14H
SSD (M.2 2280 SATA)
-
SATA
K5-F14H
Optional HDD
-
Graphics
K5-F14H
Intel® Iris® Xe Graphics
-
Audio
K5-F14H
HD Audio realtek ALC 269
-
LAN
K5-F14H
-
Wireless
K5-F14H
-
Front
K5-F14H
1*POWER ON/OFF,USB3.0*4,1*Reset,1*Type-C,1*SPK,1*MIC
-
Rear
K5-F14H
4*USB2.0,1*RJ45 Gigabit LAN,2*DP,2*HDMI,1*DC12V Input
-
I/O Ports
K5-F14H
4*USB3.0、4*USB2.0、2*HDMI、2*DP、1*RJ45、1*DC、1*MIC-IN、1*LINE-OUT、1*TYPE-C 、1*CLS
-
Module
K5-F14H
-
Input
K5-F14H
-
Output
K5-F14H
-
K5-F14H
Windows 10、11
-
Dimension
K5-F14H
L 133.8mm*W 126.6mm*H 46mm
-
Weight(Net)
K5-F14H
0.65kg
-
Color
K5-F14H
Black
-
Cooling Method
K5-F14H
Active cooling (air cooling)
-
Mounting Options
K5-F14H
-
Certification
K5-F14H
-
Operating Temperature
K5-F14H
-
Storage Temperature
K5-F14H
-
Operation Humidity
K5-F14H
-
Storage Humidity
K5-F14H
-
Technology
K5-F14H
2*DDR4L slot,
-
Max. Capacity
K5-F14H
32G
