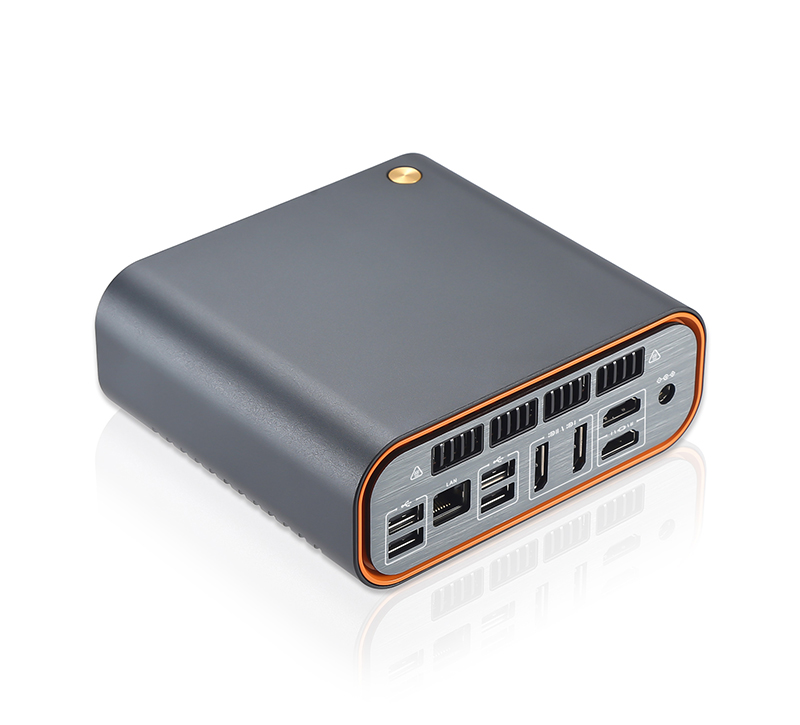

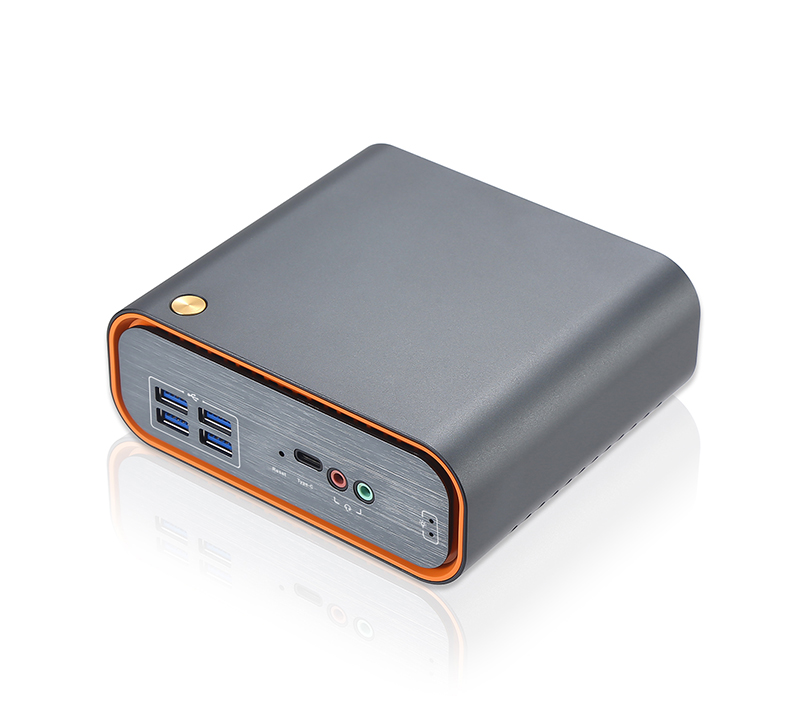

NUC Mini PC F23-12th Gen
Model: F23-i5 12450H
Intel Core i5 12450H
2xHDMI+2xDP, support 4 displays
NUC compact design L135.5mm*W 126.5mm*H 50mm
Support 2.4GHz / 5GHz dual-band WiFi
Support Win 10 / Win 11

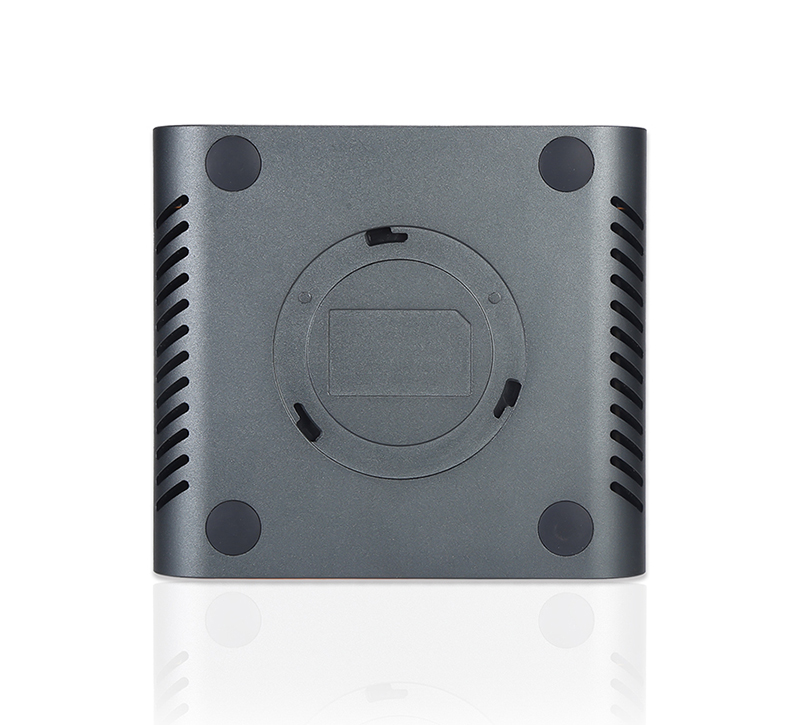

Include VESA Mount
Data Sheet 1
Send InquiryNUC Mini PC F23 can smoothly handle various medical applications with the i5 12450H CPU. The multiple display ports (2xHDMI and 2xDP) allow connection to multiple screens for better data visualization. The DDR 5 and M.2 SATA/NVME provide fast data processing and storage capabilities for medical data. It also enables seamless communication and data sharing within the Hospital/Healthcare office environment.
-
Part No.F23-i5
-
-
Processor
CPU
Intel Core I5-12450H 2.00 GHz-4.40GHz
Core Number
8 Cores/ 12 Threads
Frequency
Max Turbo Frequency
Chipset
-
Memory
Technology
2*SO-DIMM DDR5 slot
Max. Capacity
32GB
-
Storage
mSATA
SSD(M.2280 SATA/NVME)
SATA
OptionalHDD
-
Graphics
Intel® UHD Graphics for 12th Gen Intel® Processors
-
Audio
Audio
HD Audio realtek ALC897
-
Network
LAN
10/100/1000Mbps adaptive RTL 8111H
Wireless
-

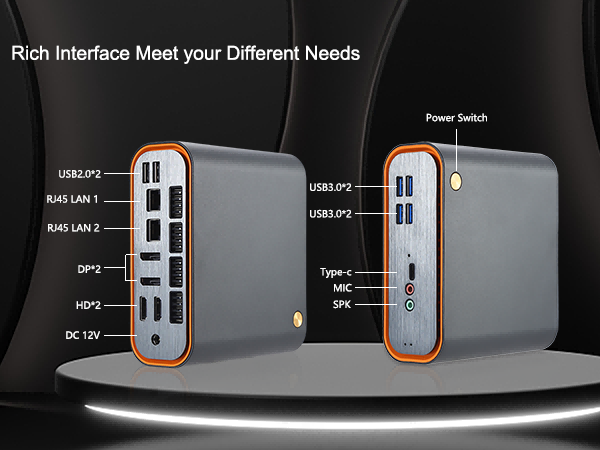

I/O Interface
Front

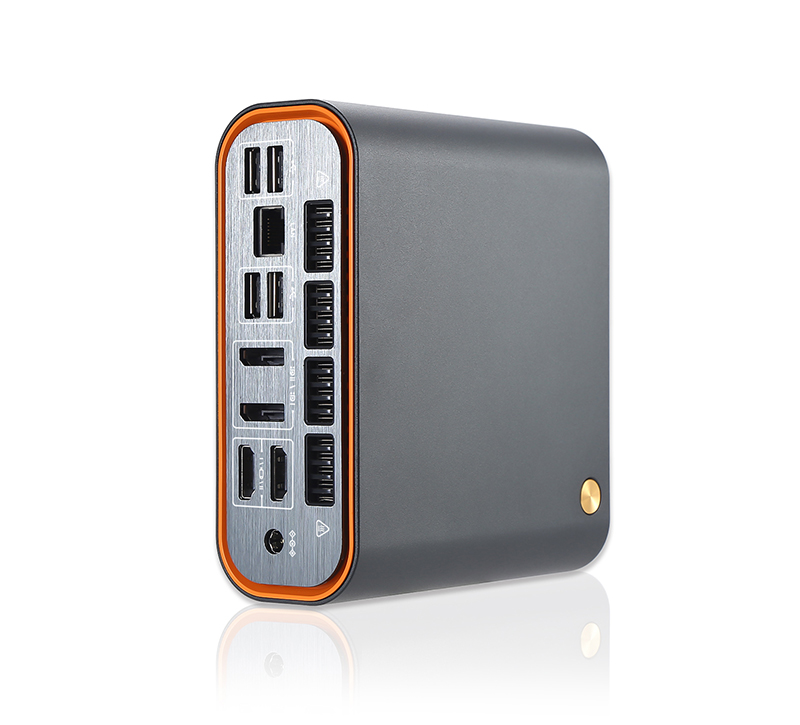

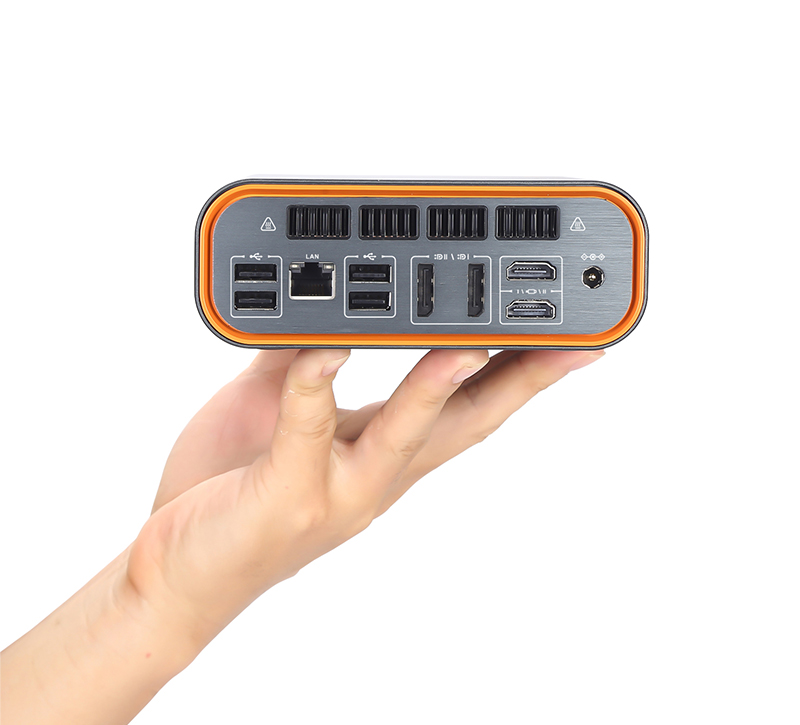

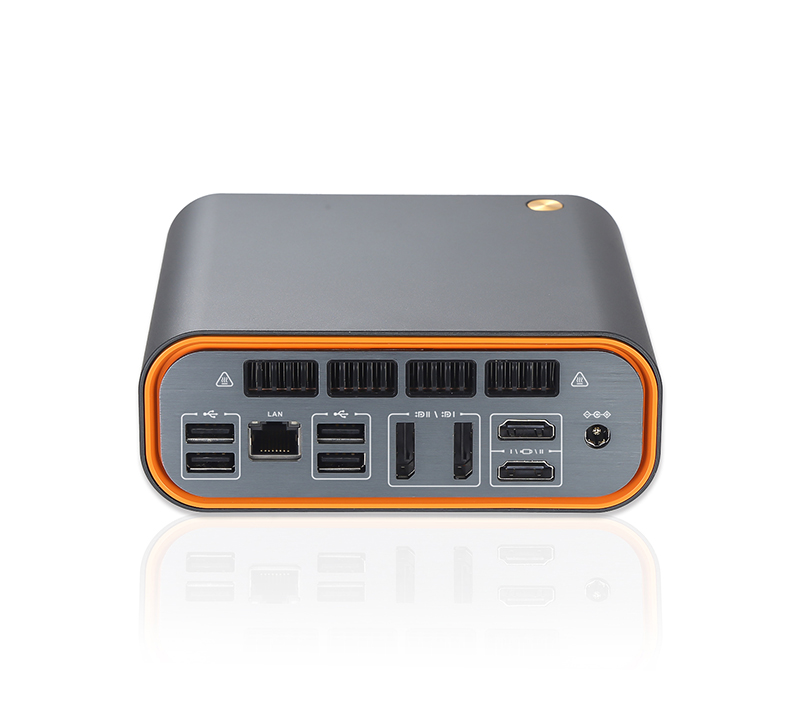

4*USB2.0,1*LAN,2*DP,2*HDMI,1*DC 12V

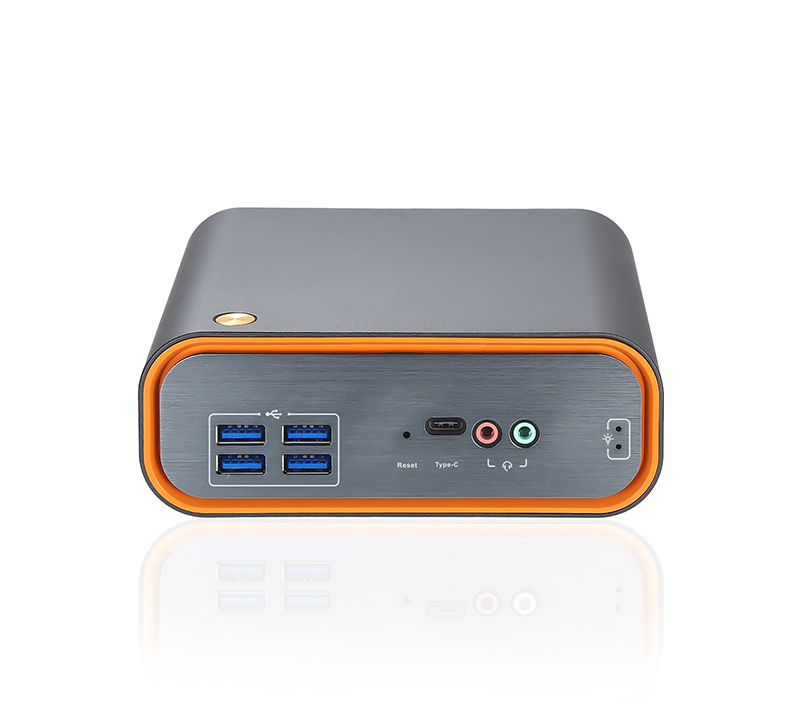

Rear

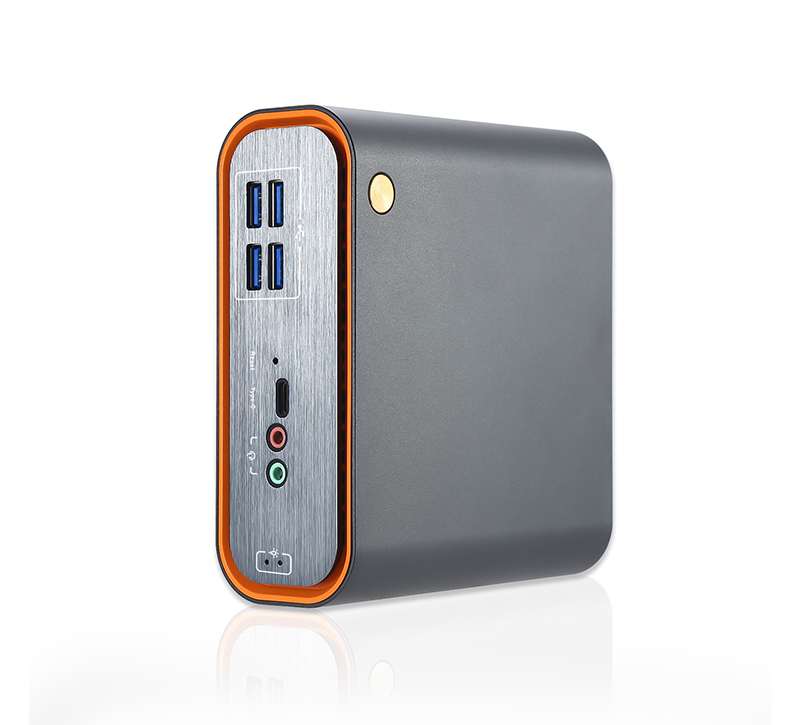

4*USB3.2,1*Reset,1*Type-C,1*SPK input & MIC Output,1*Indicator light
-
Extendable
I/O
4*USB3.2、4*USB2.0、2*HDMI、2*DP、1*RJ45、1*DC、1*MIC-IN、1*LINE-OUT、1*TYPE-C 、1* CLS
Module
support 4G module with available SIM slot
-
Power
Input
AC100-240V.50-60HZ DC
Output
12V-5A
-
Operating System
Windows 10、11 & Linux
-
Physical
Dimension
L135.5mm*W 126.5mm*H 50mm
Weight(Net)
0.8kg
Color
Sliver
Cooling Method
Active cooling (air cooling)
Mounting Options
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
10~60 °C
Storage Temperature
-10~60 °C
Operation Humidity
0~95%(No Condensation)
Storage Humidity
0~95%(No Condensation)
-
CPU
F23-i5
Intel Core I5-12450H 2.00 GHz-4.40GHz
-
Core Number
F23-i5
8 Cores/ 12 Threads
-
Frequency
F23-i5
-
Max Turbo Frequency
F23-i5
-
Chipset
F23-i5
-
Technology
F23-i5
2*SO-DIMM DDR5 slot
-
Max. Capacity
F23-i5
32GB
-
mSATA
F23-i5
SSD(M.2280 SATA/NVME)
-
SATA
F23-i5
OptionalHDD
-
F23-i5
Intel® UHD Graphics for 12th Gen Intel® Processors
-
Audio
F23-i5
HD Audio realtek ALC897
-
LAN
F23-i5
10/100/1000Mbps adaptive RTL 8111H
-
Wireless
F23-i5
-
Front
F23-i5
4*USB2.0,1*LAN,2*DP,2*HDMI,1*DC 12V
-
Rear
F23-i5
4*USB3.2,1*Reset,1*Type-C,1*SPK input & MIC Output,1*Indicator light
-
I/O
F23-i5
4*USB3.2、4*USB2.0、2*HDMI、2*DP、1*RJ45、1*DC、1*MIC-IN、1*LINE-OUT、1*TYPE-C 、1* CLS
-
Module
F23-i5
support 4G module with available SIM slot
-
Input
F23-i5
AC100-240V.50-60HZ DC
-
Output
F23-i5
12V-5A
-
F23-i5
Windows 10、11 & Linux
-
Dimension
F23-i5
L135.5mm*W 126.5mm*H 50mm
-
Weight(Net)
F23-i5
0.8kg
-
Color
F23-i5
Sliver
-
Cooling Method
F23-i5
Active cooling (air cooling)
-
Mounting Options
F23-i5
-
Certification
F23-i5
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
F23-i5
10~60 °C
-
Storage Temperature
F23-i5
-10~60 °C
-
Operation Humidity
F23-i5
0~95%(No Condensation)
-
Storage Humidity
F23-i5
0~95%(No Condensation)
