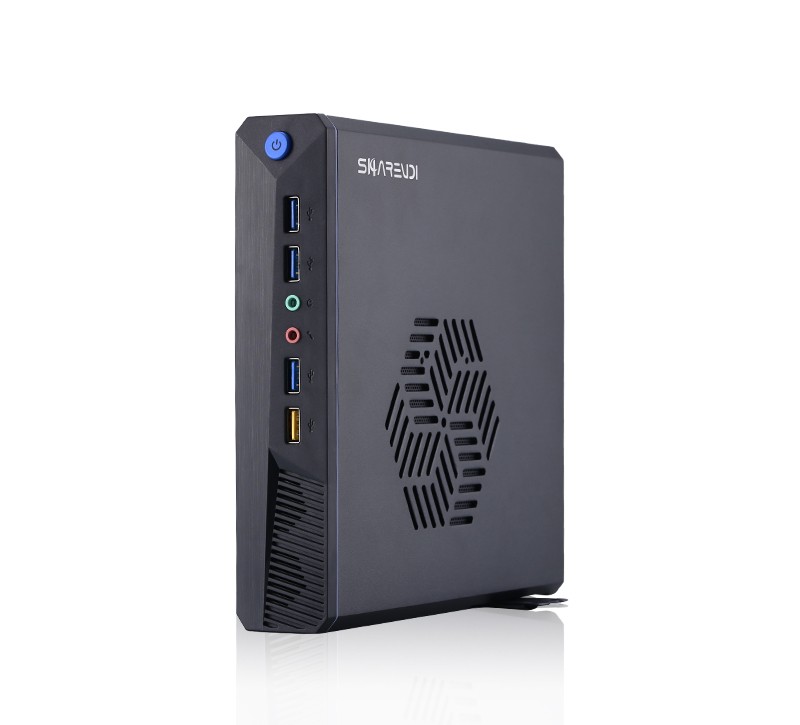

Mini Desktop Mini PC F20
Model: F20-i7 8th
Intel Core i7 8750H， 2.2GHz~4.1GHz
HDMI+VGA, support Dual displays
Support 2.4GHz / 5GHz dual-band WiFi
Support Win 10 / Win 11
nclude VESA Mount
Data Sheet 1
Send Inquiry
Mini Desktop PC F20 can smoothly handle various medical applications with the i7 8750H CPU. The Dual display ports allow connection to multiple screens for better data visualization. The DDR 4 and M.2 SATA/NVME provide fast data processing and storage capabilities for medical data. It also enables seamless communication and data sharing within the Hospital/Healthcare office environment.
-
Part No.F20-i7
-
-
Processor
CPU
Intel Core i7 8750H 2.20GHz-4.10GHz
Cores/Threads
6 Cores / 12Threads
Cache
9 MB Intel® Smart Cache
TDP
35W-45W
Architecture
Products formerly Coffee Lake
-
Memory
Technology
2*DDR4L
Max. Capacity
32GB
-
Storage
mSATA
SSD (M.2 SATA)
SATA
Optional HDD
-
Graphics
Graphics
Intel UHD Graphics 630
-
Audio
Audio
HD Audio realtek ALC 269
-
Network
LAN
10/100/1000Mbps Adaptive RTL 8111H
Wireless
-
I/O Interface

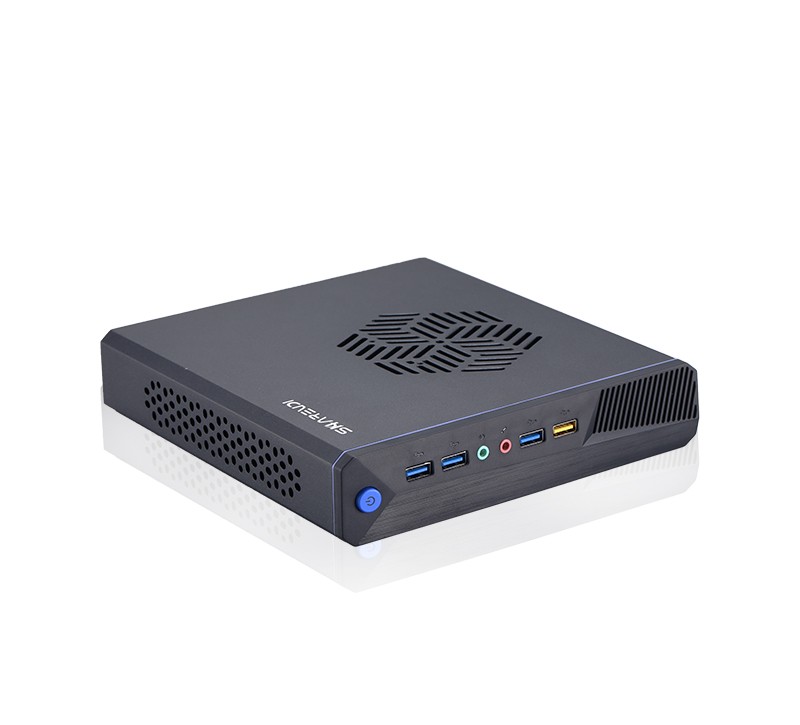

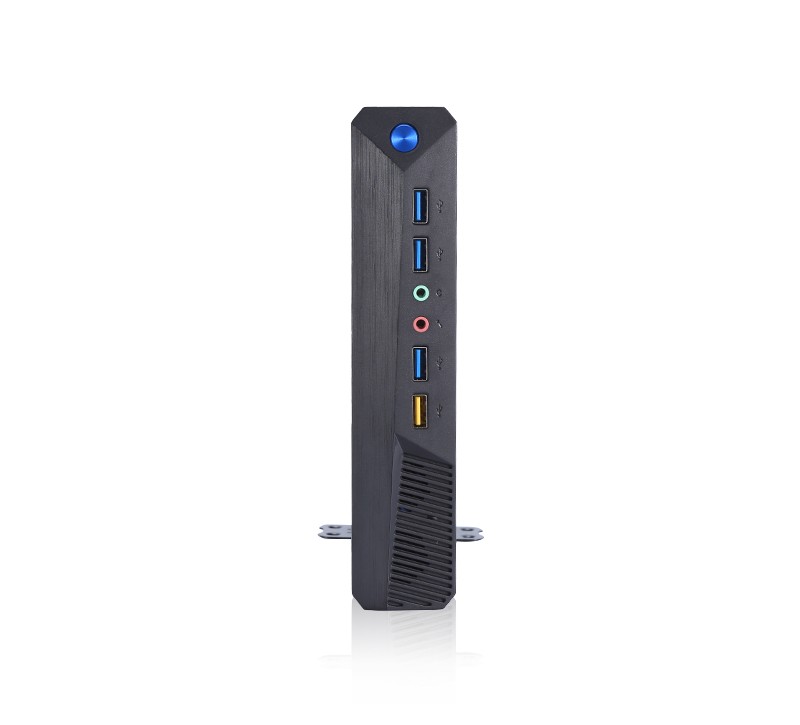

Front
1*Power ON/OFF ，4*USB2.0，1*SPK&MIC

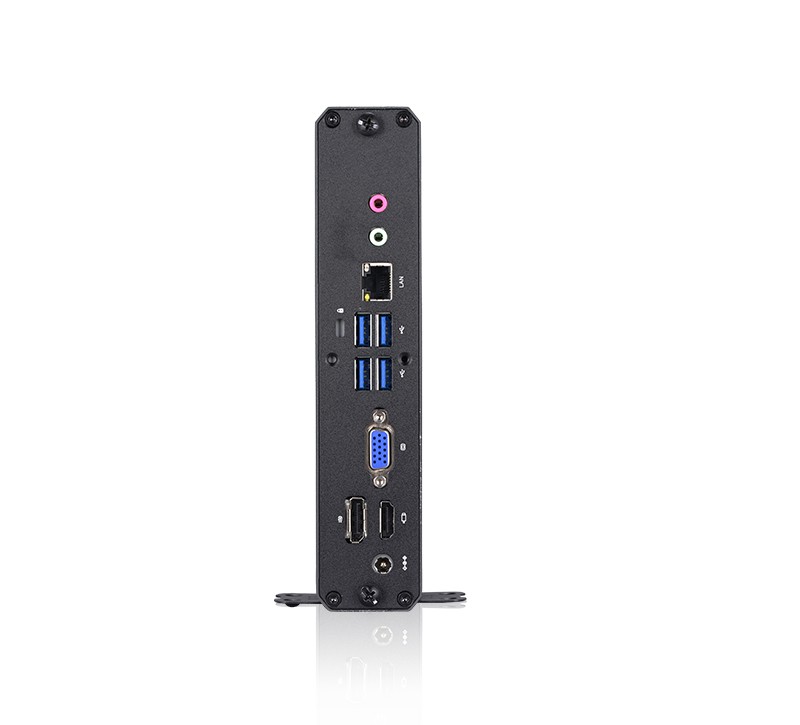

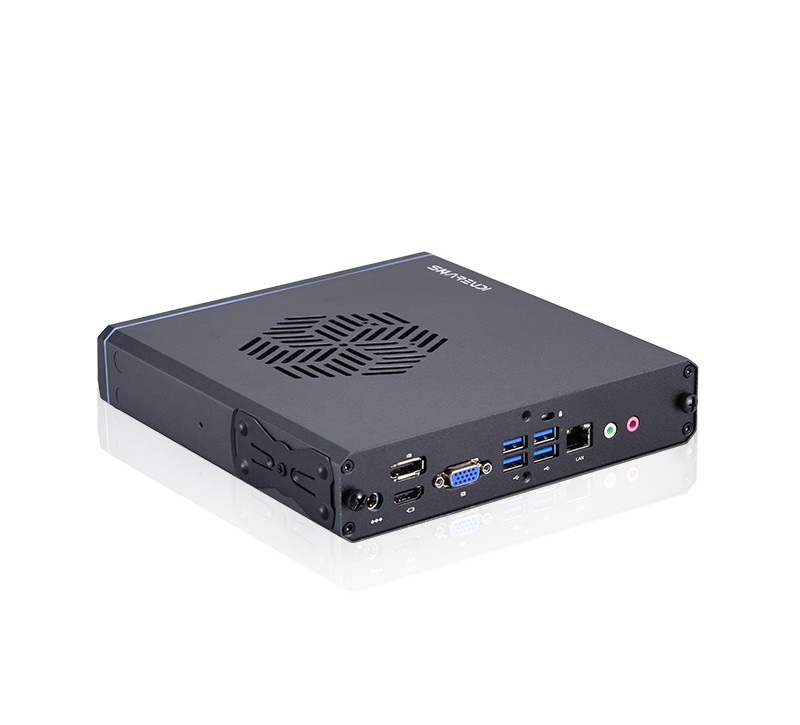

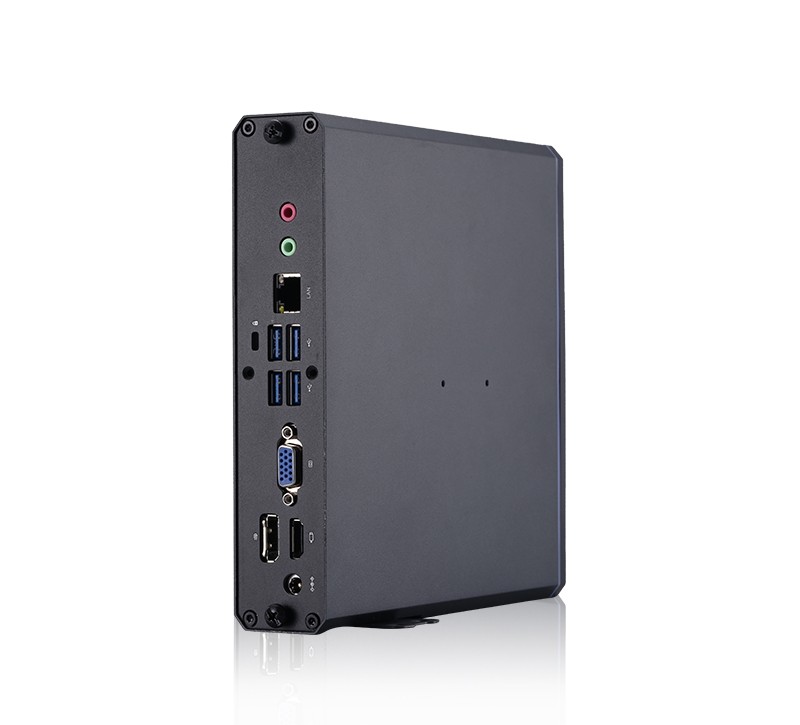

Rear
1*DC12V Input，1*HDMI，1*VGA，4*USB3.0，1*Ethernet，1*SPK&MIC ，1*Wifi Holes
-
Extendable
I/O Ports
4*USB2.0、4*USB3.0、1*HDMI、1*VGA、1*Ethernet、1*Type-C、1*DC、2*MIC-IN、2*LINE-OUT
Module
PXE / Auto-power-on / Wake-on-LAN
-
Power
Input
AC100-240V.50-60HZ DC
Output
12V-3A
-
Operating System
Windows (exclude XP）/ Linux
-
Physical
Dimension
L 202mm*W 195mm*H 40.9mm
Weight(Net)
1.6kg
Color
Black
Cooling Method
Cooling fan
Mounting Options
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
F20-i7
Intel Core i7 8750H 2.20GHz-4.10GHz
-
Cores/Threads
F20-i7
6 Cores / 12Threads
-
Cache
F20-i7
9 MB Intel® Smart Cache
-
TDP
F20-i7
35W-45W
-
Architecture
F20-i7
Products formerly Coffee Lake
-
Technology
F20-i7
2*DDR4L
-
Max. Capacity
F20-i7
32GB
-
mSATA
F20-i7
SSD (M.2 SATA)
-
SATA
F20-i7
Optional HDD
-
Graphics
F20-i7
Intel UHD Graphics 630
-
Audio
F20-i7
HD Audio realtek ALC 269
-
LAN
F20-i7
10/100/1000Mbps Adaptive RTL 8111H
-
Wireless
F20-i7
-
Front
F20-i7
1*Power ON/OFF ，4*USB2.0，1*SPK&MIC
-
Rear
F20-i7
1*DC12V Input，1*HDMI，1*VGA，4*USB3.0，1*Ethernet，1*SPK&MIC ，1*Wifi Holes
-
I/O Ports
F20-i7
4*USB2.0、4*USB3.0、1*HDMI、1*VGA、1*Ethernet、1*Type-C、1*DC、2*MIC-IN、2*LINE-OUT
-
Module
F20-i7
PXE / Auto-power-on / Wake-on-LAN
-
Input
F20-i7
AC100-240V.50-60HZ DC
-
Output
F20-i7
12V-3A
-
F20-i7
Windows (exclude XP）/ Linux
-
Dimension
F20-i7
L 202mm*W 195mm*H 40.9mm
-
Weight(Net)
F20-i7
1.6kg
-
Color
F20-i7
Black
-
Cooling Method
F20-i7
Cooling fan
-
Mounting Options
F20-i7
-
Certification
F20-i7
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
F20-i7
-10~60 ℃
-
Storage Temperature
F20-i7
-10~60 ℃
-
Operation Humidity
F20-i7
0~95% (No Condensation)
-
Storage Humidity
F20-i7
0~95% (No Condensation)
