ShareVDI OPS Computer

OPS computer is an open pluggable specification computer developed by INTEL for interactive whiteboards, digital signage, advertising media, and all-in-one touch computers. OPS microcomputer is a pluggable computer module in the opening mode. It is actually a microcomputer, but it can be plugged in and out to make the overall layout beautiful. At the same time, OPS microcomputer is characterized by digital signals that are easier to install, use and maintain, making digital signage equipment more intelligent and integrated.

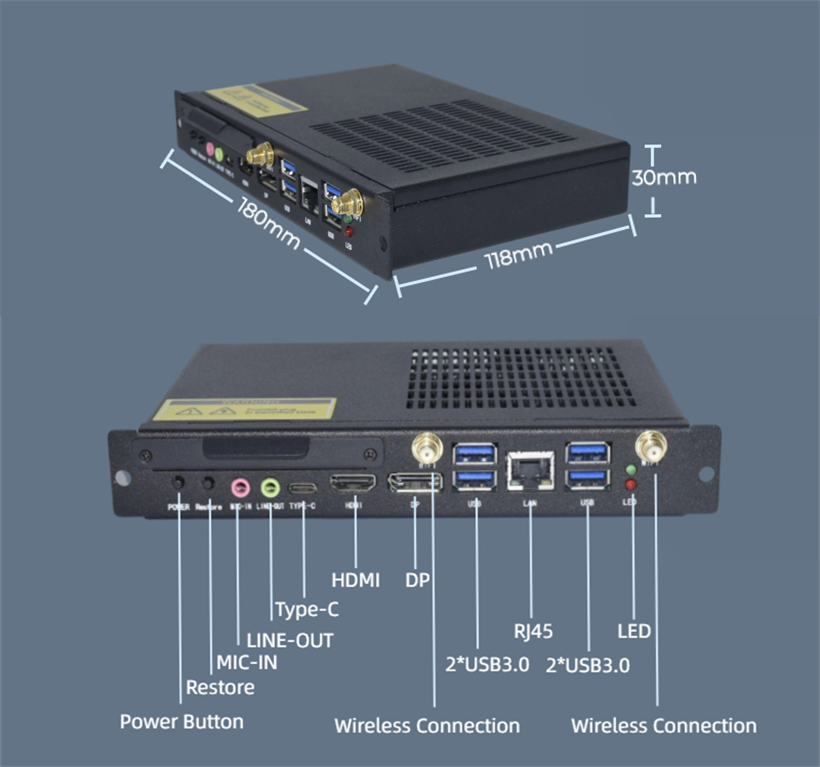

ShareVDI OPS Computer K5-O1

*CPU:Onboard Intel Core i5 10210U/i5 8365U

*RAM: 2*SO-DIMM DDR4 2400/2666MHz

*Storage:1*M.2 2280, support dual protocols NVME and SATA; 1*2.5’’SATA HDD/SSD

*Graphics:Intel® UHD Graphics for 8/10th Gen Intel® Processor

*Display output: HDMI/DP,support synchronous and asynchronous display

*Size: 118*190*30mm

*Support onekey back-up and reset OS in BIOS

*Support onekey reset OS in hardware

*Support JAE 80PIN connector

*Support TPM 2.0

Why was OPS formulated?

Because traditional all-in-one computers, interactive whiteboards, digital signage and other products are installed on the back of the display screen by using DIY computer accessories or MINI ITX motherboards and other accessories. The internal wiring of this type of product is complicated and the structure is loose. It is very easy to have poor contact or looseness during transportation or use, And once a bad problem occurs, the entire display screen must be disassembled for maintenance, or the entire LCD screen must be packaged and sent back to the manufacturer for processing. Either way, the cost is very high. The new OPS open pluggable specification makes the computer part a modular standard product, integrates the motherboard, memory, hard disk, WIFI, power supply, and uses a standard-sized shell and uses a standard 80PIN JAE interface and LCD The OPS interface in the screen is used for docking.

Through the pull-out design, the computer PC part and the LCD all-in-one machine can be separated conveniently and quickly, which is very convenient for repairing, replacing, upgrading, and replacing computer components. Customers can also disassemble the OPS computer without professional knowledge. The OPS computer is very small (the international standard size is 180*119*30mm, and the China standard size is 180.8*195.2*42.5mm). It is also convenient to send the product back to the manufacturer for repair and replacement by express delivery. Greatly reduced logistics and labor costs.

Features of OPS computer:

1. A digital signal that is easier to install, use and maintain.

2. Make digital signage equipment more intelligent and integrated.

3. Support Intel's latest processor.

4. Ultra-low resistance transistors are used for CPU power supply.

5. Innovative system layout, superior heat dissipation performance.

6. Abundant expansion functions and strong compatibility.

7. The sub-card is flexible in matching and has a variety of application options.

8. Free expansion, random combination, and customization on demand.
