What are the advantages of an industrial panel PC with a phoenix terminal?

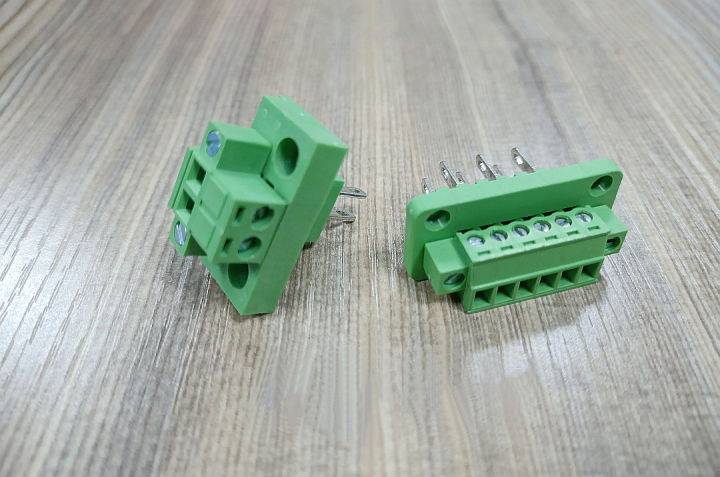

What is Phoenix Terminal?

The phoenix terminal is an interface part on the electrical appliance.

1.Terminals are gradually widely used in various fields, including signal terminals, power terminals, connection terminals, etc., which are the connection ends in the circuit.

2. The terminal is the part where the battery is connected to the external conductor. In electrical engineering, the terminal is multi-fingered terminal, also known as the terminal, the type is divided into single hole, double hole, socket, hook, etc, from the material points, copper silver plated, copper galvanized, copper, aluminum, iron and so on.

3. In the project, it is the interface reserved for the project in front of the station for the project behind the station, and it is the pre-buried facility for the interface project behind the station.

4. The terminal section inspection microscope can produce an upright three-dimensional space image when observing objects, with strong three-dimensional sense, clear and wide imaging, and long working distance; equipped with a high-precision wire harness terminal picture measurement and analysis system, combined into a wire harness terminal inspection microscope, The perfect combination of high-quality optical system and high-resolution camera makes the cross-sectional image clearer, and the unique fixed-magnification setting makes the measurement more accurate.

5. To test whether the terminal pressure is good, it needs to be tested by professional testing equipment.

6. Commonly used terminal testing equipment are: terminal cross section analyzer.

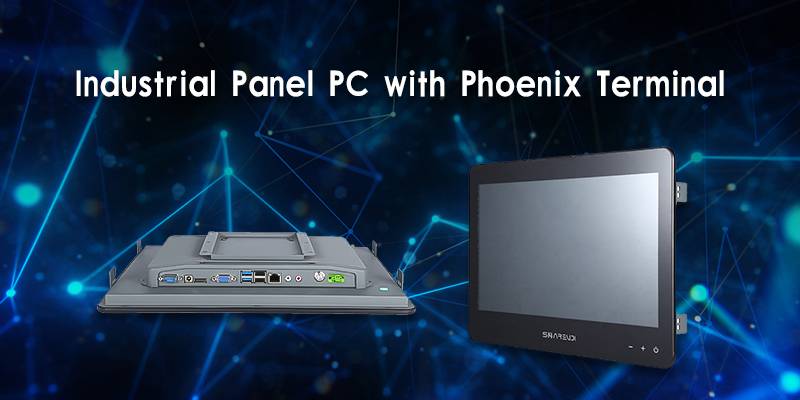

ShareVDI industrial panel PC with Phoenix Terminal

When it comes to industrial computers, in addition to other commercial computers, which are more stable and adaptable to the environment, general users also pay attention to basic information points such as touch methods, installation methods, and interface settings when choosing them.

Take the ShareVDI industrial panel PC as an example, the regular size is 10.4/12/15/15.6/19/21.5 inches, and the standard interface is RS232 COM/RJ45 LAN/HDMI/VGA/4*USB/12V DC/audio input/output, which can be the optional interface is RS485 COM / Phoenix terminal (12-36V) / GPIO, etc.

It can be seen from our standard interface that the phoenix terminal interface is required and must be customized on our original basis. Now we use the phoenix terminal as our regular stocking choice, which is also related to the product positioning in the field of heavy industry applications.

So, how can phoenix terminals help in industrial applications? What are the significant advantages?

Phoenix terminal is a kind of power source, which originated from a German company, and has developed many brand product categories. This type of terminal does not need wire noses, pins, or wiring forks, and the wires can be directly connected.

In the current situation, we reserve the installation position of the phoenix terminal on the industrial computer. Compared with the previous all-in-one industrial computer, adding a phoenix terminal requires changing the power supply line, or changing the panel, and optionally a DC transfer solution, which is also the main reason for customization.

Share VDI industrial all-in-one PC adds the standard interface of phoenix terminal, which not only reserves more expandable interfaces, but also greatly improves the environmental adaptability of users in some industrial scenarios such as high interface demand and one control multiple, and built-in 12~36V when the wide voltage input function is upgraded, it can be realized through the phoenix terminal interface.
