A15 15'' Panel PC Windows 10
Model: A15
● 15.6'' capacitive 10-point touch screen, Full IP65-rated panel

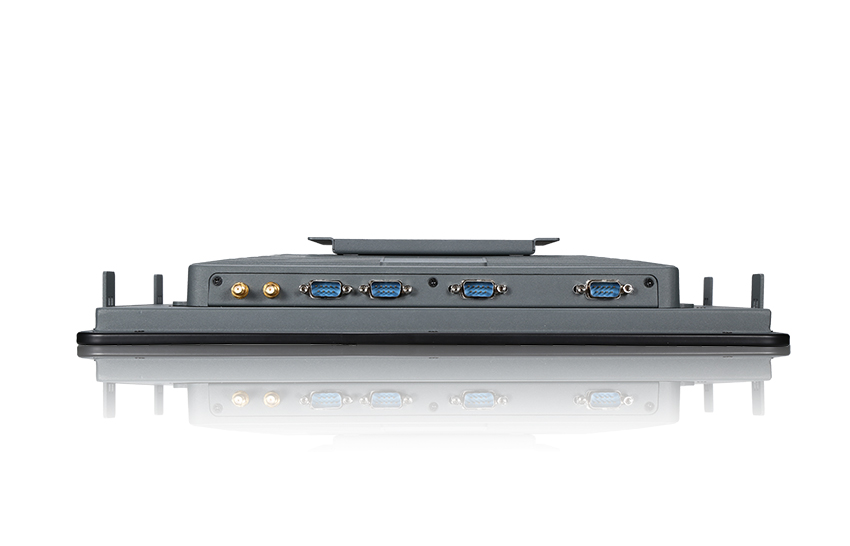

● With 1/2 x COM port (RS232 / RS485)
● With 1/2 x LAN port
● Support wide voltage 12- 64V power supply
● Support 4G LTE module,mini PCIE / M.2 expansion

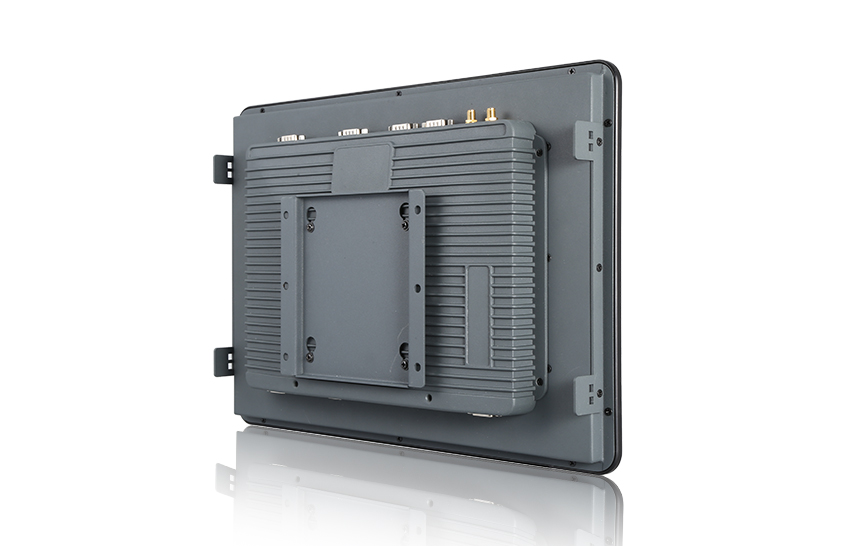

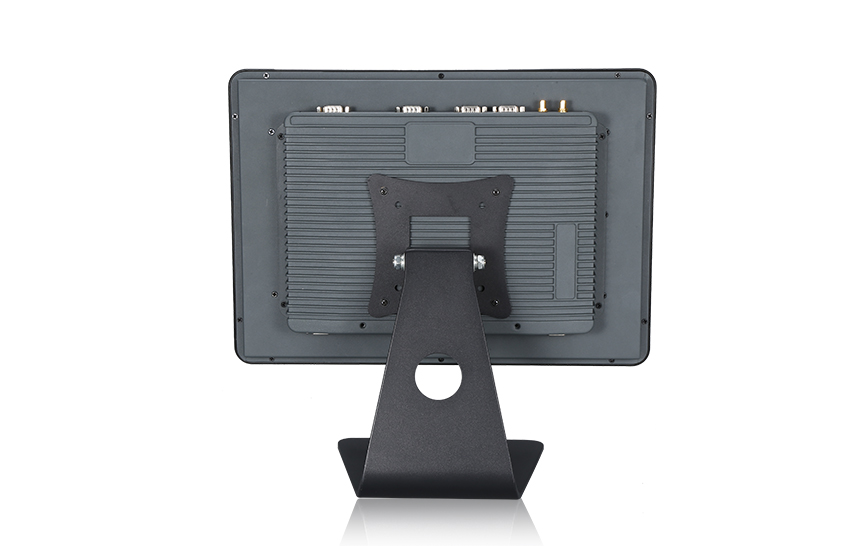

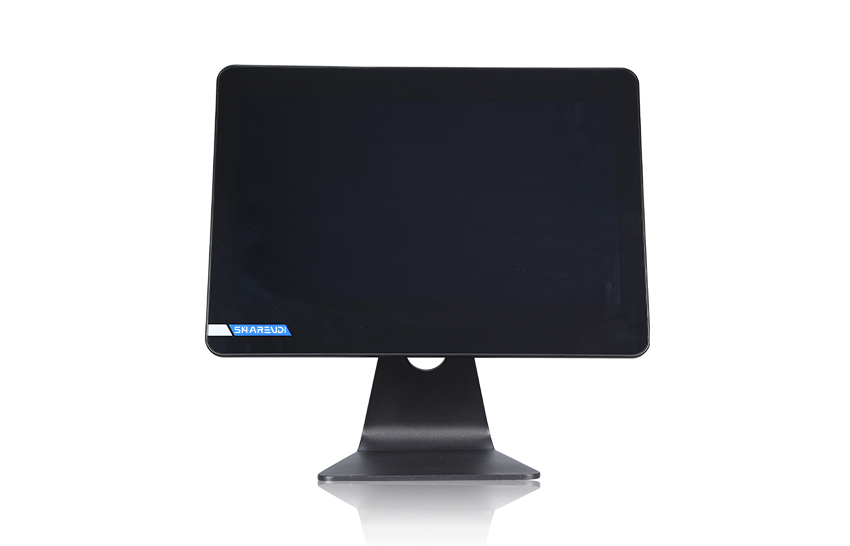

● Optional installation method, VESA / Stand / Embedded
● Wide range configuration available
Data Sheet 1

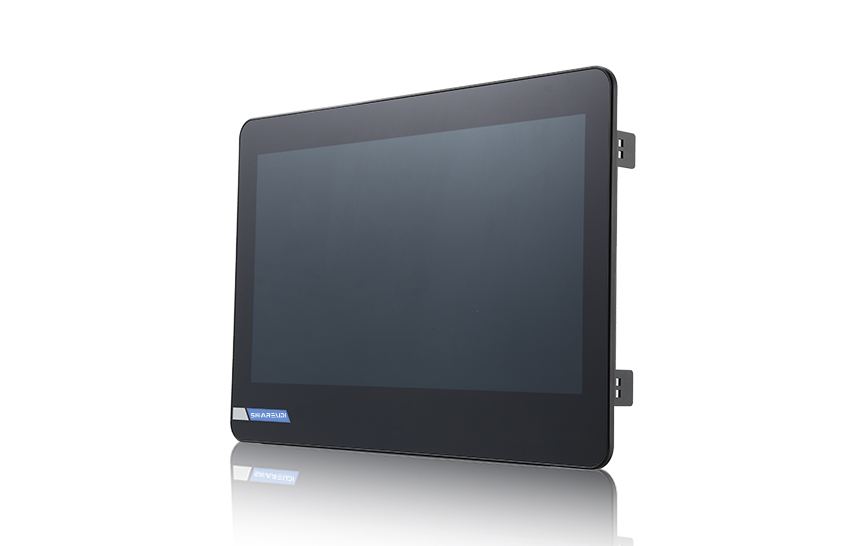

Send InquiryA15 is a 15.6'' fanless and rugged panel PC with 1080*1920p HD display touch screen.The housing adopt full IP65 rating panel for front and back protection against dust and water. The available different installation methods, VESA Mounting, Embedded and stand makes it suitable for various application scenarios.
-
Part No.A15-AMD 6500TA15-i3/i5/i7
-
-
Processor System
CPU
AMD A6 Micro-6500T
Intel Core I3-5005U/I5-5300U/I7-5500U
RAM
DDR3 2GB/4GB/8GB
DDR3 2GB/4GB/8GB
Storage
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
Display
Panel Size
15.6''
15.6''
Max. Resolution
1920*1080p
1920*1080p
Max. Colors
16.7M
16.7M
Treatment
Anti-Glare
Anti-Glare
Brightness
250-500nits
250-500nits
Viewing Direction
Full Viewing
Full Viewing
Aspect Ratio
16:9
16:9
-
Touch Screen
Touch Points
10 Points
10 Points
Type
Capacitive Touch
Capacitive Touch
-
Color
Gray
Gray
-
I/O Interface
Video output
1*VGA,1*HDMI
1*VGA,1*HDMI
Serial Port
1~2*RS232/RS485 (Upgradable)
1~2*RS232/RS485 (Upgradable)
USB Port
2*USB(Upgradable)
6*USB (Upgradable)
Ethernet
2*RJ45(Upgradable)
2*RJ45 (Upgradable)
Extendable Port
RS485, LPT, Phoenix terminal(Replace DC)
RS485, LPT, Phoenix terminal(Replace DC)
-
General
Certification
CE,FCC,ROHS,ISO
CE,FCC,ROHS,ISO
Dimension(W*H*D)
391*276*51 mm
391*276*51 mm
Power Input
AC100-240V.50-60HZ
AC100-240V.50-60HZ
Power Output
DC12V 5A
DC12V 5A
Mounting Options
Wall Mount/Embedded Vesa Mount/Vertical Stand
Wall Mount/Embedded Vesa Mount/Vertical Stand
Weight(Net)
4.2KG
4.2KG
-
Environment
Operating Temperature
-20 ~ 70℃
-20 ~ 70℃
Storage Temperature
-10 ~ 60℃
-10 ~ 60℃
Operation Humidity
10% ~ 80%
10% ~ 80%
Storage Humidity
10% ~ 90%
10% ~ 90%
-
CPU
A15-AMD 6500T
AMD A6 Micro-6500T
A15-i3/i5/i7
Intel Core I3-5005U/I5-5300U/I7-5500U
-
RAM
A15-AMD 6500T
DDR3 2GB/4GB/8GB
A15-i3/i5/i7
DDR3 2GB/4GB/8GB
-
Storage
A15-AMD 6500T
SSD 16GB/32GB/64GB/128GB/256GB/512GB
A15-i3/i5/i7
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
Panel Size
A15-AMD 6500T
15.6''
A15-i3/i5/i7
15.6''
-
Max. Resolution
A15-AMD 6500T
1920*1080p
A15-i3/i5/i7
1920*1080p
-
Max. Colors
A15-AMD 6500T
16.7M
A15-i3/i5/i7
16.7M
-
Treatment
A15-AMD 6500T
Anti-Glare
A15-i3/i5/i7
Anti-Glare
-
Brightness
A15-AMD 6500T
250-500nits
A15-i3/i5/i7
250-500nits
-
Viewing Direction
A15-AMD 6500T
Full Viewing
A15-i3/i5/i7
Full Viewing
-
Aspect Ratio
A15-AMD 6500T
16:9
A15-i3/i5/i7
16:9
-
Touch Points
A15-AMD 6500T
10 Points
A15-i3/i5/i7
10 Points
-
Type
A15-AMD 6500T
Capacitive Touch
A15-i3/i5/i7
Capacitive Touch
-
A15-AMD 6500T
Gray
A15-i3/i5/i7
Gray
-
Video output
A15-AMD 6500T
1*VGA,1*HDMI
A15-i3/i5/i7
1*VGA,1*HDMI
-
Serial Port
A15-AMD 6500T
1~2*RS232/RS485 (Upgradable)
A15-i3/i5/i7
1~2*RS232/RS485 (Upgradable)
-
USB Port
A15-AMD 6500T
2*USB(Upgradable)
A15-i3/i5/i7
6*USB (Upgradable)
-
Ethernet
A15-AMD 6500T
2*RJ45(Upgradable)
A15-i3/i5/i7
2*RJ45 (Upgradable)
-
Extendable Port
A15-AMD 6500T
RS485, LPT, Phoenix terminal(Replace DC)
A15-i3/i5/i7
RS485, LPT, Phoenix terminal(Replace DC)
-
Certification
A15-AMD 6500T
CE,FCC,ROHS,ISO
A15-i3/i5/i7
CE,FCC,ROHS,ISO
-
Dimension(W*H*D)
A15-AMD 6500T
391*276*51 mm
A15-i3/i5/i7
391*276*51 mm
-
Power Input
A15-AMD 6500T
AC100-240V.50-60HZ
A15-i3/i5/i7
AC100-240V.50-60HZ
-
Power Output
A15-AMD 6500T
DC12V 5A
A15-i3/i5/i7
DC12V 5A
-
Mounting Options
A15-AMD 6500T
Wall Mount/Embedded Vesa Mount/Vertical Stand
A15-i3/i5/i7
Wall Mount/Embedded Vesa Mount/Vertical Stand
-
Weight(Net)
A15-AMD 6500T
4.2KG
A15-i3/i5/i7
4.2KG
-
Operating Temperature
A15-AMD 6500T
-20 ~ 70℃
A15-i3/i5/i7
-20 ~ 70℃
-
Storage Temperature
A15-AMD 6500T
-10 ~ 60℃
A15-i3/i5/i7
-10 ~ 60℃
-
Operation Humidity
A15-AMD 6500T
10% ~ 80%
A15-i3/i5/i7
10% ~ 80%
-
Storage Humidity
A15-AMD 6500T
10% ~ 90%
A15-i3/i5/i7
10% ~ 90%
