K5-F24 11th-Gen Industrial PC
Model:
K5-F24-1155G7
● Built with Intel 11th gen Core i3/i5/i7 Processor, Iris Xe Graphics
● The quad-core processor features a turbo frequency of up to 4.70 GHz
● 2*DDR4L slots, max support 32G
● Support 4 Serial ports （Optional RS232/RS485)
● Support 2 Intel Ethernet Controller, Intel I226-V and Realtek 8111H
● Enables simultaneous triple-screen display (HDMI + VGA + DP)
● Support 4G LTE module
● Support TPM 2.0 (optional)
● Operates in a wide temperature range from -20°C to 65°C
Share：
The ShareVDI K5-F24 11th Gen rugged mini PC is equipped with high-performance 11th Gen Intel CPUs, offering options for i3, i5, and i7 processors to meet various computational needs. This fanless rugged mini PC features an upgraded enclosure that facilitates superior heat dissipation, ensuring reliable operation even under heavy workloads. With a comprehensive array of interfaces, the K5-F24 industrial rugged mini PC is designed for seamless connectivity and integration in industrial settings.
ShareVDI industrial rugged computer K5-F24 with robust industrial design guarantees dependable 24/7 operation, making it suitable for environments with temperature ranges from -10 to 60 degrees Celsius. This rugged embedded computer stands out as a reliable solution for industries that require both performance and durability.
High-Performance Processing Power
K5-F24 rugged mini PC is powered by the Intel 11th Gen Core i3/i5/i7 processor, enhanced with Iris Xe Graphics for superior visual performance. ShareVDI K5-F24 mini PC rugged excels in complex computational tasks, making it perfect for data-intensive operations in industrial settings.
Intel Core I5-1155G7 2.50 GHz-4.50 GHz,4 Cores / 8 Threads,8 MB Intel® Smart Cache
Intel Iris Xe Graphics
2xSO-DIMM DDR4 slot, max support 32G
1x M.2 2280 SATA/NVME SSD
1x SATA SSD/HDD, supports 2.5-inch hard driver
Multiple Interfaces Available
K5-F24 industrial rugged computer offers versatile connectivity for a range of peripherals and devices. It has 4 Serial ports, dual Ethernet controllers (Intel I216-V and Realtek 8111H), 3 displays, and RJ11,PS/2 ports. networking performance. This extensive connectivity makes the K5-F24 fanless rugged PC an excellent choice for various applications, allowing for seamless integration into existing industrial systems.
IO port | 2*USB3.0、4*USB2.0、4*COM、1*HDMI、1*DP、1*VGA、2*Ethernet、1*RJ11、1*PS/2、 1*DC、1*Audio IN & OUT
|
Extendable PIN onboard (optional) | 1 * 2PIN PW Phoenix Terminal；1 * 12-1 pin TPM2.0 pin；2 * 6PIN M. 2 hard disk mode switch PIN； 2 * 4PIN switch and indicator lamp pin； 3 * 9PIN USB2.0 pin； 1 * 4PIN CPU pin； 1 * 4PIN SATA extended hard disk 5V power supply interface；1 * 4PIN SPK power 1 * 4PIN SATA extended hard disk 5V power supply interface；1 * 4PIN SPK power amplifier pin； 1 * JATX-AT pin；1 * 3PIN JP1 jump RJ11 voltage pin； 2 * 5PIN GPIO pin,RS232/485 switch pin |
Support 3 displays simultaneously
The K5-F24 rugged mini PC shines in its ability to support triple-screen simultaneous display through HDMI, VGA, and DisplayPort connections. This feature is crucial in the applications where monitoring multiple data streams is necessary, allowing operators to maintain a comprehensive view of their systems on a mini PC rugged platform.
Reliable 24x7 Operation - ShareVDI Rugged PC K5-F24
The ShareVDI K5-F24 11th-Gen industrial rugged mini PC is engineered to meet the demanding needs of modern industrial applications. With its robust design and high-performance capabilities, this fanless rugged mini PC is ideal for environments where reliability and durability are essential.
Support 4G LTE and WIFI&Bluetooth Modules
For improved connectivity, the K5-F24 rugged embedded computer supports a 4G LTE module, providing reliable remote communication and data transfer in dynamic environments.Besides, it also support WIFI and Bluthooth module as optional modules on the motherboard
1 x M.2 E KEY 2230 slot, supports WIFI and Bluetooth modules
1 x M.2 PCIE slot, with SIM card slot, supports 4G/5G module
Support 4G Module and TPM 2.0
TPM 2.0 (optional) enhances the K5-F24 industrial rugged computer's security, protecting sensitive data from unauthorized access.
For enhanced connectivity and security, K5-F24 industrial rugged computer supports TPM 2.0 technology. It helps provides hardware-based security features that safeguard sensitive data against unauthorized access, ensuring compliance with industry standards.

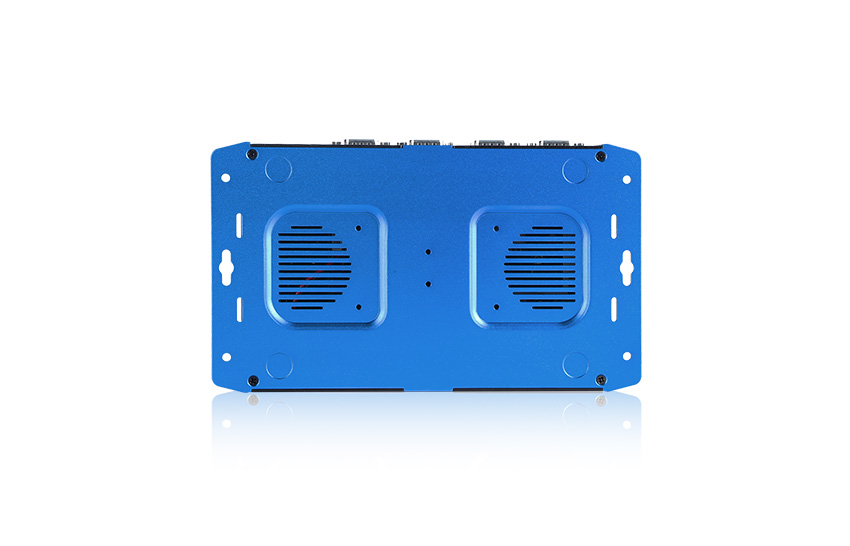

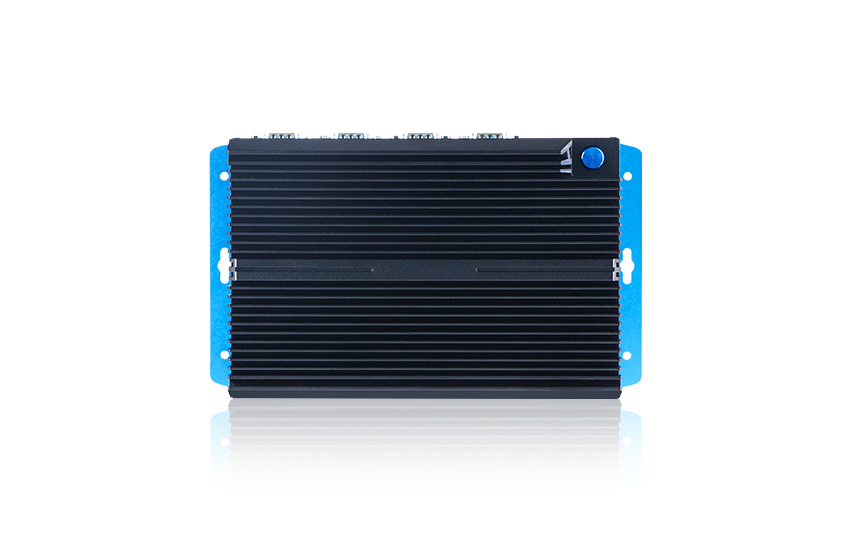

Double Heat Dissipation
The K5-F24 rugged embedded computer features a double heat dissipation design. On the one hand, it dissipates heat through the aluminum casing. On the other hand, there is an additional top cooling fan on it. The fan is isolated from the motherboard, which simplifies maintenance. Even if the fan fails, the motherboard will not be affected, providing double protection against PC breakdown due to overheating.
Support 9-36V Power Supply
Designed for flexibility in power supply options, K5-F24 fanless rugged mini PC supports a wide voltage range of 9-36V through its power connector. This adaptability makes it suitable for various industrial environments where power supply conditions may vary. This power connector is optional with K5-F24 Industrial rugged min PC,customer should clarify the needs before manufacturing.

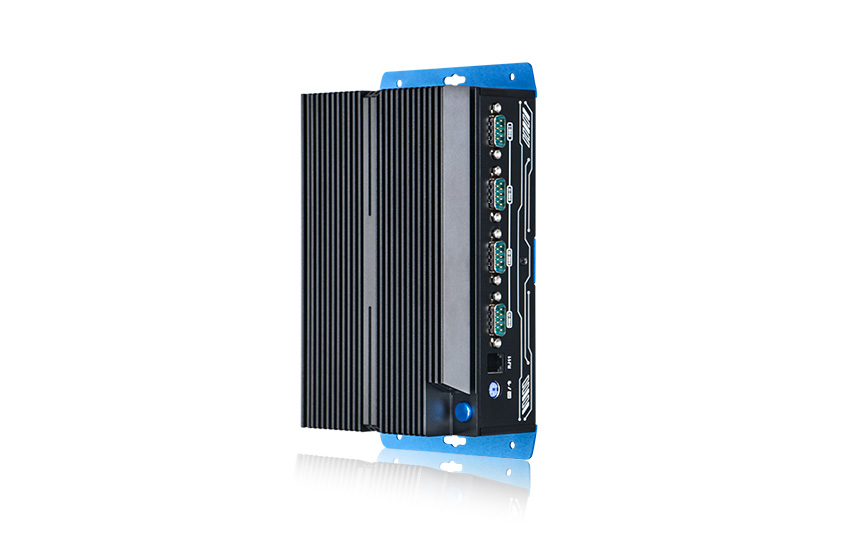

4 serial ports-RS232/RS485
Industrial mini Computer K5-F24 comes with 4 serial ports by default. The COM ports are optional for RS232 and RS485 by jumper on motherboard.
Broad Operating System
Rugged PC K5-F24 supports multiple operating systems, including Windows 10/11, Windows IoT, and Linux OS. It also accepts customized software or images, allowing businesses to implement tailored solutions that meet their specific operational requirements within their industrial HMI touch panel environments.
Specification K5-F24-1155G7
-
Part No.K5-F24-1155G7K7-F24-1185G7
-
-
Processor
CPU
Intel Core I5-1155G7，4 Cores / 8 Threads
Intel Core i7-1185G7, 4 Cores / 8 Threads
Frequency
2.5GHz
3.0GHz
Max Turbo Frequency
4.5GHz
4.8GHz
Cache
8 MB Intel® Smart Cache
8 MB Intel® Smart Cache
Chipset
Tiger Lake
Tiger Lake
-
Memory
Technology
2*DDR4L slots
2*DDR4L slots
Max. Capacity
32GB
32GB
-
Storage
M.2 SATA
SSD 64GB/128GB/256GB/512GB/1TB
SSD 64GB/128GB/256GB/512GB/1TB
SATA
HDD 500GB/1TB/2TB (Optional)
HDD 500GB/1TB/2TB (Optional)
-
Graphics
Graphics
Intel® Iris® Xe Graphics
Intel® Iris® Xe Graphics
-
Audio
Audio
HD Audio realtek ALC897
HD Audio realtek ALC897
-
Network
LAN
1 *Realtek 8111H Gigabit interface & 1* Intel I226-V network cards
1 *Realtek 8111H Gigabit interface & 1* Intel I226-V network cards
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
4G module
support 4G module with available sim slot
support 4G module with available sim slot
-
I/O Interface

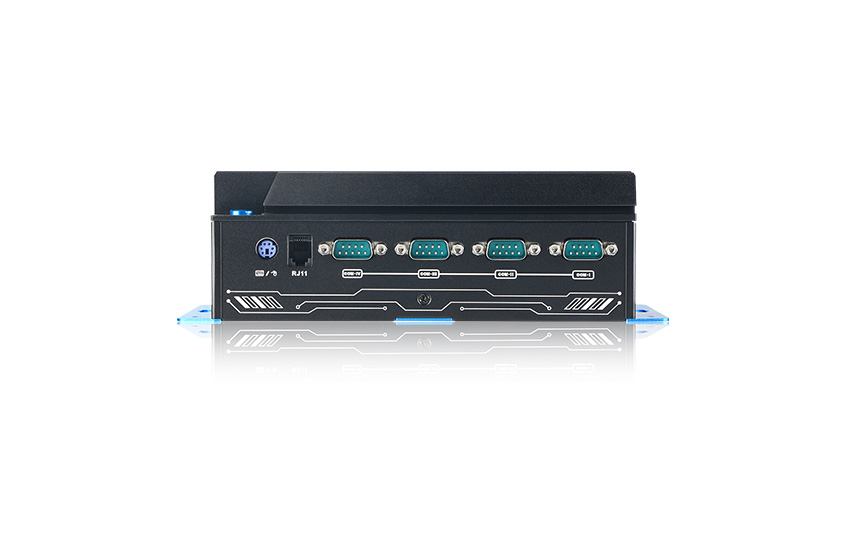

Front

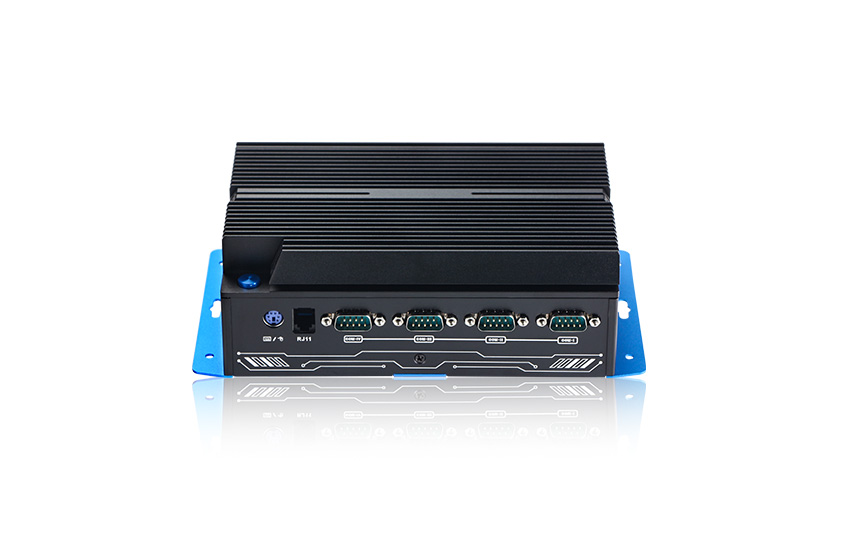

1*PS/2, 1*RJ11, 4*Serial RS232/RS485 COM
1*PS/2, 1*RJ11, 4*Serial RS232/RS485 COM

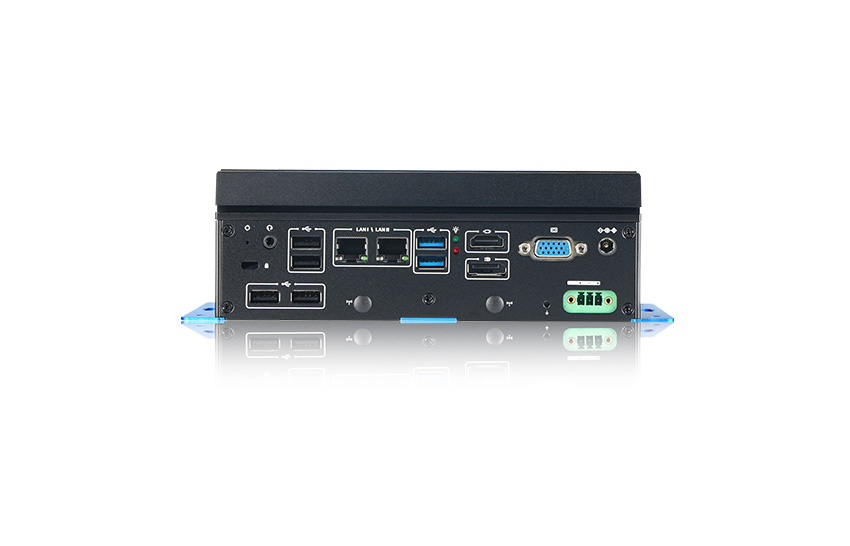

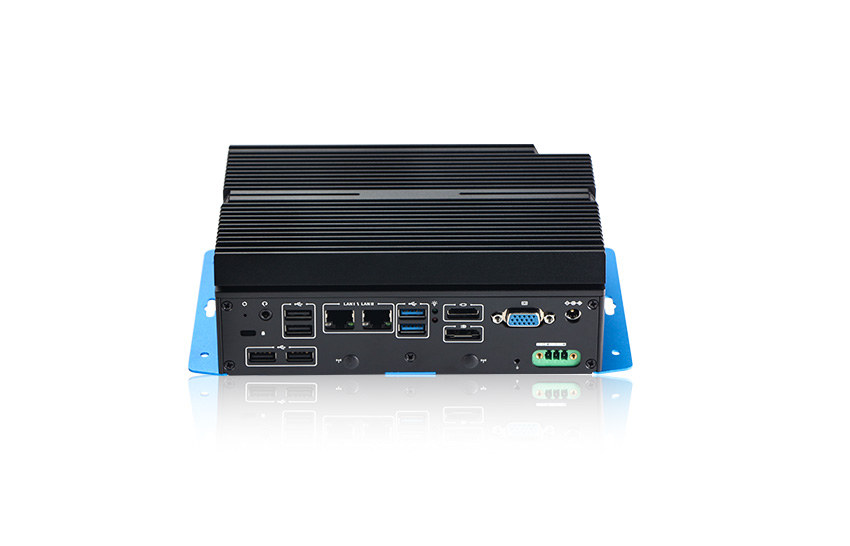

Rear
1*MIC& SPK, 2*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V
1*MIC& SPK, 2*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V
-
Extendable
I/O Ports
1 * 2PIN PW Phoenix Terminal；1 * 12-1 pin TPM2.0 pin；2 * 6PIN M. 2 hard disk mode switch PIN；2 * 4PIN switch and indicator lamp pin； 3 * 9PIN USB2.0 pin； 1 * 4PIN CPU pin； 1 * 4PIN SATA extended hard disk 5V power supply interface；1 * 4PIN SPK power amplifier pin； 1 * JATX-AT pin；1 * 3PIN JP1 jump RJ11 voltage pin； 2 * 5PIN GPIO pin； RS232/485 switch pin
1 * 2PIN PW Phoenix Terminal；1 * 12-1 pin TPM2.0 pin；2 * 6PIN M. 2 hard disk mode switch PIN；2 * 4PIN switch and indicator lamp pin； 3 * 9PIN USB2.0 pin； 1 * 4PIN CPU pin； 1 * 4PIN SATA extended hard disk 5V power supply interface；1 * 4PIN SPK power amplifier pin； 1 * JATX-AT pin；1 * 3PIN JP1 jump RJ11 voltage pin； 2 * 5PIN GPIO pin； RS232/485 switch pin
Module
4G LTE , WIFI+Bluetooth Module (M.2 PCIE)
4G LTE , WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V. 50-60Hz DC
AC100-240V. 50-60Hz DC
Output
12V-5A
12V-5A
Wide Voltage
12-64V phoenix connector（Optional）
12-64V phoenix connector（Optional）
-
Operating System
Windows 10、11 & Linux
Windows 10、11 & Linux
-
Physical
Dimension
L 185mm*W 126.5mm*H 70mm
L 185mm*W 126.5mm*H 70mm
Weight(Net)
1.2KG
1.2KG
Color
Black
Black
Cooling Method
Built-in fan cooling
Built-in fan cooling
Mounting Options
Dedicated bracket;Support VESA bracket
Dedicated bracket;Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
-10~60 ℃
Storage Temperature
-10~60 ℃
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Processor
-
CPU
K5-F24-1155G7
Intel Core I5-1155G7，4 Cores / 8 Threads
K7-F24-1185G7
Intel Core i7-1185G7, 4 Cores / 8 Threads
-
Frequency
K5-F24-1155G7
2.5GHz
K7-F24-1185G7
3.0GHz
-
Max Turbo Frequency
K5-F24-1155G7
4.5GHz
K7-F24-1185G7
4.8GHz
-
Cache
K5-F24-1155G7
8 MB Intel® Smart Cache
K7-F24-1185G7
8 MB Intel® Smart Cache
-
Chipset
K5-F24-1155G7
Tiger Lake
K7-F24-1185G7
Tiger Lake
Memory
-
Technology
K5-F24-1155G7
2*DDR4L slots
K7-F24-1185G7
2*DDR4L slots
-
Max. Capacity
K5-F24-1155G7
32GB
K7-F24-1185G7
32GB
Storage
-
M.2 SATA
K5-F24-1155G7
SSD 64GB/128GB/256GB/512GB/1TB
K7-F24-1185G7
SSD 64GB/128GB/256GB/512GB/1TB
-
SATA
K5-F24-1155G7
HDD 500GB/1TB/2TB (Optional)
K7-F24-1185G7
HDD 500GB/1TB/2TB (Optional)
Graphics
-
Graphics
K5-F24-1155G7
Intel® Iris® Xe Graphics
K7-F24-1185G7
Intel® Iris® Xe Graphics
Audio
-
Audio
K5-F24-1155G7
HD Audio realtek ALC897
K7-F24-1185G7
HD Audio realtek ALC897
Network
-
LAN
K5-F24-1155G7
1 *Realtek 8111H Gigabit interface & 1* Intel I226-V network cards
K7-F24-1185G7
1 *Realtek 8111H Gigabit interface & 1* Intel I226-V network cards
-
Wireless
K5-F24-1155G7
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
K7-F24-1185G7
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
4G module
K5-F24-1155G7
support 4G module with available sim slot
K7-F24-1185G7
support 4G module with available sim slot
I/O Interface
-
Front
K5-F24-1155G7
1*PS/2, 1*RJ11, 4*Serial RS232/RS485 COM
K7-F24-1185G7
1*PS/2, 1*RJ11, 4*Serial RS232/RS485 COM
-
Rear
K5-F24-1155G7
1*MIC& SPK, 2*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V
K7-F24-1185G7
1*MIC& SPK, 2*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V
Extendable
-
I/O Ports
K5-F24-1155G7
1 * 2PIN PW Phoenix Terminal；1 * 12-1 pin TPM2.0 pin；2 * 6PIN M. 2 hard disk mode switch PIN；2 * 4PIN switch and indicator lamp pin； 3 * 9PIN USB2.0 pin； 1 * 4PIN CPU pin； 1 * 4PIN SATA extended hard disk 5V power supply interface；1 * 4PIN SPK power amplifier pin； 1 * JATX-AT pin；1 * 3PIN JP1 jump RJ11 voltage pin； 2 * 5PIN GPIO pin； RS232/485 switch pin
K7-F24-1185G7
1 * 2PIN PW Phoenix Terminal；1 * 12-1 pin TPM2.0 pin；2 * 6PIN M. 2 hard disk mode switch PIN；2 * 4PIN switch and indicator lamp pin； 3 * 9PIN USB2.0 pin； 1 * 4PIN CPU pin； 1 * 4PIN SATA extended hard disk 5V power supply interface；1 * 4PIN SPK power amplifier pin； 1 * JATX-AT pin；1 * 3PIN JP1 jump RJ11 voltage pin； 2 * 5PIN GPIO pin； RS232/485 switch pin
-
Module
K5-F24-1155G7
4G LTE , WIFI+Bluetooth Module (M.2 PCIE)
K7-F24-1185G7
4G LTE , WIFI+Bluetooth Module (M.2 PCIE)
Power
-
Input
K5-F24-1155G7
AC100-240V. 50-60Hz DC
K7-F24-1185G7
AC100-240V. 50-60Hz DC
-
Output
K5-F24-1155G7
12V-5A
K7-F24-1185G7
12V-5A
-
Wide Voltage
K5-F24-1155G7
12-64V phoenix connector（Optional）
K7-F24-1185G7
12-64V phoenix connector（Optional）
Operating System
-
K5-F24-1155G7
Windows 10、11 & Linux
K7-F24-1185G7
Windows 10、11 & Linux
Physical
-
Dimension
K5-F24-1155G7
L 185mm*W 126.5mm*H 70mm
K7-F24-1185G7
L 185mm*W 126.5mm*H 70mm
-
Weight(Net)
K5-F24-1155G7
1.2KG
K7-F24-1185G7
1.2KG
-
Color
K5-F24-1155G7
Black
K7-F24-1185G7
Black
-
Cooling Method
K5-F24-1155G7
Built-in fan cooling
K7-F24-1185G7
Built-in fan cooling
-
Mounting Options
K5-F24-1155G7
Dedicated bracket;Support VESA bracket
K7-F24-1185G7
Dedicated bracket;Support VESA bracket
-
Certification
K5-F24-1155G7
CE, FCC, ROHS, ISO, UL
K7-F24-1185G7
CE, FCC, ROHS, ISO, UL
Environment
-
Operating Temperature
K5-F24-1155G7
-10~60 ℃
K7-F24-1185G7
-10~60 ℃
-
Storage Temperature
K5-F24-1155G7
-10~60 ℃
K7-F24-1185G7
-10~60 ℃
-
Operation Humidity
K5-F24-1155G7
0~95% (No Condensation)
K7-F24-1185G7
0~95% (No Condensation)
-
Storage Humidity
K5-F24-1155G7
0~95% (No Condensation)
K7-F24-1185G7
0~95% (No Condensation)
