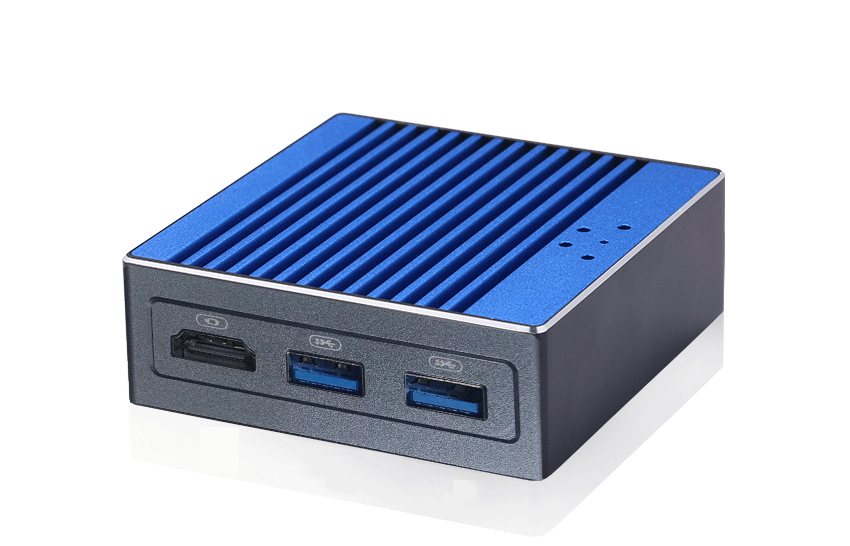

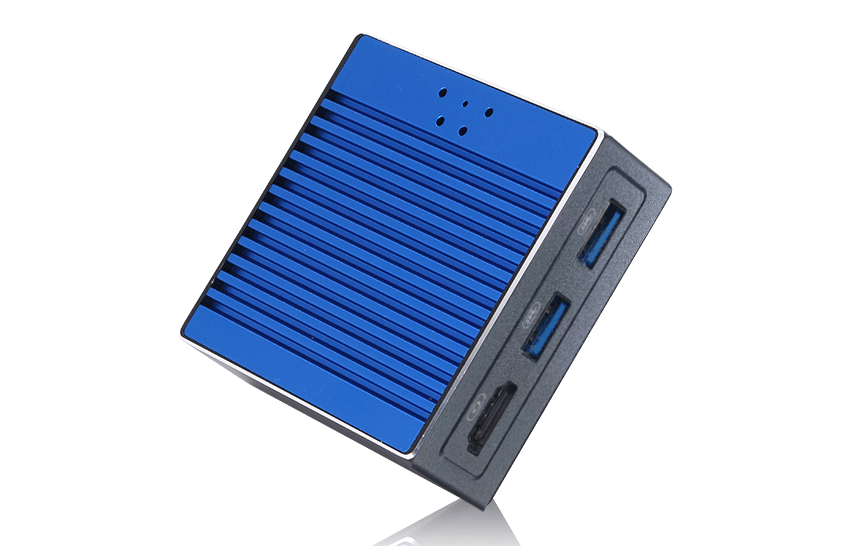

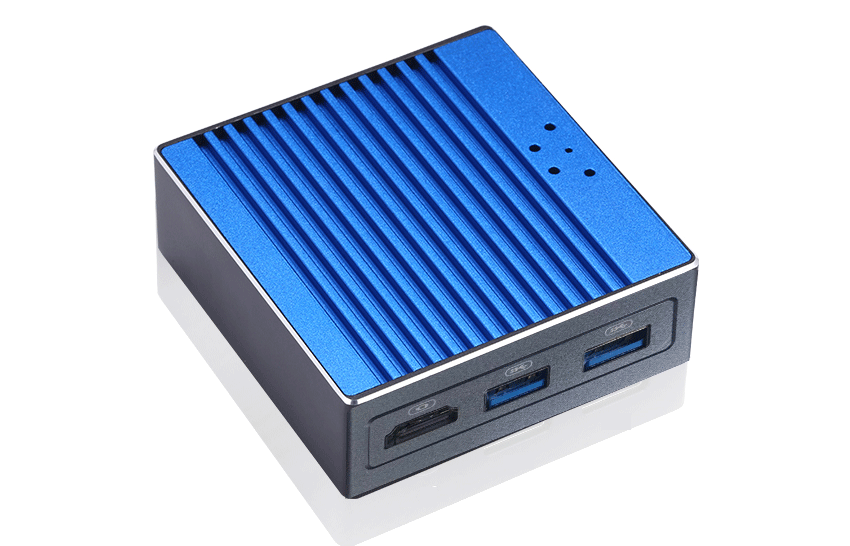

G4C Dual-Ethernet Router OpenWRT
Model: G4C

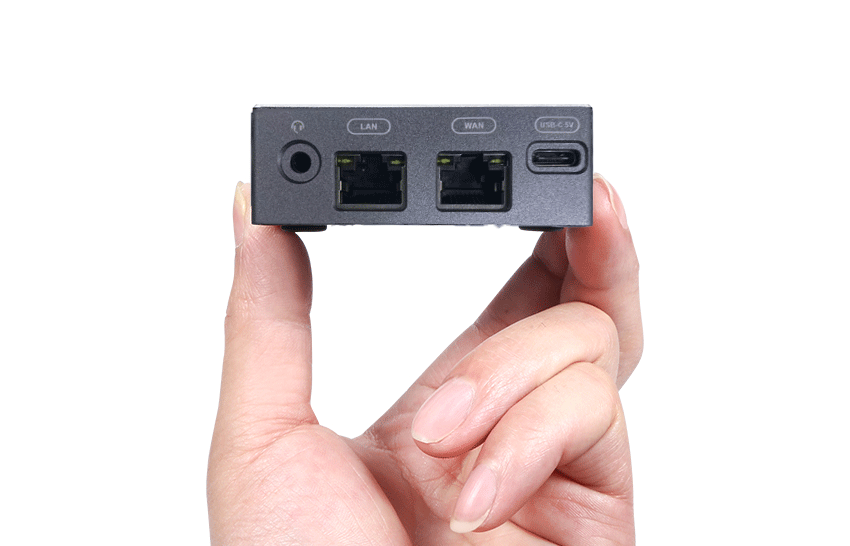

● Full Aluminum,Micro portable size
● Processor RockchipRK3399,6-core 64-bit 2.0GHz
● DUAL GBPS ETHERNET PORTS
● Support external USB wifi adapter,2.4G+5G
● Support FriendlyWr OPEN SOURCE & PROGRAMMABLE
● Customizable MAC address
● Can be a VPN server, Firewall Router appliance
● Suitable for IoT applications, NAS applications, smart home gateways
Data Sheet 1
Send InquiryG4C 4GB RAM LPDDR4, up to 128GB MicroSD slot, USB3.0 Host x2: USB Type A; USB 2.0 Host x1: 2.54mm 4pin-header;Type-C x1: Power Input Only , Dual Gigabit Ethernet ports (1 WAN and 1 LAN). It can support external USB wifi adapter. Simultaneous dual band with wireless speed 150Mbps(2.4G)+433Mbps(5G).Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing.
It can support FriendlyWrt, which is a customized system based on an OpenWrt distribution. It is open source and well suitable for developing IoT applications, NAS applications, smart home gateways etc.
G4C has two Gbps Ethernet ports,one directly extended from the SoC and the other converted from a PCIe.gets around 934Mbits/second download and upload.
G4C has no No MAC Chip. According to other hardware IDs, the software automatically generates a MAC address, which does not affect the network communication function and speed, the best choice for individual users. ShareVDI can also provide custimizable MAC address according to client's requirement.
-
Part No.G4C-RK3399
-
-
Processor
CPU
RK3399 (28 NM HKMG procedure)
Core number
6 cores 64 bit
Frequency
Dual-core Cortex-A72 up to 2.0GHz, Dual-core Cortex-A53 up to 1.5GHz
Max Turbo Frequency
2.0GHz
Chipset
ARM
-
GPU
GPU
Mail-T860 MP4 quad-core GPU Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, support AFBC (frame buffer compression)
-
Memory
Memory
LPDDR4 1G/(4G MAX)
-
Storage
EMMC
16G optional
Expansion
TF card
-
I/O Interface
Front

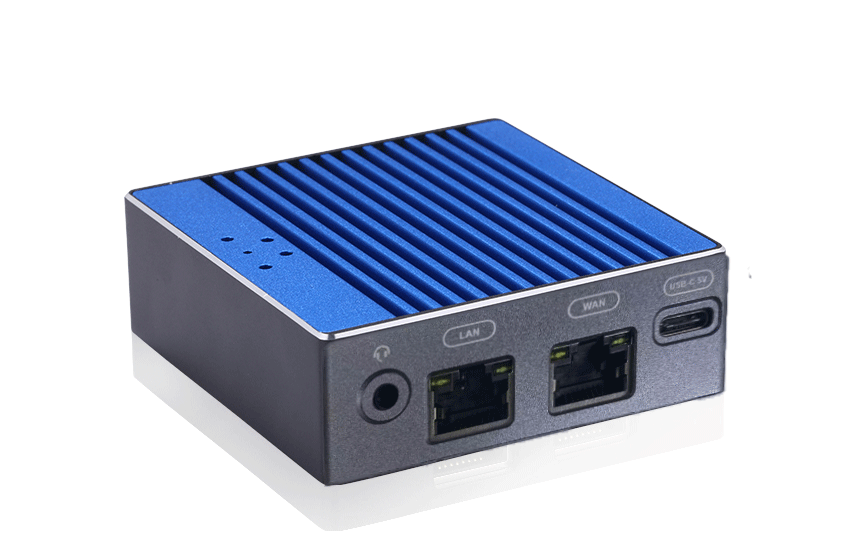

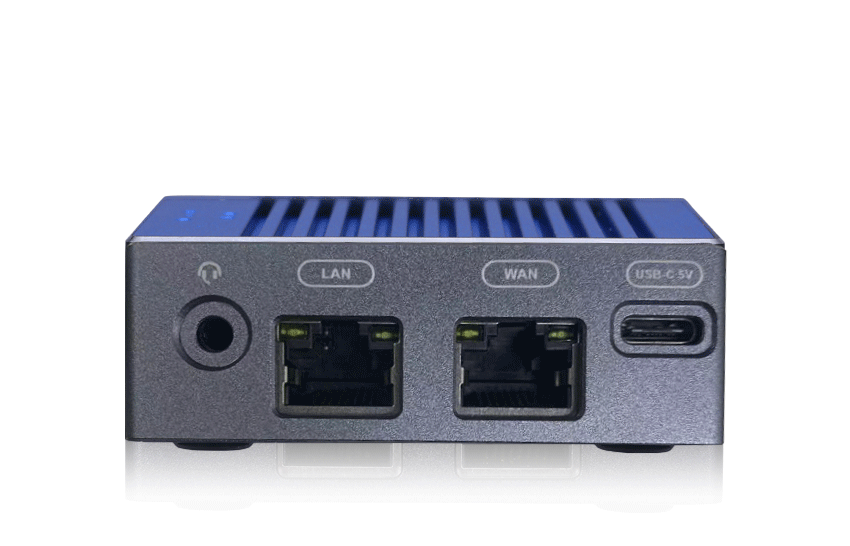

2*LAN(WAN+LAN), Type-C 5V input
Rear
2*USB3.0，TF Card Slot
-
Network
Network
Support Ethernet 10/100/1000Mbps, support Ethernet TX/RX:935Mbps
-
Power adapter
Power adapter
Type-C 5V input
-
Operating System
Operating System
OpenWRT or CentOS
-
Physical
Dimension
65*65mm
Weight(Net)
0.3kg
Color
Blue
Cooling Method
Fanless Passive Cooling
Certification
CE,FCC,ROHS,ISO
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
G4C-RK3399
RK3399 (28 NM HKMG procedure)
-
Core number
G4C-RK3399
6 cores 64 bit
-
Frequency
G4C-RK3399
Dual-core Cortex-A72 up to 2.0GHz, Dual-core Cortex-A53 up to 1.5GHz
-
Max Turbo Frequency
G4C-RK3399
2.0GHz
-
Chipset
G4C-RK3399
ARM
-
GPU
G4C-RK3399
Mail-T860 MP4 quad-core GPU Support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, support AFBC (frame buffer compression)
-
Memory
G4C-RK3399
LPDDR4 1G/(4G MAX)
-
EMMC
G4C-RK3399
16G optional
-
Expansion
G4C-RK3399
TF card
-
Front
G4C-RK3399
2*LAN(WAN+LAN), Type-C 5V input
-
Rear
G4C-RK3399
2*USB3.0，TF Card Slot
-
Network
G4C-RK3399
Support Ethernet 10/100/1000Mbps, support Ethernet TX/RX:935Mbps
-
Power adapter
G4C-RK3399
Type-C 5V input
-
Operating System
G4C-RK3399
OpenWRT or CentOS
-
Dimension
G4C-RK3399
65*65mm
-
Weight(Net)
G4C-RK3399
0.3kg
-
Color
G4C-RK3399
Blue
-
Cooling Method
G4C-RK3399
Fanless Passive Cooling
-
Certification
G4C-RK3399
CE,FCC,ROHS,ISO
-
Operating Temperature
G4C-RK3399
-10~60 ℃
-
Storage Temperature
G4C-RK3399
-10~60 ℃
-
Operation Humidity
G4C-RK3399
0~95% (No Condensation)
-
Storage Humidity
G4C-RK3399
0~95% (No Condensation)
