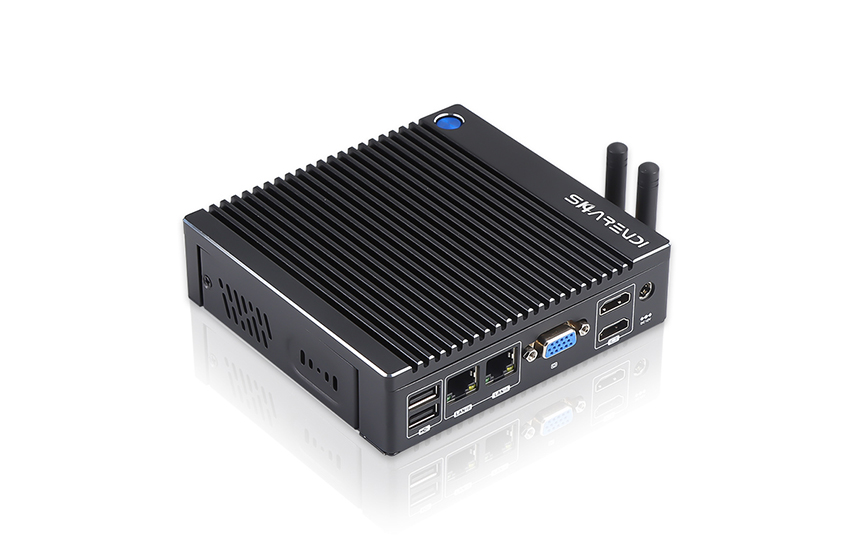

K6-F13H Mini PC COM
Model:
K6-F13H-N3150
● Fanless Industrial design
● Intel Celeron N3150 quad core
● 2*LAN ports
● 1*RS232 Seriel port
● 4*USB 3.0, 2*USB 2.0
● Triple Display, 2*HDMI+1*VGA
● Preinstalled Windows/Linux
● Support RPL / PXE, wake on lan, electricity boot, WDT
K6-F13H is small, fanless Mini PC with rich interfaces available. The processor adopt ultra low power consumption Intel Celeron N3150, only 6W TDP, which is designed for 7/24h working in a compact and tough environment.
-
Part No.K6-F13H-N3150
-
-
Processor
CPU
Intel Celeron N3150, 4 Cores / 4 Threads
Frequency
1.60GHz
Max Turbo Frequency
2.08GHz
Cache
2MB L2 Cache
Chipset
Bay Trail
-
Memory
Technology
1*DDR3L slot
Max. Capacity
8GB
-
Storage
MSATA
SSD 32GB/64GB/128GB/256GB/512GB
SATA
Optional HDD
-
Graphics
Graphics
Intel® Celeron® Processor N3000 Series
-
Audio
Audio
HD Audio realtek ALC 662
-
Network
LAN
10/100/1000Mbps Adaptive, RTL 8111F
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
I/O Interface
Front

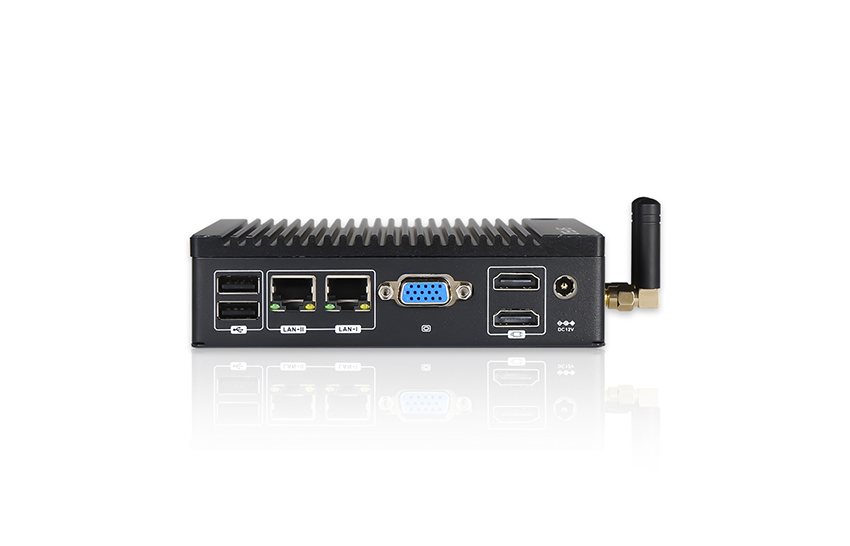

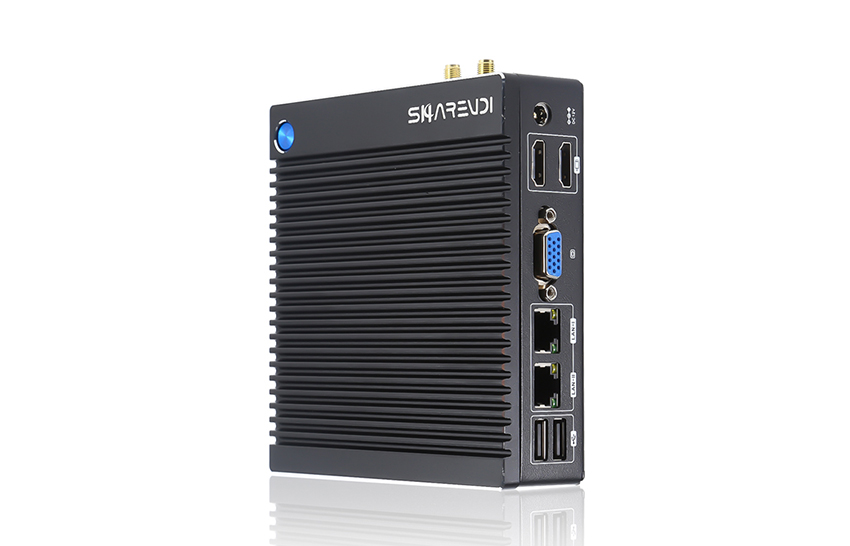

2*HDMI, 2*USB2.0, 2*RJ45,1*VGA, DC12V Input
Rear

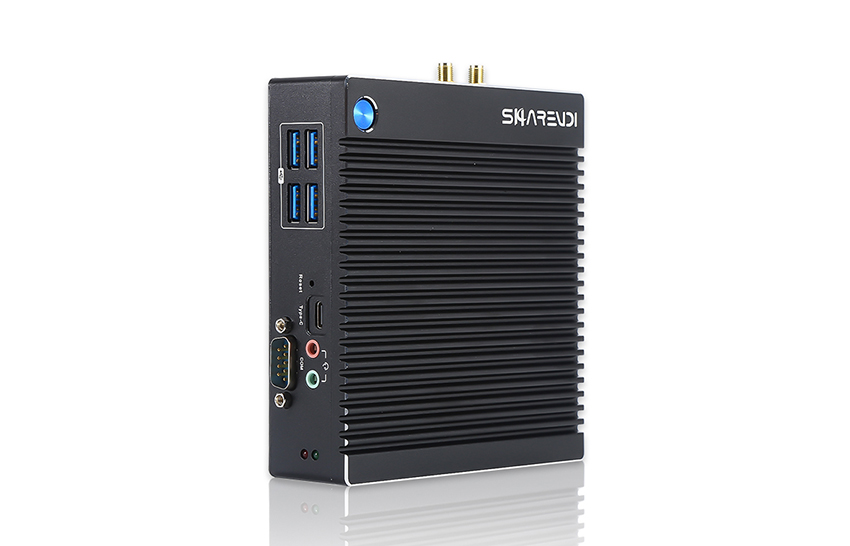

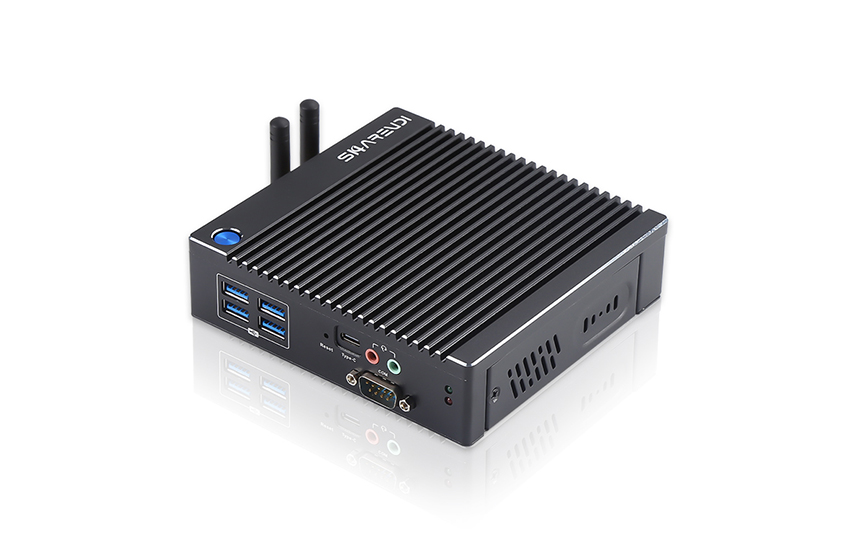

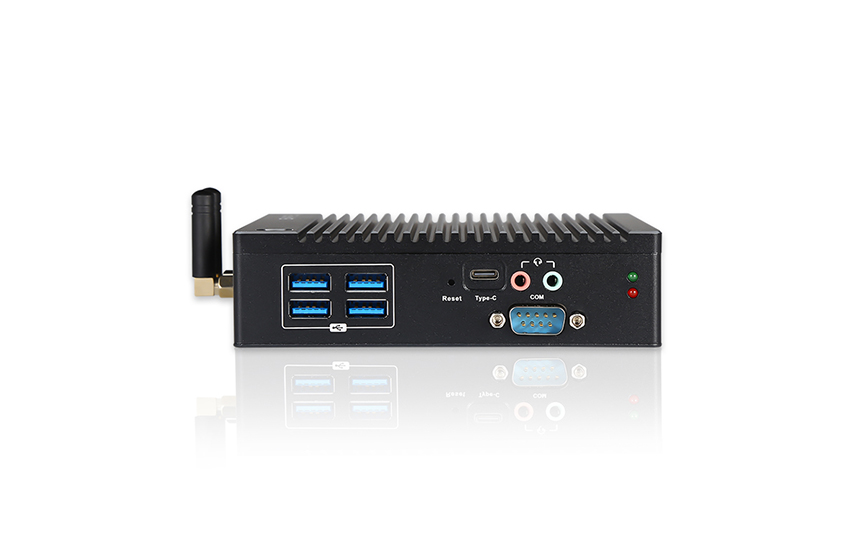

4*USB3.0, 1*Type-C,1*COM, MIC, SPK
-
Extendable
Module
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V. 50-60Hz DC
Output
12V-3A
-
Operating System
Windows/Linux
-
Physical
Dimension
L 133.8mm*W 126.6mm*H 36.5mm
Weight(Net)
0.6KG
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Certification
CE,FCC,ROHS,ISO
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-15~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
