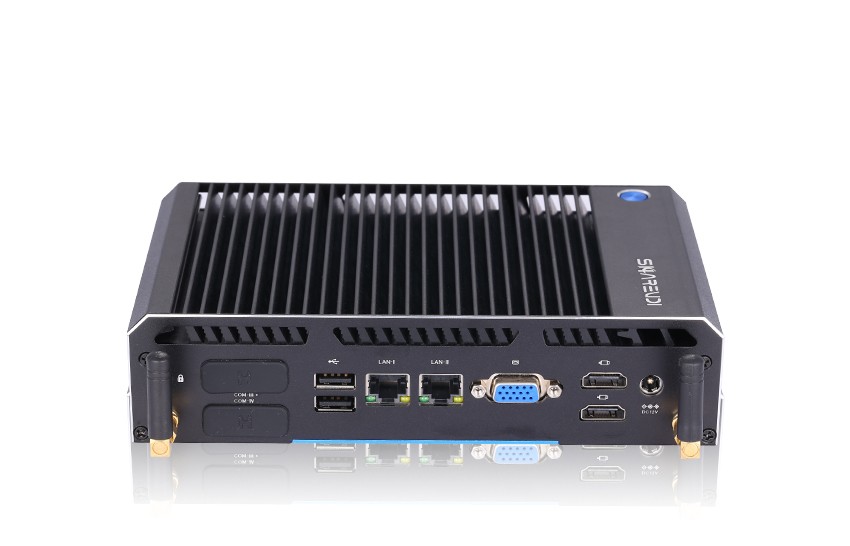

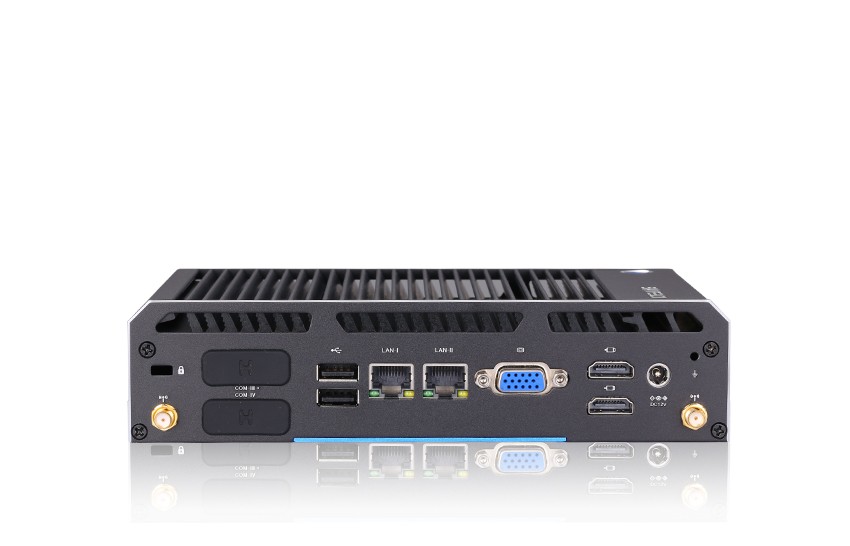

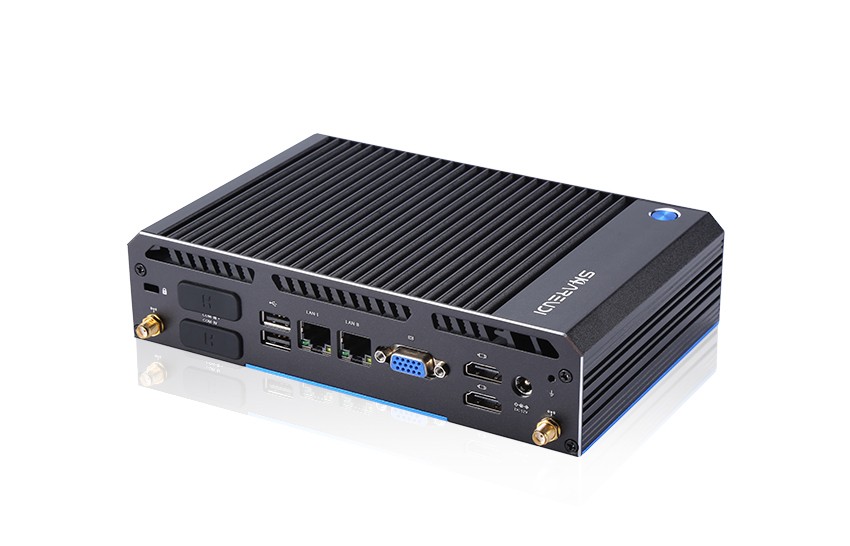

K7-F17H Industrial PC Fanless i7
Model: K7-F17H
● Industrial Fanless System with compact rugged design
● Powerful Intel core i7 processor
● Extendable 4 xCOM RS232/RS485
● 2 x Ethernet ports
● Support 4G LTE module
● Support TPM 2.0 (optional)
● Support 3G / 4G LTE Module
● 12V ~ 64V wide range power input
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● -20 ~ 65 °C working temperature
Data Sheet 1
Send InquiryPowered by Intel i7 processor, K7-F17H is a rugged industrial PC with 4 COM RS232/RS485 by default. It features its multiple and customizable I/O, and the high durability.
-
Part No.K7-F17H-5500UK7-F17H-5600U
-
-
Processor
CPU
Intel Core i7 5500U
Intel Core i7 5600U
Core Number
2 Cores/4 Threads
2 Cores/4 Threads
Frequency
2.4GHz
2.6GHz
Max Turbo Frequency
3.0GHz
3.2GHz
Chipset
Broadwell
Broadwell
Graphics
Intel HD Graphics 5500
Intel HD Graphics 5500
-
Memory
Technology
2*DDR3L slots
2*DDR3L slots
Max. Capacity
16GB
16GB
-
Storage
MSATA
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SATA
Optional HDD
Optional HDD
-
Graphics
Intel HD Graphics 5500
Intel HD Graphics 5500
-
Audio
HD Audio realtek ALC 662
HD Audio realtek ALC 662
-
Network
LAN
10/100/1000Mbps Adaptive, RTL 8111E
10/100/1000Mbps Adaptive, RTL 8111E
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
I/O Interface
Front
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
Rear
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
Extendable
Module
WIFI+Bluetooth Module
WIFI+Bluetooth Module
Antenna
External antennas
External antennas
-
Power
Input
AC100-240V.50-60HZ DC
AC100-240V.50-60HZ DC
Output
12V - 5A
12V - 5A
Wide Voltage
12-64V phoenix connector （Optional）
12-64V phoenix connector （Optional）
-
Operating System
Windows/Linux
Windows/Linux
-
Physical
Dimension
L 197.4mm*W 126.3mm*H 47.5mm
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0kg
1.0kg
Color
Black
Black
Cooling Method
Fanless Passive Cooling
Fanless Passive Cooling
Mounting Options
Desk/ Wall Mount/Embedded/ DIN Rail
Desk/ Wall Mount/Embedded/ DIN Rail
Certification
CE, FCC, ROHS, ISO, UL
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
-10~60 ℃
Storage Temperature
-10~60 ℃
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
0~95% (No Condensation)
-
CPU
K7-F17H-5500U
Intel Core i7 5500U
K7-F17H-5600U
Intel Core i7 5600U
-
Core Number
K7-F17H-5500U
2 Cores/4 Threads
K7-F17H-5600U
2 Cores/4 Threads
-
Frequency
K7-F17H-5500U
2.4GHz
K7-F17H-5600U
2.6GHz
-
Max Turbo Frequency
K7-F17H-5500U
3.0GHz
K7-F17H-5600U
3.2GHz
-
Chipset
K7-F17H-5500U
Broadwell
K7-F17H-5600U
Broadwell
-
Graphics
K7-F17H-5500U
Intel HD Graphics 5500
K7-F17H-5600U
Intel HD Graphics 5500
-
Technology
K7-F17H-5500U
2*DDR3L slots
K7-F17H-5600U
2*DDR3L slots
-
Max. Capacity
K7-F17H-5500U
16GB
K7-F17H-5600U
16GB
-
MSATA
K7-F17H-5500U
SSD 16GB/32GB/64GB/128GB/256GB/512GB
K7-F17H-5600U
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
SATA
K7-F17H-5500U
Optional HDD
K7-F17H-5600U
Optional HDD
-
K7-F17H-5500U
Intel HD Graphics 5500
K7-F17H-5600U
Intel HD Graphics 5500
-
K7-F17H-5500U
HD Audio realtek ALC 662
K7-F17H-5600U
HD Audio realtek ALC 662
-
LAN
K7-F17H-5500U
10/100/1000Mbps Adaptive, RTL 8111E
K7-F17H-5600U
10/100/1000Mbps Adaptive, RTL 8111E
-
Wireless
K7-F17H-5500U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
K7-F17H-5600U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
Front
K7-F17H-5500U
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
K7-F17H-5600U
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
-
Rear
K7-F17H-5500U
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
K7-F17H-5600U
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
Module
K7-F17H-5500U
WIFI+Bluetooth Module
K7-F17H-5600U
WIFI+Bluetooth Module
-
Antenna
K7-F17H-5500U
External antennas
K7-F17H-5600U
External antennas
-
Input
K7-F17H-5500U
AC100-240V.50-60HZ DC
K7-F17H-5600U
AC100-240V.50-60HZ DC
-
Output
K7-F17H-5500U
12V - 5A
K7-F17H-5600U
12V - 5A
-
Wide Voltage
K7-F17H-5500U
12-64V phoenix connector （Optional）
K7-F17H-5600U
12-64V phoenix connector （Optional）
-
K7-F17H-5500U
Windows/Linux
K7-F17H-5600U
Windows/Linux
-
Dimension
K7-F17H-5500U
L 197.4mm*W 126.3mm*H 47.5mm
K7-F17H-5600U
L 197.4mm*W 126.3mm*H 47.5mm
-
Weight(Net)
K7-F17H-5500U
1.0kg
K7-F17H-5600U
1.0kg
-
Color
K7-F17H-5500U
Black
K7-F17H-5600U
Black
-
Cooling Method
K7-F17H-5500U
Fanless Passive Cooling
K7-F17H-5600U
Fanless Passive Cooling
-
Mounting Options
K7-F17H-5500U
Desk/ Wall Mount/Embedded/ DIN Rail
K7-F17H-5600U
Desk/ Wall Mount/Embedded/ DIN Rail
-
Certification
K7-F17H-5500U
CE, FCC, ROHS, ISO, UL
K7-F17H-5600U
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K7-F17H-5500U
-10~60 ℃
K7-F17H-5600U
-10~60 ℃
-
Storage Temperature
K7-F17H-5500U
-10~60 ℃
K7-F17H-5600U
-10~60 ℃
-
Operation Humidity
K7-F17H-5500U
0~95% (No Condensation)
K7-F17H-5600U
0~95% (No Condensation)
-
Storage Humidity
K7-F17H-5500U
0~95% (No Condensation)
K7-F17H-5600U
0~95% (No Condensation)
