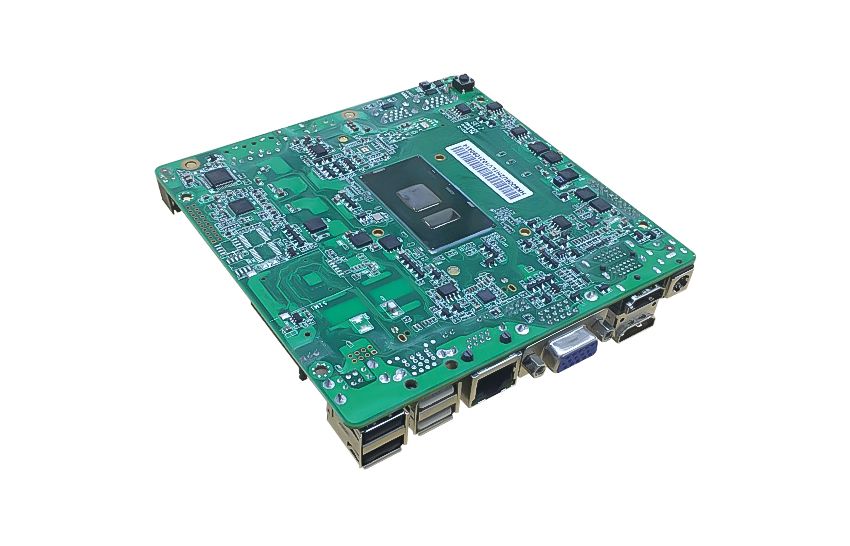

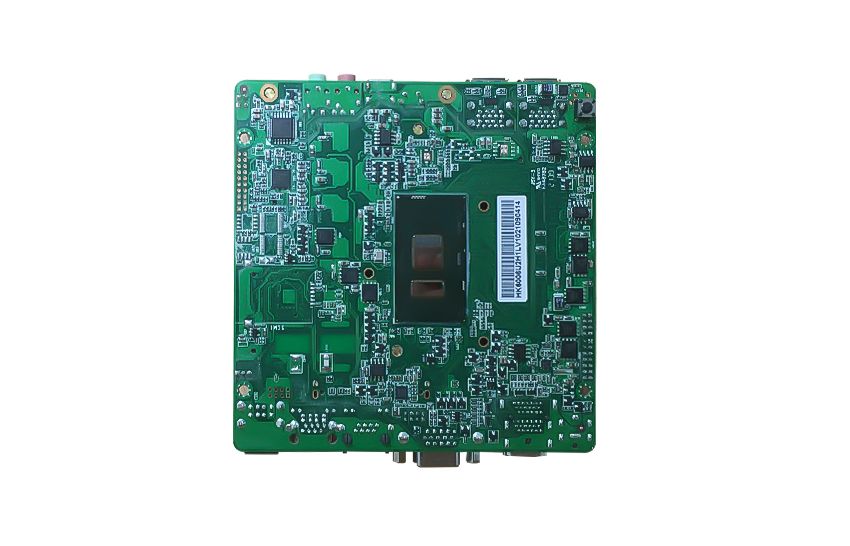

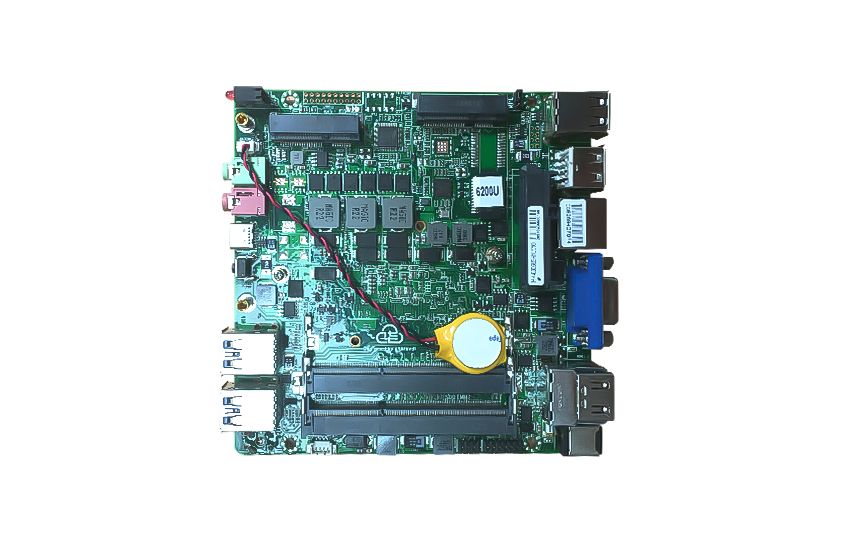

NANO-ITX AIMB-K502

Model: AIMB-K502

● 6th Gen Intel® , 15W TDP

● 2x RAM DDR3 Slot

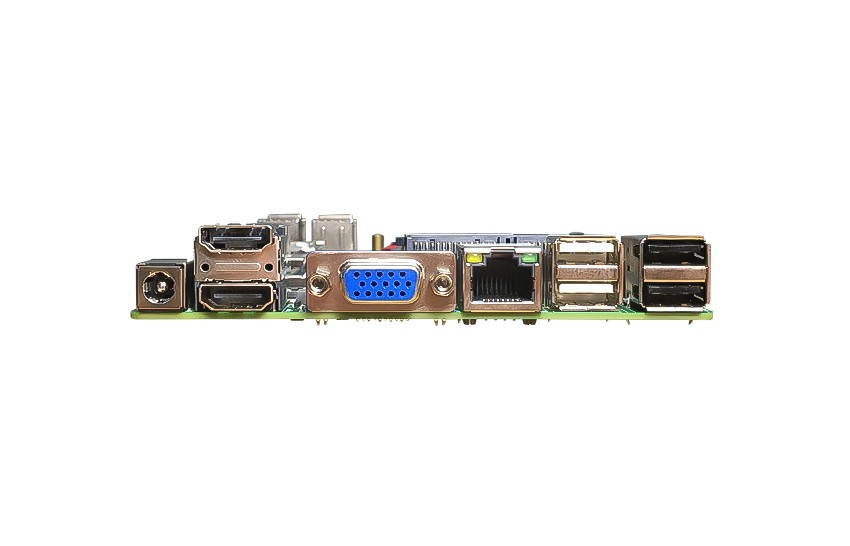

● Triple display: Dual HDMI, one VGA, Intel HD Graphics 520

● Realtek ALC887, 2 channel HD audio

● Ethernet 10/100/1000 Mbps LAN

● 1 colay M.2 PCIE, 1 SATA, 1 mSATA

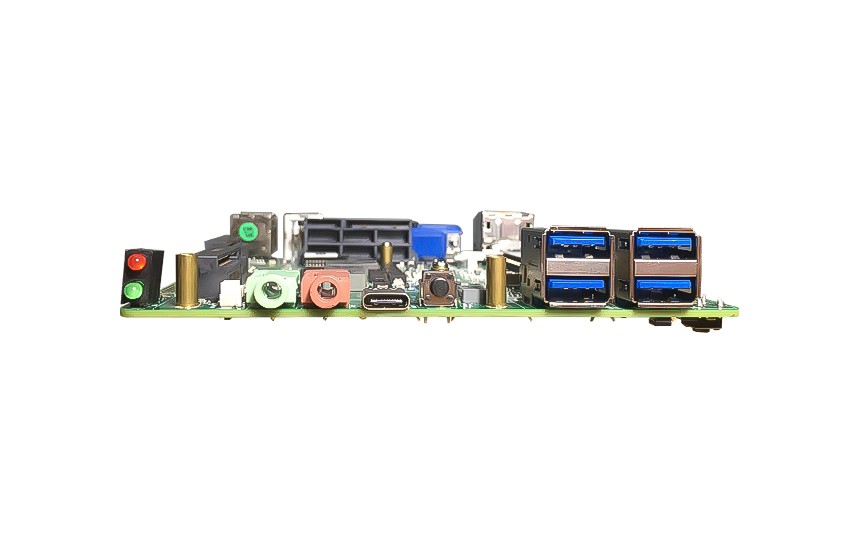

● 4 USB 3.0, 4 USB 2.0, 1 PCIE-GPIO (8PIN)

● Support 14pin TPM

● 12V DC, supports 12-64V wide voltage Power Input

Intel core i5-6200u NANO-ITX with 2 HDMI, 1 VGA, 8 USB, 1 LAN

Product Specification
Form Factor
  • AIMB-K502

    NANO-ITX

Processor
  • CPU

    AIMB-K502

    Intel Core i5-6200u

  • BIOS

    AIMB-K502

    AMI BIOS

  • Core Number

    AIMB-K502

    2

  • CPU TDP

    AIMB-K502

    15W

  • Frequency

    AIMB-K502

    2.3GHz~2.8GHz

  • L3 Cache

    AIMB-K502

    3MB

Memory
  • Technology

    AIMB-K502

    DDR3L 1333MHz

  • Max.Capacity

    AIMB-K502

    SO-DIMM up to 8GB

  • Socket

    AIMB-K502

    2*204 PIN SO-DIMM

Display
  • Controller

    AIMB-K502

    Intel HD Graphics 520

  • Video Interface

    AIMB-K502

    2*HDMI+VGA

  • DP

    AIMB-K502

    N/A

  • Multiple Display

    AIMB-K502

    Triple

Expansion
  • Slot Type

    AIMB-K502

    1

  • PCI Express

    AIMB-K502

    1 (colay M.2 E key)

Ethernet
  • Speed

    AIMB-K502

    10/100/1000 Mbps

  • Controller

    AIMB-K502

    Realtek 8111F

  • Connector

    AIMB-K502

    1*RJ45

Audio
  • Audio Interface

    AIMB-K502

    HD Audio

  • CODEC

    AIMB-K502

    Realtek ALC887

  • Connector

    AIMB-K502

    2(HP_OUT/ MIC_IN)

WatchDog Timer
  • AIMB-K502

    Yes

I/O
  • USB

    AIMB-K502

    4*USB2.0, 4*USB3.0

  • GPIO

    AIMB-K502

    1*PCIE-8PIN

  • COM Port

    AIMB-K502

    N/A

  • TPM

    AIMB-K502

    1*14-1Pin TPM

Storage
  • M-SATA

    AIMB-K502

    1*MSATA 30MM*50MM*3MM

  • SATA

    AIMB-K502

    1*SATA, support 2.5inch sata Interface

Power
  • Power type

    AIMB-K502

    DC 12V

  • Connector

    AIMB-K502

    DC jack

  • Power Adaptor

    AIMB-K502

    Yes

Environment
  • Non-Operational Temperature

    AIMB-K502

    "-10℃~60℃"

  • Operational Temperature

    AIMB-K502

    "-10℃~60℃"

Physical
  • Dimension

    AIMB-K502

    120mmX120mm

  • Weight

    AIMB-K502

    158g

  • Construction

    AIMB-K502

    with fanless design or cooling fan

Operating System
  • Microsoft Windows

    AIMB-K502

    Yes

  • Linux

    AIMB-K502

    Yes
