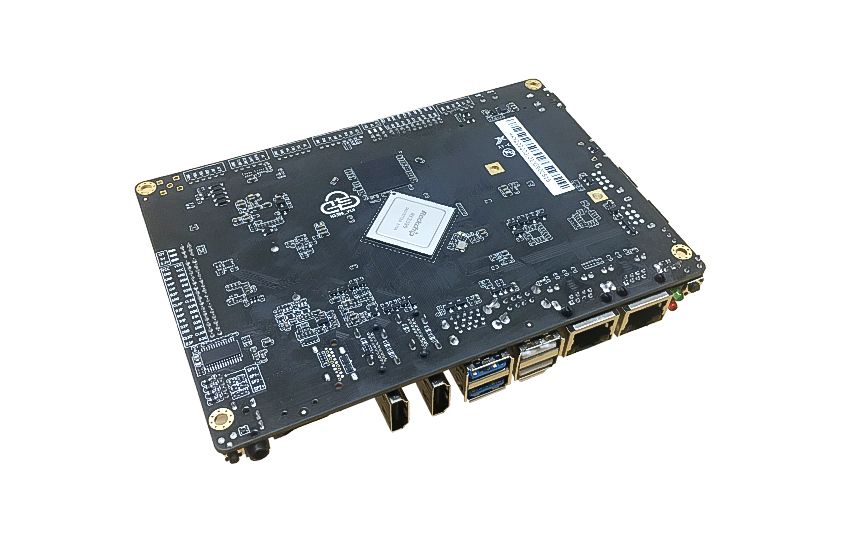

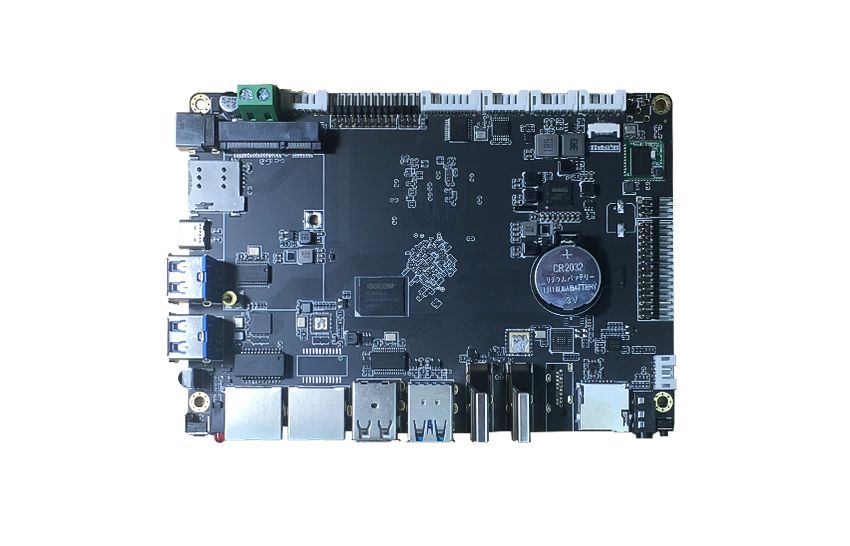

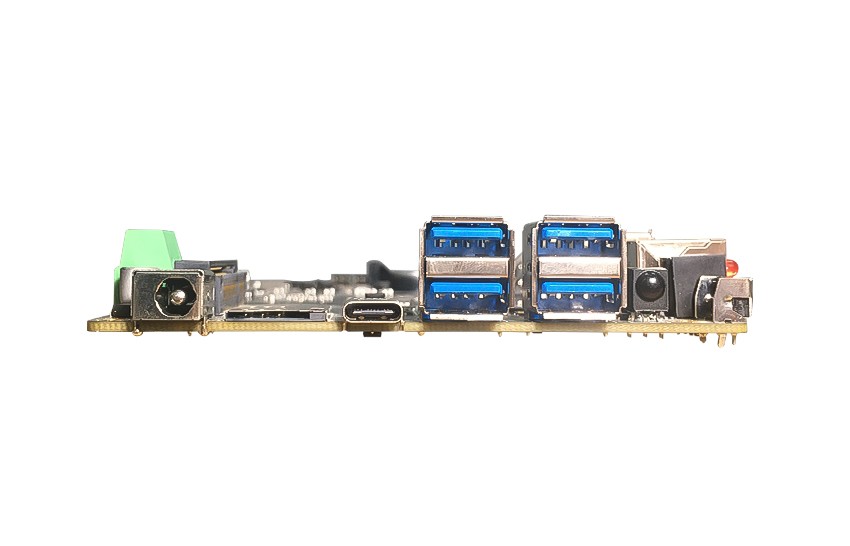

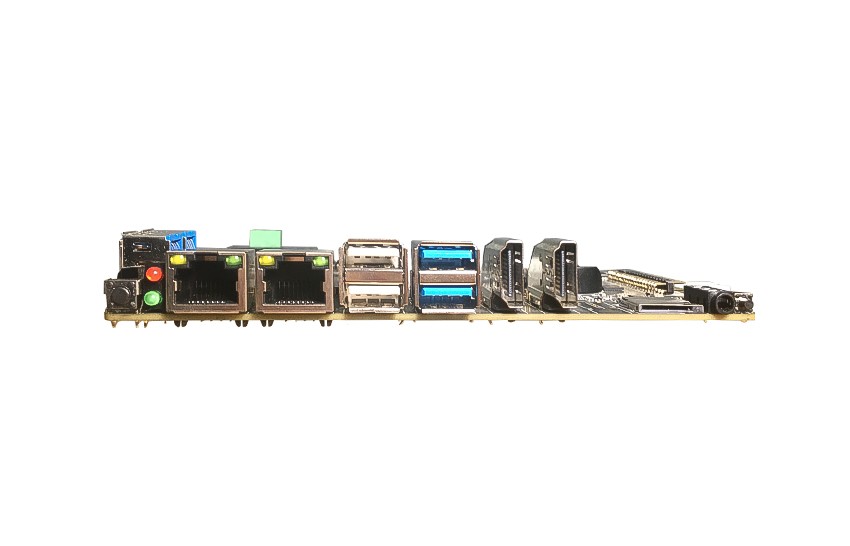

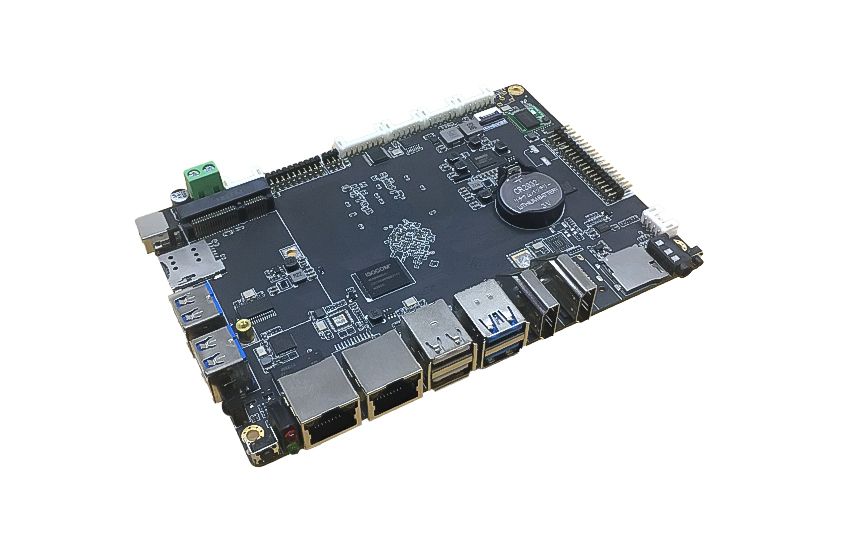

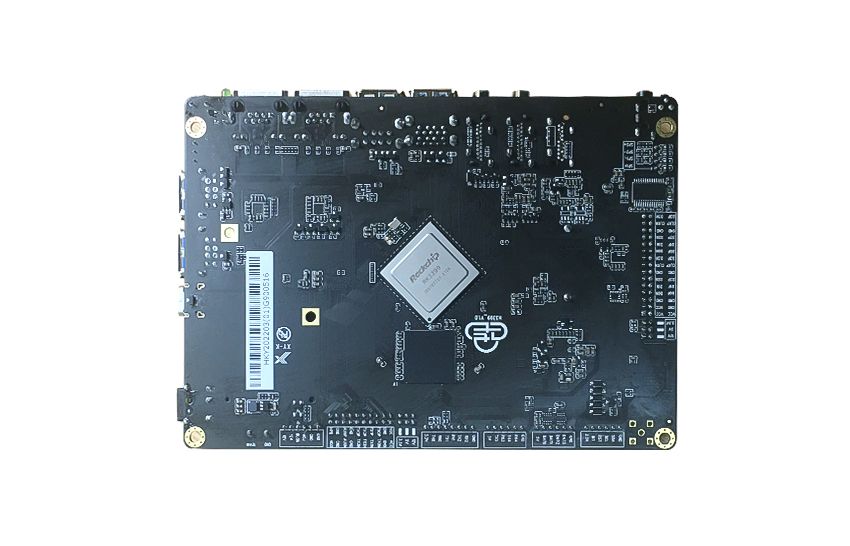

NANO-ITX AIMB-X901

Model : AIMB-X901

Product Specification
Form Factor
  • AIMB-X901

    NANO-ITX

Hardware Specification
  • CPU

    AIMB-X901

    RK3399 (28 NM HKMG procedure)

  • AIMB-X901

    ARM 6 cores 64 bit,main frequency 2.0GHz at max

  • AIMB-X901

    Base one big.LITTLE framework,dual-core Cortex-A72(big core)+ Dual-core Cortex-A53(small core)

  • GPU

    AIMB-X901

    Mail-T860 MP4 Quad-core GPU

  • AIMB-X901

    Support OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1,OpenCL,DX11

  • AIMB-X901

    Support AFBC

  • Memory

    AIMB-X901

    DDR3 4G LPDDR4

  • Storage

    AIMB-X901

    32GB(16GB/64GB/128GB)EMMC

  • AIMB-X901

    TF Card Extendable

  • Network

    AIMB-X901

    Support Ethernet 10/100/1000Mbps

  • AIMB-X901

    Support Ethernet outer net*1,inner net*1

  • AIMB-X901

    Support 2.4GHz/5GHz dual-band WiFi

  • AIMB-X901

    Support Wi-Fi 802.11b/g/n/ac protocol

  • AIMB-X901

    Support bluetooth,V2.1+EDR/Bluetooth 3.0/3.0+HS/4.1/BLE

  • Display

    AIMB-X901

    HDMI OUT(4K)*1

  • AIMB-X901

    HDMI OUT(2K)*1

  • AIMB-X901

    HDMI IN(Customizable)

  • AIMB-X901

    1*eDP.Support 3.3V/5V/12V Power Supply

  • AIMB-X901

    1*LVDS(single output,dual 6bit,8bit,dual 10bit),Support 7'' screen and above,support 1080P 60Hz output,support 3.3V/5V/12V power supply

  • AIMB-X901

    Support different display in dual screen

  • AIMB-X901

    Support only 2 outputs at the same time:HDMI 4K+HDMI 2K or HDMI 4K+LVDS or HDMI 4K+EDP

  • Audio

    AIMB-X901

    Spk&Mic 2 in 1

  • RTC

    AIMB-X901

    COMS for RTC

  • AIMB-X901

    Support Automatic Power Up

  • USB

    AIMB-X901

    2*USB-2.0 ,6*USB-3.0

  • Button

    AIMB-X901

    Power*1,Burner*1

  • Power Supply

    AIMB-X901

    Input: AC100-240V.50-60HZ

  • AIMB-X901

    Output: DC12V/5.5mm, internal diameter 2.1 mm, DC plug 3A .

  • AIMB-X901

    Support Power on or Start with Power button

  • Dimension

    AIMB-X901

    146*102mm

Software Specification
  • OS

    AIMB-X901

    Android7.1/Ubuntu18.04 /Android10.0/KYLIN

  • Video

    AIMB-X901

    Support video format: H.265/H.264/VP9/MAV/ WMV/AVS/H.263/MPEG4 1080P/2160P

  • AIMB-X901

    Support multi-view video decoding

  • Picture

    AIMB-X901

    Support JPG/PNG

  • Default Application Software

    AIMB-X901

    Calculator, Browser, Calendar, Settings, Clock, Video Player, Search, Explorer
