A10 10'' Panel Computer
Model: A10
● Flat 10 inch capacitive 10-point touch screen, IP65-rated front panel
● Support 10 pin GPIO + 5 pin Phoenix connector
● Support wide voltage 12- 64V power supply
● With 1/2 x COM port (RS232 / RS485)
● With 1/2 x LAN port
● Support 4G LTE module, mini PCIE / M.2 expansion
● Optional installation method, VESA / Stand / Embedded
● Wide range configuration available
Data Sheet 1
Send InquiryA10 is a panel PC with front IP65 rating water-proof and dust-proof protection. Equipped with 10'' touch screen, optional processor celeron/i3/i5/i7, Windows 10 or Linux operation system, A10 is a basic configured industrial panel PC that can match the basic requirement of industrial automation and digial display use.
-
Part No.A10-AMD 6500TA10-5005U
-
-
Processor System
CPU
AMD A6 Micro-6500T
Intel Core I3-5005U
RAM
DDR3 2GB/4GB/8GB
DDR3 2GB/4GB/8GB
Storage
16/32/64/128/256/512GB SSD, optional HDD
16/32/64/128/256/512GB SSD, optional HDD
-
Display
Panel Size
10.4''
10.4''
Max. Resolution
1024*768p
1024*768p
Max. Colors
16.7M
16.7M
Treatment
Anti-Glare
Anti-Glare
Brightness
250-500nits
250-500nits
Viewing Direction
Full Viewing
Full Viewing
Aspect Ratio
4:3
4:3
-
Touch Screen
Touch Points
10 Points
10 Points
Type
Capacitive Touch
Capacitive Touch
-
Color
Black
Black
-

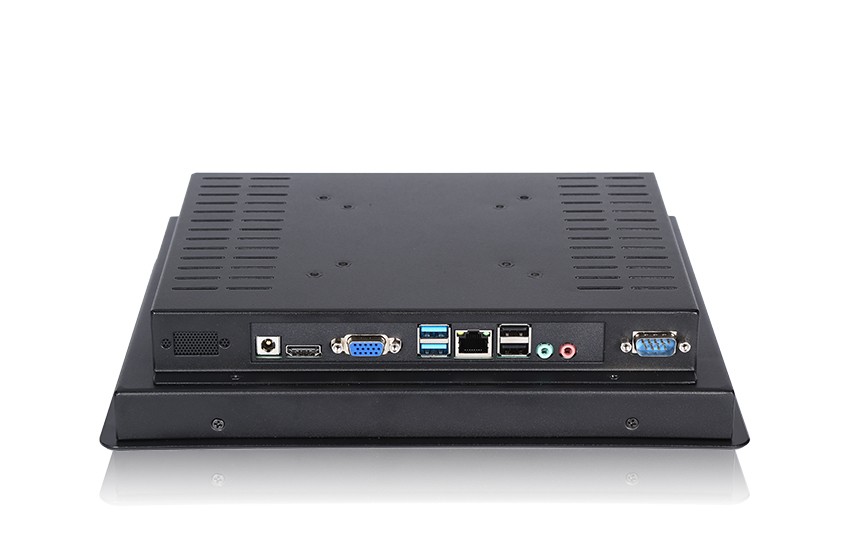

I/O Interface
Video output
1*VGA,1*HDMI
1*VGA,1*HDMI
Serial Port
1*RS232(Upgradable)
1*RS232(Upgradable)
USB Port
2*USB(Upgradable)
4*USB(Upgradable)
Ethernet
2*RJ45(Upgradable)
1*RJ45(Upgradable)
Extendable Port
RS485, LPT, Phoenix terminal(Replace DC)
RS485, LPT, Phoenix terminal(Replace DC)
-
General
Certification
CE,FCC,ROHS,ISO
CE,FCC,ROHS,ISO
Dimension(W*H*D)
283*225.2*56 mm
283*225.2*56 mm
Power Input
AC100-240V.50-60HZ
AC100-240V.50-60HZ
Power Output
DC12V 3A~5A
DC12V 3A~5A

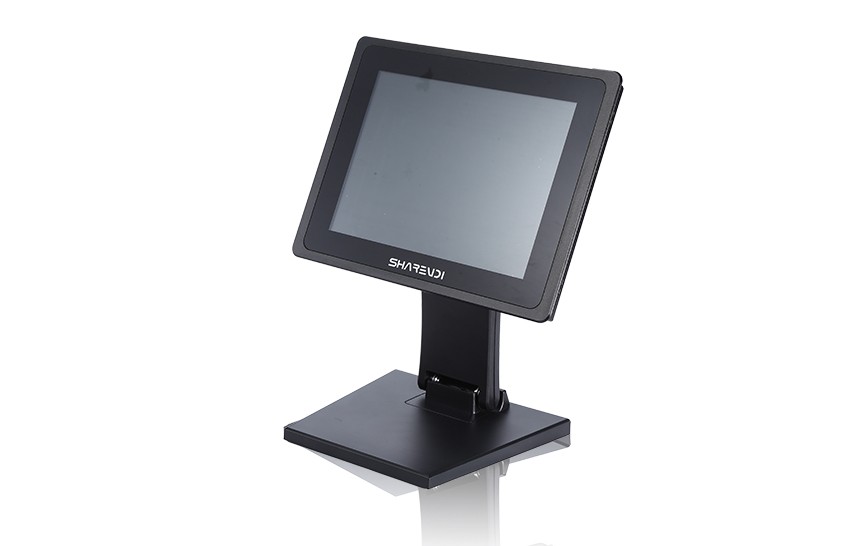

Mounting Options
Wall Mount/Embedded Vesa Mount/Vertical Stand
Wall Mount/Embedded Vesa Mount/Vertical Stand
Weight(Net)
4.2KG
4.2KG
-
Environment
Operating Temperature
-20 ~ 60℃
-20 ~ 60℃
Storage Temperature
-10 ~ 50℃
-10 ~ 50℃
Operation Humidity
10% ~ 80%
10% ~ 80%
Storage Humidity
10% ~ 90%
10% ~ 90%
-
CPU
A10-AMD 6500T
AMD A6 Micro-6500T
A10-5005U
Intel Core I3-5005U
-
RAM
A10-AMD 6500T
DDR3 2GB/4GB/8GB
A10-5005U
DDR3 2GB/4GB/8GB
-
Storage
A10-AMD 6500T
16/32/64/128/256/512GB SSD, optional HDD
A10-5005U
16/32/64/128/256/512GB SSD, optional HDD
-
Panel Size
A10-AMD 6500T
10.4''
A10-5005U
10.4''
-
Max. Resolution
A10-AMD 6500T
1024*768p
A10-5005U
1024*768p
-
Max. Colors
A10-AMD 6500T
16.7M
A10-5005U
16.7M
-
Treatment
A10-AMD 6500T
Anti-Glare
A10-5005U
Anti-Glare
-
Brightness
A10-AMD 6500T
250-500nits
A10-5005U
250-500nits
-
Viewing Direction
A10-AMD 6500T
Full Viewing
A10-5005U
Full Viewing
-
Aspect Ratio
A10-AMD 6500T
4:3
A10-5005U
4:3
-
Touch Points
A10-AMD 6500T
10 Points
A10-5005U
10 Points
-
Type
A10-AMD 6500T
Capacitive Touch
A10-5005U
Capacitive Touch
-
A10-AMD 6500T
Black
A10-5005U
Black
-
Video output
A10-AMD 6500T
1*VGA,1*HDMI
A10-5005U
1*VGA,1*HDMI
-
Serial Port
A10-AMD 6500T
1*RS232(Upgradable)
A10-5005U
1*RS232(Upgradable)
-
USB Port
A10-AMD 6500T
2*USB(Upgradable)
A10-5005U
4*USB(Upgradable)
-
Ethernet
A10-AMD 6500T
2*RJ45(Upgradable)
A10-5005U
1*RJ45(Upgradable)
-
Extendable Port
A10-AMD 6500T
RS485, LPT, Phoenix terminal(Replace DC)
A10-5005U
RS485, LPT, Phoenix terminal(Replace DC)
-
Certification
A10-AMD 6500T
CE,FCC,ROHS,ISO
A10-5005U
CE,FCC,ROHS,ISO
-
Dimension(W*H*D)
A10-AMD 6500T
283*225.2*56 mm
A10-5005U
283*225.2*56 mm
-
Power Input
A10-AMD 6500T
AC100-240V.50-60HZ
A10-5005U
AC100-240V.50-60HZ
-
Power Output
A10-AMD 6500T
DC12V 3A~5A
A10-5005U
DC12V 3A~5A
-
Mounting Options
A10-AMD 6500T
Wall Mount/Embedded Vesa Mount/Vertical Stand
A10-5005U
Wall Mount/Embedded Vesa Mount/Vertical Stand
-
Weight(Net)
A10-AMD 6500T
4.2KG
A10-5005U
4.2KG
-
Operating Temperature
A10-AMD 6500T
-20 ~ 60℃
A10-5005U
-20 ~ 60℃
-
Storage Temperature
A10-AMD 6500T
-10 ~ 50℃
A10-5005U
-10 ~ 50℃
-
Operation Humidity
A10-AMD 6500T
10% ~ 80%
A10-5005U
10% ~ 80%
-
Storage Humidity
A10-AMD 6500T
10% ~ 90%
A10-5005U
10% ~ 90%
