K5-F17F 11th Gen i3/i5 Industrial PC

Model: K5-F17F-1155G7

● Built with Intel 11th gen Core i3/i5/i7 Processor, Iris Xe Graphics.

● The quad-core processor features a turbo frequency of up to 4.70 GHz.

● 2*DDR4L slots, max support 32G

● Support 4 Serial ports （Optional RS232/RS485)

● Support 2 Intel Ethernet Controller, Intel I226-V and Realtek 8111H

● Enables simultaneous triple-screen display (HDMI + VGA + DP).

● Support 4G LTE module

● Support TPM 2.0 (optional)

● Operates in a wide temperature range from -20°C to 65°C.

Data Sheet 1 Data Sheet 2 Send Inquiry

The ShareVDI K5-F17F 11th Gen rugged mini PC is a powerhouse, equipped with high-performance 11th Gen Intel CPUs, including i3, i5, and i7 processors, catering to diverse computational requirements. Boasting an upgraded enclosure, this fanless mini PC offers superior heat dissipation, ensuring seamless and reliable operation even during heavy workloads. The K5-F17F industrial rugged mini PC comes with a comprehensive set of interfaces, designed for effortless connectivity and seamless integration in industrial environments.

The ShareVDI industrial rugged computer K5-F17F, with its robust industrial design, is a reliable workhorse, guaranteeing 24/7 dependable operation. It is perfectly suited for environments with temperature ranging from -20 to 65 degrees Celsius. This rugged embedded computer shines as a trustworthy solution for industries that demand both exceptional performance and unwavering durability.

Specification K5-F17F-1155G7
Get A Quote
Processor
  • CPU

    K5-F17F-1155G7

    Intel Core I5-1155G7，4 Cores / 8 Threads

    K3-F17F-1115G4

    Intel Core I3-1115G4，2 Cores / 4 Threads

  • Frequency

    K5-F17F-1155G7

    2.5GHz

    K3-F17F-1115G4

    3.0GHz

  • Max Turbo Frequency

    K5-F17F-1155G7

    4.5GHz

    K3-F17F-1115G4

    4.1GHz

  • Cache

    K5-F17F-1155G7

    8 MB Intel® Smart Cache

    K3-F17F-1115G4

    6 MB Intel® Smart Cache

  • Chipset

    K5-F17F-1155G7

    Tiger Lake

    K3-F17F-1115G4

    Tiger Lake

Memory
  • Technology

    K5-F17F-1155G7

    2*SO-DIMM DDR4 slots

    K3-F17F-1115G4

    2*SO-DIMM DDR4 slots

  • Max. Capacity

    K5-F17F-1155G7

    32GB

    K3-F17F-1115G4

    32GB

Storage
  • M.2 SATA

    K5-F17F-1155G7

    SSD 64GB/128GB/256GB/512GB/1TB

    K3-F17F-1115G4

    SSD 64GB/128GB/256GB/512GB/1TB

  • SATA

    K5-F17F-1155G7

    HDD 500GB/1TB/2TB (Optional )

    K3-F17F-1115G4

    HDD 500GB/1TB/2TB (Optional )

Graphics
  • Graphics

    K5-F17F-1155G7

    Intel® Iris® Xe Graphics

    K3-F17F-1115G4

    Intel® UHD Graphics for 11th Gen Intel® Processors

Audio
  • Audio

    K5-F17F-1155G7

    HD Audio realtek ALC897

    K3-F17F-1115G4

    HD Audio realtek ALC897

Network
  • LAN

    K5-F17F-1155G7

    1 *Realtek 8111H Gigabit interface & 1* Intel I226-V network cards

    K3-F17F-1115G4

    1 *Realtek 8111H Gigabit interface & 1* Intel I226-V network cards

  • Wireless

    K5-F17F-1155G7

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

    K3-F17F-1115G4

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

  • 4G/ 5G module

    K5-F17F-1155G7

    support 4G/ 5G module with available sim slot

    K3-F17F-1115G4

    support 4G/ 5G module with available sim slot

I/O Interface

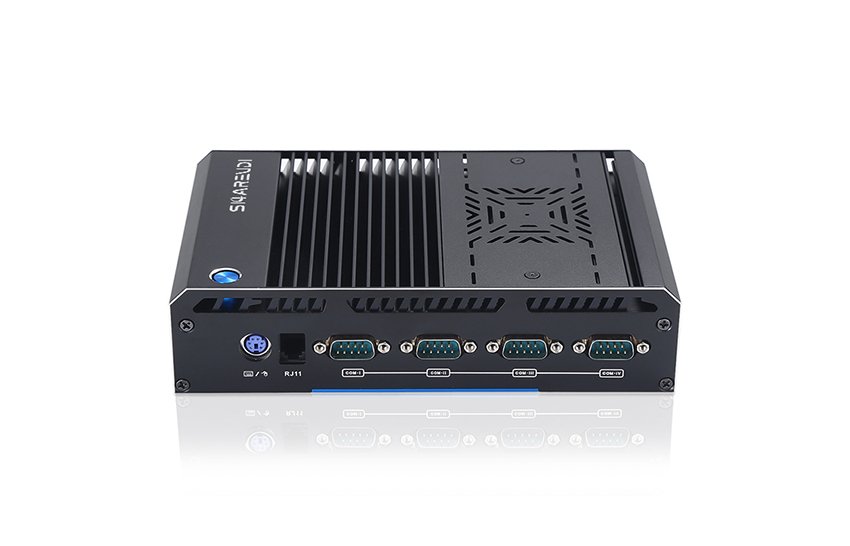

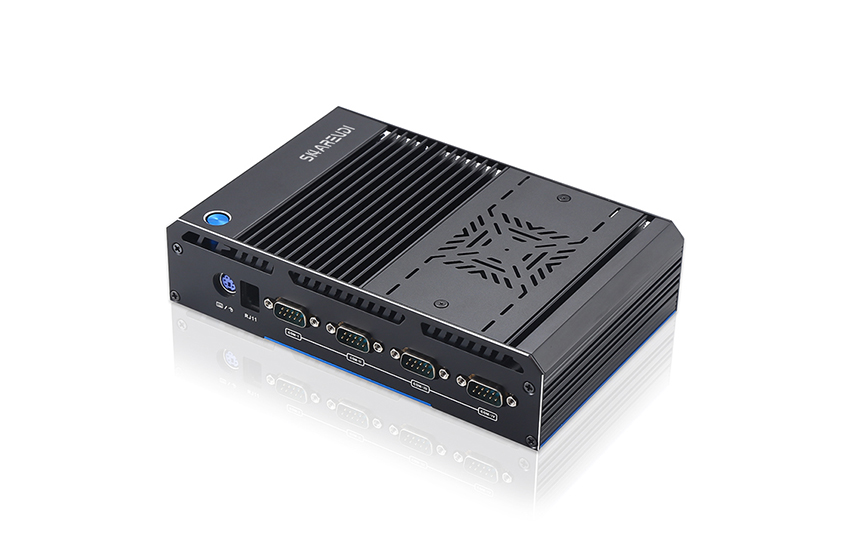

  • Front

    K5-F17F-1155G7

    1*PS/2, 1*RJ11, 4*Serial RS232/RS485 COM

    K3-F17F-1115G4

    1*PS/2, 1*RJ11, 4*Serial RS232/RS485 COM

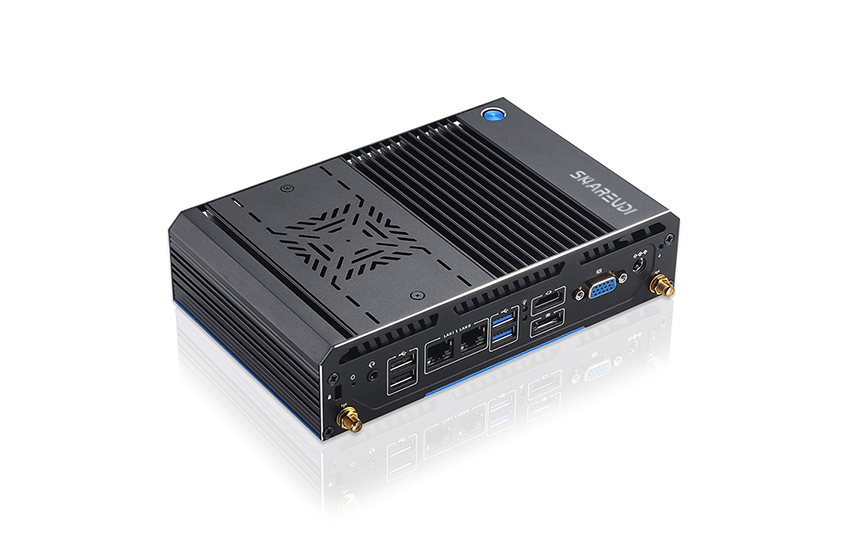

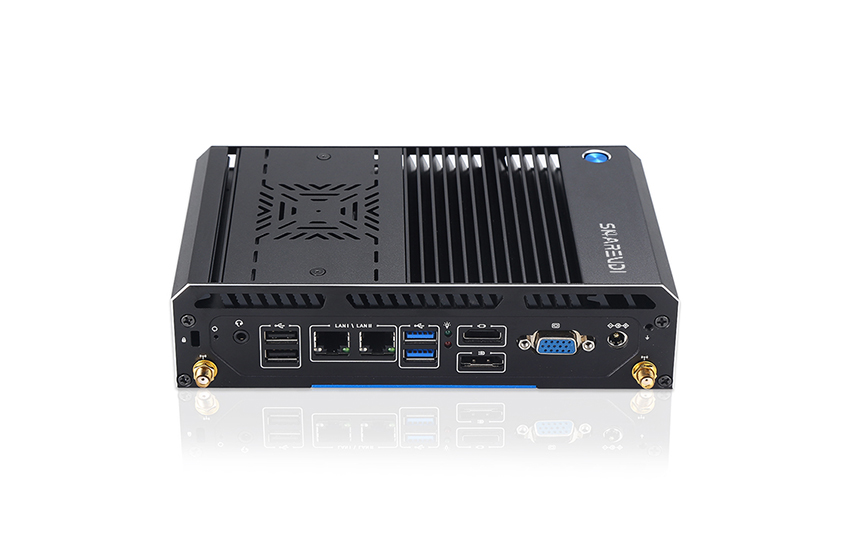

  • Rear

    K5-F17F-1155G7

    1*MIC& SPK, 2*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V

    K3-F17F-1115G4

    1*MIC& SPK, 2*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V

Extendable
  • I/O Ports

    K5-F17F-1155G7

    1*2PIN PW_IN Phoenix terminal, 1* 12-1PIN TPM2.0 pin 2*6PIN M.2 hard disk mode switching pin, 2*4PIN switch and indicator light pins 3*9PIN USB2.0 pin, 1*4PIN CPU_FAN pin, 1*4PIN SPK power amplifier pin 1*4PIN SATA expansion hard drive 5V power supply interface 1*JATX-AT pin (set to start automatically after power on) 1*3PIN JP1 jumper RJ11 voltage pin 2*5PIN GPIO pin , RS232/485 switching pin

    K3-F17F-1115G4

    1*2PIN PW_IN Phoenix terminal, 1* 12-1PIN TPM2.0 pin 2*6PIN M.2 hard disk mode switching pin, 2*4PIN switch and indicator light pins 3*9PIN USB2.0 pin, 1*4PIN CPU_FAN pin, 1*4PIN SPK power amplifier pin 1*4PIN SATA expansion hard drive 5V power supply interface 1*JATX-AT pin (set to start automatically after power on) 1*3PIN JP1 jumper RJ11 voltage pin 2*5PIN GPIO pin , RS232/485 switching pin

  • Module

    K5-F17F-1155G7

    4G LTE , WIFI+BT Module (M.2 PCIE)

    K3-F17F-1115G4

    4G LTE , WIFI+BT Module (M.2 PCIE)

Power
  • Input

    K5-F17F-1155G7

    AC100-240V. 50-60Hz DC

    K3-F17F-1115G4

    AC100-240V. 50-60Hz DC

  • Output

    K5-F17F-1155G7

    12V-5A

    K3-F17F-1115G4

    12V-5A

  • Wide Voltage

    K5-F17F-1155G7

    12-64V phoenix connector（Optional）

    K3-F17F-1115G4

    12-64V phoenix connector（Optional）

Operating System

  • K5-F17F-1155G7

    Windows 10、11 & Linux

    K3-F17F-1115G4

    Windows 10、11 & Linux

Physical
  • Dimension

    K5-F17F-1155G7

    L197.4mm*W 126.3mm*H 47.5mm

    K3-F17F-1115G4

    L197.4mm*W 126.3mm*H 47.5mm

  • Weight(Net)

    K5-F17F-1155G7

    1.0KG

    K3-F17F-1115G4

    1.0KG

  • Color

    K5-F17F-1155G7

    Black

    K3-F17F-1115G4

    Black

  • Cooling Method

    K5-F17F-1155G7

    Built-in fan cooling

    K3-F17F-1115G4

    Built-in fan cooling

  • Mounting Options

    K5-F17F-1155G7

    Dedicated bracket; Support VESA bracket

    K3-F17F-1115G4

    Dedicated bracket; Support VESA bracket

  • Certification

    K5-F17F-1155G7

    CE, FCC, ROHS, ISO, UL

    K3-F17F-1115G4

    CE, FCC, ROHS, ISO, UL

Environment
  • Operating Temperature

    K5-F17F-1155G7

    -10~60 ℃

    K3-F17F-1115G4

    -10~60 ℃

  • Storage Temperature

    K5-F17F-1155G7

    -10~60 ℃

    K3-F17F-1115G4

    -10~60 ℃

  • Operation Humidity

    K5-F17F-1155G7

    0~95% (No Condensation)

    K3-F17F-1115G4

    0~95% (No Condensation)

  • Storage Humidity

    K5-F17F-1155G7

    0~95% (No Condensation)

    K3-F17F-1115G4

    0~95% (No Condensation)
