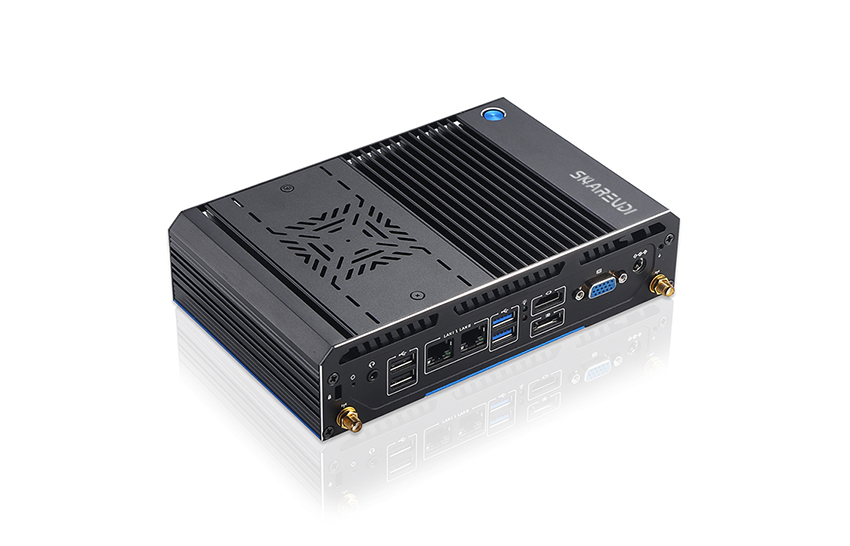

K7-F17F 11th Gen i7 Industrial PC
Model: K7-F17F-1185G7
● Built with Intel 11th gen Core i3/i5/i7 Processor, Iris Xe Graphics.
● The quad-core processor features a turbo frequency of up to 4.70 GHz.
● 2*DDR4L slots, max support 32G
● Support 4 Serial ports （Optional RS232/RS485)

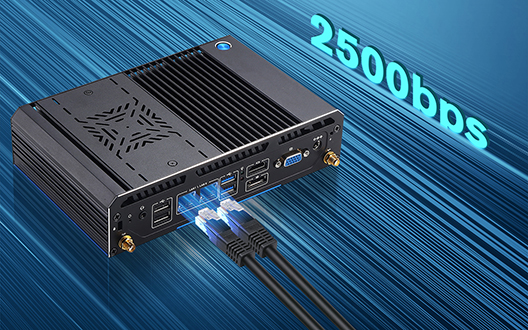

● Support 2 Intel Ethernet Controller, Intel I226-V and Realtek 8111H
● Enables simultaneous triple-screen display (HDMI + VGA + DP).
● Support 4G LTE module
● Support TPM 2.0 (optional)
● Operates in a wide temperature range from -20°C to 65°C.
Data Sheet 1
Send InquiryThe ShareVDI K7-F17F 11th Gen rugged mini PC is a powerhouse, equipped with high-performance 11th Gen Intel CPUs, including i3, i5, and i7 processors, catering to diverse computational requirements. Boasting an upgraded enclosure, this fanless mini PC offers superior heat dissipation, ensuring seamless and reliable operation even during heavy workloads. The K7-F17F industrial rugged mini PC comes with a comprehensive set of interfaces, designed for effortless connectivity and seamless integration in industrial environments.
The ShareVDI industrial rugged computer K7-F17F, with its robust industrial design, is a reliable workhorse, guaranteeing 24/7 dependable operation. It is perfectly suited for environments with temperature ranging from -20 to 65 degrees Celsius. This rugged embedded computer shines as a trustworthy solution for industries that demand both exceptional performance and unwavering durability.
-
Part No.K7-F17F-1185G7
-
-
Processor
CPU
Intel Core I7-1185G7，4 Cores / 8 Threads
Frequency
2.5GHz
Max Turbo Frequency
4.5GHz
Cache
8 MB Intel® Smart Cache
Chipset
Tiger Lake
-
Memory
Technology
2*SO-DIMM DDR4 slots
Max. Capacity
32GB
-
Storage
M.2 SATA
SSD 64GB/128GB/256GB/512GB/1TB
SATA
HDD 500GB/1TB/2TB (Optional )
-
Graphics
Graphics
Intel® Iris® Xe Graphics
-
Audio
Audio
HD Audio realtek ALC897
-
Network
LAN
1 *Realtek 8111H Gigabit interface & 1* Intel I226-V network cards
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
4G/ 5G module
support 4G/ 5G module with available sim slot
-
I/O Interface
Front

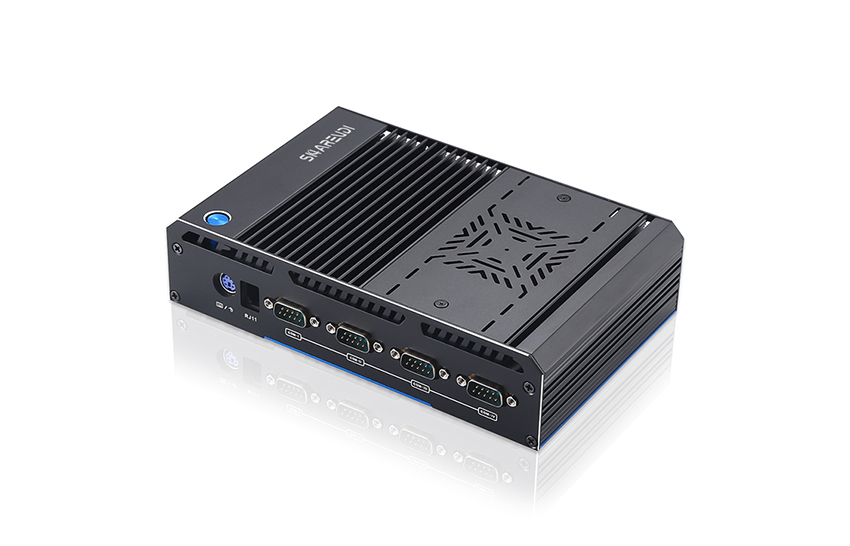

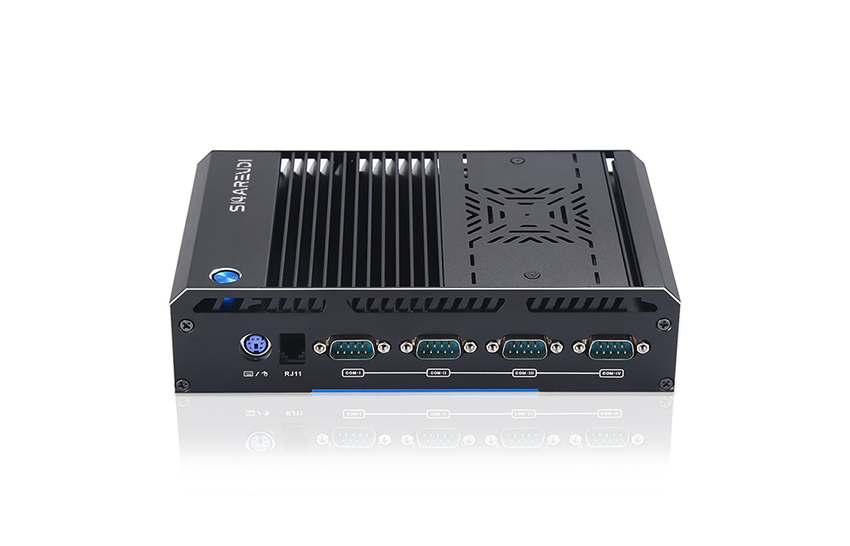

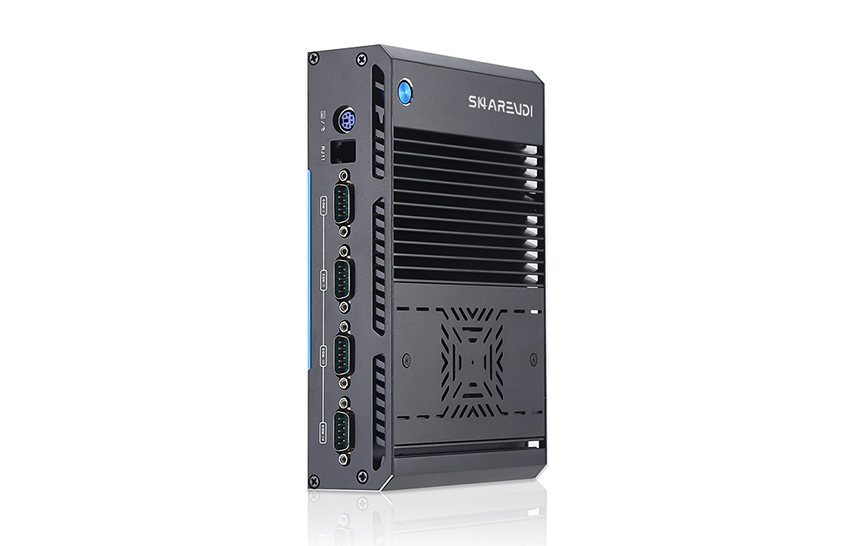

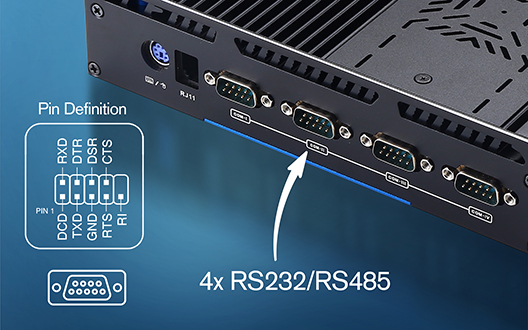

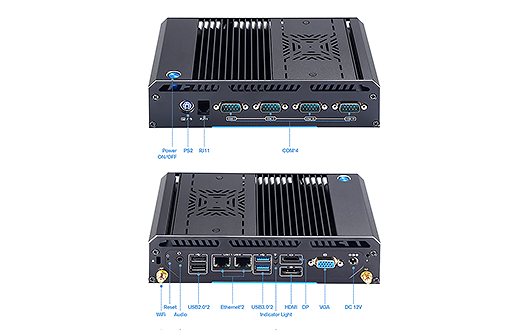

1*PS/2, 1*RJ11, 4*Serial RS232/RS485 COM
Rear

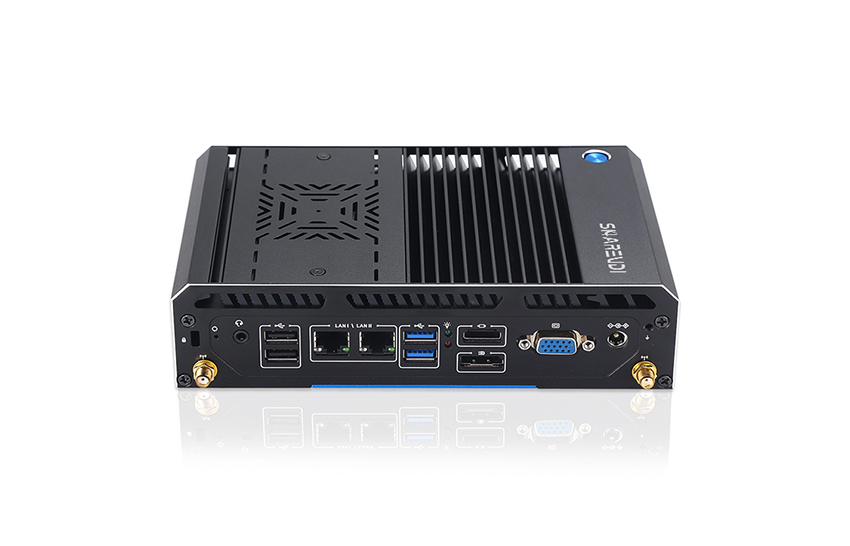

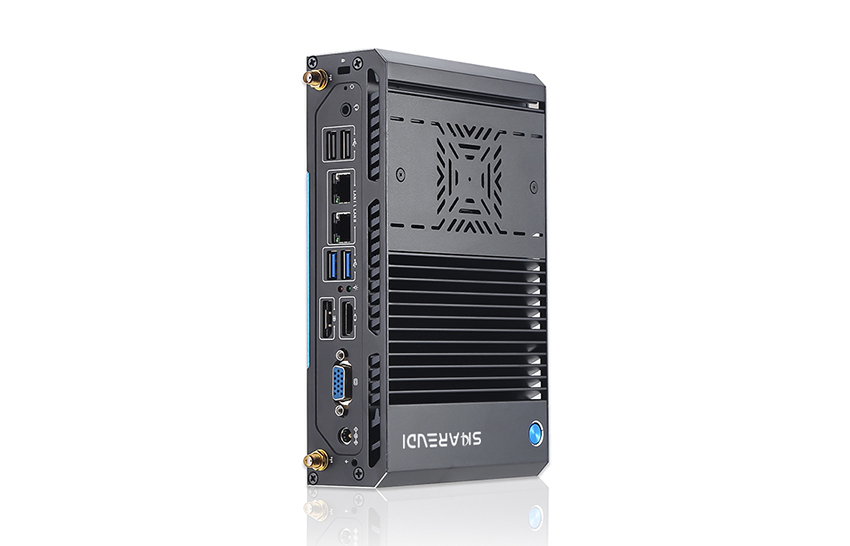

1*MIC& SPK, 2*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V
-
Extendable
I/O Ports
1*2PIN PW_IN Phoenix terminal, 1* 12-1PIN TPM2.0 pin 2*6PIN M.2 hard disk mode switching pin, 2*4PIN switch and indicator light pins 3*9PIN USB2.0 pin, 1*4PIN CPU_FAN pin, 1*4PIN SPK power amplifier pin 1*4PIN SATA expansion hard drive 5V power supply interface 1*JATX-AT pin (set to start automatically after power on) 1*3PIN JP1 jumper RJ11 voltage pin 2*5PIN GPIO pin , RS232/485 switching pin
Module
4G LTE , WIFI+BT Module (M.2 PCIE)
-
Power
Input
AC100-240V. 50-60Hz DC
Output
12V-5A
Wide Voltage
12-64V phoenix connector（Optional）
-
Operating System
Windows 10、11 & Linux
-
Physical
Dimension
L197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0KG
Color
Black
Cooling Method
Built-in fan cooling
Mounting Options

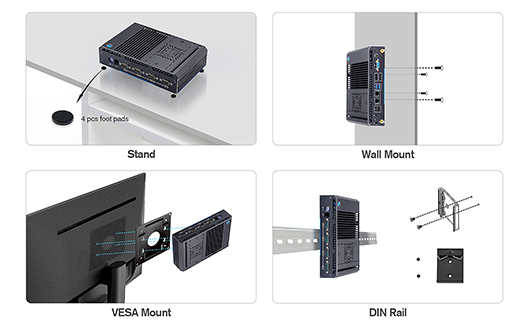

Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
K7-F17F-1185G7
Intel Core I7-1185G7，4 Cores / 8 Threads
-
Frequency
K7-F17F-1185G7
2.5GHz
-
Max Turbo Frequency
K7-F17F-1185G7
4.5GHz
-
Cache
K7-F17F-1185G7
8 MB Intel® Smart Cache
-
Chipset
K7-F17F-1185G7
Tiger Lake
-
Technology
K7-F17F-1185G7
2*SO-DIMM DDR4 slots
-
Max. Capacity
K7-F17F-1185G7
32GB
-
M.2 SATA
K7-F17F-1185G7
SSD 64GB/128GB/256GB/512GB/1TB
-
SATA
K7-F17F-1185G7
HDD 500GB/1TB/2TB (Optional )
-
Graphics
K7-F17F-1185G7
Intel® Iris® Xe Graphics
-
Audio
K7-F17F-1185G7
HD Audio realtek ALC897
-
LAN
K7-F17F-1185G7
1 *Realtek 8111H Gigabit interface & 1* Intel I226-V network cards
-
Wireless
K7-F17F-1185G7
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
4G/ 5G module
K7-F17F-1185G7
support 4G/ 5G module with available sim slot
-
Front
K7-F17F-1185G7
1*PS/2, 1*RJ11, 4*Serial RS232/RS485 COM
-
Rear
K7-F17F-1185G7
1*MIC& SPK, 2*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V
-
I/O Ports
K7-F17F-1185G7
1*2PIN PW_IN Phoenix terminal, 1* 12-1PIN TPM2.0 pin 2*6PIN M.2 hard disk mode switching pin, 2*4PIN switch and indicator light pins 3*9PIN USB2.0 pin, 1*4PIN CPU_FAN pin, 1*4PIN SPK power amplifier pin 1*4PIN SATA expansion hard drive 5V power supply interface 1*JATX-AT pin (set to start automatically after power on) 1*3PIN JP1 jumper RJ11 voltage pin 2*5PIN GPIO pin , RS232/485 switching pin
-
Module
K7-F17F-1185G7
4G LTE , WIFI+BT Module (M.2 PCIE)
-
Input
K7-F17F-1185G7
AC100-240V. 50-60Hz DC
-
Output
K7-F17F-1185G7
12V-5A
-
Wide Voltage
K7-F17F-1185G7
12-64V phoenix connector（Optional）
-
K7-F17F-1185G7
Windows 10、11 & Linux
-
Dimension
K7-F17F-1185G7
L197.4mm*W 126.3mm*H 47.5mm
-
Weight(Net)
K7-F17F-1185G7
1.0KG
-
Color
K7-F17F-1185G7
Black
-
Cooling Method
K7-F17F-1185G7
Built-in fan cooling
-
Mounting Options
K7-F17F-1185G7
Dedicated bracket; Support VESA bracket
-
Certification
K7-F17F-1185G7
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K7-F17F-1185G7
-10~60 ℃
-
Storage Temperature
K7-F17F-1185G7
-10~60 ℃
-
Operation Humidity
K7-F17F-1185G7
0~95% (No Condensation)
-
Storage Humidity
K7-F17F-1185G7
0~95% (No Condensation)
