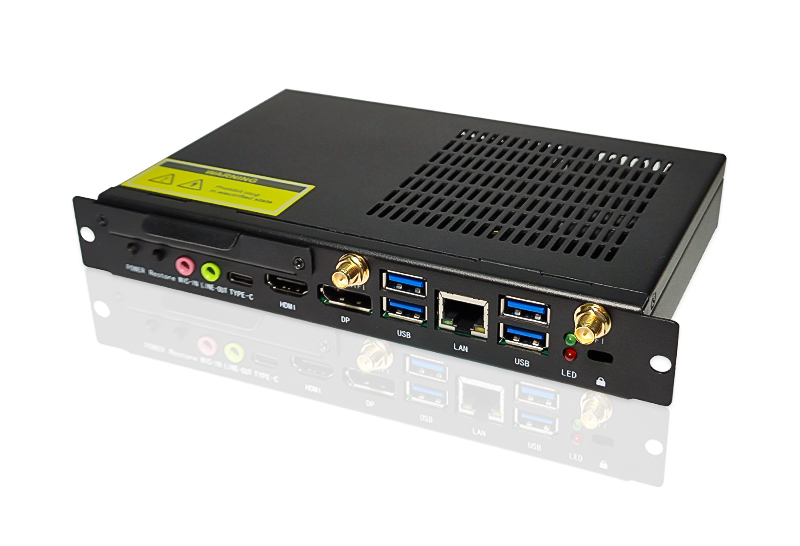

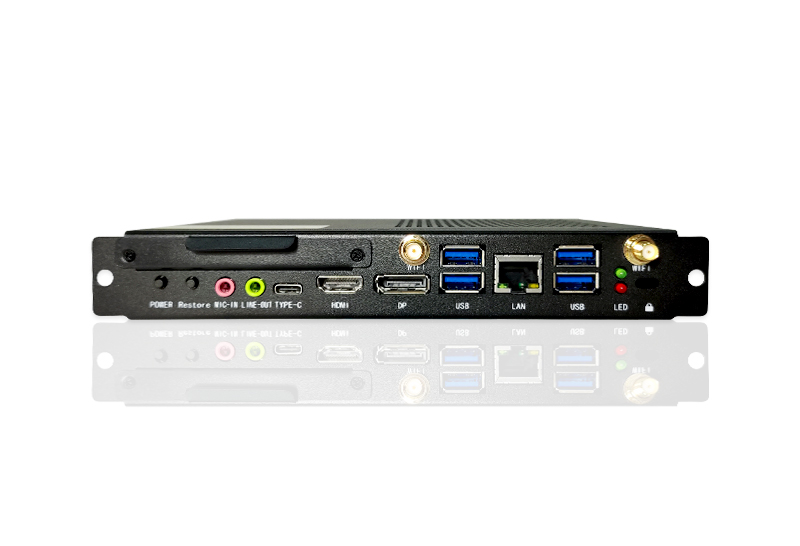

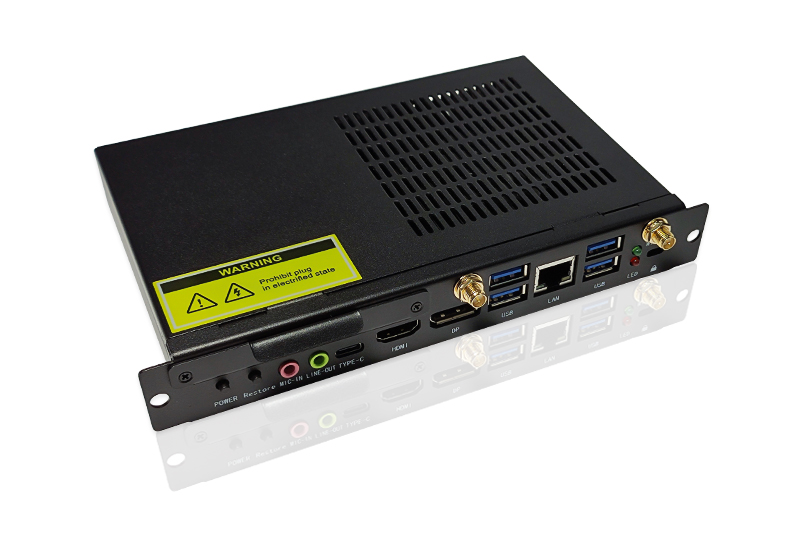

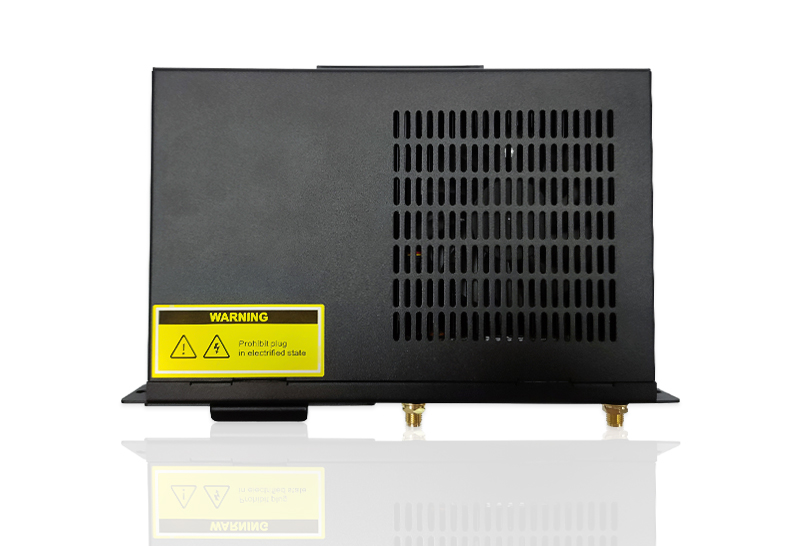

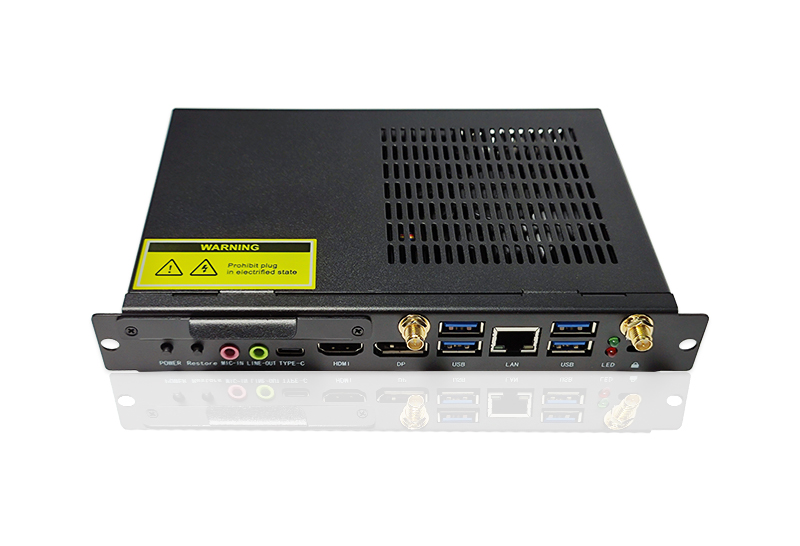

K5-O1 Mini OPS PC
Model:
K5-O1
● Intel core i5-10th generation processor
● DDR4 memory up to 32GB
● Support DP /HDMI synchronous and asynchronous display
● Support one key recovery-reset OS in hardware
● Support onekey back-up and reset OS in BIOS

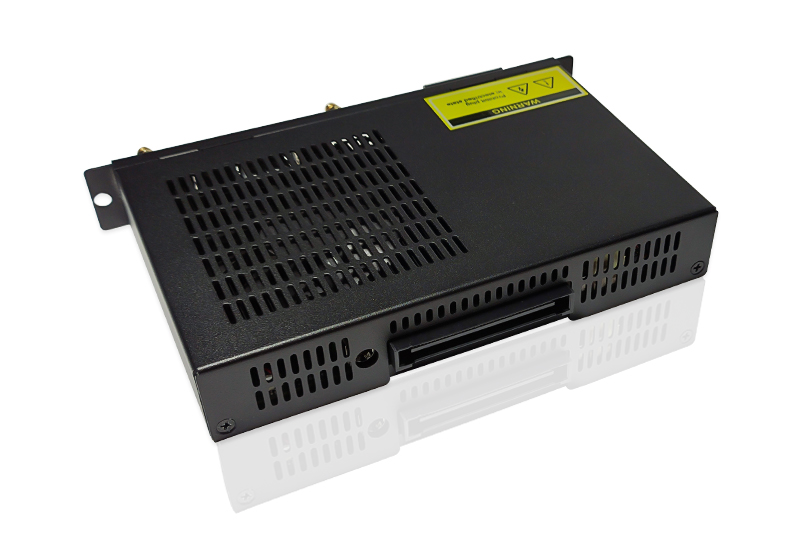

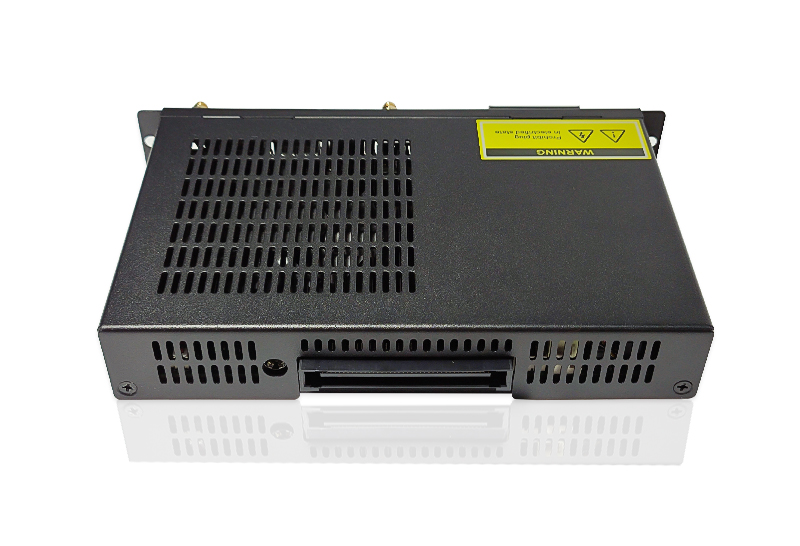

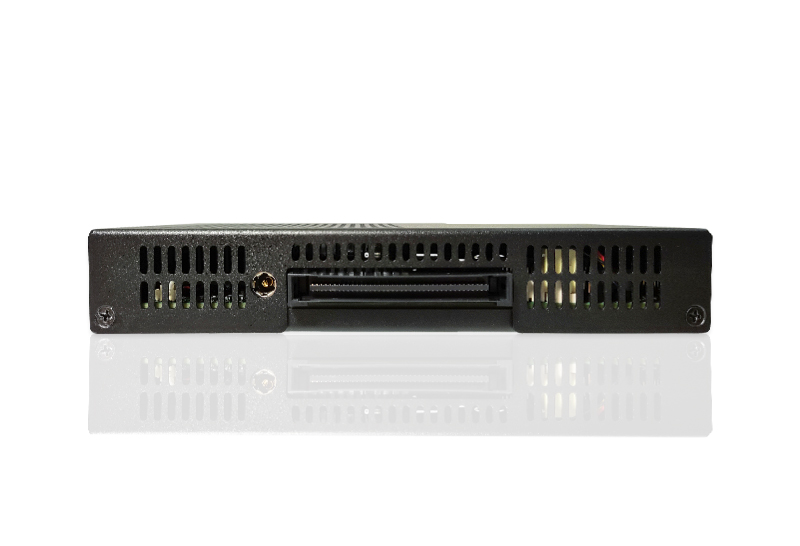

● Support JAE 80PIN connector
● Support TPM2.0
Data sheet
Send Inquiry
Share：

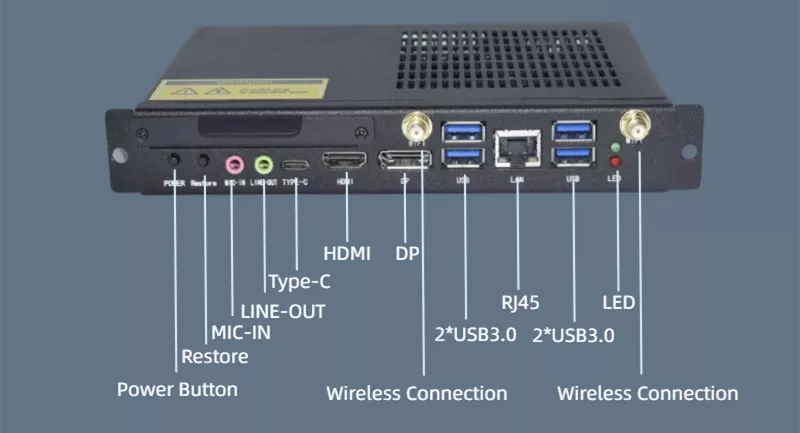

Specification
-
CPUIntel Core i5-10210U, 4 Cores,8 Threads, 1.6GHz-4.2GHzIntel Core i5-8365U
-
GraphicsIntel® UHD Graphics for 10th Gen Intel® ProcessorsIntel® UHD Graphics for 8th Gen Intel® Processors
-
Memory2 X SO-DIMM DDR4 2400/2666MHz memory ,16GB
-
Storage1*M.2 2280,support dual protocols NVME and SATA,256GB 1* 2.5" SATA HDD/SDD
-
NetworkLAN Intel I219 10M/100M/1000M Ethernet WIFI 1*M.2 2230 for Wifi+BT
-
USB4*USB3.0
-
BluetoothBluetooth 4.0
-
Display1*DP, 1*HDMI
-
AudioHD Audio realtek ALC 662
-

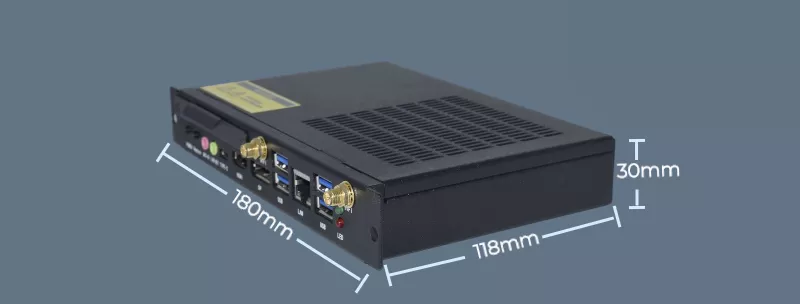

Size & WeightL 118mm*W 180mm*H 30mm, 0.8KG
-
OSWindows (Not include XP) & Linux
-
LanguageMulti-language
-
Packing listPC*1, Power Adapter * 1, Power Cable * 1, VESA Bracket * 1, User Manual * 1, QC Card* 1, Screws * 1

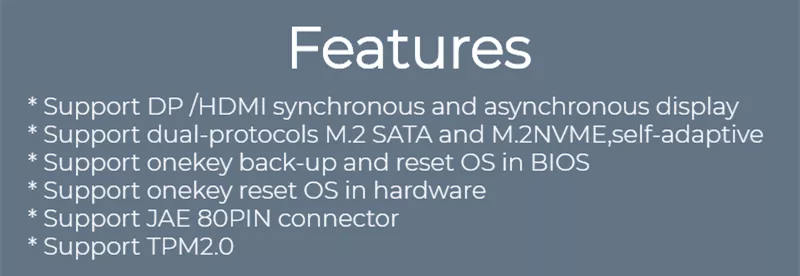

Features
