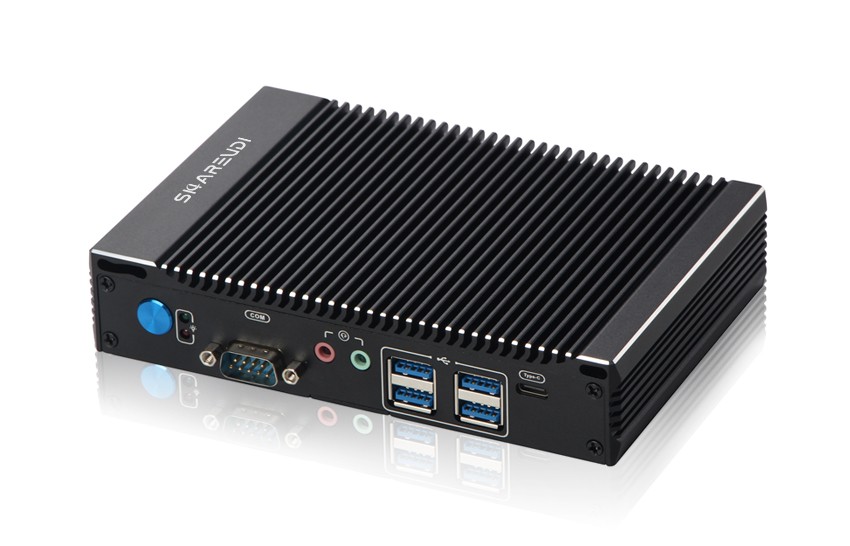

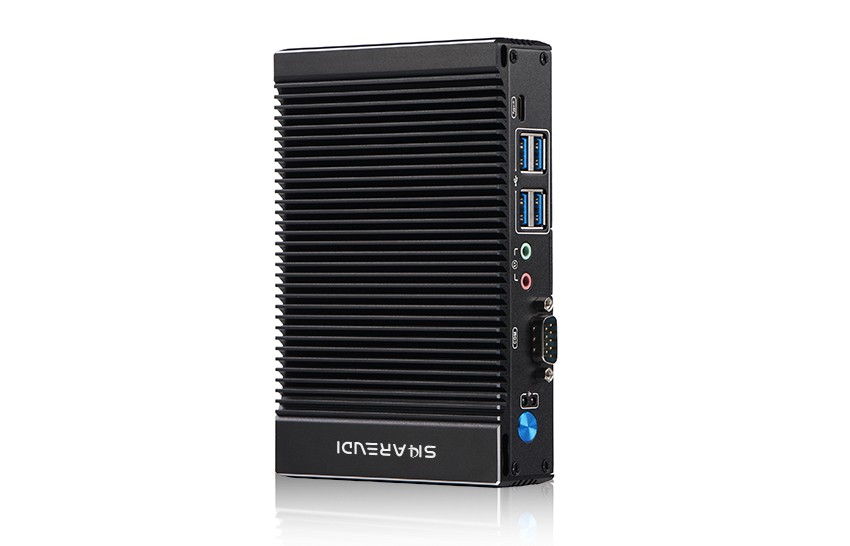

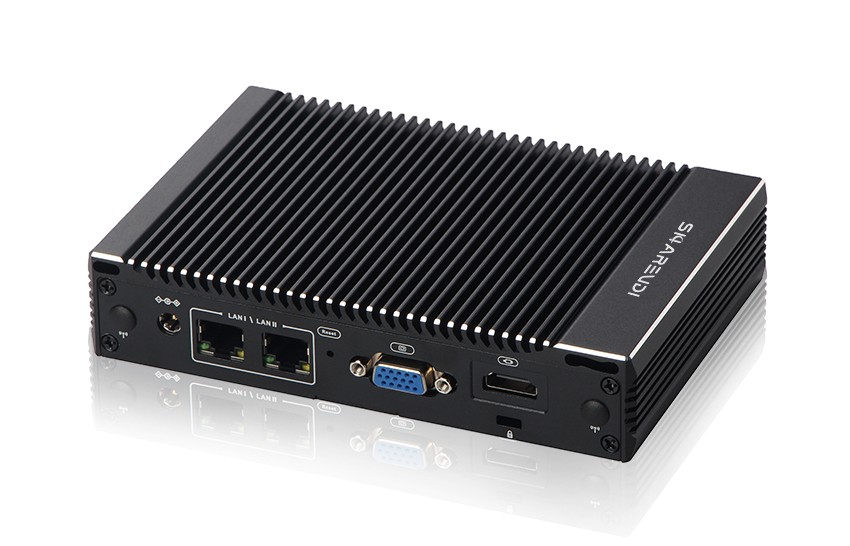

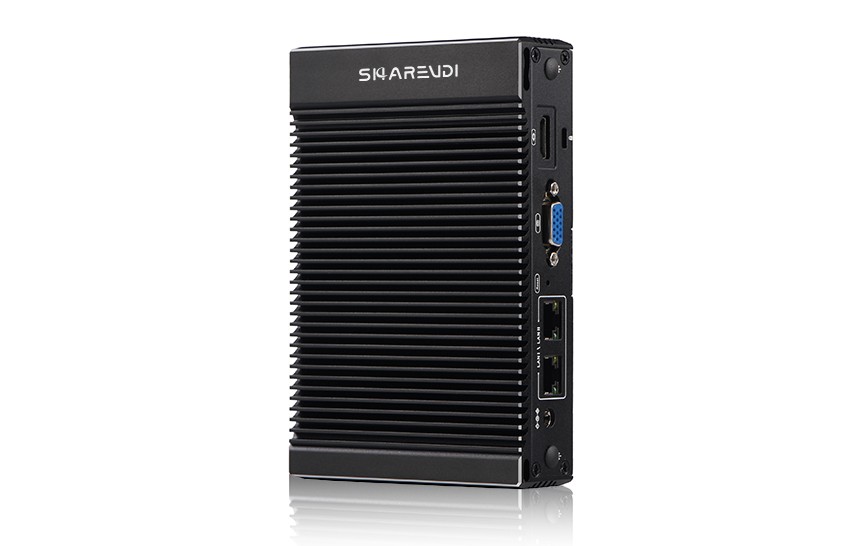

Medical Mini PC Celeron F1
Model:
K6-F1-N3160
Intel Celeron N3160 quad core
Ultra slim design (L 159.8mm x W 106.4mm x H 32.5mm)
Low Power consumption (TDP: 6W)
Support Windows 7/8/10, Linux
Multiple display output support
Intel Celeron N3160 quad core
Ultra slim design (L 159.8mm x W 106.4mm x H 32.5mm)
Low Power consumption (TDP: 6W)
Support Windows 7/8/10, Linux
Multiple display output support
Fanless Mini PC K6-F1 an ultra thin designed Mini PC that equipped with Celeron N3160 processor，it connects to the display, network and input devices. Then, install the medical queuing system software. Configure the settings, such as department and doctor information, Integrate it with the hospital's information system. During daily use, staff can input patient data, and doctors can call patients through the software.
-
Part No.K6-F1-3160
-
-
Processor
CPU
Intel Celeron N3160
Core Number
4 Cores / 4 Threads
Frequency
1.6GHz
Max Turbo Frequency
2.24GHz
Chipset
Products formerly Braswell
-
Memory
Technology
1*DDR3L slot
Max. Capacity
8GB
-
Storage
mSATA
SSD 32GB/64GB/128GB/256GB/512GB
SATA
Not Support HDD
-
Graphics
Graphics
Intel® HD Graphics 400
-
Audio
Audio
HD Audio Realtek ALC 897
-
Network
LAN
2*10/100/1000MbpsAdaptive,RTL8111F
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
I/O Interface

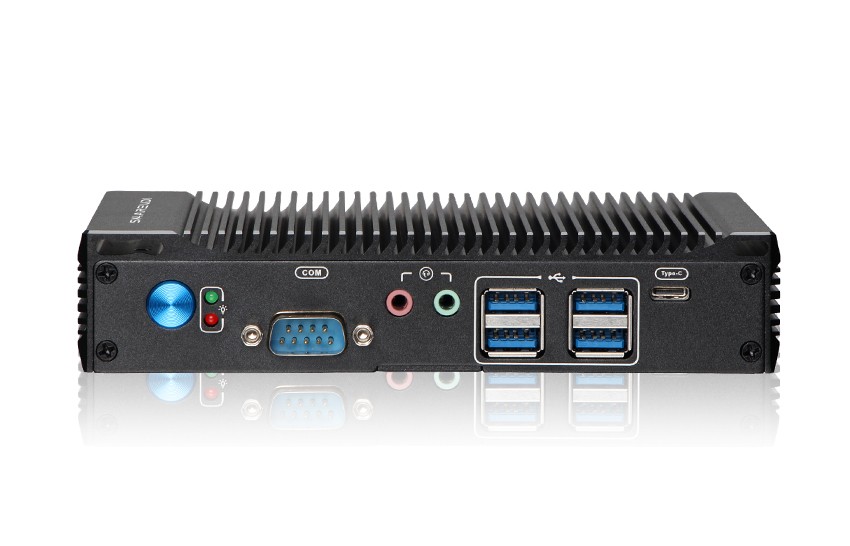

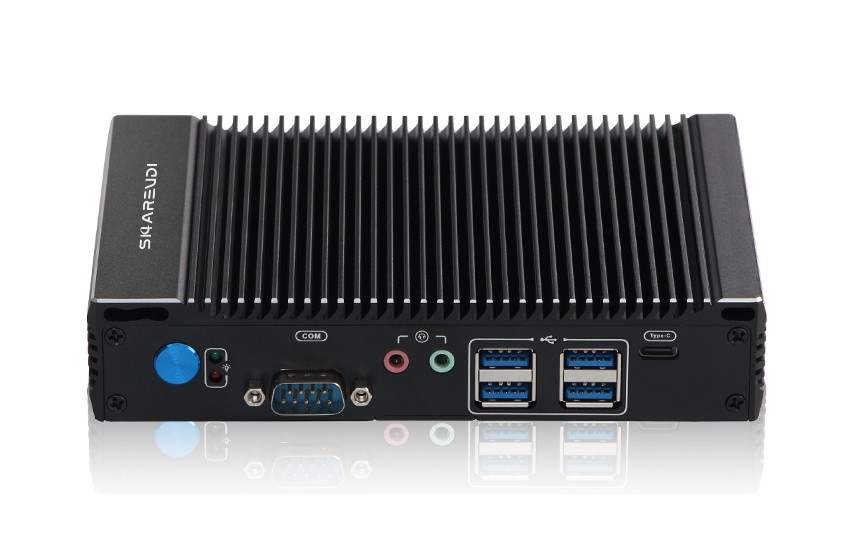

Front
Power ON/OFF, 1*RS232 COM, 1*MIC& SPK, 4*USB3.0, 1*Type-C

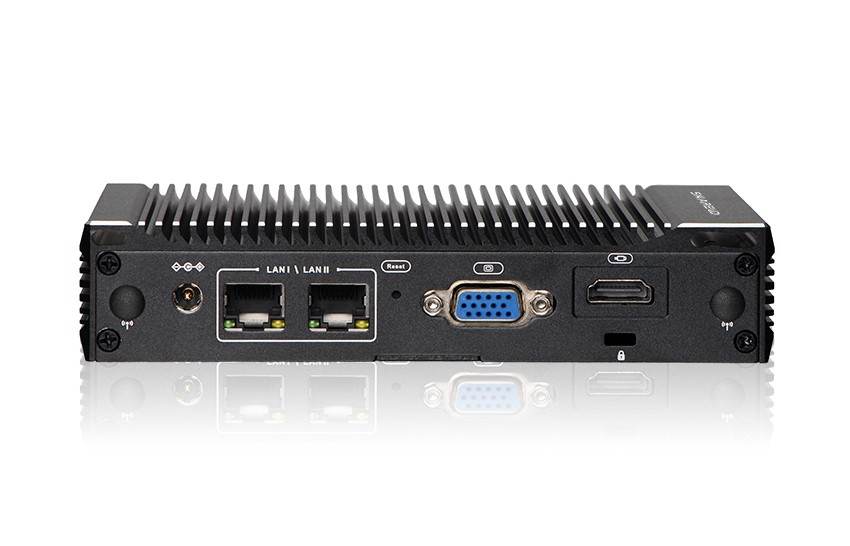

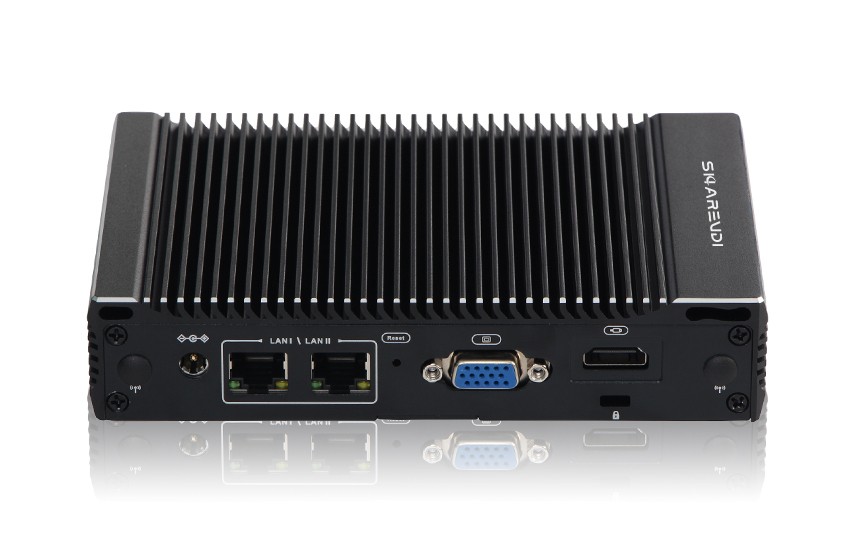

Rear
1*DC 12V, 2*LAN, 1*Reset, 1*VGA, 1*HDMI
-
Extendable
I/O Ports
1 * FP 8PIN, 1 * TPM 2.0 pin (12-1) , 4 * COM1 pin (RS232) , 1 * TPM pin 14PIN, 1 * CPU 3PIN block, 1 * SATA1 block, 1 * Sata pin block, 1 * BATCON1
Module
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V.50-60HZ DC
Output
12V-3A
-
Operating System
Windows 10、11 & Linux
-
Physical
Dimension
L 106.4mm*W 159.8mm*H 32.5mm
Weight(Net)
0.6KG
Color
Black
Cooling Method
Passive cooling
Mounting Options
Dedicated bracket; Support VESA bracket or DIN bracket
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-15~60 ℃
Operation Humidity
5~95% (No Condensation)
Storage Humidity
5~95% (No Condensation)
-
