Medical Industrial PC 11th Gen F17F

Model:

F17F-11th
F17F 主图一.jpg
F17F 主图二.jpg
F17F 主图三.jpg
F17F 主图四.jpg
F17F 主图五.jpg
F17F 主图六.jpg
F17F 主图一.jpg
F17F 主图二.jpg
F17F 主图三.jpg
F17F 主图四.jpg
F17F 主图五.jpg
F17F 主图六.jpg

  • Built with Intel 11th gen Core i3/i5/i7 Processor,Iris Xe Graphics. The Quad-core Processor has up to 4.70 GHz turbo

  • 2*DDR4L slot, max support 64G

  • Support 4 x Serial port （Optional RS232/RS485)

  • Supoort 2xIntel Ethernet Controller, Intel I216-V+Realtek 8111H

  • Support triple screen simultaneously display (HDMI +VGA+ DP)

  • Support 4G LTE module

  • Support TPM 2.0 (optional)

  • Wide temperature -10~65°C


Data sheet Send Inquiry

The Industrial PC F17H-11th Gen, featuring CPUs of 11th Gen i3/i5/i7 and I/O ports with 4xCOM, HDMI, VGA, DP, 2LAN, 6*USB,it can be applied in medical solutions in areas such as KIOSK, digital display, and POS. It can be connected to various medical devices through multiple ports for efficient data transmission and control. The diverse display interfaces ensure clear and accurate information presentation. With stable network connections and multiple USB ports, it meets the diverse requirements of Hospital/Healthcare fields.

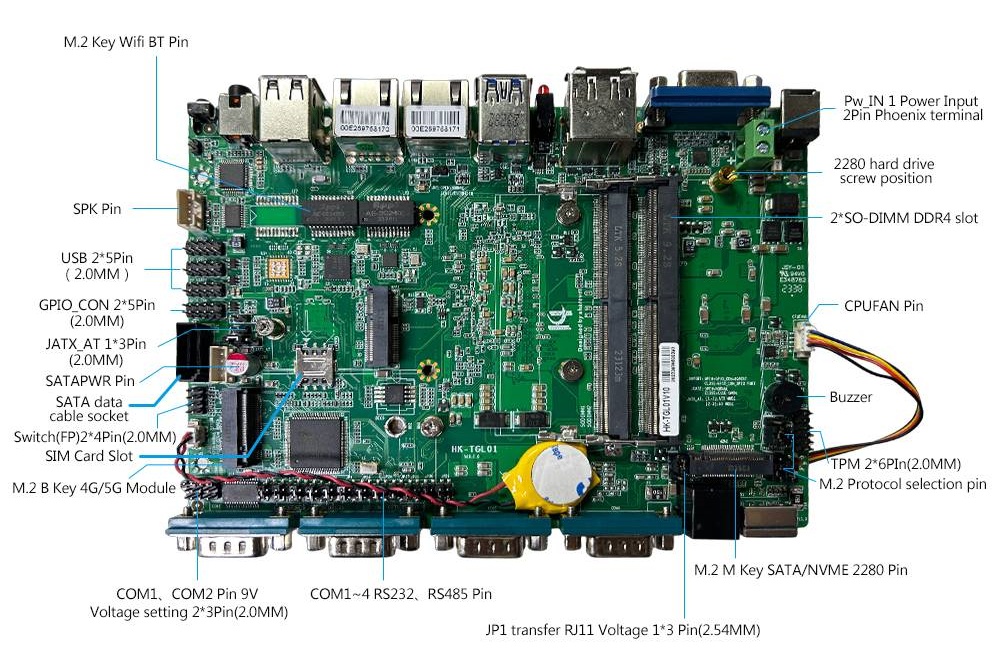

PIN Headers on Motherboard

The Mini PC motherboard features various PIN pins. For the 11th Gen CPUs like i3, i5, and i7, specific PIN configurations are crucial. These pins are responsible for power supply, data transfer, and communication between the CPU and other components. They ensure seamless integration and optimal performance of the processor with the motherboard. The precise design of these PINs enables efficient utilization of the CPU's capabilities, allowing the Mini PC to handle multitasking, high-speed computing, and various application demands effectively.

2(1)_副本 11.jpg

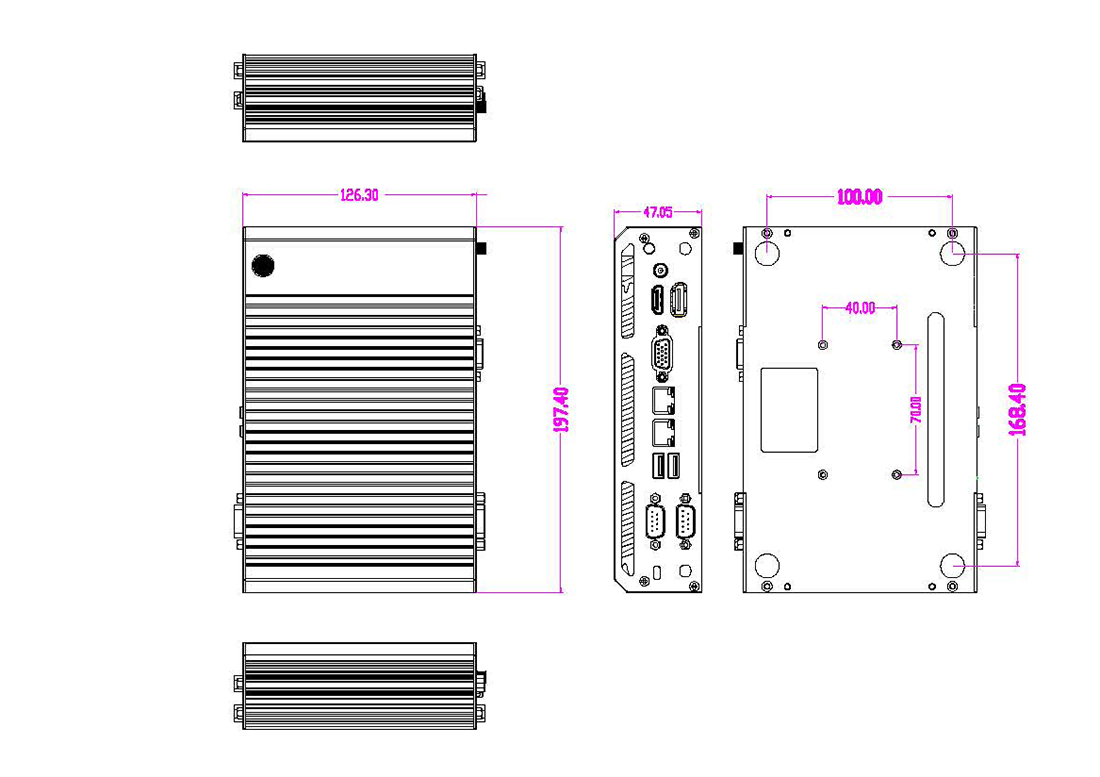

Product Dimension

F17H 尺寸图(1).png

Specification F17F-11th
  • Part No.
    K5-F17F-1145G7
    K3-F17F-1115G4
  • Get A Quote
    Get A Quote
  • Processor

    CPU

    Intel Core i5-1145G7

    Intel Core i3-1115G4

    Core Number

    4 Cores / 8 Threads

    2 Cores / 4 Threads

    Frequency

    2.6GHz

    3.0GHz

    Max Turbo Frequency

    4.4GHz

    4.1GHz

    Chipset

    Tiger Lake

    Tiger Lake

  • Memory

    Technology

    2*DDR4L slot

    2*DDR4L slot

    Max. Capacity

    32GB

    32GB

  • Storage

    M.2 SATA

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

    SATA

    HDD 500GB/1TB/2TB (Optional )

    HDD 500GB/1TB/2TB (Optional )

  • Graphics

    Graphics

    Intel® Iris® Xe Graphics

    Intel® UHD Graphics for 11th Gen Intel® Processors

  • Audio

    Audio

    HD Audio realtek ALC897

    HD Audio realtek ALC897

  • Network

    LAN

    1 *Realtek 8111H Gigabit interface & 2* Intel I216-V network cards

    1 *Realtek 8111H Gigabit interface & 2* Intel I216-V network cards

    Wireless

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

    4G module

    support 4G module with available sim slot

    support 4G module with available sim slot

  • I/O Interface

    Front

    1*PS2, 1*RJ11, 4*Serial RS232/RS485 COM

    1*PS2, 1*RJ11, 4*Serial RS232/RS485 COM

    Rear

    1*MIC& SPK, 2*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V

    1*MIC& SPK, 2*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V

  • Extendable

    I/O Ports

    1* 2PIN PW_IN Phoenix , 1* 12-1PIN TPM2.0 pin, 2*5PIN GPIO pin , RS232/485 switching pin,1*3PIN JP1 jumper RJ11 voltage pin

    1* 2PIN PW_IN Phoenix , 1* 12-1PIN TPM2.0 pin, 2*5PIN GPIO pin , RS232/485 switching pin,1*3PIN JP1 jumper RJ11 voltage pin

    Module

    4G LTE , WIFI+Bluetooth Module (Mini PCIE)

    4G LTE , WIFI+Bluetooth Module (Mini PCIE)

  • Power

    Input

    AC100-240V.50-60HZ DC

    AC100-240V.50-60HZ DC

    Output

    12V-5A

    12V-5A

    Wide Voltage

    12-64V phoenix connector（Optional）

    12-64V phoenix connector（Optional）

  • Operating System

    Windows 10、11 & Linux

    Windows 10、11 & Linux

  • Physical

    Dimension

    L197.4mm*W 126.3mm*H 47.5mm

    L197.4mm*W 126.3mm*H 47.5mm

    Weight(Net)

    1.0KG

    1.0KG

    Color

    Black

    Black

    Cooling Method

    Built-in fan cooling

    Built-in fan cooling

    Mounting Options

    Dedicated bracket;Support VESA bracket

    Dedicated bracket;Support VESA bracket

    Certification

    CE, FCC, ROHS, ISO, UL

    CE, FCC, ROHS, ISO, UL

  • Environment

    Operating Temperature

    -10~60 ℃

    -10~60 ℃

    Storage Temperature

    -10~60 ℃

    -10~60 ℃

    Operation Humidity

    0~95% (No Condensation)

    0~95% (No Condensation)

    Storage Humidity

    0~95% (No Condensation)

    0~95% (No Condensation)

Get A Quote
Processor
  • CPU

    K5-F17F-1145G7

    Intel Core i5-1145G7

    K3-F17F-1115G4

    Intel Core i3-1115G4

  • Core Number

    K5-F17F-1145G7

    4 Cores / 8 Threads

    K3-F17F-1115G4

    2 Cores / 4 Threads

  • Frequency

    K5-F17F-1145G7

    2.6GHz

    K3-F17F-1115G4

    3.0GHz

  • Max Turbo Frequency

    K5-F17F-1145G7

    4.4GHz

    K3-F17F-1115G4

    4.1GHz

  • Chipset

    K5-F17F-1145G7

    Tiger Lake

    K3-F17F-1115G4

    Tiger Lake

Memory
  • Technology

    K5-F17F-1145G7

    2*DDR4L slot

    K3-F17F-1115G4

    2*DDR4L slot

  • Max. Capacity

    K5-F17F-1145G7

    32GB

    K3-F17F-1115G4

    32GB

Storage
  • M.2 SATA

    K5-F17F-1145G7

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

    K3-F17F-1115G4

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

  • SATA

    K5-F17F-1145G7

    HDD 500GB/1TB/2TB (Optional )

    K3-F17F-1115G4

    HDD 500GB/1TB/2TB (Optional )

Graphics
  • Graphics

    K5-F17F-1145G7

    Intel® Iris® Xe Graphics

    K3-F17F-1115G4

    Intel® UHD Graphics for 11th Gen Intel® Processors

Audio
  • Audio

    K5-F17F-1145G7

    HD Audio realtek ALC897

    K3-F17F-1115G4

    HD Audio realtek ALC897

Network
  • LAN

    K5-F17F-1145G7

    1 *Realtek 8111H Gigabit interface & 2* Intel I216-V network cards

    K3-F17F-1115G4

    1 *Realtek 8111H Gigabit interface & 2* Intel I216-V network cards

  • Wireless

    K5-F17F-1145G7

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

    K3-F17F-1115G4

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

  • 4G module

    K5-F17F-1145G7

    support 4G module with available sim slot

    K3-F17F-1115G4

    support 4G module with available sim slot

I/O Interface
  • Front

    K5-F17F-1145G7

    1*PS2, 1*RJ11, 4*Serial RS232/RS485 COM

    K3-F17F-1115G4

    1*PS2, 1*RJ11, 4*Serial RS232/RS485 COM

  • Rear

    K5-F17F-1145G7

    1*MIC& SPK, 2*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V

    K3-F17F-1115G4

    1*MIC& SPK, 2*USB2.0, 2*LAN, 2*USB3.0, 1*HDMI, 1*DP, 1*VGA, 1*DC 12V

Extendable
  • I/O Ports

    K5-F17F-1145G7

    1* 2PIN PW_IN Phoenix , 1* 12-1PIN TPM2.0 pin, 2*5PIN GPIO pin , RS232/485 switching pin,1*3PIN JP1 jumper RJ11 voltage pin

    K3-F17F-1115G4

    1* 2PIN PW_IN Phoenix , 1* 12-1PIN TPM2.0 pin, 2*5PIN GPIO pin , RS232/485 switching pin,1*3PIN JP1 jumper RJ11 voltage pin

  • Module

    K5-F17F-1145G7

    4G LTE , WIFI+Bluetooth Module (Mini PCIE)

    K3-F17F-1115G4

    4G LTE , WIFI+Bluetooth Module (Mini PCIE)

Power
  • Input

    K5-F17F-1145G7

    AC100-240V.50-60HZ DC

    K3-F17F-1115G4

    AC100-240V.50-60HZ DC

  • Output

    K5-F17F-1145G7

    12V-5A

    K3-F17F-1115G4

    12V-5A

  • Wide Voltage

    K5-F17F-1145G7

    12-64V phoenix connector（Optional）

    K3-F17F-1115G4

    12-64V phoenix connector（Optional）

Operating System

  • K5-F17F-1145G7

    Windows 10、11 & Linux

    K3-F17F-1115G4

    Windows 10、11 & Linux

Physical
  • Dimension

    K5-F17F-1145G7

    L197.4mm*W 126.3mm*H 47.5mm

    K3-F17F-1115G4

    L197.4mm*W 126.3mm*H 47.5mm

  • Weight(Net)

    K5-F17F-1145G7

    1.0KG

    K3-F17F-1115G4

    1.0KG

  • Color

    K5-F17F-1145G7

    Black

    K3-F17F-1115G4

    Black

  • Cooling Method

    K5-F17F-1145G7

    Built-in fan cooling

    K3-F17F-1115G4

    Built-in fan cooling

  • Mounting Options

    K5-F17F-1145G7

    Dedicated bracket;Support VESA bracket

    K3-F17F-1115G4

    Dedicated bracket;Support VESA bracket

  • Certification

    K5-F17F-1145G7

    CE, FCC, ROHS, ISO, UL

    K3-F17F-1115G4

    CE, FCC, ROHS, ISO, UL

Environment
  • Operating Temperature

    K5-F17F-1145G7

    -10~60 ℃

    K3-F17F-1115G4

    -10~60 ℃

  • Storage Temperature

    K5-F17F-1145G7

    -10~60 ℃

    K3-F17F-1115G4

    -10~60 ℃

  • Operation Humidity

    K5-F17F-1145G7

    0~95% (No Condensation)

    K3-F17F-1115G4

    0~95% (No Condensation)

  • Storage Humidity

    K5-F17F-1145G7

    0~95% (No Condensation)

    K3-F17F-1115G4

    0~95% (No Condensation)
