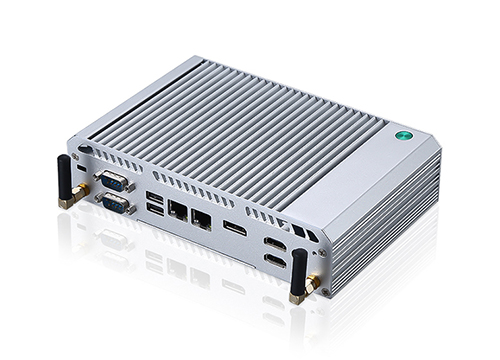

Medical Box PC 11th Gen F24

Medical Computer/ Product Center/ Medical Box Computer/ Medical Box PC 11th Gen F24

Medical Box PC 11th Gen F24

Model:

K5-F24

Add To Compare

● Built with Intel 11th gen Core i3/i5/i7 Processor, Iris Xe Graphics

● The quad-core processor features a turbo frequency of up to 4.70 GHz

● 2*DDR4L slots, max support 32G

● Support 4 Serial ports （Optional RS232/RS485)

● Support 2 Intel Ethernet Controller, Intel I226-V and Realtek 8111H

● Enables simultaneous triple-screen display (HDMI + VGA + DP)

● Support 4G LTE module

● Support TPM 2.0 (optional)

● Operates in a wide temperature range from -20°C to 65°C

Data sheet Send Inquiry

The ShareVDI K5-F24 11th Gen Medical Box PC is equipped with high-performance 11th Gen Intel CPUs, offering options for i3, i5, and i7 processors to meet various computational needs. This fanless rugged mini PC features an upgraded enclosure that facilitates superior heat dissipation, ensuring reliable operation even under heavy workloads. With a comprehensive array of interfaces, the K5-F24 industrial rugged mini PC is designed for seamless connectivity and integration in industrial settings.

ShareVDI industrial rugged computer K5-F24 with robust industrial design guarantees dependable 24/7 operation, making it suitable for environments with temperature ranges from -10 to 60 degrees Celsius. This rugged embedded computer stands out as a reliable solution for industries that require both performance and durability.

Overview
Specification

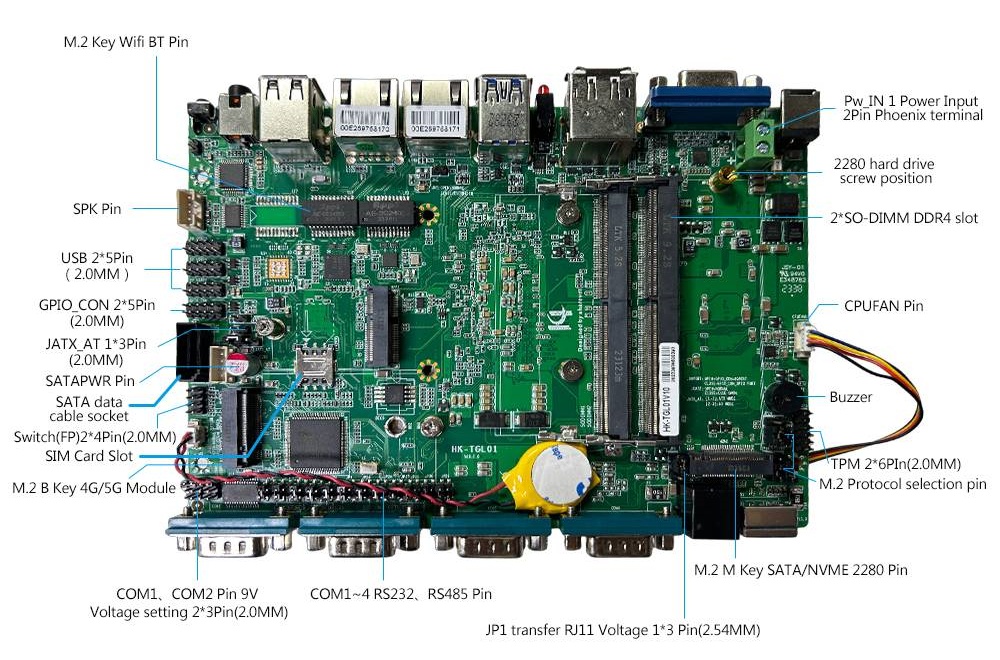

PIN Headers on Motherboard

The Mini PC motherboard features various PIN pins. For the 11th Gen CPUs like i3, i5, and i7, specific PIN configurations are crucial. These pins are responsible for power supply, data transfer, and communication between the CPU and other components. They ensure seamless integration and optimal performance of the processor with the motherboard. The precise design of these PINs enables efficient utilization of the CPU's capabilities, allowing the Mini PC to handle multitasking, high-speed computing, and various application demands effectively.

2(1)_副本 11.jpg

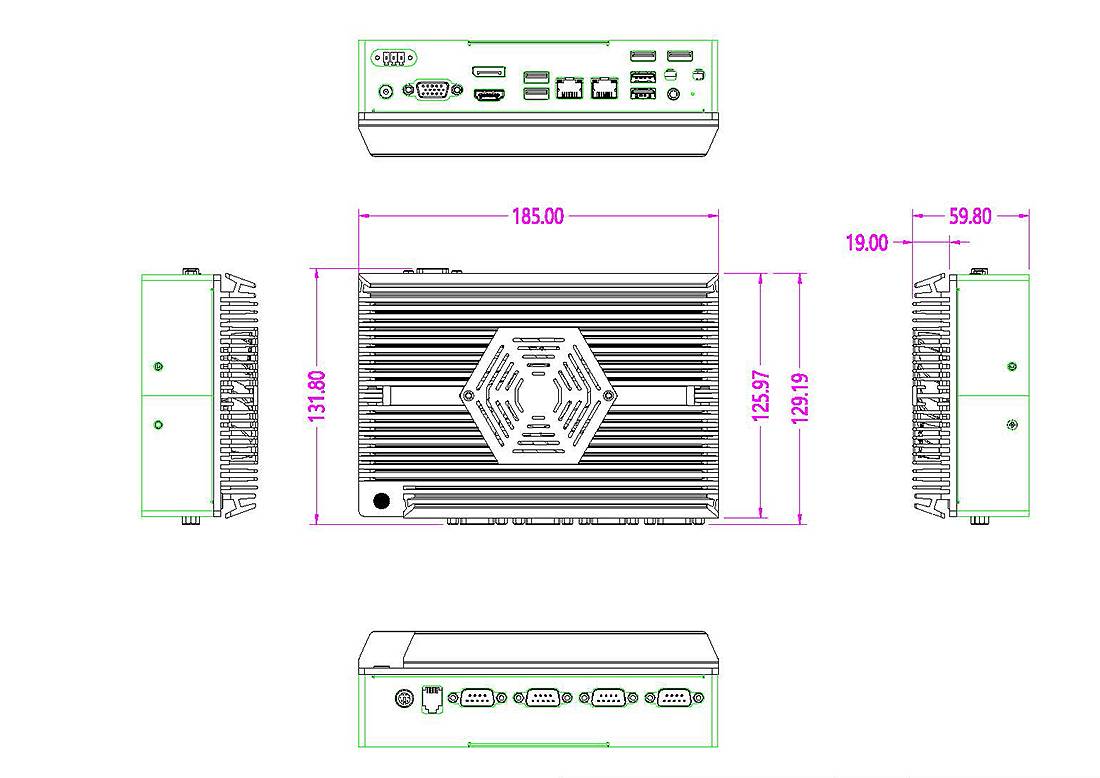

Product Dimension


Part No.
