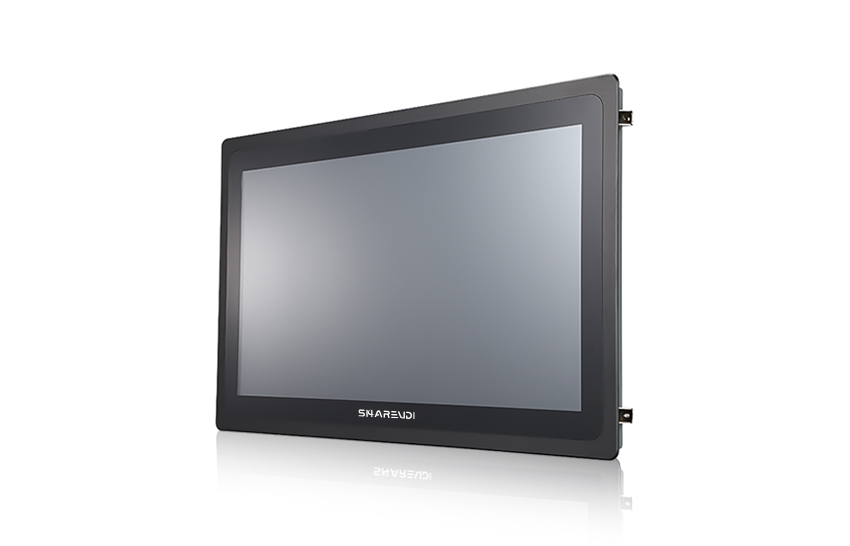

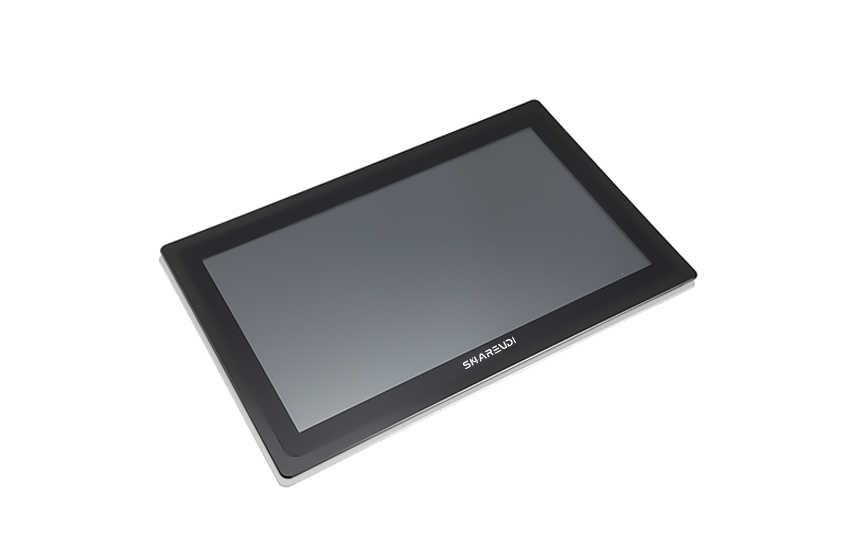

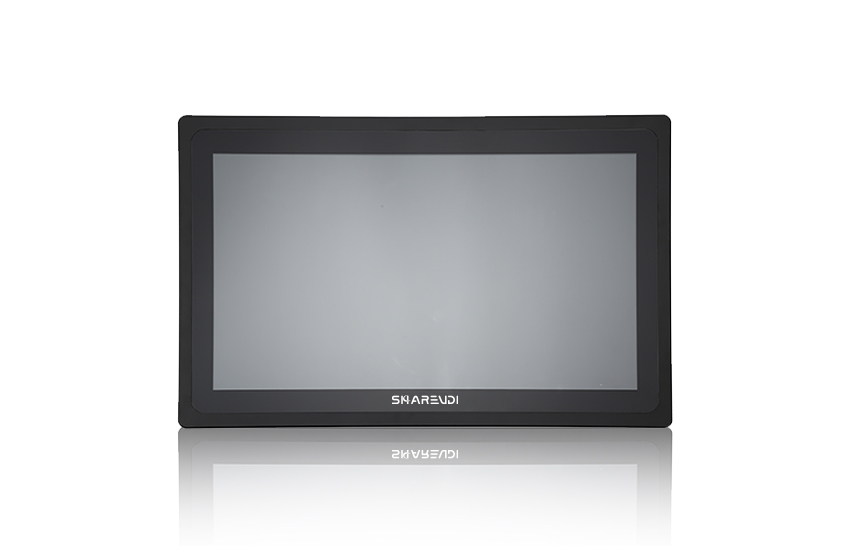

A2 Industrial Touch Screen PC
Model:
A2
● Flat 21.5 '' capacitive 10-point touch screen, IP65-rated front panel
● With 2/6 x COM port (RS232 / RS485)
● With 2 x LAN port
● Support wide voltage 12- 64V power supply
● Support 4G LTE module,mini PCIE / M.2 expansion

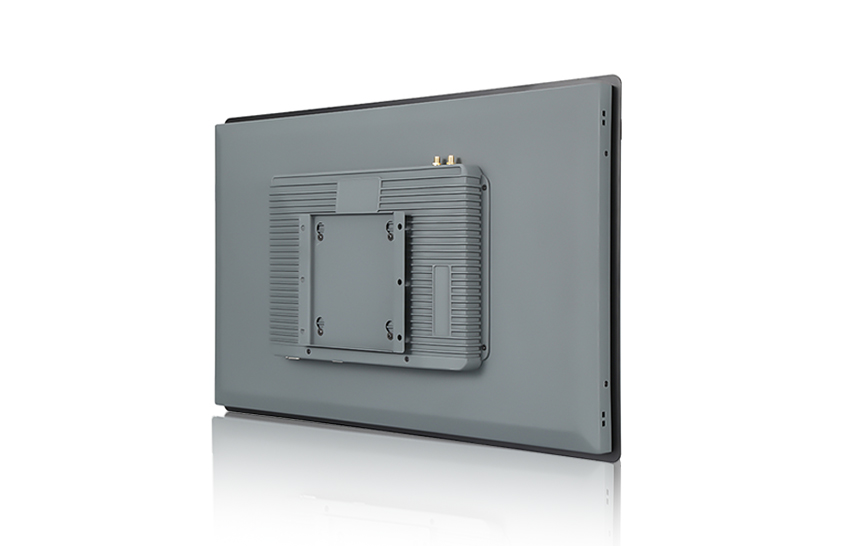

● Optional installation method, VESA / Stand / Embedded
● Wide range configuration available
A2 is a IP65 rating panel PC with optional full or front water-proof and dust-proof. It has been widely used for industrial automation, KIOSK, and POS system.
-
Part No.A2-A1020A2-i3/i5/i7
-
-
Processor System
CPU
A1020
Intel Core I3-1125G4/I5-1155G7/I7-1195G7
RAM
DDR3 4GB/8GB
DDR4 4GB/8GB/16GB/32GB/64GB
Storage
SSD 64GB/128GB/256GB/512GB
SSD 128GB/256GB/512GB/1TB
-
Display
Panel Size
21.5''
21.5''
Max. Resolution
1920*1080p
1920*1080p
Max. Colors
16.7M(8-bit)
16.7M(8-bit)
Treatment
Anti-Glare
Anti-Glare
Brightness
250-1000nits
250-1000nits
Viewing Direction
Full Viewing
Full Viewing
Aspect Ratio
16:9
16:9
-
Touch Screen
Touch Points
10 Points
10 Points
Type
Capacitive Touch
Capacitive Touch
-
Color
Gray
Gray
-

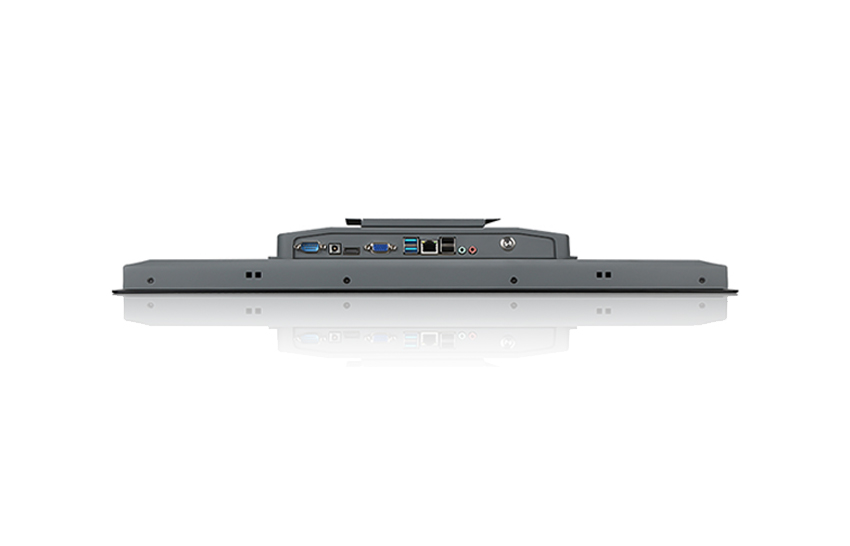

I/O Interface
Video output
1*VGA,1*HDMI
1*VGA,1*HDMI, 1*DP
Serial Port
2-4*RS232/RS485 (Upgradable)
2-6*RS232/RS485 (Upgradable)
USB Port
6*USB(Upgradable)
6*USB (Upgradable)
Ethernet
2*Ethernet (Upgradable)
2*Ethernet (Upgradable)
Extendable Port
RS485, Phoenix terminal(Replace DC)
RS485, LPT, Phoenix terminal(Replace DC)
-
General
Certification
CE,FCC,ROHS,ISO
CE,FCC,ROHS,ISO
Dimension(W*H*D)
534*325*52.6 mm
534*325*52.6 mm
Power Input
AC100-240V.50-60HZ
AC100-240V.50-60HZ
Power Output
DC12V 5A
DC12V 5A
Mounting Options
Wall Mount/Embedded Vesa Mount/Vertical Stand
Wall Mount/Embedded Vesa Mount/Vertical Stand
Weight(Net)
7.5KG
7.5KG
-
Environment
Operating Temperature
-10 ~ 60℃
-10 ~ 60℃
Storage Temperature
-20 ~ 70℃
-20 ~ 70℃
Operation Humidity
0% ~ 95%
0% ~ 95%
Storage Humidity
0% ~ 95%
0% ~ 95%
-
CPU
A2-A1020
A1020
A2-i3/i5/i7
Intel Core I3-1125G4/I5-1155G7/I7-1195G7
-
RAM
A2-A1020
DDR3 4GB/8GB
A2-i3/i5/i7
DDR4 4GB/8GB/16GB/32GB/64GB
-
Storage
A2-A1020
SSD 64GB/128GB/256GB/512GB
A2-i3/i5/i7
SSD 128GB/256GB/512GB/1TB
-
Panel Size
A2-A1020
21.5''
A2-i3/i5/i7
21.5''
-
Max. Resolution
A2-A1020
1920*1080p
A2-i3/i5/i7
1920*1080p
-
Max. Colors
A2-A1020
16.7M(8-bit)
A2-i3/i5/i7
16.7M(8-bit)
-
Treatment
A2-A1020
Anti-Glare
A2-i3/i5/i7
Anti-Glare
-
Brightness
A2-A1020
250-1000nits
A2-i3/i5/i7
250-1000nits
-
Viewing Direction
A2-A1020
Full Viewing
A2-i3/i5/i7
Full Viewing
-
Aspect Ratio
A2-A1020
16:9
A2-i3/i5/i7
16:9
-
Touch Points
A2-A1020
10 Points
A2-i3/i5/i7
10 Points
-
Type
A2-A1020
Capacitive Touch
A2-i3/i5/i7
Capacitive Touch
-
A2-A1020
Gray
A2-i3/i5/i7
Gray
-
Video output
A2-A1020
1*VGA,1*HDMI
A2-i3/i5/i7
1*VGA,1*HDMI, 1*DP
-
Serial Port
A2-A1020
2-4*RS232/RS485 (Upgradable)
A2-i3/i5/i7
2-6*RS232/RS485 (Upgradable)
-
USB Port
A2-A1020
6*USB(Upgradable)
A2-i3/i5/i7
6*USB (Upgradable)
-
Ethernet
A2-A1020
2*Ethernet (Upgradable)
A2-i3/i5/i7
2*Ethernet (Upgradable)
-
Extendable Port
A2-A1020
RS485, Phoenix terminal(Replace DC)
A2-i3/i5/i7
RS485, LPT, Phoenix terminal(Replace DC)
-
Certification
A2-A1020
CE,FCC,ROHS,ISO
A2-i3/i5/i7
CE,FCC,ROHS,ISO
-
Dimension(W*H*D)
A2-A1020
534*325*52.6 mm
A2-i3/i5/i7
534*325*52.6 mm
-
Power Input
A2-A1020
AC100-240V.50-60HZ
A2-i3/i5/i7
AC100-240V.50-60HZ
-
Power Output
A2-A1020
DC12V 5A
A2-i3/i5/i7
DC12V 5A
-
Mounting Options
A2-A1020
Wall Mount/Embedded Vesa Mount/Vertical Stand
A2-i3/i5/i7
Wall Mount/Embedded Vesa Mount/Vertical Stand
-
Weight(Net)
A2-A1020
7.5KG
A2-i3/i5/i7
7.5KG
-
Operating Temperature
A2-A1020
-10 ~ 60℃
A2-i3/i5/i7
-10 ~ 60℃
-
Storage Temperature
A2-A1020
-20 ~ 70℃
A2-i3/i5/i7
-20 ~ 70℃
-
Operation Humidity
A2-A1020
0% ~ 95%
A2-i3/i5/i7
0% ~ 95%
-
Storage Humidity
A2-A1020
0% ~ 95%
A2-i3/i5/i7
0% ~ 95%
