The installation methods of Industrial Panel PC

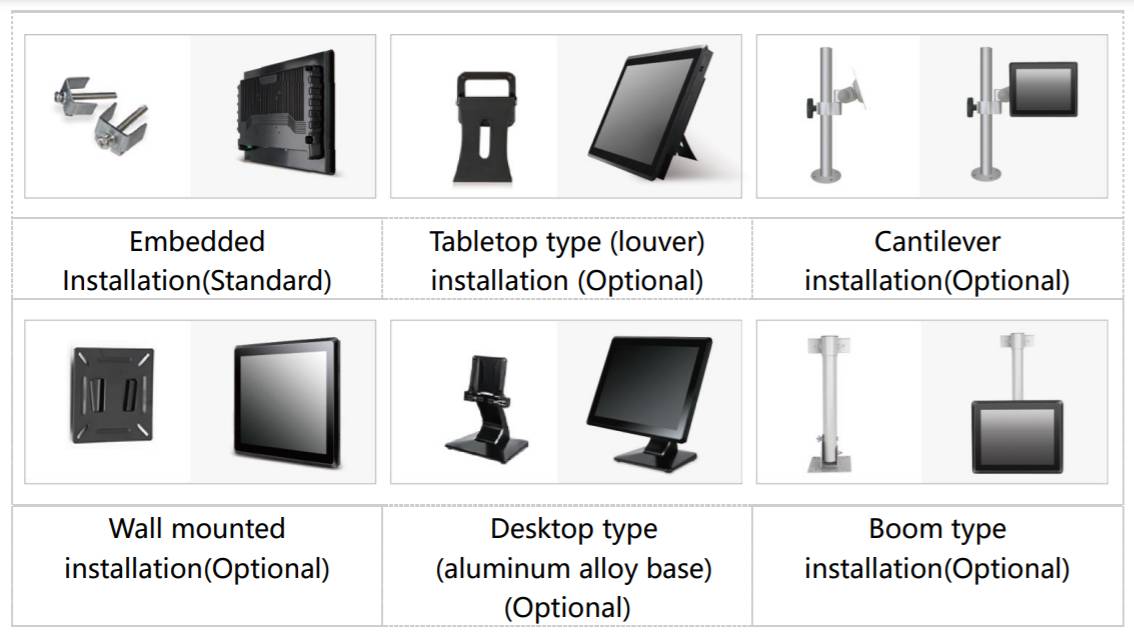

As the industrial control field develops more and more widely, there are more and more application ways of industrial panel PC, and the installation methods of applications in various industries are also different. Therefore, general industrial panel PC manufacturers have introduced a variety of installation methods for a industrial panel PC. What are the common installation methods of industrial panel PC? Taking ShareVDI Technology as an example, the main popular installation methods are embedded type, cantilever type, desktop type, wall mounted type, tabletop type(louver), open frame type, back-hanging type, rack type installation methods.

Embedded Type Installation

Embedded installation, popularity is to embed industrial panel PC into the customer's machine, if the customer's device needs a large-scale control cabinet, embedded panel PC only puts the panel outside the device, and the rest is embedded in the customer’s device. Use the configured buckle and fix them with hooks at the back (for large control cabinets, just open a large square hole according to the size of the hole in our embedded tablet installation drawing) and do not need to open any mounting holes in other places.

Common application areas: Workshop equipment, test equipment, CNC machine, construction site and other industrial automation applications.

Wall-mounted Type Installation

The feature of the wall-mounted industrial all-in-one PC is that it is hung through the configured wall-mounted bracket. It is not only hung on the wall, but most of them are installed on the customer's equipment. It can adjust the angle according to the customer's requirements to match the appropriate mounting arm, he can stay in any position at will for the user to watch.

Common application Areas: Generally used in small, medium, large industrial equipments.

Cantilever Type Installation

On the basis of hang-type, the appropriate mounting arm is fitted, allowing users to stay in any location according to the needs of the use, which can be free to watch. It is worth noting that when purchasing, the user needs to negotiate with the manufacturer about the requirements of the mounting arm, and pay attention to its length and rotation angle.

Common application Areas: This type is generally used in small, medium, large industrial equipments. At the same time, the demand on the production line is also relatively large.

Desktop Type Installation

For the desktop installation method of the industrial all-in-one PC, the configuration of the desktop mounting bracket will have different forms according to different manufacturers. Users can select the desktop mounting bracket when purchasing, and then they can assemble by themselves. It can be said that the desktop type is the easiest way to install in the industrial all-in-one PC. At the same time, like some commercial computers, the mounting bracket of the industrial all-in-one PC can also adjust the angle of the screen to better enhance the user experience.

Common application areas: Generally used for production office data management, command center management, etc.

Tabletop Type (louver) Installation

It is necessary to use a tabletop type installation of industrial all-in-one PC, it can choose a louver-shaped bracket. This type of installation is relatively simple, and its application needs are mainly convenient for scene switching. Lightweight, contraction of the louver-shaped bracket, allowing industrial integration to move according to user needs.

Open Frame Type Installation

The industrial all-in-one PC that needs an open edge bracket has no face frame shell, only the interior. Most customers use this bracket, mainly because the device is small and has a delicate shell, and there is not much space to install a general panel computer.

Common application Areas: such as ATM machines, commercial POS, etc.,these are generally installed inside of customer equipment.

Back-hanging Type Installation

The back-mounted industrial all-in-one PC, which is installed in the customer's cabinet and equipment in reverse, and it is installed inside of the customer's machine. The difference from the open type is that it has a shell and power supply, and its edge is connected to the customer's machine. The edges of the shell overlap, which is generally used in large and medium-sized equipment.

Common application Area: such as electricity, machinery, and medical industries.

Rack type Installation

Rack-type industrial all-in-one PC are generally installed on the cabinet, so their width is standard 19 inches, and the installation holes are opened according to the standard number.

Common application scenarios: Generally used in machine cabinets such as telecommunications, electricity, large servers, etc.
