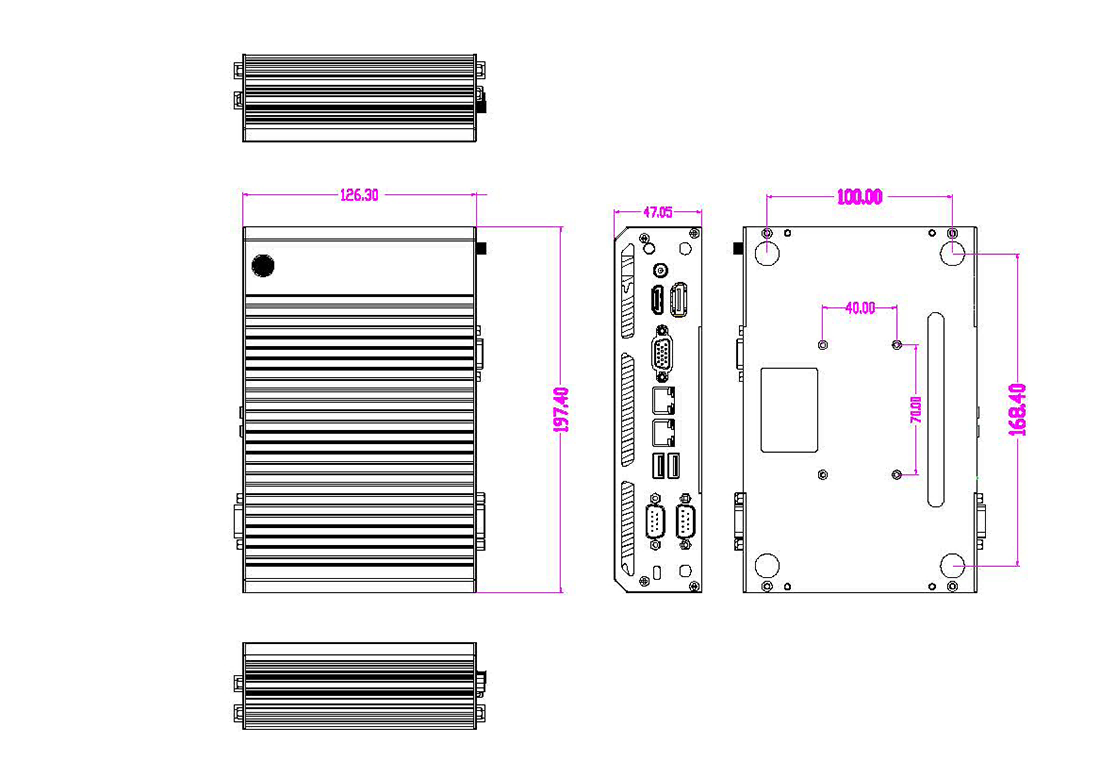

Product Dimension
Medical Fanless Mini PC F17H-5th
Model:
F17H-5th
Anti-vibration & shock proof, industrial grade design for 7/24 use
Flexible expansion for I/O ports
3 x RS232/ RS485 + 1-2 x GPIO
2 x Ethernet ports
Support 4G LTE module
Support TPM 2.0 (optional)
12V ~ 64V wide range power input
Wide temperature -10~65°C
Anti-vibration & shock proof, industrial grade design for 7/24 use
Flexible expansion for I/O ports
3 x RS232/ RS485 + 1-2 x GPIO
2 x Ethernet ports
Support 4G LTE module
Support TPM 2.0 (optional)
12V ~ 64V wide range power input
Wide temperature -10~65°C
Share：
The Fanless Mini PC F17H-5th Gen, featuring CPUs of 5th Gen i3/i5/i7 and I/O ports with 4xCOM, 2HDMI, VGA, 2LAN, 6*USB,it can be applied in medical solutions in areas such as KIOSK, digital display, and POS. It can be connected to various medical devices through multiple ports for efficient data transmission and control. The diverse display interfaces ensure clear and accurate information presentation. With stable network connections and multiple USB ports, it meets the diverse requirements of Hospital/Healthcare fields.
Specification
-
Part No.K3-F17H-5005UK3-F17H-6006U
-
-
Processor
CPU
Intel Core I3-5005U
Intel Core I3-6006U
Core Number
2 Cores / 4 Threads
2 Cores / 4 Threads
Frequency
2.0GHz
2.0GHz
Max Turbo Frequency
2.0GHz
2.0GHz
Chipset
Broadwell
Broadwell
-
Memory
Technology
2*DDR3L slots
2*DDR3L slots
Max. Capacity
16GB
16GB
-
Storage
MSATA
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SATA
HDD 500GB/1TB/2TB (Optional )
HDD 500GB/1TB/2TB (Optional )
-
Graphics
Graphics
Intel HD Graphics 5500
Intel® HD Graphics 520
-
Audio
Audio
HD Audio realtek ALC 662
HD Audio realtek ALC 662
-
Network
LAN
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
I/O Interface
Front
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45,DC 12V
Rear
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
Extendable
I/O
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
1*4Pin AT、1*JHDMI1、1*JVGA、1*F_AUDIO、3*F_USB2.0、1 * FPANEL、1*SATA HDD、 1* JSATA_PWR1、2*CPU（CFAN1,SFAN1）、1 *TPM、1 *SPEAKER、1*IVCN1、 1*JPS2、 1*GPIO2、1*PRINT1
Module
WIFI+Bluetooth Module (M.2 PCIE)
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V.50-60HZ DC
AC100-240V.50-60HZ DC
Output
12V-5A
12V-5A
Wide Voltage
12-64V phoenix connector （Optional）
12-64V phoenix connector（Optional）
-
Operating System
Windows/Linux
Windows/Linux
-
Physical
Dimension
L 197.4mm*W 126.3mm*H 47.5mm
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0KG
1.0KG
Color
Black
Black
Cooling Method
Fanless Passive Cooling
Fanless Passive Cooling
Mounting Options
Desk / Wall Mount / Embedded / DIN Rail
Desk / Wall Mount / Embedded / DIN Rail
Certification
CE, FCC, ROHS, ISO, UL
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~65 ℃
-10~65 ℃
Storage Temperature
-10~60 ℃
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Processor
-
CPU
K3-F17H-5005U
Intel Core I3-5005U
K3-F17H-6006U
Intel Core I3-6006U
-
Core Number
K3-F17H-5005U
2 Cores / 4 Threads
K3-F17H-6006U
2 Cores / 4 Threads
-
Frequency
K3-F17H-5005U
2.0GHz
K3-F17H-6006U
2.0GHz
-
Max Turbo Frequency
K3-F17H-5005U
2.0GHz
K3-F17H-6006U
2.0GHz
-
Chipset
K3-F17H-5005U
Broadwell
K3-F17H-6006U
Broadwell
Memory
-
Technology
K3-F17H-5005U
2*DDR3L slots
K3-F17H-6006U
2*DDR3L slots
-
Max. Capacity
K3-F17H-5005U
16GB
K3-F17H-6006U
16GB
Storage
-
MSATA
K3-F17H-5005U
SSD 16GB/32GB/64GB/128GB/256GB/512GB
K3-F17H-6006U
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
SATA
K3-F17H-5005U
HDD 500GB/1TB/2TB (Optional )
K3-F17H-6006U
HDD 500GB/1TB/2TB (Optional )
Graphics
-
Graphics
K3-F17H-5005U
Intel HD Graphics 5500
K3-F17H-6006U
Intel® HD Graphics 520
Audio
-
Audio
K3-F17H-5005U
HD Audio realtek ALC 662
K3-F17H-6006U
HD Audio realtek ALC 662
Network
-
LAN
K3-F17H-5005U
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
K3-F17H-6006U
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
-
Wireless
K3-F17H-5005U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
K3-F17H-6006U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
I/O Interface
-
Front
K3-F17H-5005U
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
K3-F17H-6006U
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45,DC 12V
-
Rear
K3-F17H-5005U
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
K3-F17H-6006U
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
Extendable
-
I/O
K3-F17H-5005U
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
K3-F17H-6006U
1*4Pin AT、1*JHDMI1、1*JVGA、1*F_AUDIO、3*F_USB2.0、1 * FPANEL、1*SATA HDD、 1* JSATA_PWR1、2*CPU（CFAN1,SFAN1）、1 *TPM、1 *SPEAKER、1*IVCN1、 1*JPS2、 1*GPIO2、1*PRINT1
-
Module
K3-F17H-5005U
WIFI+Bluetooth Module (M.2 PCIE)
K3-F17H-6006U
WIFI+Bluetooth Module (M.2 PCIE)
Power
-
Input
K3-F17H-5005U
AC100-240V.50-60HZ DC
K3-F17H-6006U
AC100-240V.50-60HZ DC
-
Output
K3-F17H-5005U
12V-5A
K3-F17H-6006U
12V-5A
-
Wide Voltage
K3-F17H-5005U
12-64V phoenix connector （Optional）
K3-F17H-6006U
12-64V phoenix connector（Optional）
Operating System
-
K3-F17H-5005U
Windows/Linux
K3-F17H-6006U
Windows/Linux
Physical
-
Dimension
K3-F17H-5005U
L 197.4mm*W 126.3mm*H 47.5mm
K3-F17H-6006U
L 197.4mm*W 126.3mm*H 47.5mm
-
Weight(Net)
K3-F17H-5005U
1.0KG
K3-F17H-6006U
1.0KG
-
Color
K3-F17H-5005U
Black
K3-F17H-6006U
Black
-
Cooling Method
K3-F17H-5005U
Fanless Passive Cooling
K3-F17H-6006U
Fanless Passive Cooling
-
Mounting Options
K3-F17H-5005U
Desk / Wall Mount / Embedded / DIN Rail
K3-F17H-6006U
Desk / Wall Mount / Embedded / DIN Rail
-
Certification
K3-F17H-5005U
CE, FCC, ROHS, ISO, UL
K3-F17H-6006U
CE, FCC, ROHS, ISO, UL
Environment
-
Operating Temperature
K3-F17H-5005U
-10~65 ℃
K3-F17H-6006U
-10~65 ℃
-
Storage Temperature
K3-F17H-5005U
-10~60 ℃
K3-F17H-6006U
-10~60 ℃
-
Operation Humidity
K3-F17H-5005U
0~95% (No Condensation)
K3-F17H-6006U
0~95% (No Condensation)
-
Storage Humidity
K3-F17H-5005U
0~95% (No Condensation)
K3-F17H-6006U
0~95% (No Condensation)
