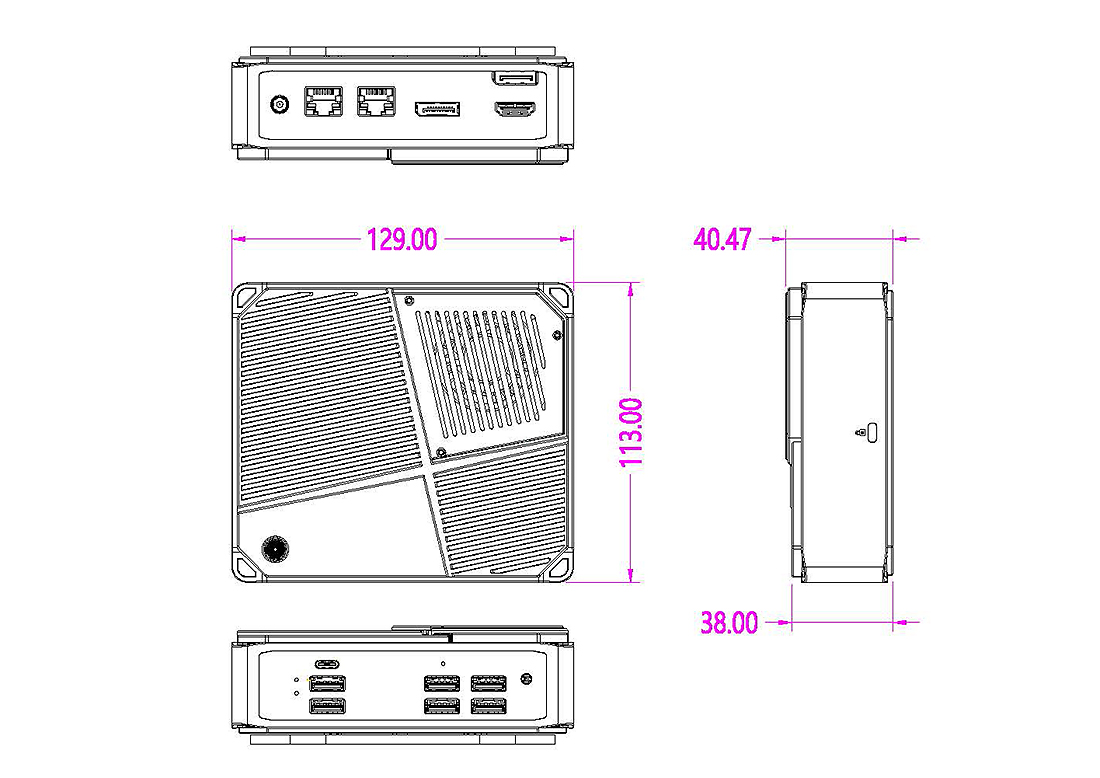

Product Dimension

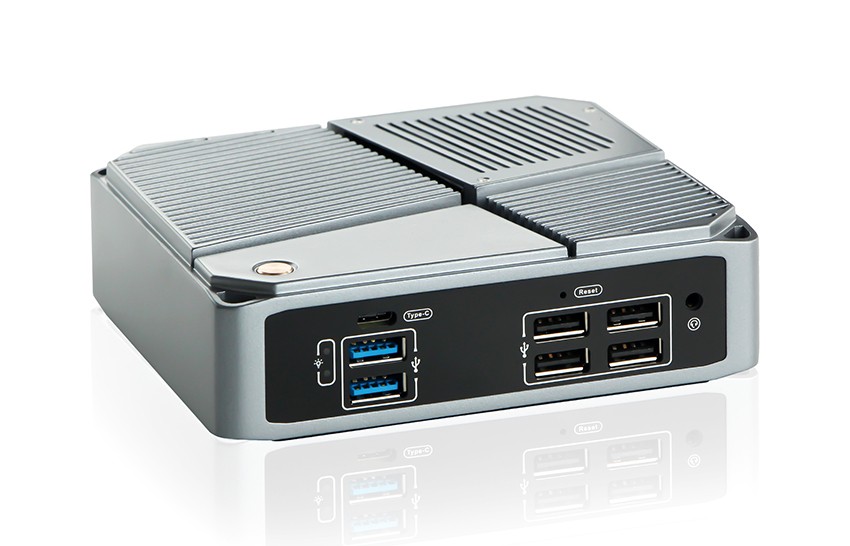

Medical Mini Box PC F25
Model:
F25-N100/9420
Intel N100 Processor / AMD 9420 processor
NUC Slim design (L 129mm*W 113mm*H 39mm)
1xHDMI+2xDP, support Triple Display
Support playing 4K Video
2xRealtek 8111G Gigabit
TPM2.0 security encryption
Comptiable with WIN10 / WIN11 / Linux
Intel N100 Processor / AMD 9420 processor
NUC Slim design (L 129mm*W 113mm*H 39mm)
1xHDMI+2xDP, support Triple Display
Support playing 4K Video
2xRealtek 8111G Gigabit
TPM2.0 security encryption
Comptiable with WIN10 / WIN11 / Linux
Share：
The Mini PC F25 series presenting CPU alternatives of Celeron N100 (0.8GHz~3.4GHz) or AMD A9-9420(3.0GHz~3.6GHz), and endowed with I/O ports of HDMI/2DP/2LAN/6USB, sustains 4 displays and 4K video. It can be employed in medical digital displays as follows: Couple multiple display devices through the offered ports for a comprehensive vista. Install pertinent medical display software. Guarantee a stable network connection via the LAN ports for data conveyance. The 4K video support furnishes clear and elaborate medical information.
Intel 12th Gen N100 Processor
The Mini PC F25 series with Intel 12th Gen N100 Processor(optional CPU :AMD A9 9420）is ideal for medical solutions. It offers reliable performance for handling patient data management systems, running medical imaging software with reasonable speed for quick diagnosis. Its efficient multitasking ability ensures seamless operation of multiple medical applications simultaneously.

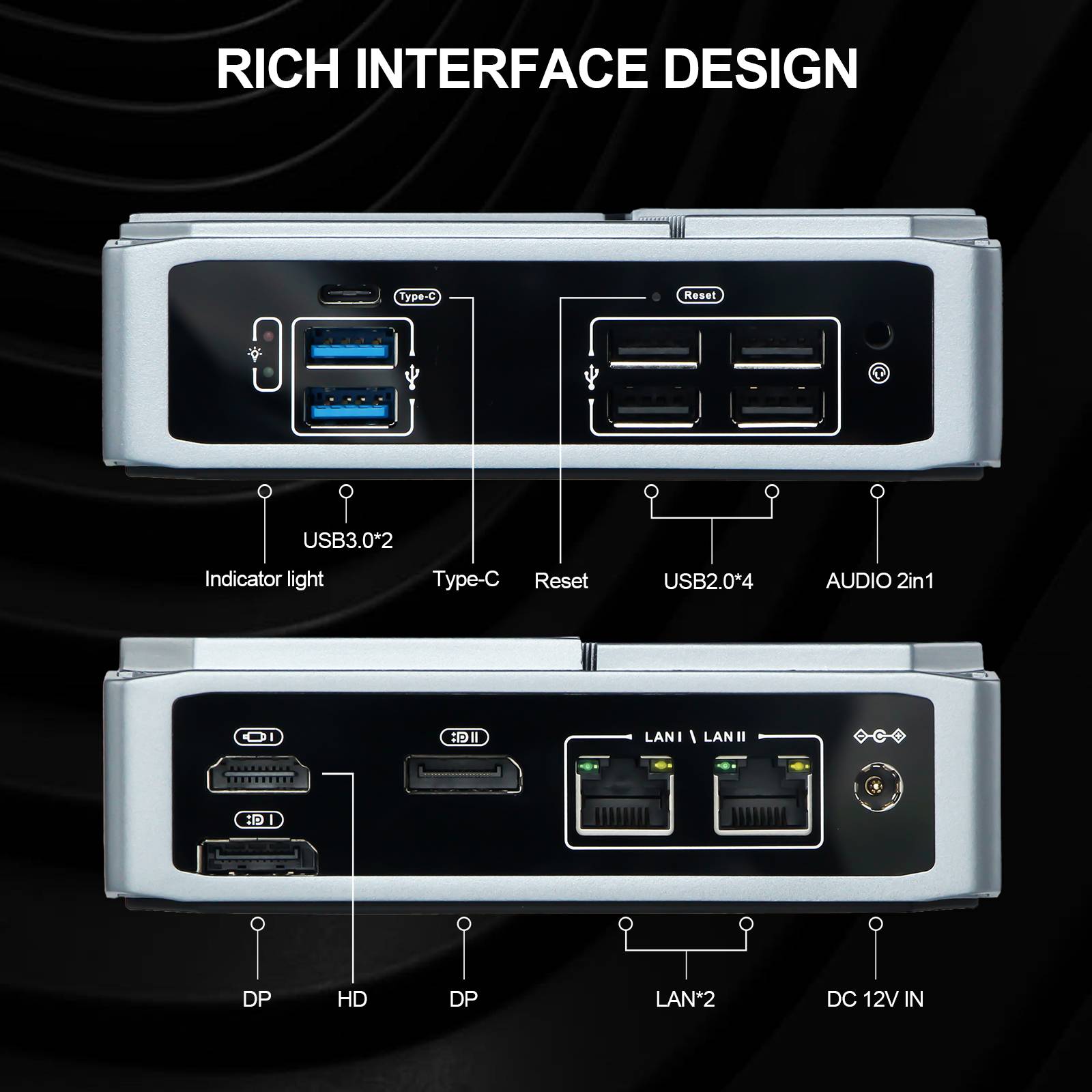

Rich Interface Design

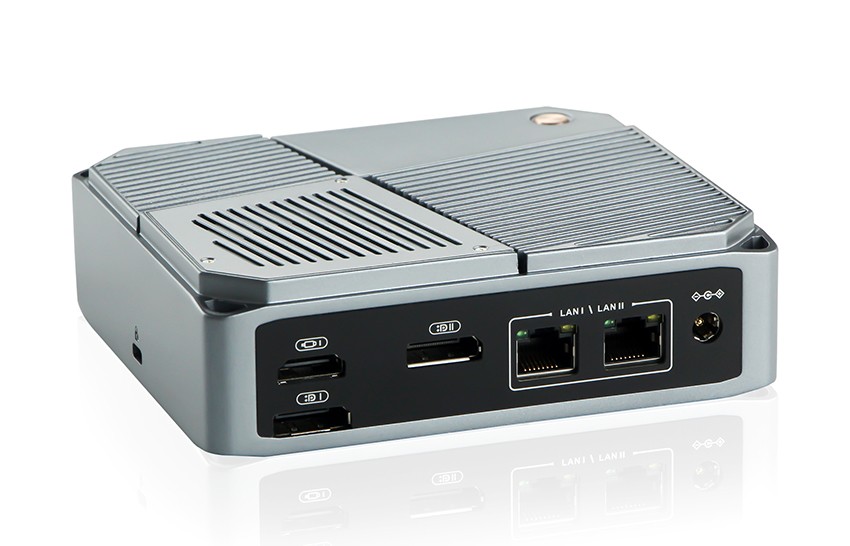

This Mini PC F25 series with its 2DP+HDMI+2LAN+6USB+DC rich interface design, is highly suitable for medical solutions. It supports seamless connection of various medical equipment such as monitors and diagnostic tools. The multiple interfaces allow for efficient data transmission and device integration.

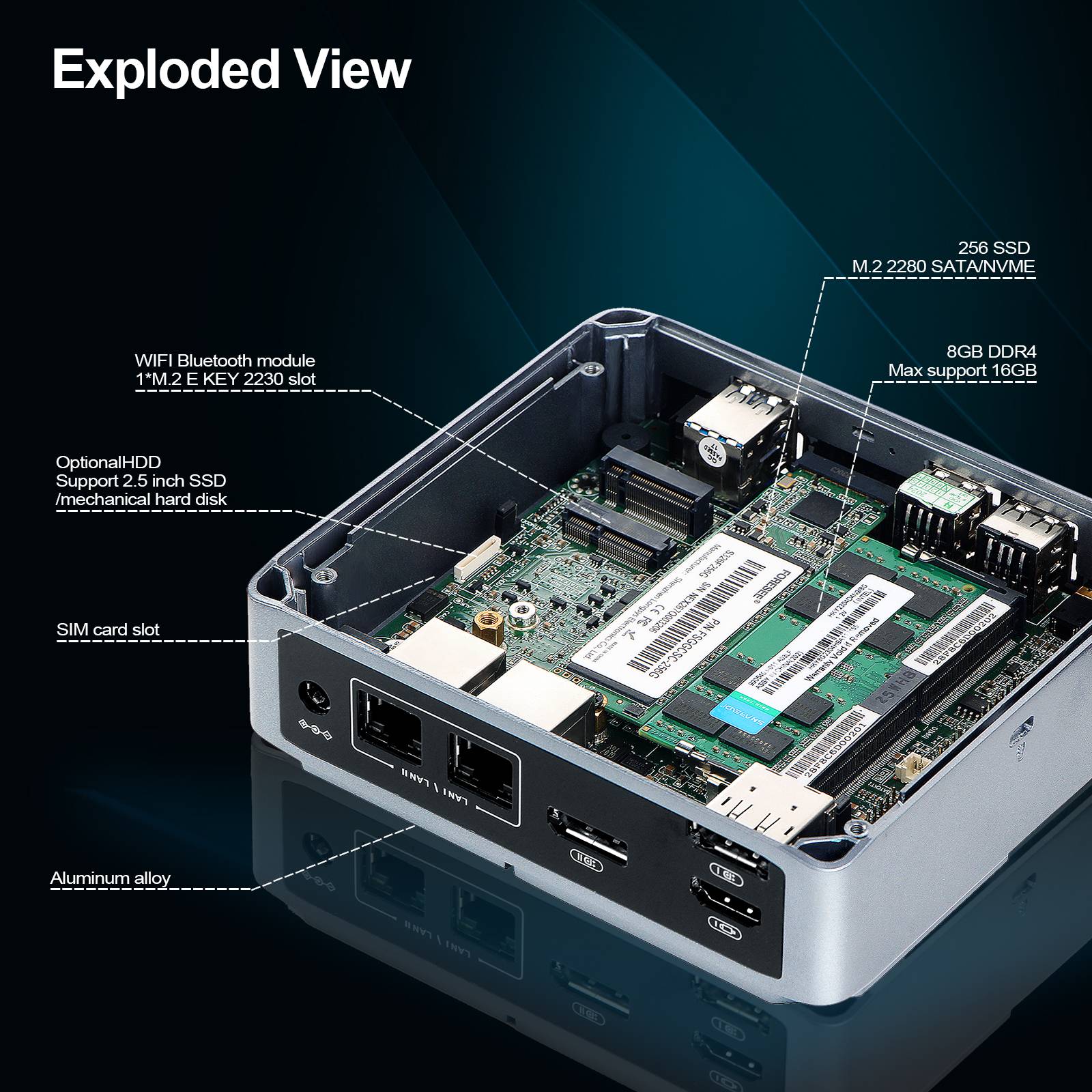

Diagram of Mini PC Components
The Mini PC F25 series supports RAM capacity of up to 16GB DDR4, ensuring smooth multitasking. The M.2 2280 SATA/NVME SSD slot supports up to 1TB, and also allows for a 2.5-inch HDD/SSD. The M.2 E KEY 2230 Slot houses the WIFI/BT Module for wireless connections. With a SIM card Slot, it potentially enables mobile network access. This motherboard combines storage, connectivity, and memory options to power versatile Mini PC applications.
Efficient Heat Dissipation

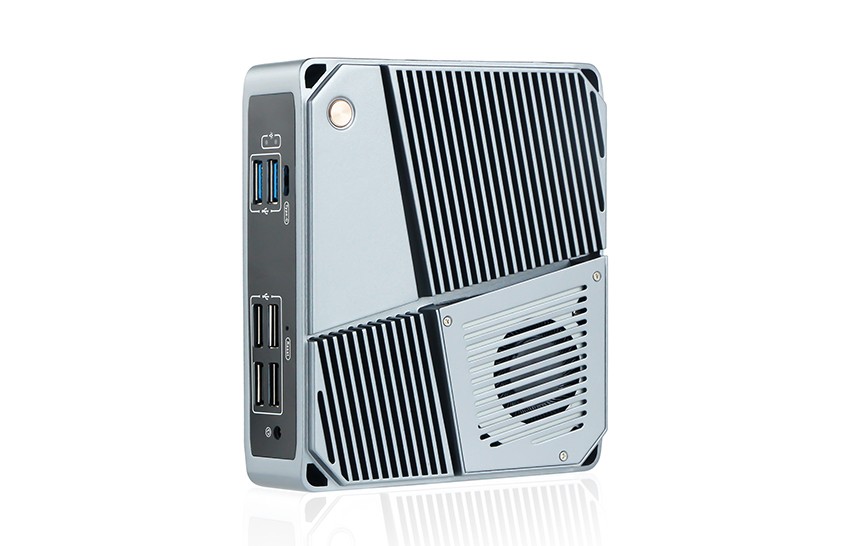

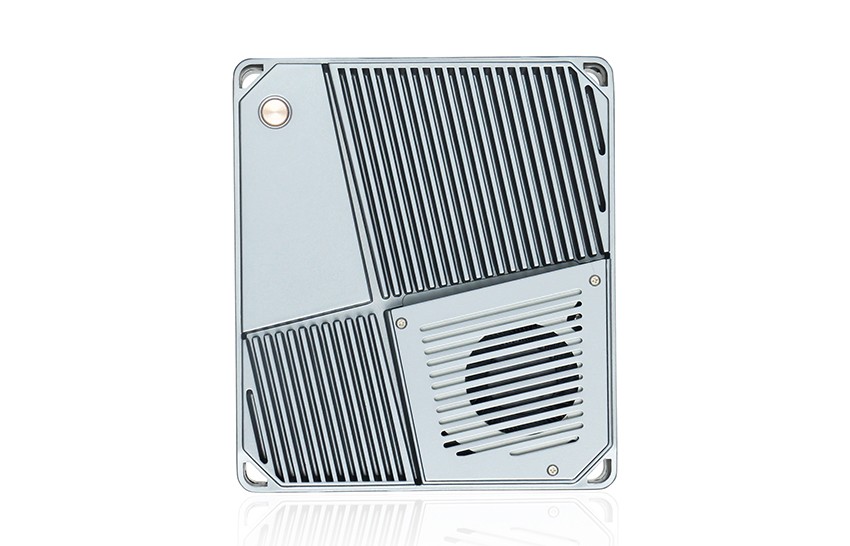

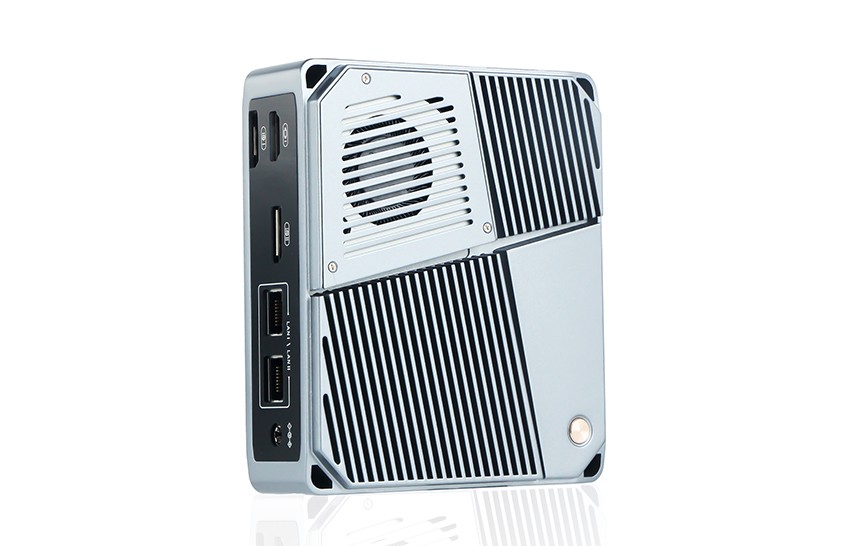

The Mini PC series with Intel N100 features an effective cooling solution. Its chassis is produced by all-aluminum material, which has excellent heat dissipation . An additional external fan is installed on the shell. When the CPU temperature reaches a certain level, this fan activates to expedite heat dissipation from the outer casing. Notably, since the fan is positioned outside and not within the case, the internal components remain protected from dust, ensuring a clean and stable operating environment for the Mini PC.
Specification: F25-N100/9420
-
Part No.F25-N100F25-9420
-
-
Processor
CPU
Intel® Processor N100
AMD 7th Gen A9-9420
Core Number
4 Cores / 4 Threads
Dual Core+3 Cores GPU
Frequency
0.8GHz
3.0GHz
Max Turbo Frequency
3.4GHz
3.6GHz
Chipset
Alder Lake-N
Stoney Ridge
-
Memory
Technology
1*DDR4L slot
1*DDR4L slot
Max. Capacity
16GB
16GB
-
Storage
M.2 SATA
M.2 SATA SSD 64GB/128GB/256GB/512GB/1TB
SSD 64GB/128GB/256GB/512GB/1TB
SATASATASATA
HDD 500GB/1TB/2TB (Optional )
Not Support HDD
-
Graphics
Graphics
Intel® UHD Graphics
AMD Radeon™ R5 Graphics
-
Audio
Audio
HD Audio Realtek ALC 897
HD Audio Realtek ALC 897
-
Network
LAN
2*Realtek 8111G Gigabit
2*Realtek 8111H Gigabit Ethernet
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
4G module
support 4G module with available sim slot
support 4G module with available sim slot
-
I/O Interface
Front

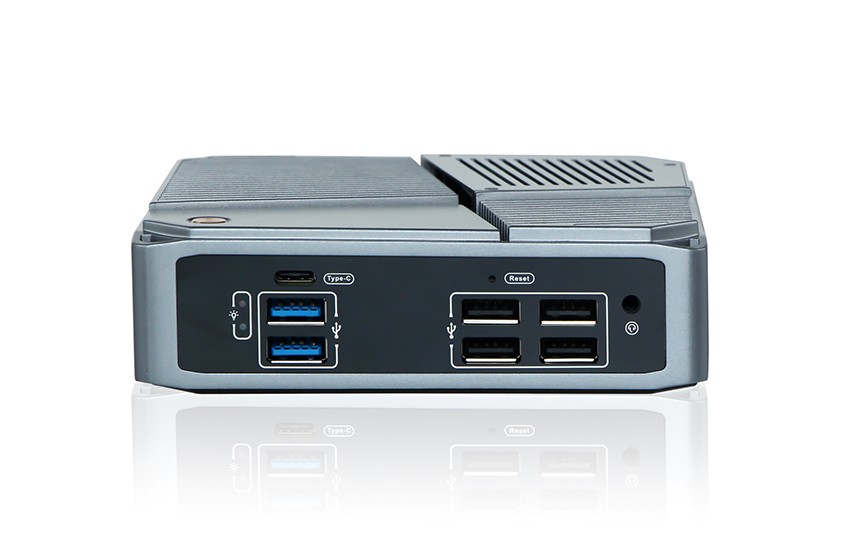

2*USB3.0, 4*USB2.0, 1*Type-C, 1*Reset, 1*Audio
2*USB3.0, 4*USB2.0, 1*Type-C, 1*Reset, 1*Audio
Rear
Rear

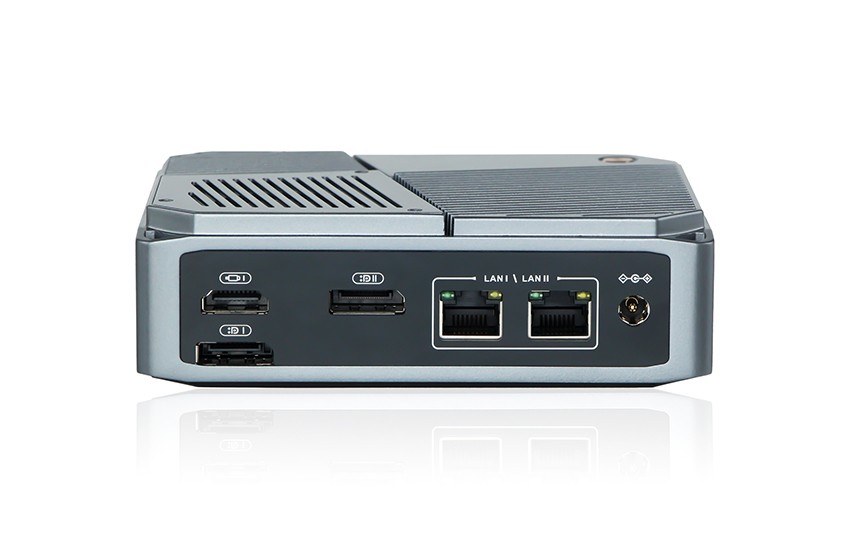

2*LAN, 1*HDMI, 2*DP, 1*DC 12V
-
Extendable
I/O Ports
1*FP 4PIN, 1*SATA 12PIN Phoenix terminal, 1*COM1 pin (RS232), 1*F_USB3 pin 8PIN, 1*TPM pin 14PIN, 1*CPU_FAN 4PIN socket,1 * Jme Pin 3PIN, 1 * JATX-SEL pin 3PIN
1*COM pin、1*J_COM pin、1*AT_MODE pin、1*TPM pin 14PIN、1*F_PANEL pin、1*12PIN SATA
Module
4G LTE , WIFI+Bluetooth Module (M.2 PCIE)
4G LTE , WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V.50-60HZ DC
AC100-240V.50-60HZ DC
Output
12V-3A
12V-3A
-
Operating System
Windows 10、11 & Linux
Windows 10、11 & Linux
-
Physical
Dimension
L 129mm*W 113mm*H 39mm
L 129mm*W 113mm*H 39mm
Weight(Net)
0.5KG
0.5KG
Color
Silver
Silver
Cooling Method
Built-in fan cooling
Built-in fan cooling
Mounting Options
Dedicated bracket; Support VESA bracket or DIN bracket
Dedicated bracket; Support VESA bracket or DIN bracket
Certification
CE, FCC, ROHS, ISO, UL
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
-10~60 ℃
Storage Temperature
-10~60 ℃
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Processor
-
CPU
F25-N100
Intel® Processor N100
F25-9420
AMD 7th Gen A9-9420
-
Core Number
F25-N100
4 Cores / 4 Threads
F25-9420
Dual Core+3 Cores GPU
-
Frequency
F25-N100
0.8GHz
F25-9420
3.0GHz
-
Max Turbo Frequency
F25-N100
3.4GHz
F25-9420
3.6GHz
-
Chipset
F25-N100
Alder Lake-N
F25-9420
Stoney Ridge
Memory
-
Technology
F25-N100
1*DDR4L slot
F25-9420
1*DDR4L slot
-
Max. Capacity
F25-N100
16GB
F25-9420
16GB
Storage
-
M.2 SATA
F25-N100
M.2 SATA SSD 64GB/128GB/256GB/512GB/1TB
F25-9420
SSD 64GB/128GB/256GB/512GB/1TB
-
SATASATASATA
F25-N100
HDD 500GB/1TB/2TB (Optional )
F25-9420
Not Support HDD
Graphics
-
Graphics
F25-N100
Intel® UHD Graphics
F25-9420
AMD Radeon™ R5 Graphics
Audio
-
Audio
F25-N100
HD Audio Realtek ALC 897
F25-9420
HD Audio Realtek ALC 897
Network
-
LAN
F25-N100
2*Realtek 8111G Gigabit
F25-9420
2*Realtek 8111H Gigabit Ethernet
-
Wireless
F25-N100
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
F25-9420
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
4G module
F25-N100
support 4G module with available sim slot
F25-9420
support 4G module with available sim slot
I/O Interface
-
Front
F25-N100
2*USB3.0, 4*USB2.0, 1*Type-C, 1*Reset, 1*Audio
F25-9420
2*USB3.0, 4*USB2.0, 1*Type-C, 1*Reset, 1*Audio
-
Rear
F25-N100
Rear
F25-9420
2*LAN, 1*HDMI, 2*DP, 1*DC 12V
Extendable
-
I/O Ports
F25-N100
1*FP 4PIN, 1*SATA 12PIN Phoenix terminal, 1*COM1 pin (RS232), 1*F_USB3 pin 8PIN, 1*TPM pin 14PIN, 1*CPU_FAN 4PIN socket,1 * Jme Pin 3PIN, 1 * JATX-SEL pin 3PIN
F25-9420
1*COM pin、1*J_COM pin、1*AT_MODE pin、1*TPM pin 14PIN、1*F_PANEL pin、1*12PIN SATA
-
Module
F25-N100
4G LTE , WIFI+Bluetooth Module (M.2 PCIE)
F25-9420
4G LTE , WIFI+Bluetooth Module (M.2 PCIE)
Power
-
Input
F25-N100
AC100-240V.50-60HZ DC
F25-9420
AC100-240V.50-60HZ DC
-
Output
F25-N100
12V-3A
F25-9420
12V-3A
Operating System
-
F25-N100
Windows 10、11 & Linux
F25-9420
Windows 10、11 & Linux
Physical
-
Dimension
F25-N100
L 129mm*W 113mm*H 39mm
F25-9420
L 129mm*W 113mm*H 39mm
-
Weight(Net)
F25-N100
0.5KG
F25-9420
0.5KG
-
Color
F25-N100
Silver
F25-9420
Silver
-
Cooling Method
F25-N100
Built-in fan cooling
F25-9420
Built-in fan cooling
-
Mounting Options
F25-N100
Dedicated bracket; Support VESA bracket or DIN bracket
F25-9420
Dedicated bracket; Support VESA bracket or DIN bracket
-
Certification
F25-N100
CE, FCC, ROHS, ISO, UL
F25-9420
CE, FCC, ROHS, ISO, UL
Environment
-
Operating Temperature
F25-N100
-10~60 ℃
F25-9420
-10~60 ℃
-
Storage Temperature
F25-N100
-10~60 ℃
F25-9420
-10~60 ℃
-
Operation Humidity
F25-N100
0~95% (No Condensation)
F25-9420
0~95% (No Condensation)
-
Storage Humidity
F25-N100
0~95% (No Condensation)
F25-9420
0~95% (No Condensation)
