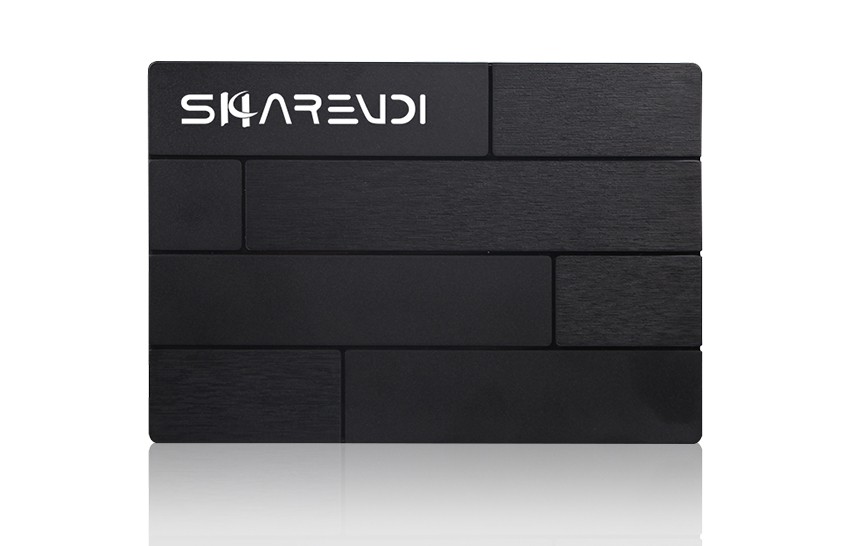

X7 Digital Sigange Displayer
Model: X7
● Support mainstream video and image decoding, with dual-screen different display function
● Dual 6/8/10 bit LVDS Interfaces, enabling 2K level output to drive 7" to 108" 2K display screens
● Support eDP display interface output
● Support 4K * 2K Class hd-mi-2160P output
● Support 4K video playback
● Support infrared remote control, BT, 4G/3G module
● Support serial port expansion, IO port extension, MIPI camera, hd-mi_OUT output and other functions
Data Sheet 1
Send InquiryThe X7 incorporates the Rockchip RK3288 quad-core chip solution. It supports mainstream video formats and image decoding, along with a dual-screen display function. This makes it highly suitable for applications in Digital Signage, Advertising machines, POS systems, Industrial Control, and other related fields.
-
Part No.X7-RK3288
-
-
Processor
CPU
RK3288 Cortex-A17, 2 Cores
Frequency
1.8GHz *4
Chipset
ARM
Graphics
Mail-T764
-
Memory
Technology
DDR3L
Max. Capacity
2GB
-
Storage
MSATA
Onboard 16GB EMMC（32GB optional）
SATA
NONE
-
Audio
MP3, WAV, APE, FLAC, M4A
-
Network
10/100/1000Mbps Adaptive
-
WIFI
Module
Support Wi-Fi 802.11b/g/n protocol (optional)
Support bluetooth, V2.1+EDR/Bluetooth 3.0/3.0+HS/4.1/BLE
-
I/O Interface
Front

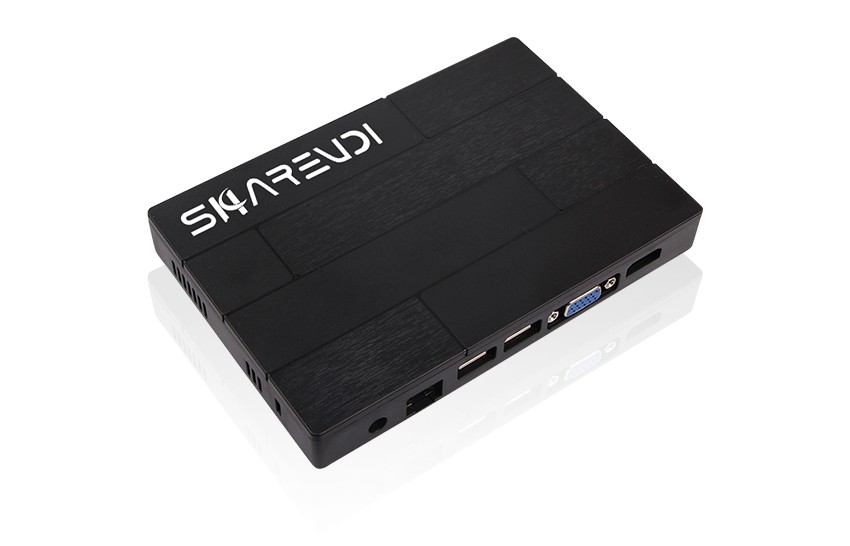

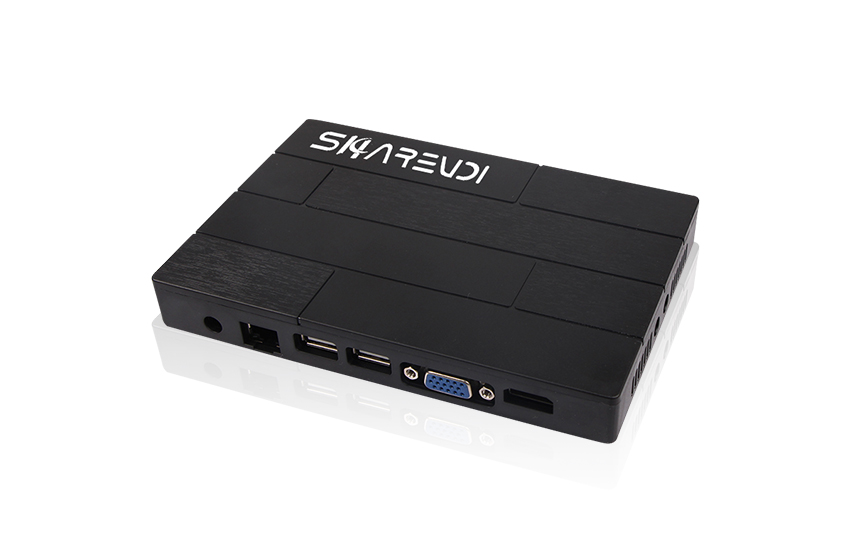

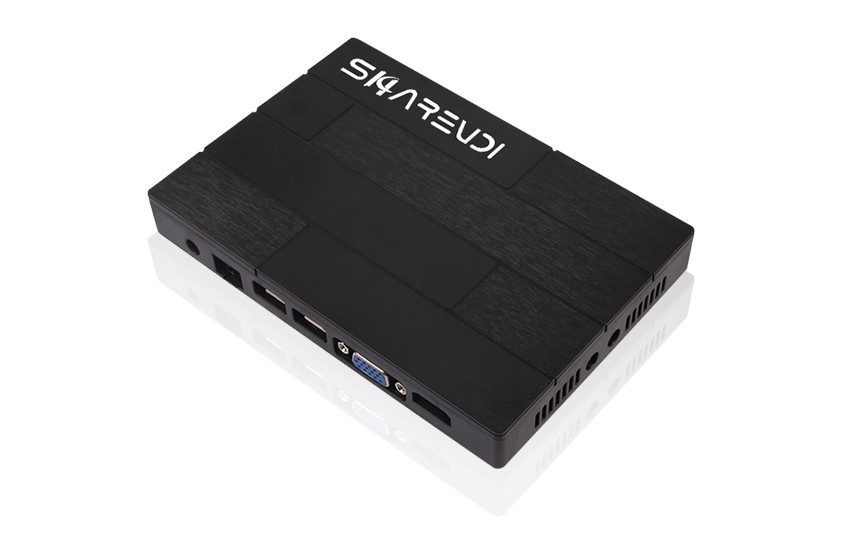

DC Connector (5V IN), RJ45 Ethernet, 2*USB2.0,VGA, HDMI
Rear

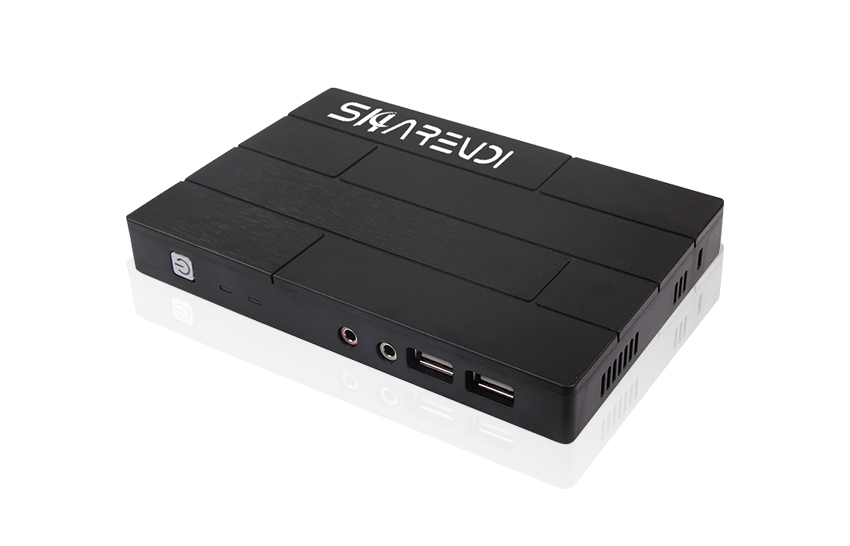

MIC, Speaker, 2*USB2.0
-
Power
Input Voltage
AC100-240V. 50-60Hz DC
Connector Type
DC Plug in
Power Output
DC 5V 3A
-
Software Specification
OS
Android 7.1/Ubuntu18.04
Default Application
Camera, Browser, Resource Manager, Clock, Alarm, Calculator
Language
Multi languages
System Management
APK installer
Automatic Recovery after system breaks, 7*24 hours unattended
System setting
Support OTA Remote Upgrade
-
Physical
Dimension
157*157*107mm
Weight(Net)
0.4kg
Color
Black
Cooling Method
Fan cooling
Mounting Options

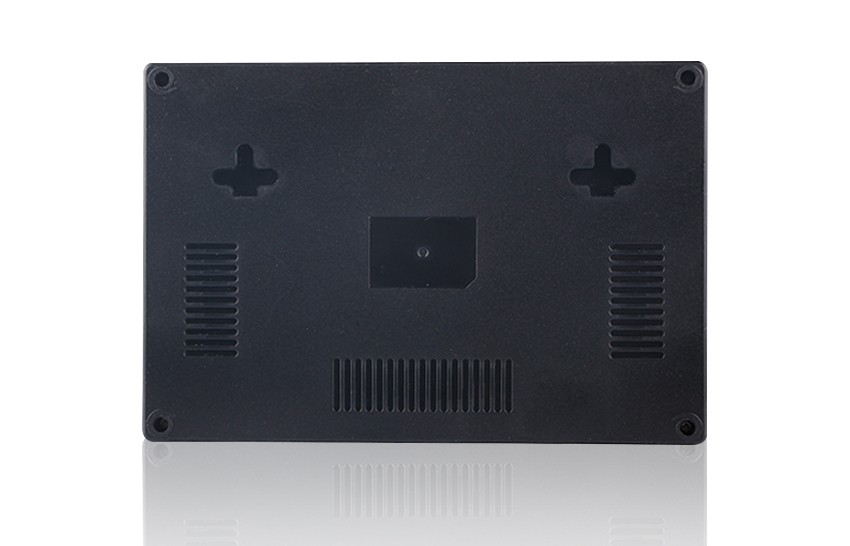

Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO
-
CPU
X7-RK3288
RK3288 Cortex-A17, 2 Cores
-
Frequency
X7-RK3288
1.8GHz *4
-
Chipset
X7-RK3288
ARM
-
Graphics
X7-RK3288
Mail-T764
-
Technology
X7-RK3288
DDR3L
-
Max. Capacity
X7-RK3288
2GB
-
MSATA
X7-RK3288
Onboard 16GB EMMC（32GB optional）
-
SATA
X7-RK3288
NONE
-
X7-RK3288
MP3, WAV, APE, FLAC, M4A
-
X7-RK3288
10/100/1000Mbps Adaptive
-
Module
X7-RK3288
Support Wi-Fi 802.11b/g/n protocol (optional)
-
X7-RK3288
Support bluetooth, V2.1+EDR/Bluetooth 3.0/3.0+HS/4.1/BLE
-
Front
X7-RK3288
DC Connector (5V IN), RJ45 Ethernet, 2*USB2.0,VGA, HDMI
-
Rear
X7-RK3288
MIC, Speaker, 2*USB2.0
-
Input Voltage
X7-RK3288
AC100-240V. 50-60Hz DC
-
Connector Type
X7-RK3288
DC Plug in
-
Power Output
X7-RK3288
DC 5V 3A
-
OS
X7-RK3288
Android 7.1/Ubuntu18.04
-
Default Application
X7-RK3288
Camera, Browser, Resource Manager, Clock, Alarm, Calculator
-
Language
X7-RK3288
Multi languages
-
System Management
X7-RK3288
APK installer
-
X7-RK3288
Automatic Recovery after system breaks, 7*24 hours unattended
-
X7-RK3288
System setting
-
X7-RK3288
Support OTA Remote Upgrade
-
Dimension
X7-RK3288
157*157*107mm
-
Weight(Net)
X7-RK3288
0.4kg
-
Color
X7-RK3288
Black
-
Cooling Method
X7-RK3288
Fan cooling
-
Mounting Options
X7-RK3288
Dedicated bracket; Support VESA bracket
-
Certification
X7-RK3288
CE, FCC, ROHS, ISO
