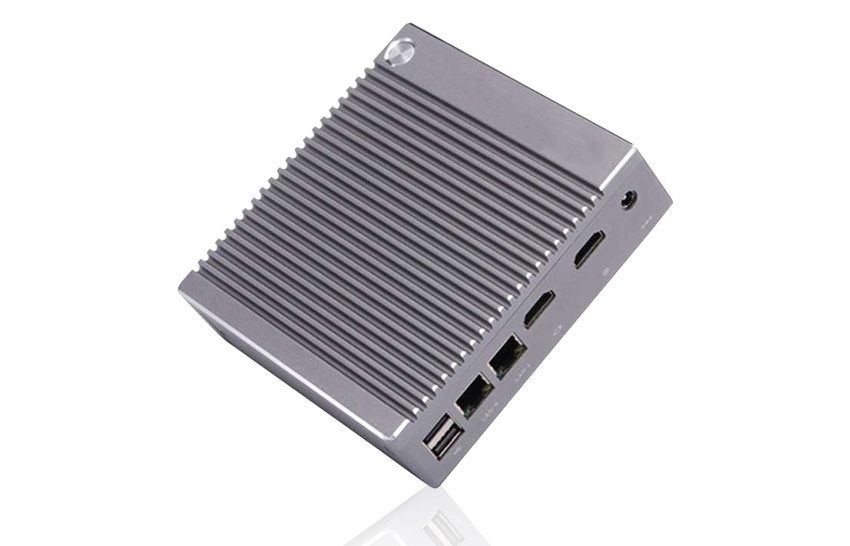

X9 Android Mini PC
Model: X9
● Support dual-screen different display function with dual 6/8-bit LVDS interfaces
● Enable 1080P output and can drive 7-inch or larger 1080P displays
● Support HDMI dual output and 4K video playback.
● Support infrared remote control.
● Support 2.4GHz / 5GHz dual-band WiFi.
● Support Bluetooth 4.1-BLE function.
● Support high-speed USB3.0 and other functions.
Data Sheet 1
Send InquiryThe X9 incorporates the RK3399 six-core 64-bit server-level chip solution, offering compatibility with multiple operating systems such as Ubuntu 18.04, Android 10.0, and the Kirin domestic operating system. Its GPU features a quad-core Mali-T860, enabling support for mainstream audio and video formats as well as picture decoding.
-
Part No.X9-RK3399
-
-
Processor
CPU
RK3399 (28 NM HKMG procedure) , 6 cores 64 bit
Frequency
Dual-core Cortex-A72 up to 2.0GHz, Dual-core Cortex-A53 up to 1.5GHz
Max Turbo Frequency
2.0GHz
Chipset
ARM
Graphics
Mail-T860 MP4 Quad-core GPU
-
Memory
Technology
DDR3L 1866 MHz
Max. Capacity
4GB
-
Storage
MSATA
64GB (16GB/32GB/128GB) EMMC; TF Card Extendable
SATA
NONE
-
Audio
SPK&MIC 2 in 1
-
Network
2x Ethernet 10/100/1000Mbps Adaptive
-
WIFI
Module
1*mini PCIE-half port wifi module/1*mini PCIE full port 3G/4G module
Antenna
2*inner RF cable and 2* external antennas
-
I/O Interface

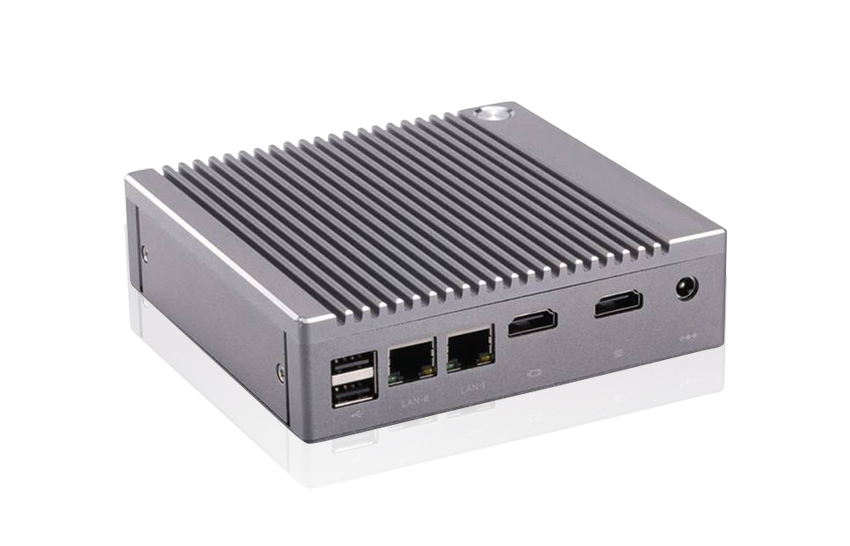

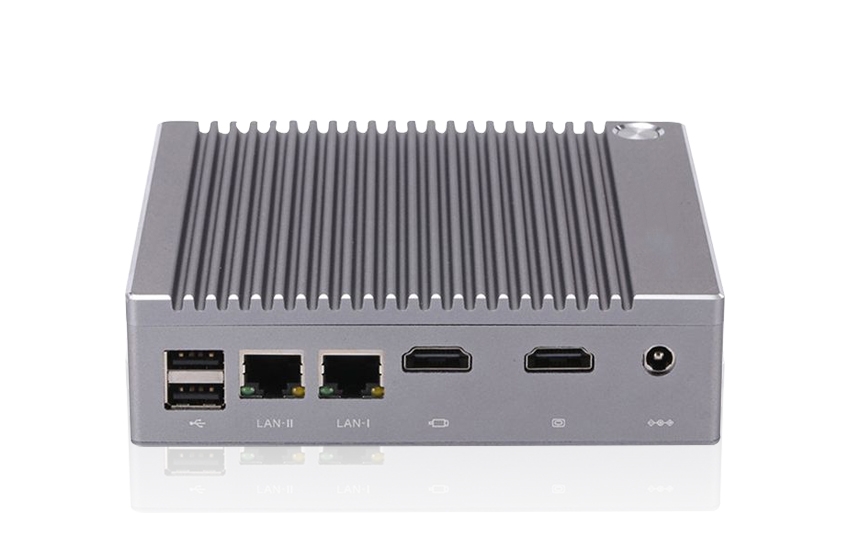

Front
2*HDMI, 2*USB2.0, 2*Ethernet RJ45, DC 12V

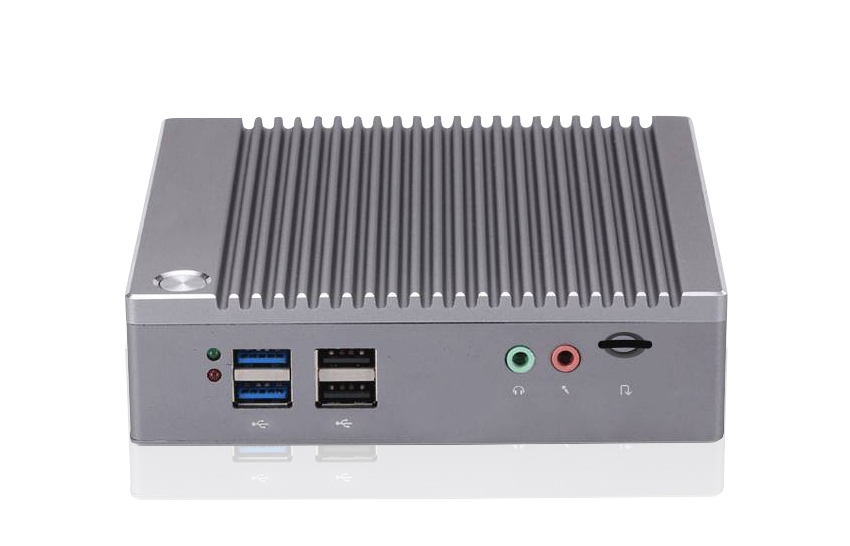

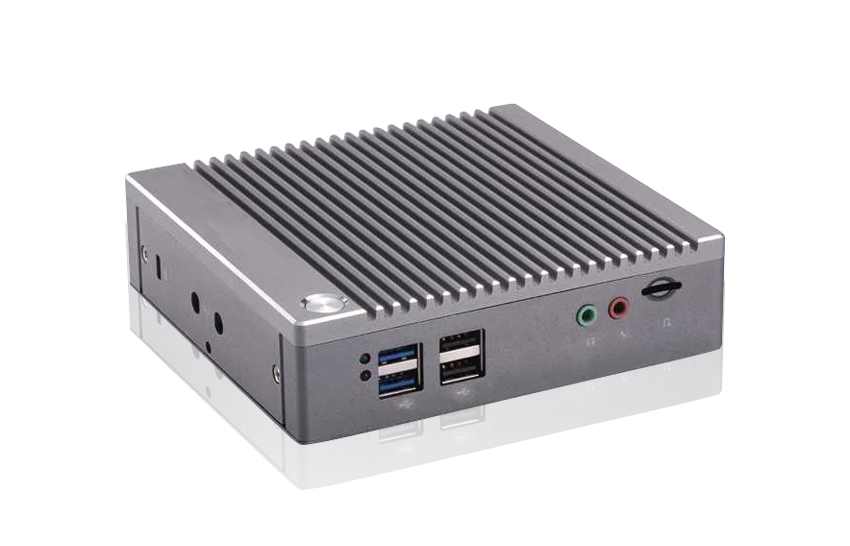

Rear
2*USB3.0, 2*USB2.0, 1*MIC& SPK, 1* TF Slot
-
Power
Input Voltage
AC100-240V. 50-60Hz DC
Output
DC12V/5.5mm, internal diameter 2.1 mm
-
Software Specification
OS
Android7.1/Ubuntu18.04 /Android10.0/KYLIN
Video
Support video format: H.265/H.264/VP9/MAV/ WMV/AVS/H.263/MPEG4 1080P/2160P; Support multi-view video decoding
Support JPG/PNG
Default Application Software
Calculator, Browser, Calendar, Settings, Clock, Video Player, Search, Explorer
API
API can be applied for brightness, volume, power on/off, Automatic Power Up, restart, screenshot, synchronize time with host server, rotate screen
-
Physical
Dimension
L 133.8mm*W 126.6mm*H 36.5mm
Weight(Net)
0.65KG
Color
Silver
Cooling Method
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
-
CPU
X9-RK3399
RK3399 (28 NM HKMG procedure) , 6 cores 64 bit
-
Frequency
X9-RK3399
Dual-core Cortex-A72 up to 2.0GHz, Dual-core Cortex-A53 up to 1.5GHz
-
Max Turbo Frequency
X9-RK3399
2.0GHz
-
Chipset
X9-RK3399
ARM
-
Graphics
X9-RK3399
Mail-T860 MP4 Quad-core GPU
-
Technology
X9-RK3399
DDR3L 1866 MHz
-
Max. Capacity
X9-RK3399
4GB
-
MSATA
X9-RK3399
64GB (16GB/32GB/128GB) EMMC; TF Card Extendable
-
SATA
X9-RK3399
NONE
-
X9-RK3399
SPK&MIC 2 in 1
-
X9-RK3399
2x Ethernet 10/100/1000Mbps Adaptive
-
Module
X9-RK3399
1*mini PCIE-half port wifi module/1*mini PCIE full port 3G/4G module
-
Antenna
X9-RK3399
2*inner RF cable and 2* external antennas
-
Front
X9-RK3399
2*HDMI, 2*USB2.0, 2*Ethernet RJ45, DC 12V
-
Rear
X9-RK3399
2*USB3.0, 2*USB2.0, 1*MIC& SPK, 1* TF Slot
-
Input Voltage
X9-RK3399
AC100-240V. 50-60Hz DC
-
Output
X9-RK3399
DC12V/5.5mm, internal diameter 2.1 mm
-
OS
X9-RK3399
Android7.1/Ubuntu18.04 /Android10.0/KYLIN
-
Video
X9-RK3399
Support video format: H.265/H.264/VP9/MAV/ WMV/AVS/H.263/MPEG4 1080P/2160P; Support multi-view video decoding
-
X9-RK3399
Support JPG/PNG
-
Default Application Software
X9-RK3399
Calculator, Browser, Calendar, Settings, Clock, Video Player, Search, Explorer
-
API
X9-RK3399
API can be applied for brightness, volume, power on/off, Automatic Power Up, restart, screenshot, synchronize time with host server, rotate screen
-
Dimension
X9-RK3399
L 133.8mm*W 126.6mm*H 36.5mm
-
Weight(Net)
X9-RK3399
0.65KG
-
Color
X9-RK3399
Silver
-
Cooling Method
X9-RK3399
Fanless Passive Cooling
-
Mounting Options
X9-RK3399
Dedicated bracket; Support VESA bracket
-
Certification
X9-RK3399
CE, FCC, ROHS, ISO, UL
