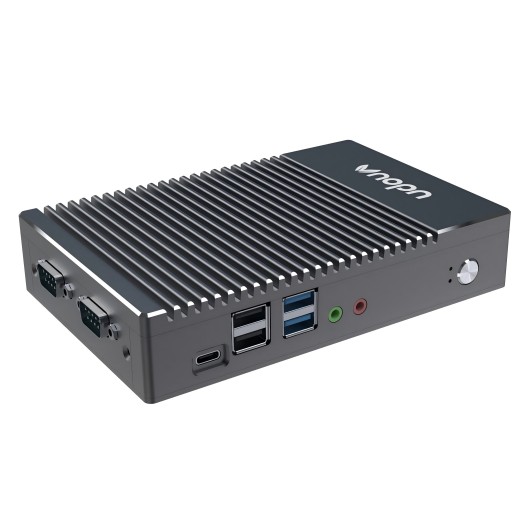

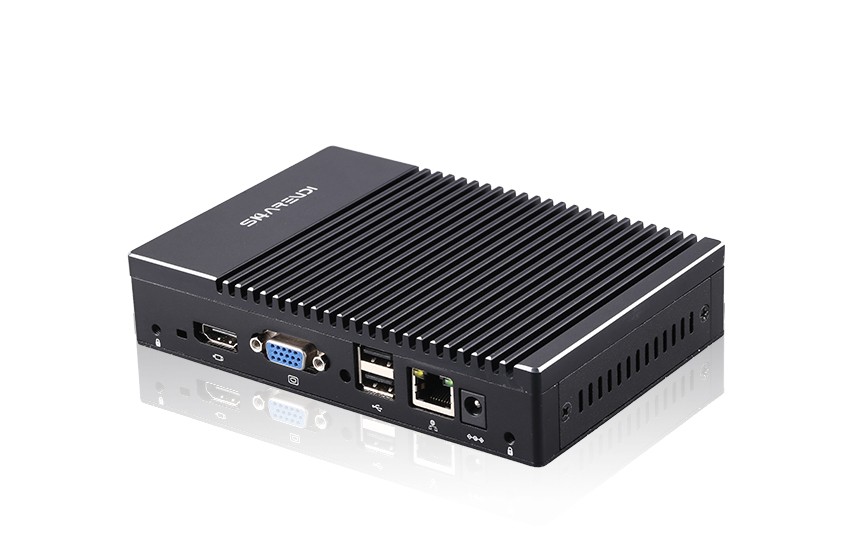

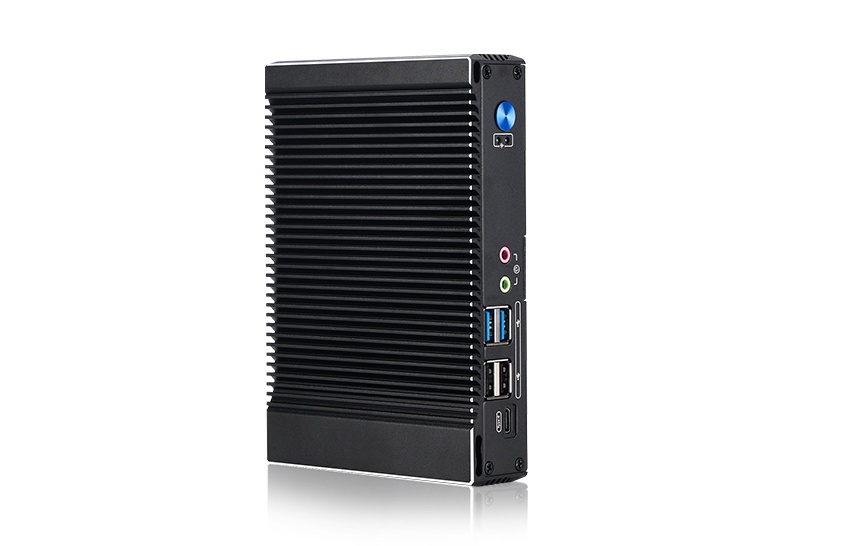

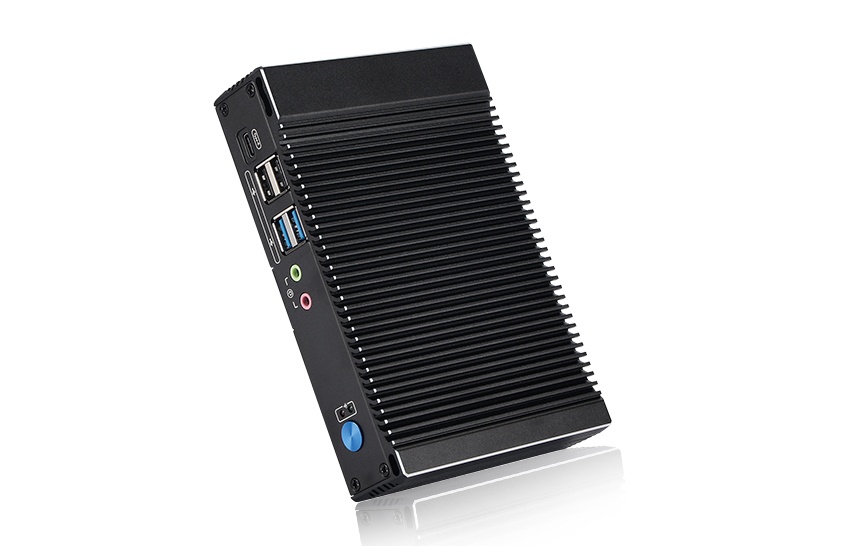

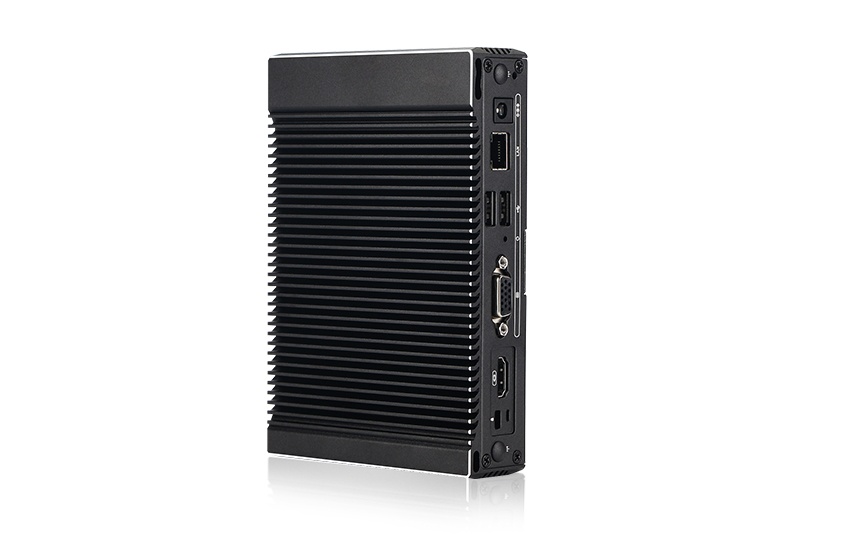

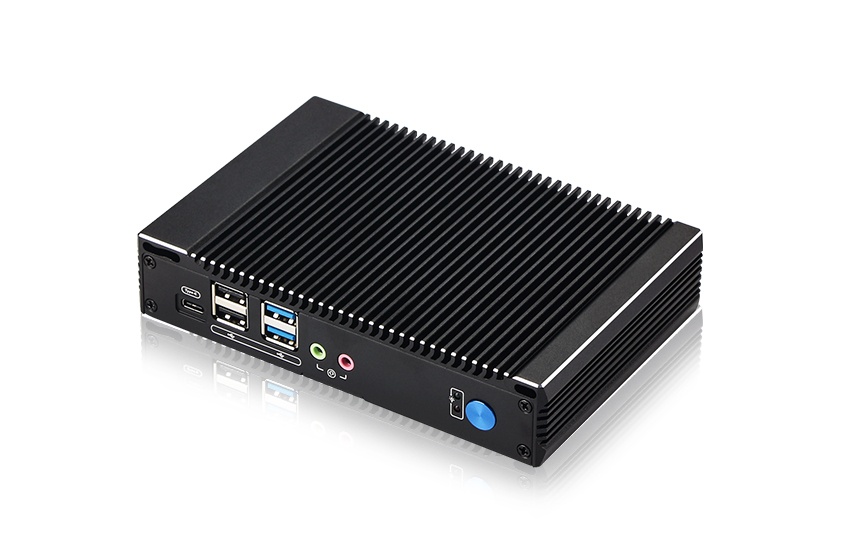

K1 Industrial NUC PC

Model:

K1

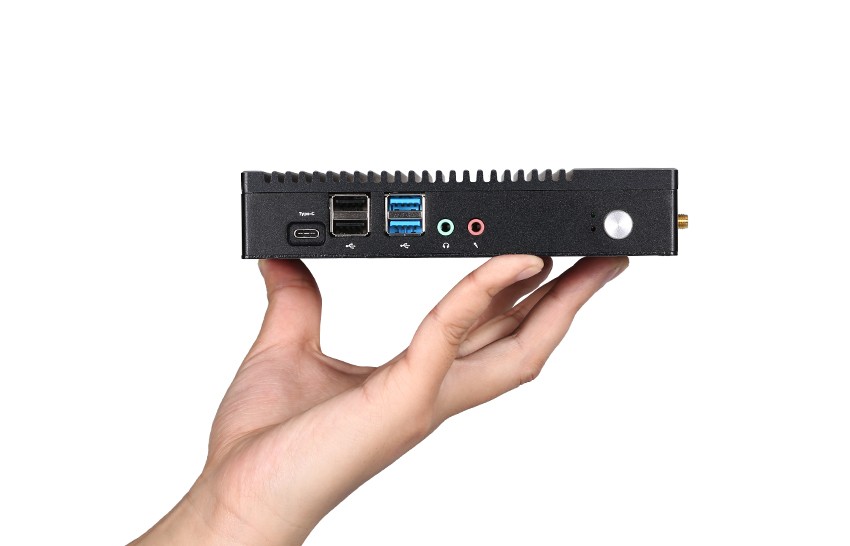

● Ultra small, fanless and compact design
● Support DIN Rail and VESA Mounting installation

● Quad core AMD 6400T processor

● Graphics AMD Radeon HD 8250

● 2x COM port (optional)

● 1 x VGA , 1 x HDMI Display port, 6 x USB , 1 x LAN
● TDP 8W, super stable performance for 7/24h running

● OS Windows 10 pro 64 bits / Linux

Mini PC K1 is a small fanless PC with full aluminium durable housing design. Due to the basic configuration and super stable performance, it has been widely used in wide range industries, such as digital signage, POS system, small server, automation etc.

Industrial NUC PC K1 with AMD procesosr
Industrial NUC PC K1 with AMD procesosr

The Industrial NUC PC K1, equipped with the AMD A4 6400T CPU, presents reliable basic performance. It can stably run multiple industrial applications. The CPU's architecture provides a cost-effective solution with the stability needed for continuous and consistent performance.

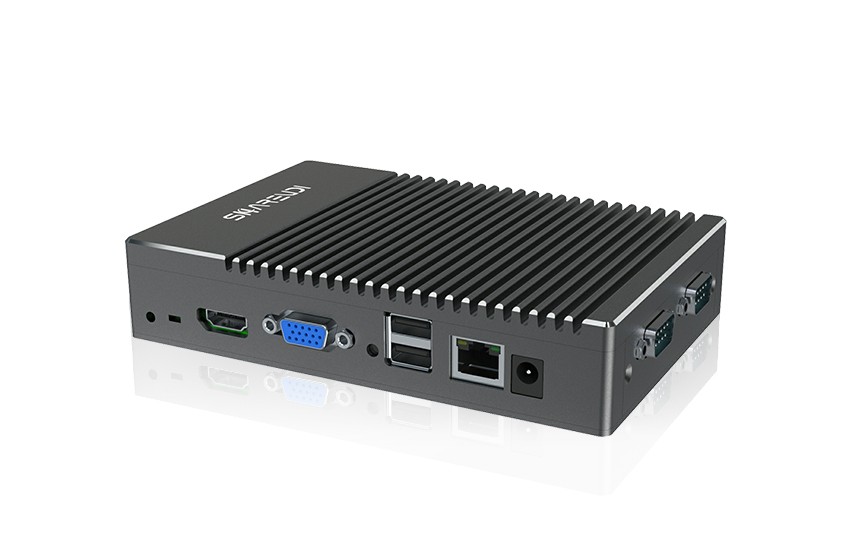

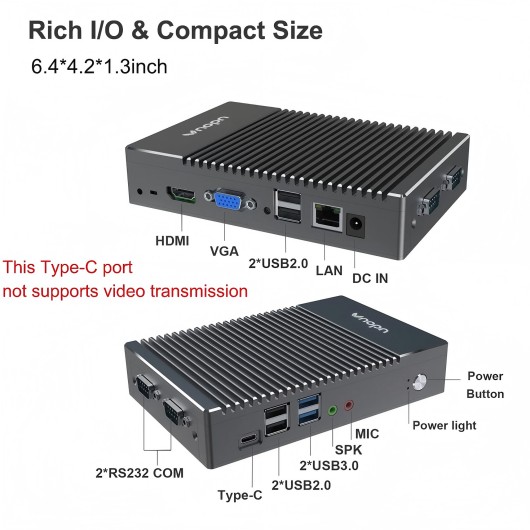

ShareVDI K1 Interface Insights

ShareVDI K1 is rich in interfaces. It features a LAN port for wired network connectivity. The HDMI and VGA ports support dual-display output. With 6xUSB ports, it can connect various peripherals. The Type C port offers versatile data transfer. Additionally, 2xCOM (optional) ports are available for serial communication, meeting diverse industrial connection needs.

ShareVDI K1 Interface Insights

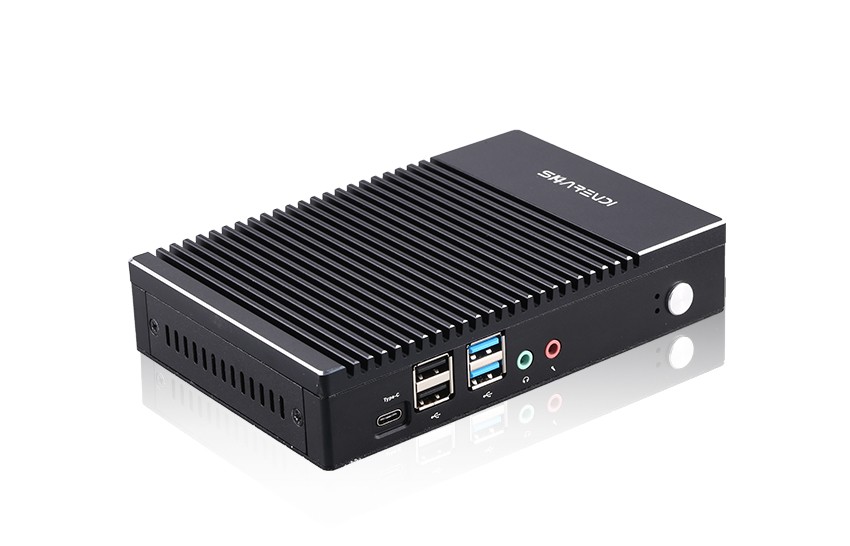

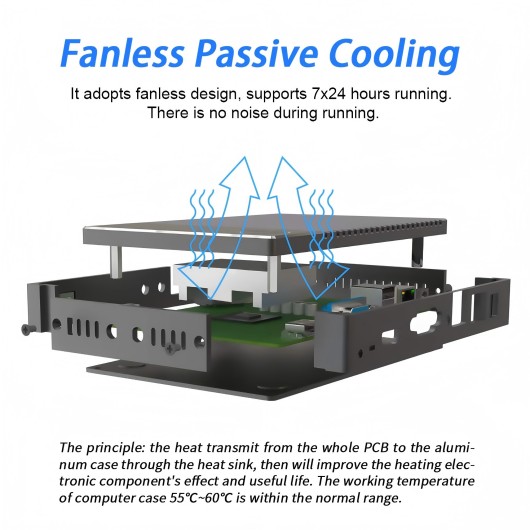

Fanless Mini PC Efficient Heat Dissipation
Fanless Mini PC Efficient Heat Dissipation

The Fanless Mini PC K1 has an outstanding cooling system. Its all-aluminum construction and fanless design not only enable dust and shock resistance but also ensure silent operation. This allows it to support 24/7h continuous operation. The stable performance is maintained as the efficient heat dissipation of the aluminum case keeps the temperature in check, making it highly reliable for industrial applications.

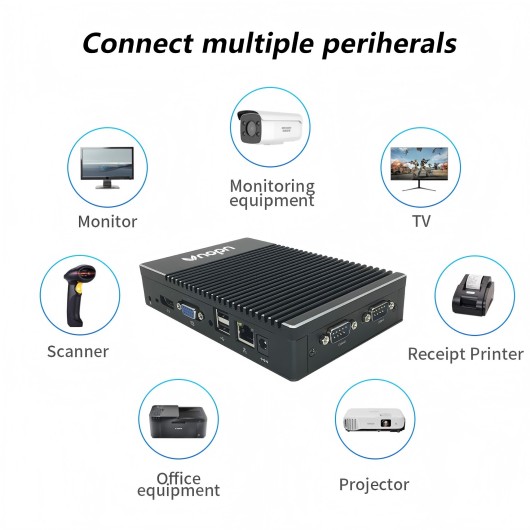

Fanless PC K1 Connectable Device Support

The Fanless PC K1 offers extensive device connectivity. It can connect to monitors for visual output, printers and scanners for data handling, Monitoring Equipmemy for security, various office equipment for work tasks, and projectors for presentations. This versatility makes it suitable for a wide range of applications, from POS to industrial monitoring, enhancing its overall utility and flexibility.

Fanless PC K1 Connectable Device Support
ShareVDI K1 in POS Solution
ShareVDI K1 in POS Solution

ShareVDI K1 is well-suited for the POS industry. It can handle cashier operations, inventory management, and customer data processing with ease. Its compact size saves space at the checkout counter. The reliable performance and multiple interface options allow it to connect with barcode scanners, printers, and cash drawers. It offers a stable and efficient solution for enhancing the overall efficiency and accuracy of POS systems.

Specification K1
  • Part No.
    K1-F6-6400T
  • Processor

    CPU

    AMD A4 Micro-6400T, 4 Cores / 4 Threads

    Frequency

    1.0GHz

    Max Turbo Frequency

    1.6GHz

    Cache

    2 MB L2 Cache

    Chipset

    Jaguar

  • Memory

    Technology

    1*DDR3L slot

    Max. Capacity

    8GB

  • Storage

    MSATA

    SSD 32GB/64GB/128GB/256GB/512GB

    SATA

    Not support HDD expansion

  • Graphics

    Graphics

    AMD Radeon™ R3 Grapphics

  • Audio

    Audio

    HD Audio realtek ALC 662

  • Network

    LAN

    10/100/1000Mbps Adaptive, RTL 8111F

    Wireless

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

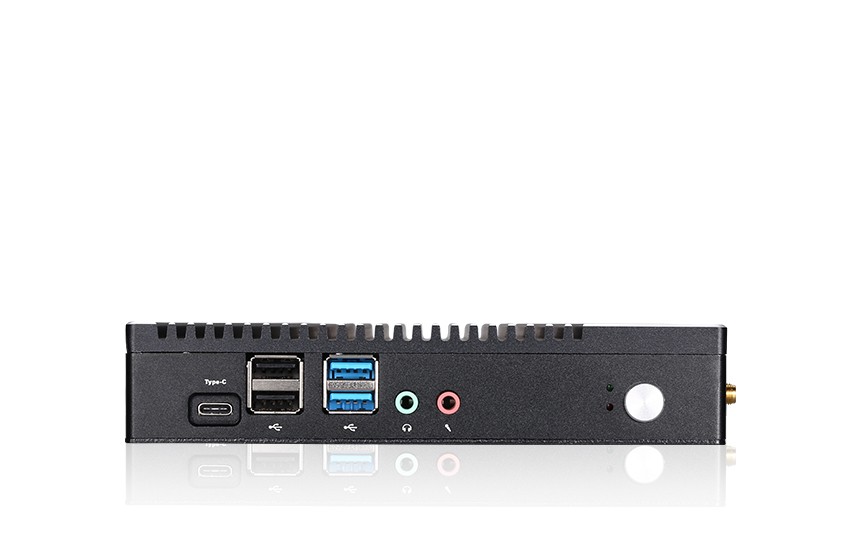

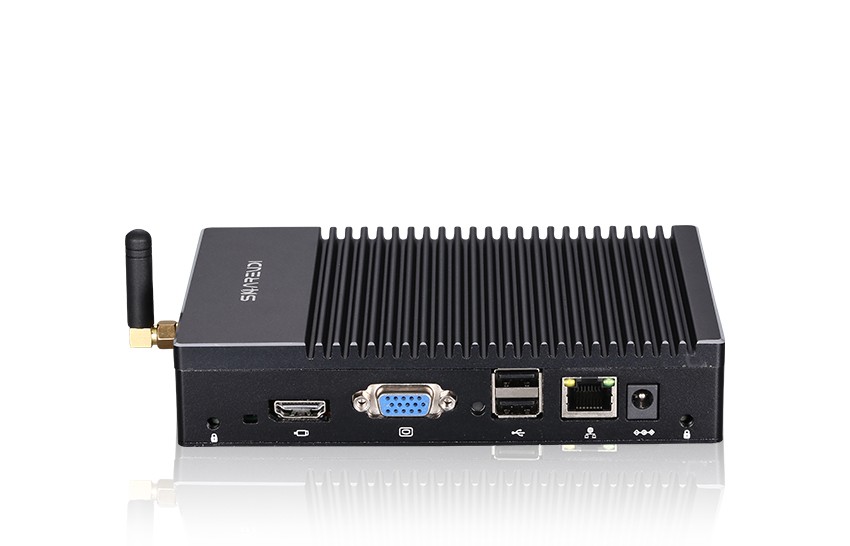

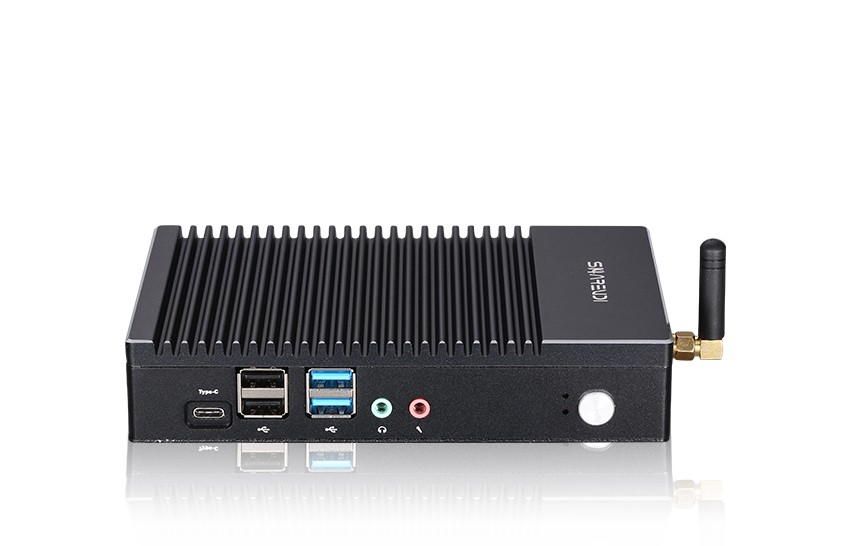

  • I/O Interface

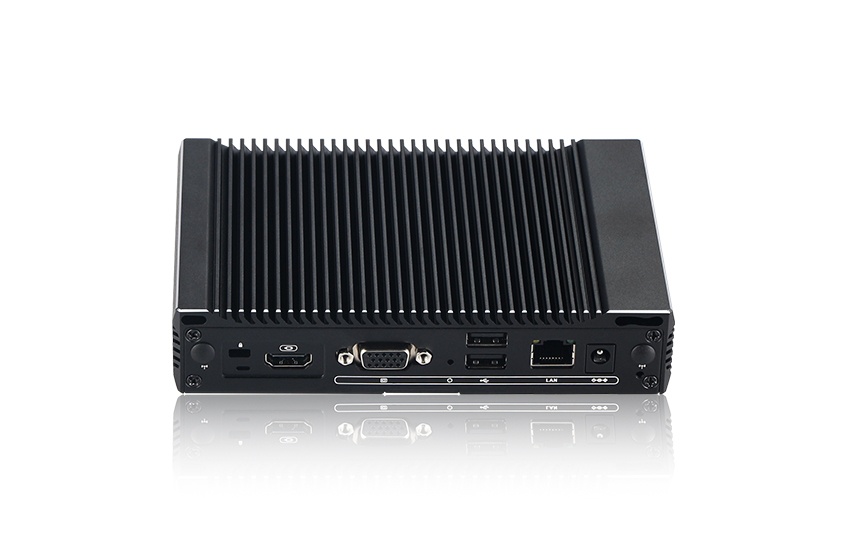

    Front

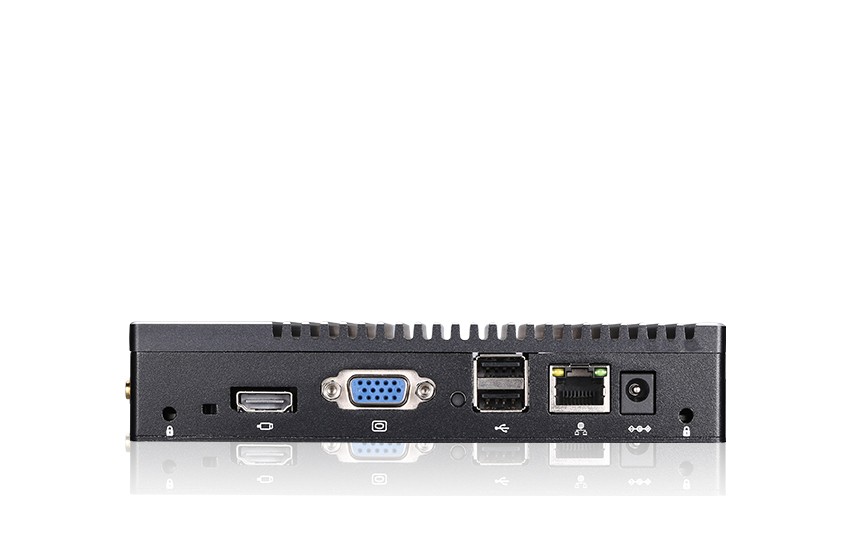

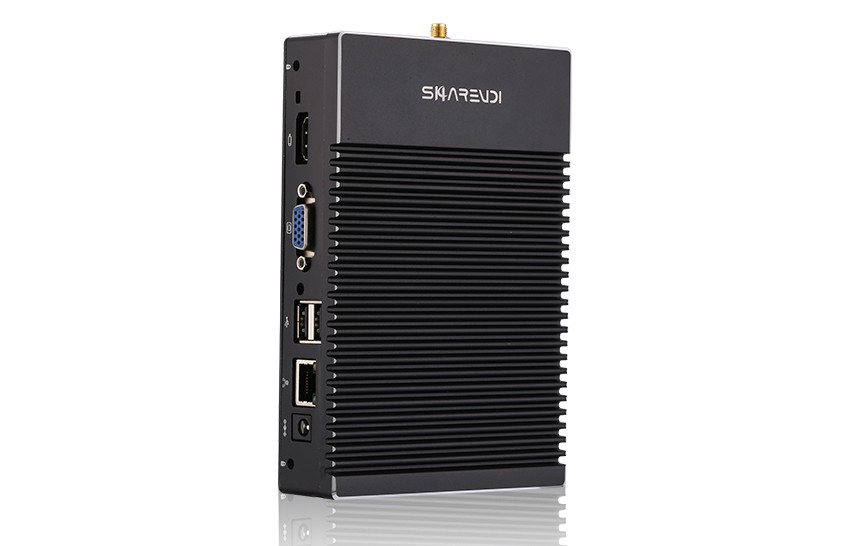

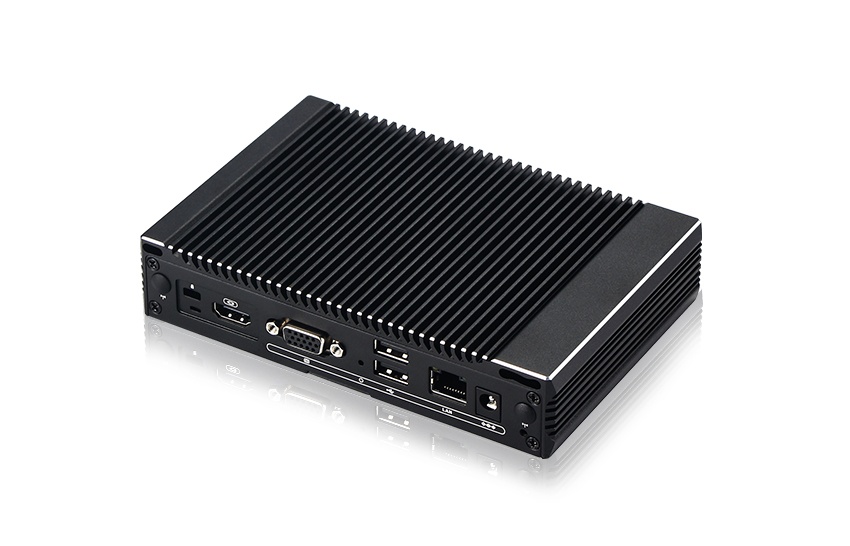

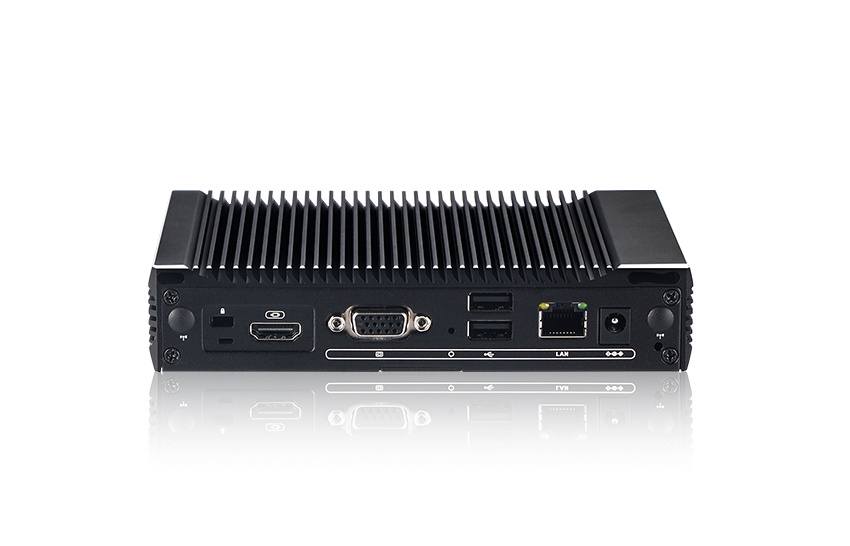

    1*Ethernet RJ45, 2*USB2.0, 1*VGA, 1*HDMI,1*DC_IN

    Rear

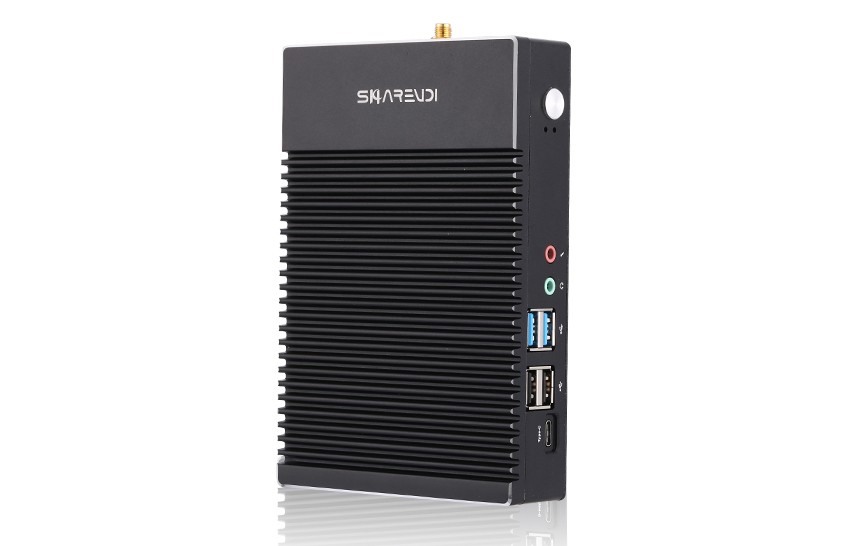

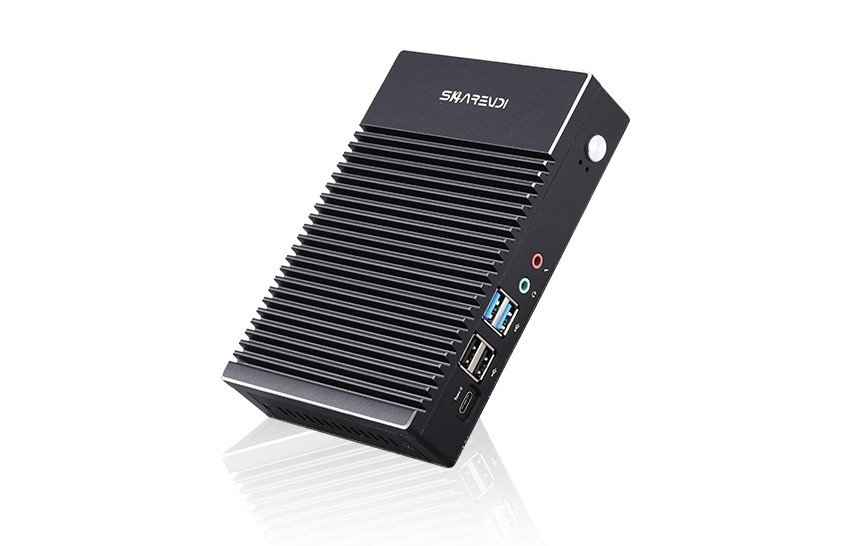

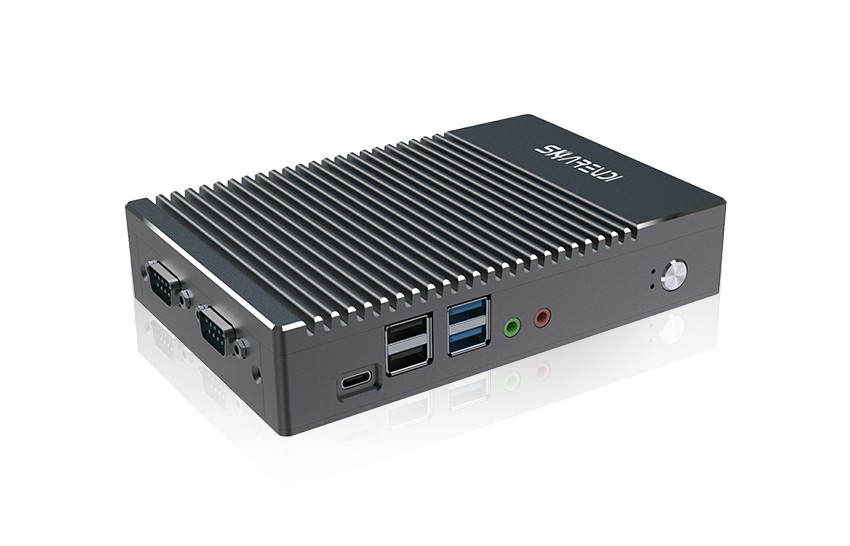

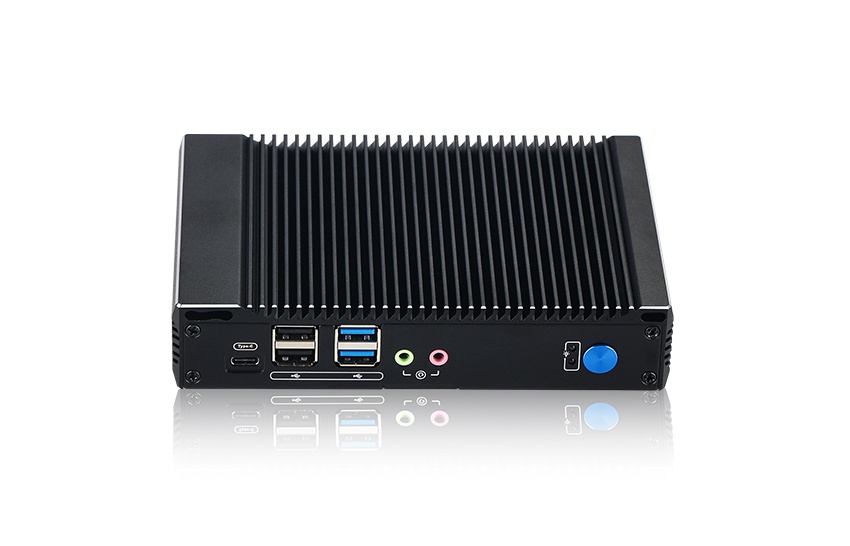

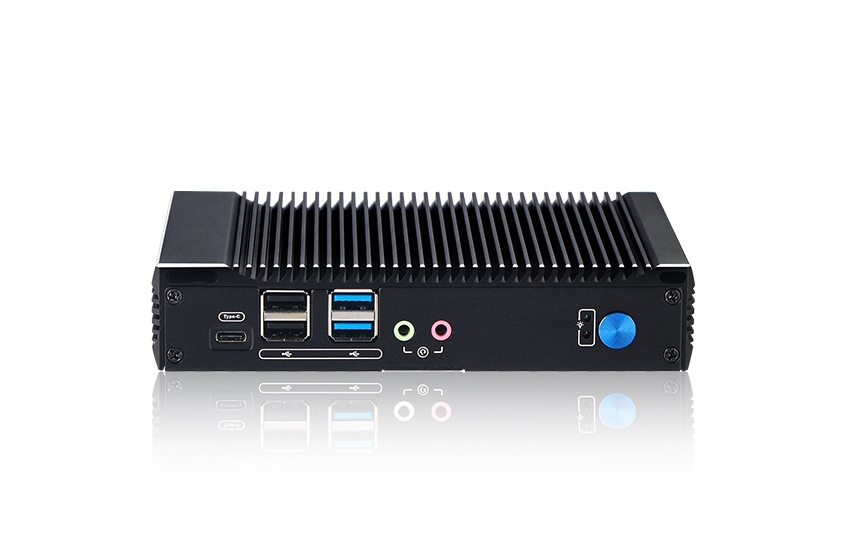

    2*USB2.0, 2*USB3.0, 1*Type-C, Power ON/OFF,1*MIC& SPK

    Buttom

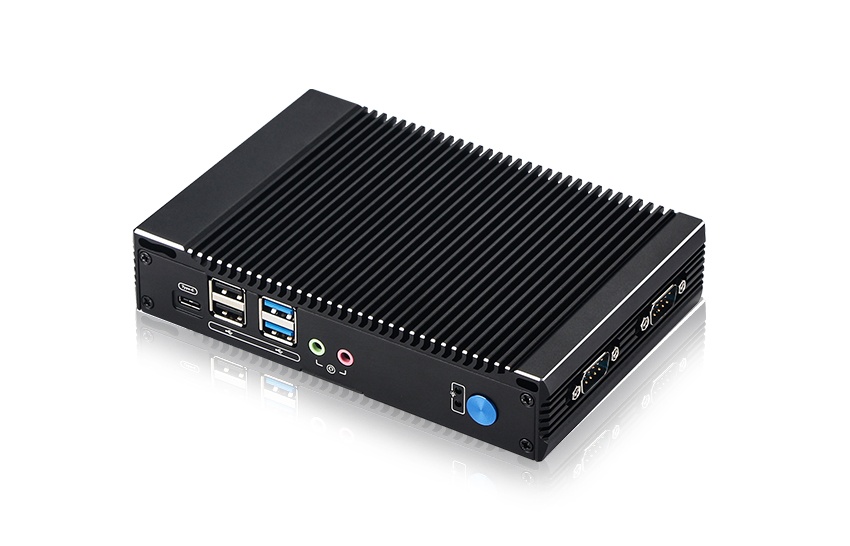

    2*RS232 COM (Optional)

  • Extendable

    Module

    WIFI+Bluetooth Module (MINI PCIE)

  • Power

    Input

    AC100-240V. 50-60Hz DC

    Output

    12V-2A

  • Operating System

    Operating System

    Windows/Linux

  • Physical

    Dimension

    L 106.4mm*W 159.8mm*H 32.5mm

    Weight(Net)

    0.6kg

    Color

    Black

    Cooling Method

    Fanless Passive Cooling

    Mounting Options

    Dedicated bracket; Support VESA bracket or DIN bracket

    Certification

    CE, FCC, ROHS, ISO, UL

  • Environment

    Operating Temperature

    -10~60 ℃

    Storage Temperature

    -10~60 ℃

    Operation Humidity

    0~95% (No Condensation)

    Storage Humidity

    0~95% (No Condensation)

Processor
  • CPU

    K1-F6-6400T

    AMD A4 Micro-6400T, 4 Cores / 4 Threads

  • Frequency

    K1-F6-6400T

    1.0GHz

  • Max Turbo Frequency

    K1-F6-6400T

    1.6GHz

  • Cache

    K1-F6-6400T

    2 MB L2 Cache

  • Chipset

    K1-F6-6400T

    Jaguar

Memory
  • Technology

    K1-F6-6400T

    1*DDR3L slot

  • Max. Capacity

    K1-F6-6400T

    8GB

Storage
  • MSATA

    K1-F6-6400T

    SSD 32GB/64GB/128GB/256GB/512GB

  • SATA

    K1-F6-6400T

    Not support HDD expansion

Graphics
  • Graphics

    K1-F6-6400T

    AMD Radeon™ R3 Grapphics

Audio
  • Audio

    K1-F6-6400T

    HD Audio realtek ALC 662

Network
  • LAN

    K1-F6-6400T

    10/100/1000Mbps Adaptive, RTL 8111F

  • Wireless

    K1-F6-6400T

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

I/O Interface
  • Front

    K1-F6-6400T

    1*Ethernet RJ45, 2*USB2.0, 1*VGA, 1*HDMI,1*DC_IN

  • Rear

    K1-F6-6400T

    2*USB2.0, 2*USB3.0, 1*Type-C, Power ON/OFF,1*MIC& SPK

  • Buttom

    K1-F6-6400T

    2*RS232 COM (Optional)

Extendable
  • Module

    K1-F6-6400T

    WIFI+Bluetooth Module (MINI PCIE)

Power
  • Input

    K1-F6-6400T

    AC100-240V. 50-60Hz DC

  • Output

    K1-F6-6400T

    12V-2A

Operating System
  • Operating System

    K1-F6-6400T

    Windows/Linux

Physical
  • Dimension

    K1-F6-6400T

    L 106.4mm*W 159.8mm*H 32.5mm

  • Weight(Net)

    K1-F6-6400T

    0.6kg

  • Color

    K1-F6-6400T

    Black

  • Cooling Method

    K1-F6-6400T

    Fanless Passive Cooling

  • Mounting Options

    K1-F6-6400T

    Dedicated bracket; Support VESA bracket or DIN bracket

  • Certification

    K1-F6-6400T

    CE, FCC, ROHS, ISO, UL

Environment
  • Operating Temperature

    K1-F6-6400T

    -10~60 ℃

  • Storage Temperature

    K1-F6-6400T

    -10~60 ℃

  • Operation Humidity

    K1-F6-6400T

    0~95% (No Condensation)

  • Storage Humidity

    K1-F6-6400T

    0~95% (No Condensation)
