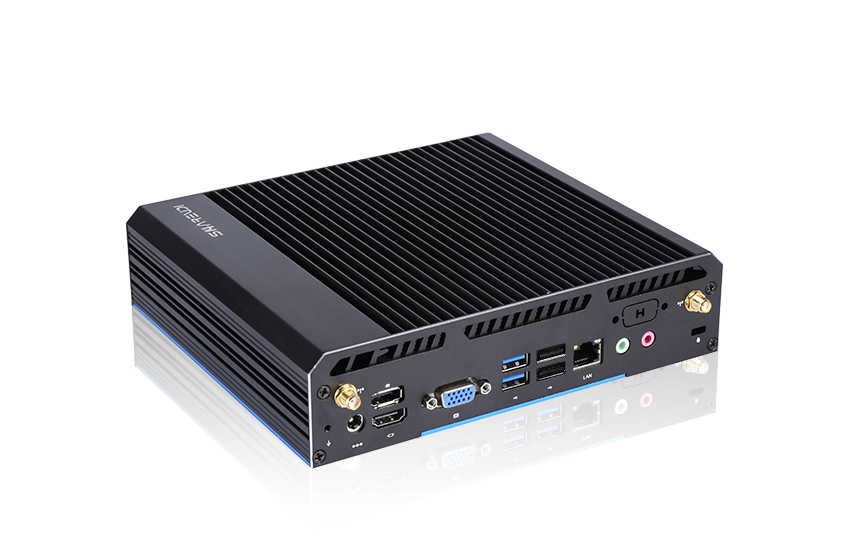

K5-F17 Rugged Fanless PC
Model: K5-F17-1145G7
● Industrial Fanless System with compact rugged design
● Optional Intel core i3/i5/i7 processor
● Working temperature: -20 - 65 °C
● Extendable COM RS232/RS485
● Support 3G / 4G LTE Module
● 6xUSB, 1xEthernet, 1xHDMI, 1xVGA, 1xDP
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● Supports RPL/PXE diskless boot, wake on lan, WDT
Data Sheet 1
Send InquiryThe Industrial embedded PC K5-F17 features a rugged and compact structure. It is specifically designed for continuous 24/7 operation under extreme conditions. Its high compatibility enables it to be configured with a wide range of processors, RAM, SSDs, and comes with extendable I/O ports.
-
Part No.K5-F17-1145G7
-
-
Processor
CPU
Intel Core i5-1145G7, 4 Cores / 8 Threads
Frequency
2.60 GHz
Max Turbo Frequency
4.40GHz
Cache
8 MB Intel Smart Cache
Chipset
Products formerly Tiger Lake
-
Memory
Technology
2*DDR4L slots
Max. Capacity
32GB
-
Storage
M.2 SATA
SSD 64GB/128GB/256GB/512GB/1TB
SATA
HDD 500GB/1TB/2TB (Optional)
-
Graphics
Intel® Iris® Xe Graphics
-
Audio
Audio
HD Audio realtek ALC 662
-
Network
LAN
10/100/1000Mbps Adaptive, RTL 8111H
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
I/O Interface
Front

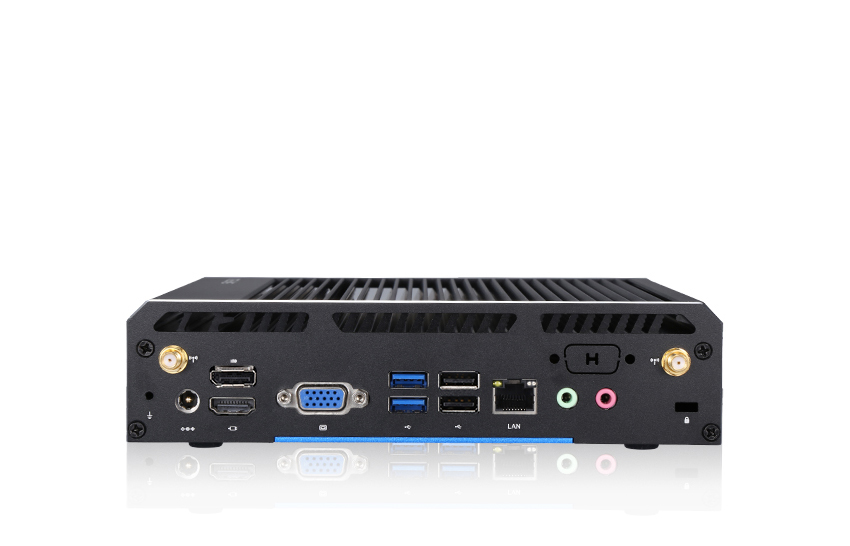

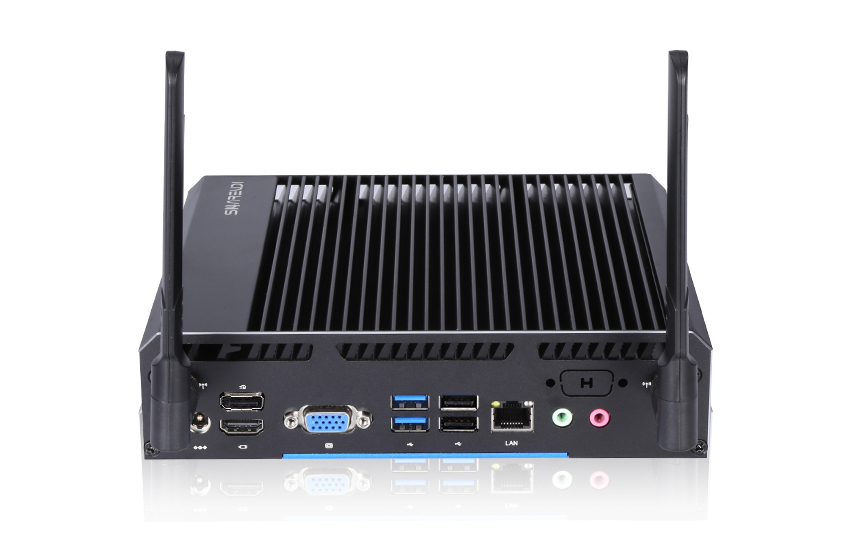

HDMI, VGA, DP, 4*USB3.0, RJ45, MIC, SPK, DC 12V
Rear

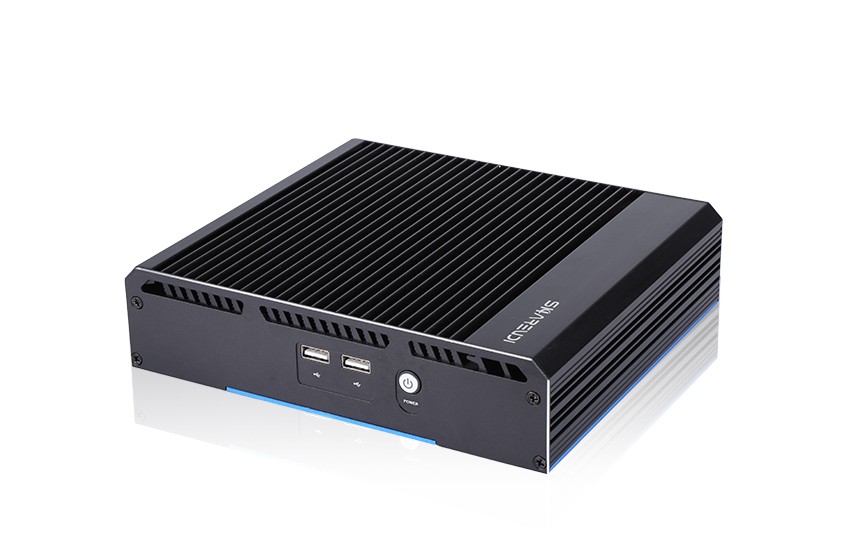

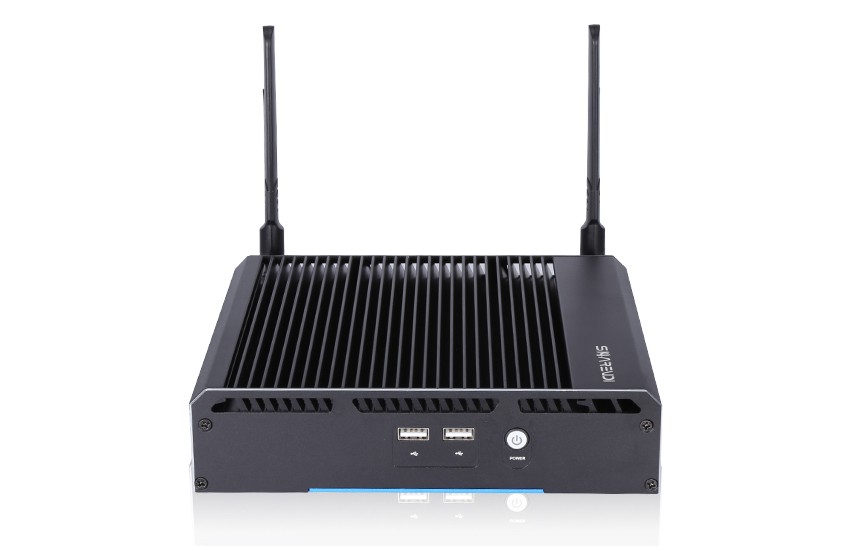

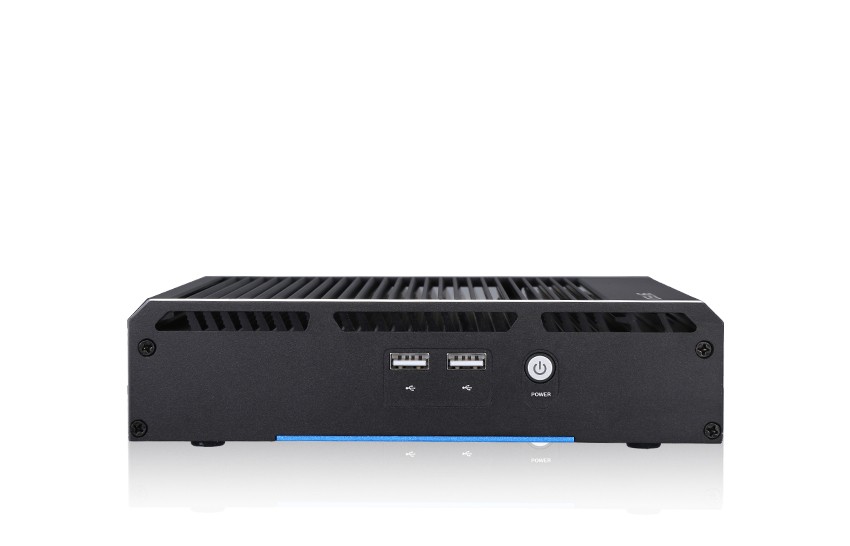

2*USB2.0, Power ON/OFF
-
Extendable
Module
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V. 50-60Hz DC
Output
12V - 7A
-
Operating System
Windows/Linux
-
Physical
Dimension
L 187mm*W 187mm*H 33.5mm
Weight(Net)
1.6KG
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
