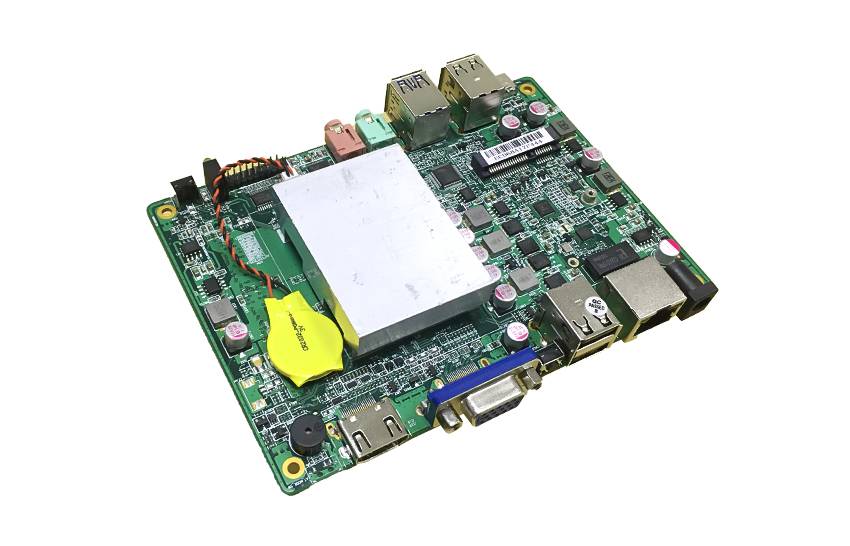

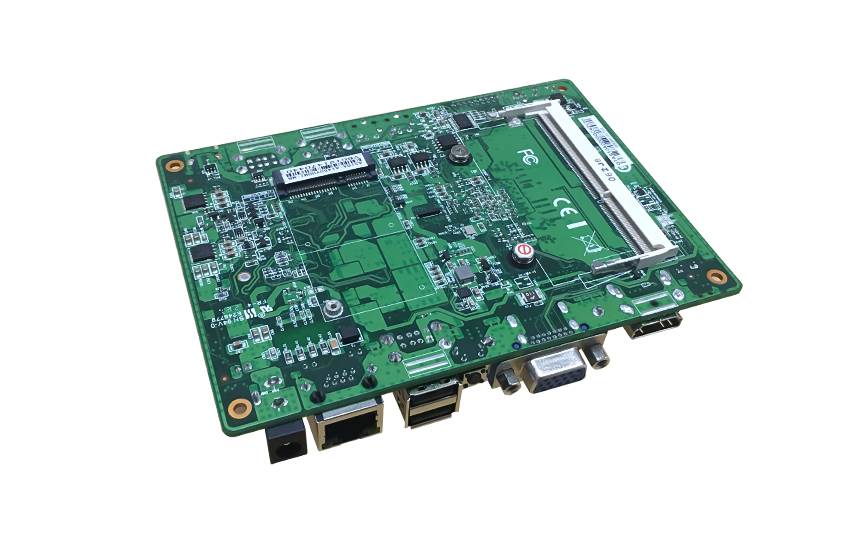

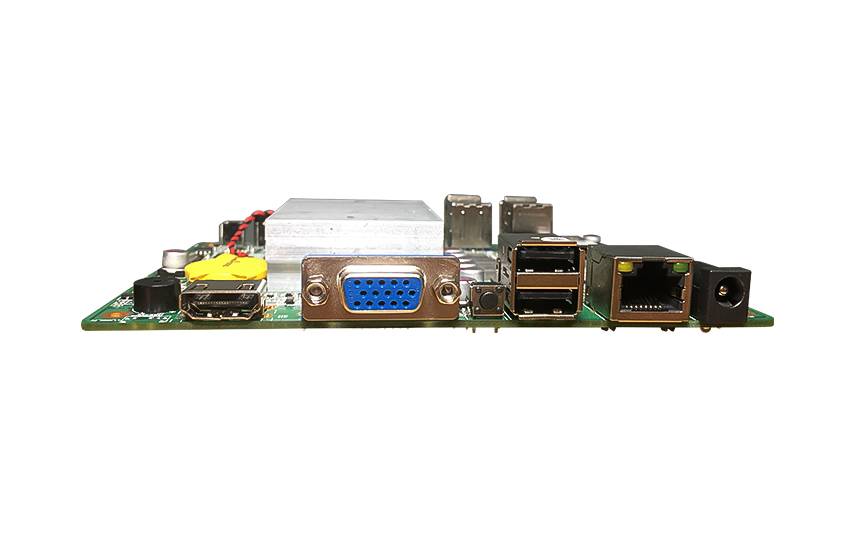

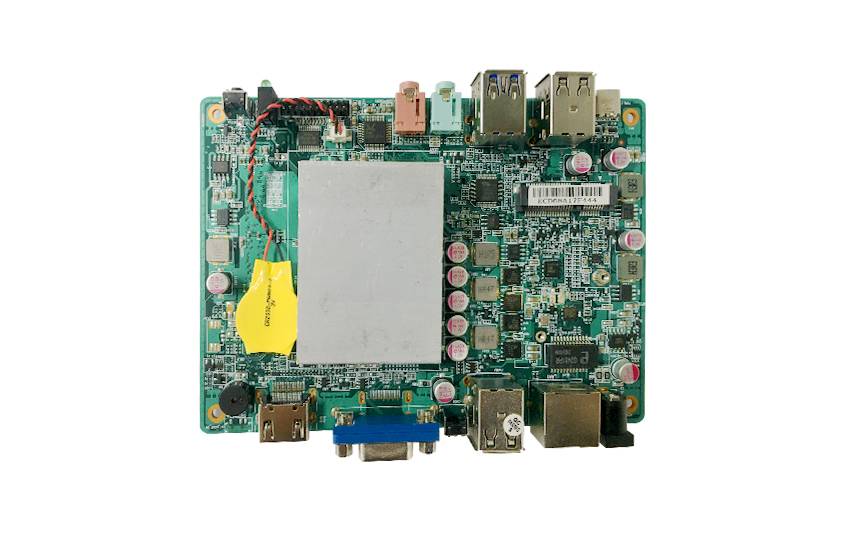

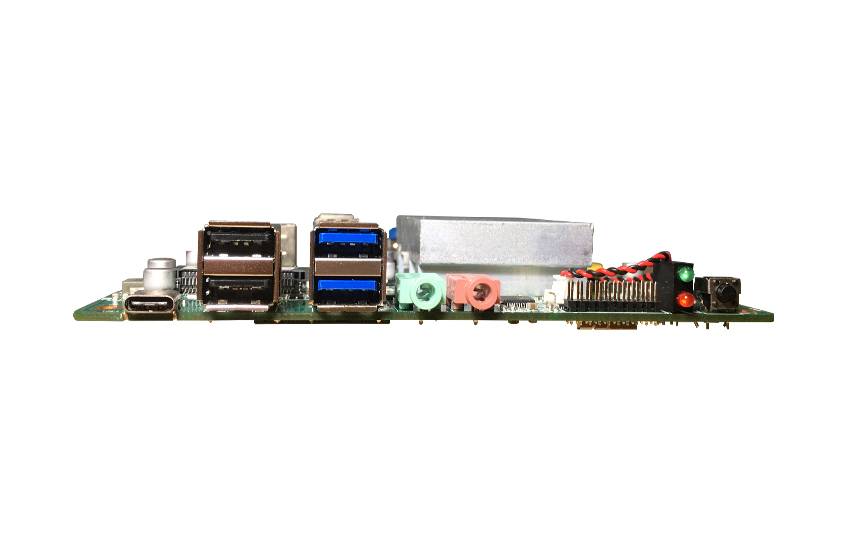

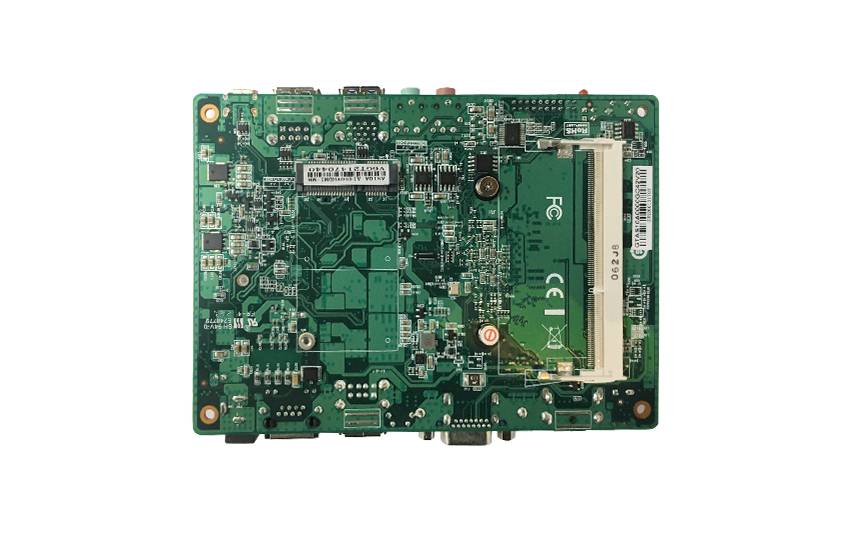

NANO-ITX AIMB-K101
Model: AIMB-K101
● AMD A6-1450 quad core processor, TDP 8W
● 1x 204-pin SO-DIMM up to 8 GB, DDR3L
● Dual display, one HDMI, one VGA
● Realtek ALC662, 2 channel HD audio
● 10/100/1000 Mbps LAN
● 1x colay MINI PCIE, 1 SATA
● 2 USB 3.0, 4 USB 2.0
● Graphics AMD Radeon™ HD 8250
● 1 x 20Pin COM RS232
Send InquiryAMD A6-1450 NANO-ITX with 1 VGA/1 HDMI, 2 COM, 6 USB, 1 LAN
-
Part No.AIMB-K101
-
-
Form Factor
NANO-ITX
-
Processor
CPU
AMD A6-1450
BIOS
AMI BIOS
Core Number
4
CPU TDP
8W
Frequency
1.0GHz~1.4GHz
LC Cache
2MB
-
Memory
Technology
DDR3L 1333MHz
Max.Capacity
SO-DIMM up to 8GB
Socket
1*204 PIN SO-DIMM
-
Display
Controller
AMD Radeon™ HD 8250
Video Interface
HDMI+VGA
DP
N/A
Multiple Display
Two
-
Expansion
Slot Type
1
PCI Express
1 (colay MINI PCIE)
-
Ethernet
Speed
10/100/1000 Mbps
Controller
Realtek 8111H
Connector
1*RJ45
-
Audio
Audio Interface
HD Audio
CODEC
Realtek ALC662
Connector
2(HP_OUT/ MIC_IN)
-
WatchDog Timer
Yes
-
I/O
USB
4*USB2.0, 2*USB3.0
GPIO
N/A
COM Port
1 x 20Pin COM RS232
TPM
N/A
-
Storage
M-SATA
1*MSATA 30MM*50MM*3MM
SATA
N/A
-
Power
Power type
DC 12V
Connector
DC jack
Power Adaptor
Yes
-
Environment
Non-Operational Temperature
"-10℃~60℃"
Operational Temperature
"-10℃~60℃"
-
Physical
Dimension
140mmX100mm
Weight
191g
Construction
with fanless design
-
Operating System
Microsoft Windows
Yes
Linux
Yes
-
