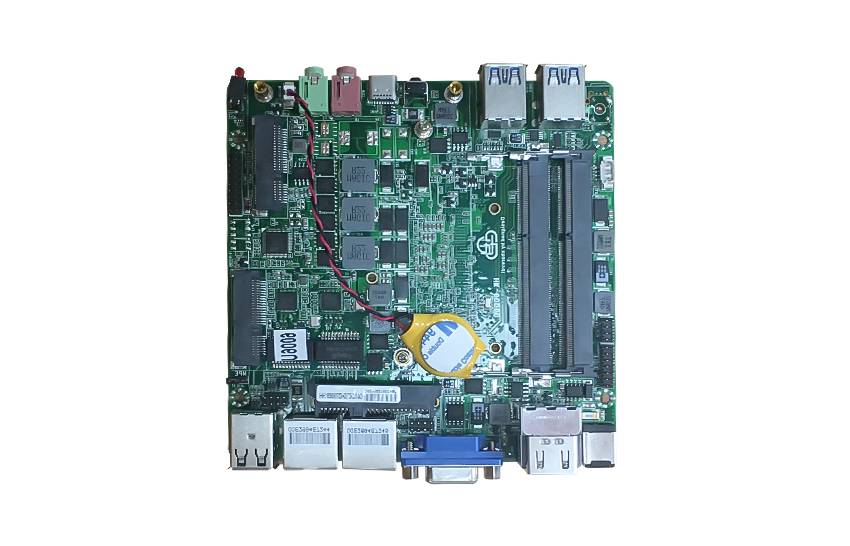

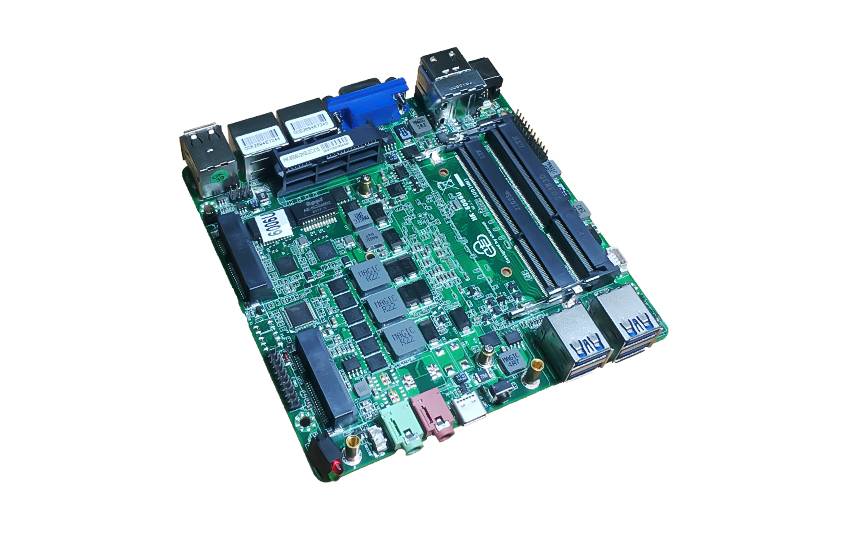

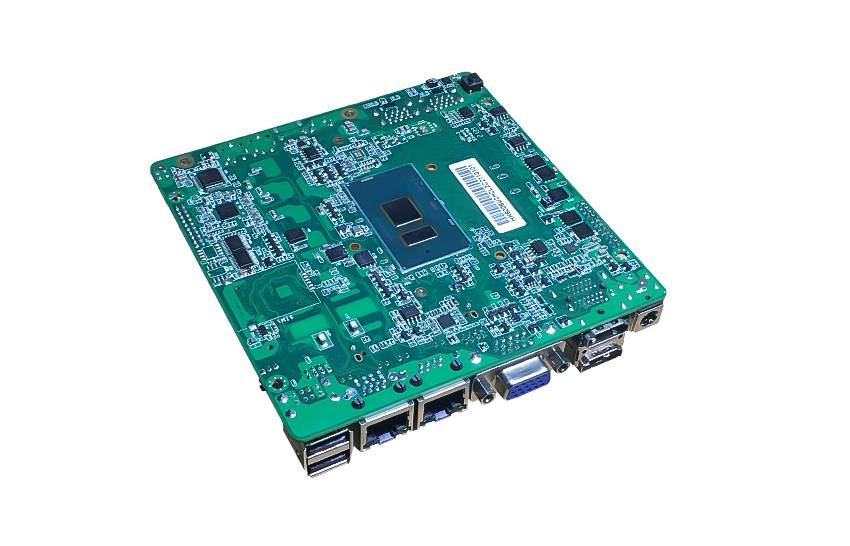

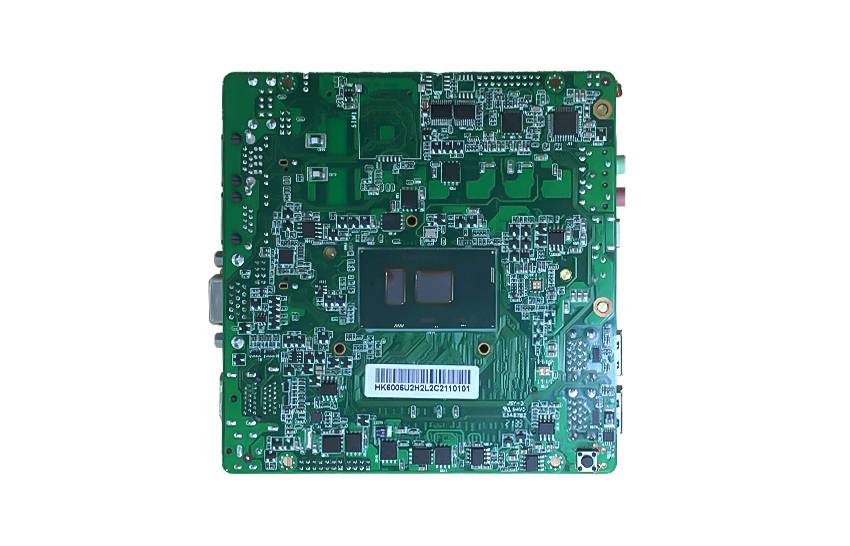

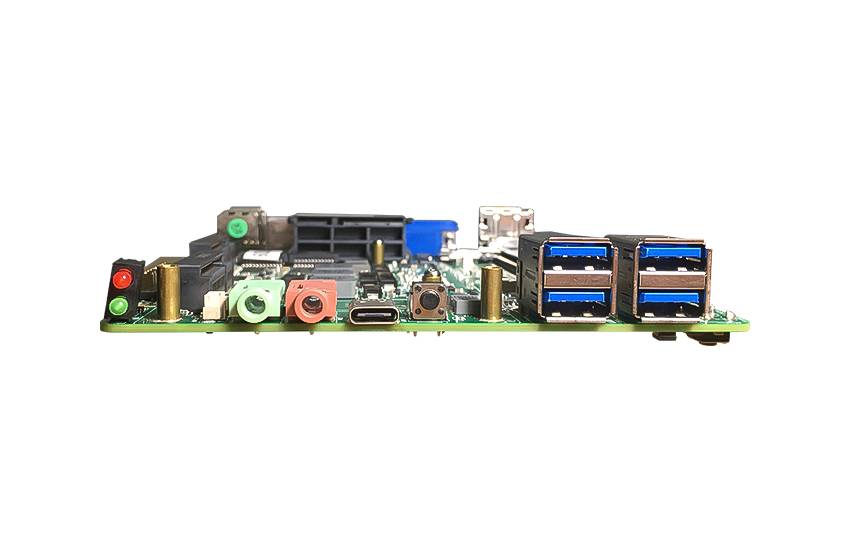

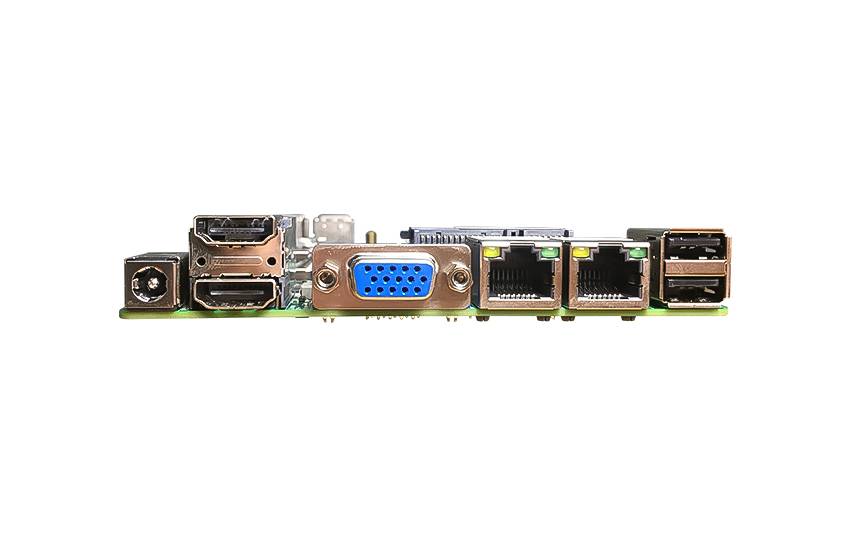

NANO-ITX AIMB-K302
Model: AIMB-K302
● 6th 7th Intel® Core i3 i7, 15W TDP
● 2x 204-pin SO-DIMM up to 16 GB, DDR3L 1333MHz SDRAM
● Triple display: Dual HDMI,one VGA, Intel HD Graphics 520
● Realtek ALC662, 2 channel HD audio
● Dual 10/100/1000 Mbps LAN
● 1 M.2 E key, 1 SATA, 1 mSATA
● 2 USB 3.0, 4 USB 2.0, 2 COM, 1 PCIE-GPIO
● Support TPM Module
● 12V DC, supports 12-64V wide voltage Power Input
Send InquiryIntel core i3-6006u/Intel i7-7500u NANO-ITX with triple display port, 6 USB, 2 COM, Dual LAN
-
Part No.AIMB-K302AIMB-K702
-
-
Form Factor
NANO-ITX
NANO-ITX
-
Processor
CPU
Intel Core i3-6006U
Intel Core i7-7500U
BIOS
AMI BIOS
AMI BIOS
Core Number
2
2
CPU TDP
15W
15W
Frequency
2.0GHz
2.7GHz~3.5GHz
L3 Cache
3MB
4MB
-
Memory
Technology
DDR3L 1333MHz
DDR3L 1333MHz
Max.Capacity
SO-DIMM up to 16GB
SO-DIMM up to 16GB
Socket
2*204 PIN SO-DIMM
2*204 PIN SO-DIMM
-
Display
Controller
Intel HD Graphics 520
Intel HD Graphics 620
Video Interface
2*HDMI+VGA
2*HDMI+VGA
DP
N/A
N/A
Multiple Display
Triple
Triple
-
Expansion
Slot Type
1
1
PCI Express
1 (colay M.2 E key)
1 (colay M.2 E key)
-
Ethernet
Speed
10/100/1000 Mbps
10/100/1000 Mbps
Controller
Realtek 8111E
Realtek 8111H
Connector
2*RJ45
2*RJ45
-
Audio
Audio Interface
HD Audio
HD Audio
CODEC
Realtek ALC887
Realtek ALC887
Connector
2(HP_OUT/ MIC_IN)
2(HP_OUT/ MIC_IN)
-
WatchDog Timer
Yes
Yes
-
I/O
USB
4*USB2.0, 2*USB3.0
4*USB2.0, 2*USB3.0
GPIO
1*PCIE-8PIN
1* PCIE-GPIO
COM Port
2*10PIN COM
2*10PIN COM
TPM
1*14-1Pin TPM
1*14-1Pin TPM
-
Storage
M-SATA
1*MSATA 30MM*50MM*3MM
1*MSATA 30MM*50MM*3MM
SATA
1*SATA, support 2.5inch sata Interface
1*SATA, support 2.5inch sata Interface
-
Power
Power type
DC 12V
DC 12V
Connector
DC jack
DC jack
Power Adaptor
Yes
Yes
-
Environment
Non-Operational Temperature
"-10℃~60℃"
"-10℃~60℃"
Operational Temperature
"-10℃~60℃"
"-10℃~60℃"
-
Physical
Dimension
120mmX120mm
120mmX120mm
Weight
158g
158g
Construction
with fanless design
with fanless design
-
Operating System
Microsoft Windows
Yes
Yes
Linux
Yes
Yes
-
AIMB-K302
NANO-ITX
AIMB-K702
NANO-ITX
-
CPU
AIMB-K302
Intel Core i3-6006U
AIMB-K702
Intel Core i7-7500U
-
BIOS
AIMB-K302
AMI BIOS
AIMB-K702
AMI BIOS
-
Core Number
AIMB-K302
2
AIMB-K702
2
-
CPU TDP
AIMB-K302
15W
AIMB-K702
15W
-
Frequency
AIMB-K302
2.0GHz
AIMB-K702
2.7GHz~3.5GHz
-
L3 Cache
AIMB-K302
3MB
AIMB-K702
4MB
-
Technology
AIMB-K302
DDR3L 1333MHz
AIMB-K702
DDR3L 1333MHz
-
Max.Capacity
AIMB-K302
SO-DIMM up to 16GB
AIMB-K702
SO-DIMM up to 16GB
-
Socket
AIMB-K302
2*204 PIN SO-DIMM
AIMB-K702
2*204 PIN SO-DIMM
-
Controller
AIMB-K302
Intel HD Graphics 520
AIMB-K702
Intel HD Graphics 620
-
Video Interface
AIMB-K302
2*HDMI+VGA
AIMB-K702
2*HDMI+VGA
-
DP
AIMB-K302
N/A
AIMB-K702
N/A
-
Multiple Display
AIMB-K302
Triple
AIMB-K702
Triple
-
Slot Type
AIMB-K302
1
AIMB-K702
1
-
PCI Express
AIMB-K302
1 (colay M.2 E key)
AIMB-K702
1 (colay M.2 E key)
-
Speed
AIMB-K302
10/100/1000 Mbps
AIMB-K702
10/100/1000 Mbps
-
Controller
AIMB-K302
Realtek 8111E
AIMB-K702
Realtek 8111H
-
Connector
AIMB-K302
2*RJ45
AIMB-K702
2*RJ45
-
Audio Interface
AIMB-K302
HD Audio
AIMB-K702
HD Audio
-
CODEC
AIMB-K302
Realtek ALC887
AIMB-K702
Realtek ALC887
-
Connector
AIMB-K302
2(HP_OUT/ MIC_IN)
AIMB-K702
2(HP_OUT/ MIC_IN)
-
AIMB-K302
Yes
AIMB-K702
Yes
-
USB
AIMB-K302
4*USB2.0, 2*USB3.0
AIMB-K702
4*USB2.0, 2*USB3.0
-
GPIO
AIMB-K302
1*PCIE-8PIN
AIMB-K702
1* PCIE-GPIO
-
COM Port
AIMB-K302
2*10PIN COM
AIMB-K702
2*10PIN COM
-
TPM
AIMB-K302
1*14-1Pin TPM
AIMB-K702
1*14-1Pin TPM
-
M-SATA
AIMB-K302
1*MSATA 30MM*50MM*3MM
AIMB-K702
1*MSATA 30MM*50MM*3MM
-
SATA
AIMB-K302
1*SATA, support 2.5inch sata Interface
AIMB-K702
1*SATA, support 2.5inch sata Interface
-
Power type
AIMB-K302
DC 12V
AIMB-K702
DC 12V
-
Connector
AIMB-K302
DC jack
AIMB-K702
DC jack
-
Power Adaptor
AIMB-K302
Yes
AIMB-K702
Yes
-
Non-Operational Temperature
AIMB-K302
"-10℃~60℃"
AIMB-K702
"-10℃~60℃"
-
Operational Temperature
AIMB-K302
"-10℃~60℃"
AIMB-K702
"-10℃~60℃"
-
Dimension
AIMB-K302
120mmX120mm
AIMB-K702
120mmX120mm
-
Weight
AIMB-K302
158g
AIMB-K702
158g
-
Construction
AIMB-K302
with fanless design
AIMB-K702
with fanless design
-
Microsoft Windows
AIMB-K302
Yes
AIMB-K702
Yes
-
Linux
AIMB-K302
Yes
AIMB-K702
Yes
