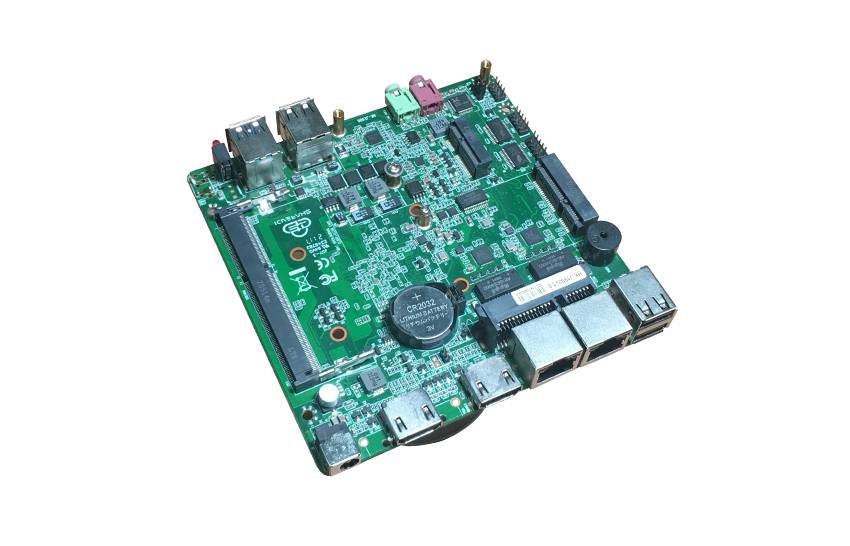

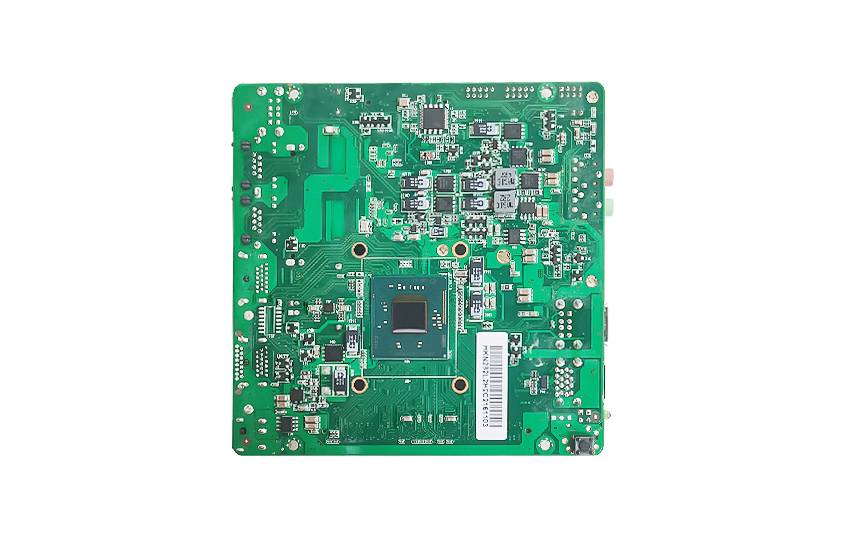

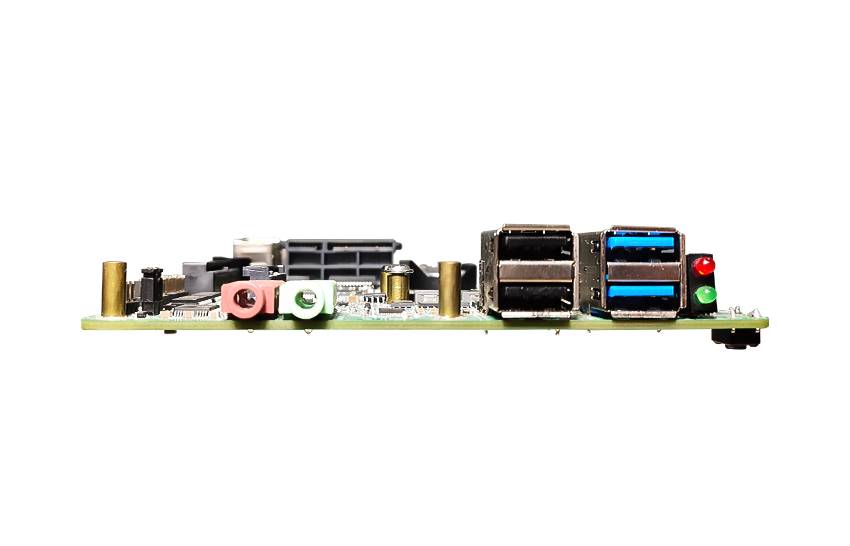

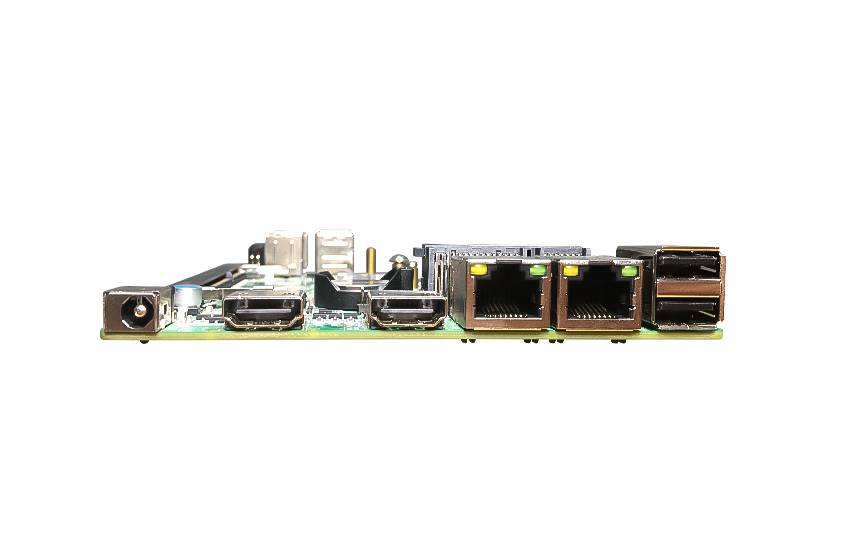

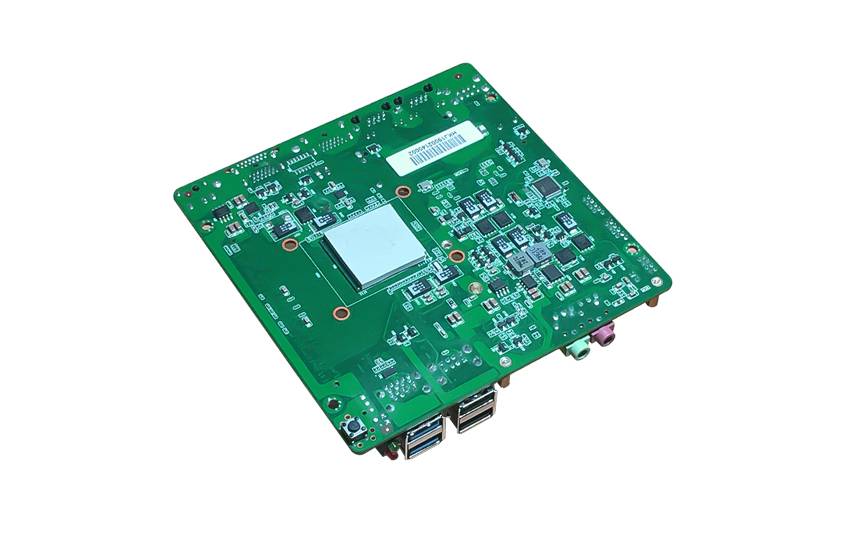

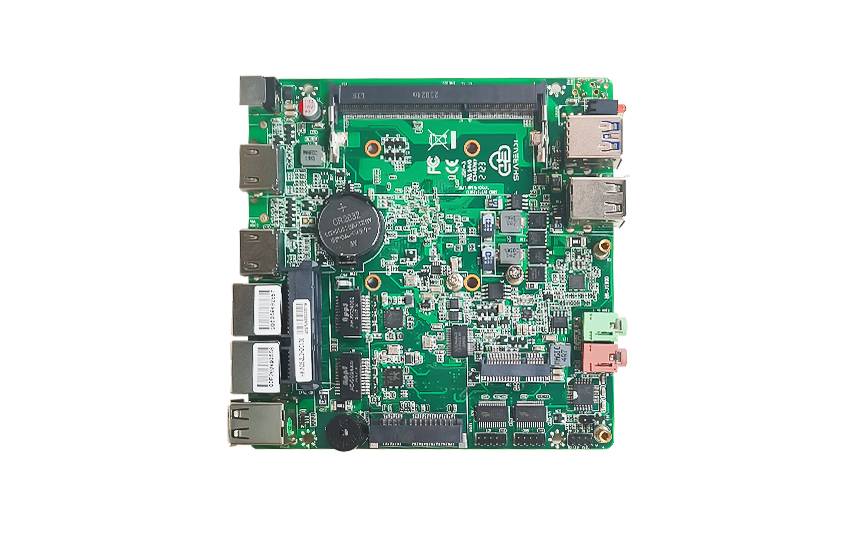

NANO-ITX AIMB-K601

Model: AIMB-K601

● Intel® Celeron N2940 (Quad core)/N2840(Dual core) processor, 7.5W TDP

● 1*204-pin SO-DIMM up to 8 GB, DDR3L 1333MHz SDRAM

● Dual HDMI, 1920*1080@60Hz

● Realtek ALC662, 2 channel HD audio

● Dual 10/100/1000 Mbps LAN

● 1 PCIE M.2 E Key, 1 SATA, 1 mSATA

● 2 USB 3.0, 4 USB 2.0, 2 COM

● 12V DC, supports 12-64V wide voltage Power Input

Intel Celeron N2940 NANO-ITX with 2 HDMI, 6 USB, 2 COM, Dual LAN

Product Specification
Form Factor
  • AIMB-K601

    NANO-ITX

    AIMB-K602

    NANO-ITX

Processor
  • CPU

    AIMB-K601

    Intel Celeron N2840

    AIMB-K602

    Intel Celeron N2940

  • BIOS

    AIMB-K601

    AMI BIOS

    AIMB-K602

    AMI BIOS

  • Core Number

    AIMB-K601

    2

    AIMB-K602

    4

  • CPU TDP

    AIMB-K601

    7.5W

    AIMB-K602

    7.5W

  • Frequency

    AIMB-K601

    2.16GHz~2.58GHz

    AIMB-K602

    1.83GHz~2.25GHz

  • L3 Cache

    AIMB-K601

    1MB

    AIMB-K602

    2MB

Memory
  • Technology

    AIMB-K601

    DDR3L 1333MHz

    AIMB-K602

    DDR3L 1333MHz

  • Max.Capacity

    AIMB-K601

    SO-DIMM up to 8GB

    AIMB-K602

    SO-DIMM up to 8GB

  • Socket

    AIMB-K601

    1*204 PIN SO-DIMM

    AIMB-K602

    1*204 PIN SO-DIMM

Display
  • Controller

    AIMB-K601

    Intel® HD Graphics for Intel Atom® Processor Z3700 Series

    AIMB-K602

    Intel® HD Graphics for Intel Atom® Processor Z3700 Series

  • Video Interface

    AIMB-K601

    2*HDMI

    AIMB-K602

    2*HDMI

  • DP

    AIMB-K601

    N/A

    AIMB-K602

    N/A

  • Multiple Display

    AIMB-K601

    TWO

    AIMB-K602

    TWO

Expansion
  • Slot Type

    AIMB-K601

    1

    AIMB-K602

    1

  • PCI Express

    AIMB-K601

    1 (colay M.2 E key)

    AIMB-K602

    1 (colay M.2 E key)

Ethernet
  • Speed

    AIMB-K601

    10/100/1000 Mbps

    AIMB-K602

    10/100/1000 Mbps

  • Controller

    AIMB-K601

    Realtek 8111H

    AIMB-K602

    Realtek 8111H

  • Connector

    AIMB-K601

    2*RJ45

    AIMB-K602

    2*RJ45

Audio
  • Audio Interface

    AIMB-K601

    HD Audio

    AIMB-K602

    HD Audio

  • CODEC

    AIMB-K601

    Realtek ALC887/662

    AIMB-K602

    Realtek ALC887/662

  • Connector

    AIMB-K601

    2(HP_OUT/ MIC_IN)

    AIMB-K602

    2(HP_OUT/ MIC_IN)

WatchDog Timer
  • AIMB-K601

    Yes

    AIMB-K602

    Yes

I/O
  • USB

    AIMB-K601

    4*USB2.0, 2*USB3.0

    AIMB-K602

    4*USB2.0, 2*USB3.0

  • GPIO

    AIMB-K601

    N/A

    AIMB-K602

    N/A

  • COM Port

    AIMB-K601

    2*9PIN COM

    AIMB-K602

    2*9PIN COM

  • TPM

    AIMB-K601

    N/A

    AIMB-K602

    N/A

Storage
  • M-SATA

    AIMB-K601

    1*MSATA 30MM*50MM*3MM

    AIMB-K602

    1*MSATA 30MM*50MM*3MM

  • SATA

    AIMB-K601

    1*SATA, support 2.5inch sata Interface

    AIMB-K602

    1*SATA, support 2.5inch sata Interface

Power
  • Power type

    AIMB-K601

    DC 12V

    AIMB-K602

    DC 12V

  • Connector

    AIMB-K601

    DC jack

    AIMB-K602

    DC jack

  • Power Adaptor

    AIMB-K601

    Yes

    AIMB-K602

    Yes

Environment
  • Non-Operational Temperature

    AIMB-K601

    "-10℃~60℃"

    AIMB-K602

    "-10℃~60℃"

  • Operational Temperature

    AIMB-K601

    "-10℃~60℃"

    AIMB-K602

    "-10℃~60℃"

Physical
  • Dimension

    AIMB-K601

    120mmX120mm

    AIMB-K602

    120mmX120mm

  • Weight

    AIMB-K601

    137g

    AIMB-K602

    137g

  • Construction

    AIMB-K601

    with fanless design

    AIMB-K602

    with fanless design

Operating System
  • Microsoft Windows

    AIMB-K601

    Yes

    AIMB-K602

    Yes

  • Linux

    AIMB-K601

    Yes

    AIMB-K602

    Yes
