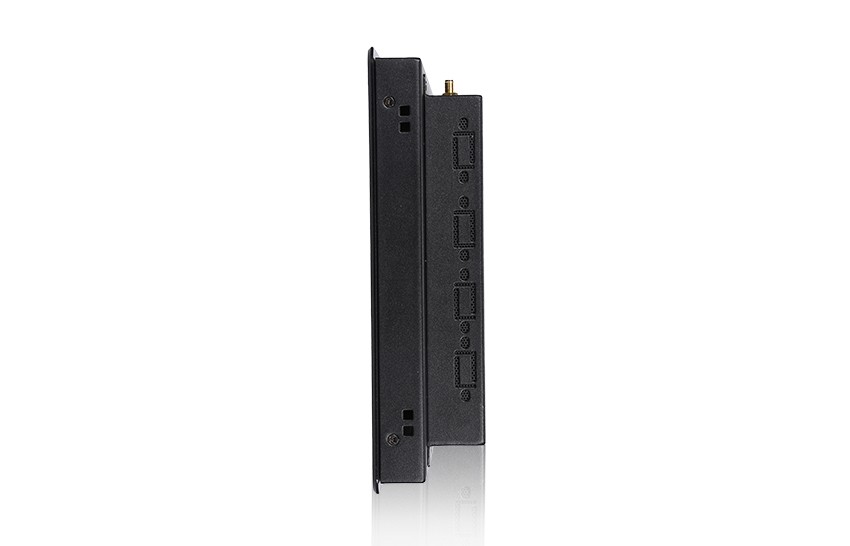

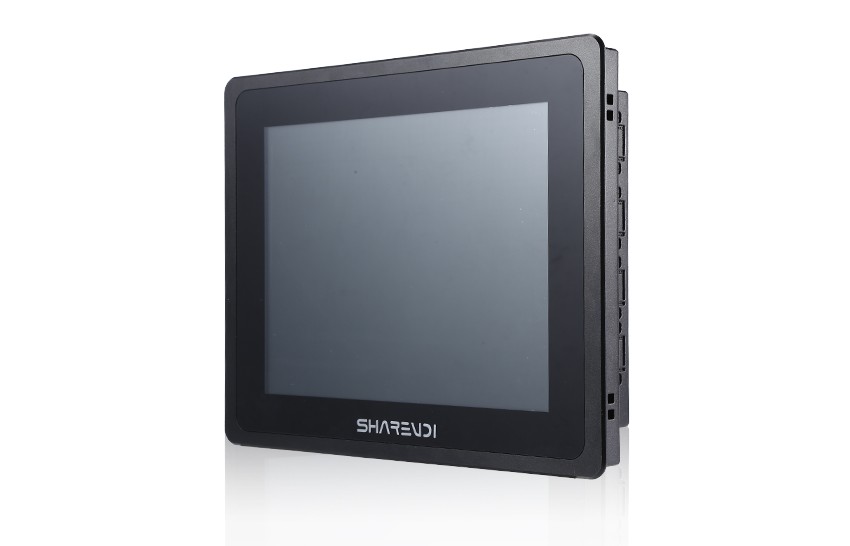

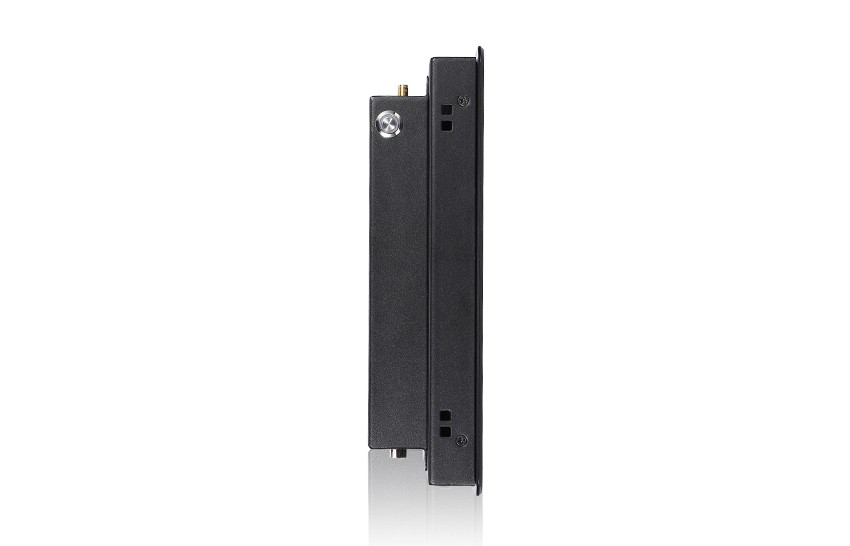

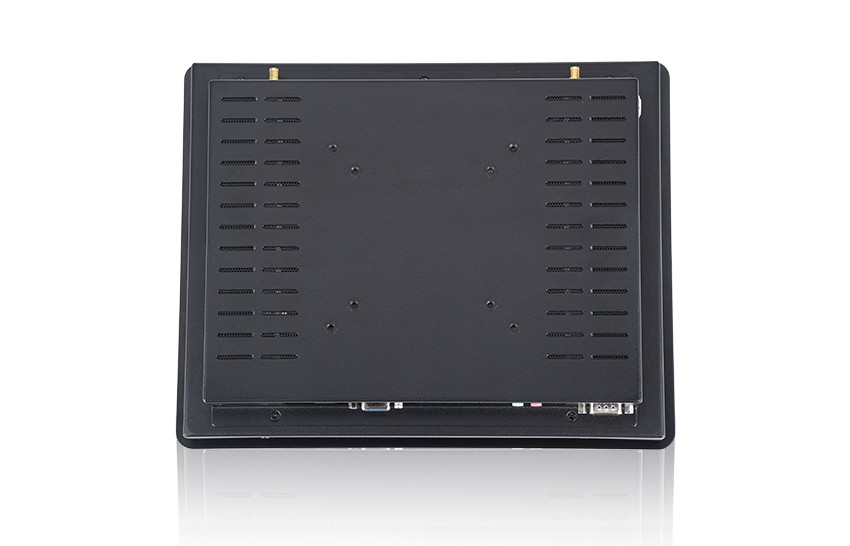

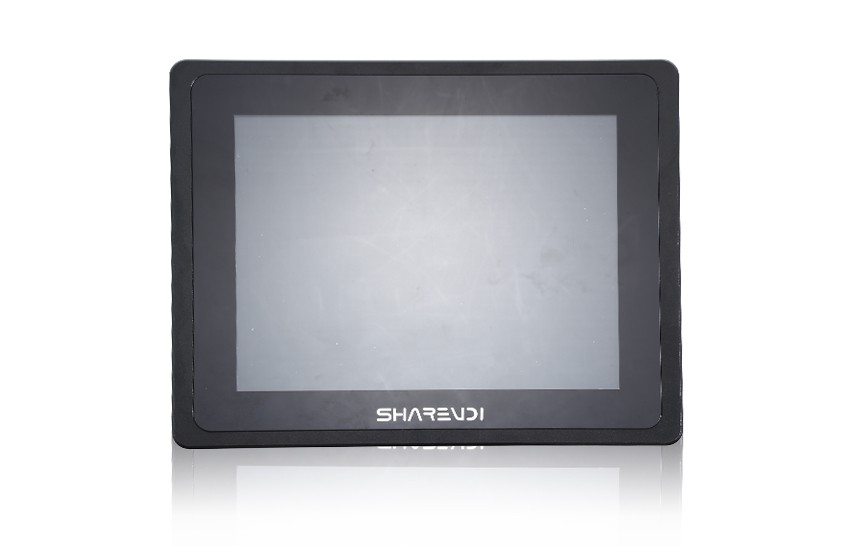

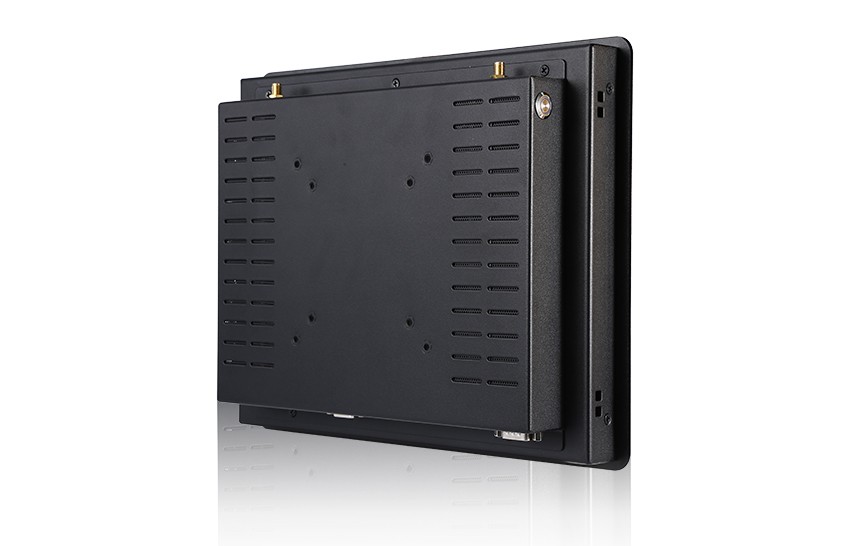

A10-X 10''Android Industrial Tablet
Model: A10-X
● High quality capacitive screen 10-point touch
● ARM based RK3288 architecture
● 2GB RAM,16GB Flash
● 10/100/1000Mbps Ethernet
● Built in WIFI & BT
● Extenable RS232/RS485
● OS Android7.1/ Ubuntu18.04 / Android10.0
Data Sheet 1
Send InquiryA10-X is a 10'' Andriod panel PC for the applications that need embedded screen computer or interactive terminal. It can with stand rough weather and harsh environments with features, including a versatile capacitive touchscreen, for impressive field performance.
-
Part No.A10-X9A10-X7
-
-
Processor System
CPU
RK3399 (28 NM HKMG procedure)
RK3288 Cortex-A17 GPU Mail-T764
RAM
DDR3L 4GB
DDR3L 2GB
Storage
64GB(16GB/32GB/128GB)EMMC, TF Card Extendable
Onboard 16GB EMMC（32GB optional）
-
Display
Panel Size
10.4''
10.4''
Max. Resolution
1024*768p
1024*768p
Max. Colors
16.7M
16.7M
Treatment
Anti-Glare
Anti-Glare
Brightness
300-500nits
300-500nits
Viewing Direction
Full Viewing
Full Viewing
Aspect Ratio
4:3
4:3
-
Touch Screen
Touch Points
10 Points
10 Points
Type
Capacitive Touch
Capacitive Touch
-
Color
Black
Black
-

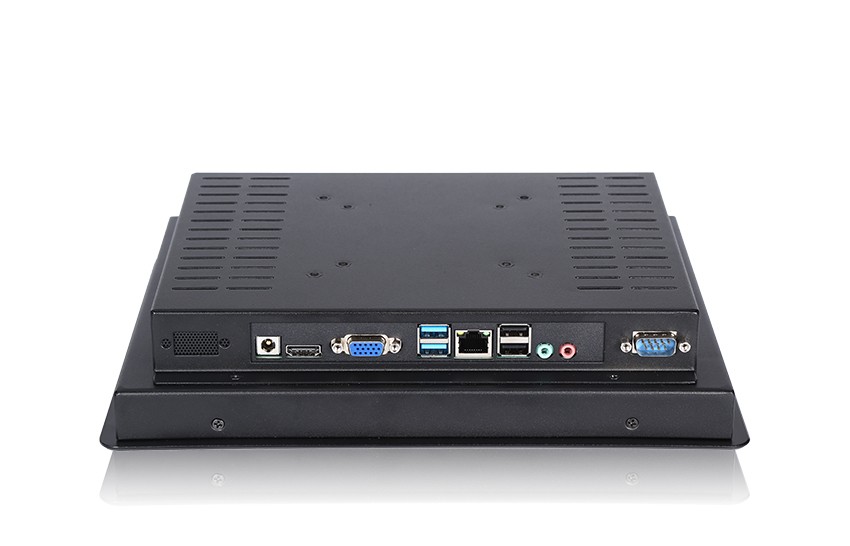

I/O Interface
Video output
1*VGA,1*HDMI
1*VGA,1*HDMI
Serial Port
1*RS232(Upgradable)
1*RS232(Upgradable)
USB Port
2~4*USB(Upgradable)
2~4*USB(Upgradable)
Ethernet
1*RJ45(Upgradable)
1*RJ45(Upgradable)
Extendable Port
RS485, LPT, Phoenix terminal(Replace DC)
RS485, LPT, Phoenix terminal(Replace DC)
-
General
Certification
CE,FCC,ROHS,ISO
CE,FCC,ROHS,ISO
Dimension
283*225.2*56 mm
283*225.2*56 mm
Power Input
AC100-240V.50-60HZ
AC100-240V.50-60HZ
Power Output
DC12V 2A~5A
DC12V 2A~5A
Mounting Options

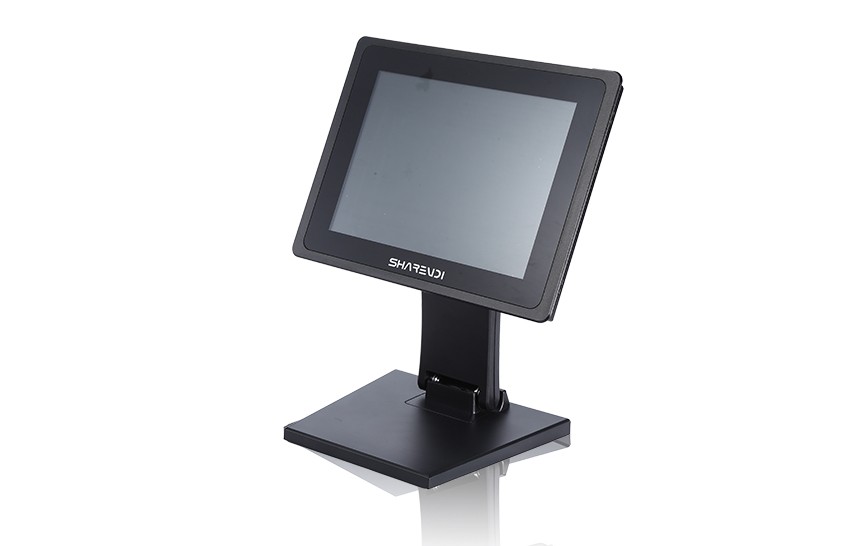

Wall Mount/Embedded Vesa Mount/Vertical Stand
Wall Mount/Embedded Vesa Mount/Vertical Stand
Weight(Net)
3.6KG
3.6KG
-
Environment
Operating Temperature
-20 ~ 70℃
-20 ~ 60℃
Storage Temperature
-10 ~ 60℃
-10 ~ 50℃
Operation Humidity
10% ~ 80%
10% ~ 80%
Storage Humidity
10% ~ 90%
10% ~ 90%
-
CPU
A10-X9
RK3399 (28 NM HKMG procedure)
A10-X7
RK3288 Cortex-A17 GPU Mail-T764
-
RAM
A10-X9
DDR3L 4GB
A10-X7
DDR3L 2GB
-
Storage
A10-X9
64GB(16GB/32GB/128GB)EMMC, TF Card Extendable
A10-X7
Onboard 16GB EMMC（32GB optional）
-
Panel Size
A10-X9
10.4''
A10-X7
10.4''
-
Max. Resolution
A10-X9
1024*768p
A10-X7
1024*768p
-
Max. Colors
A10-X9
16.7M
A10-X7
16.7M
-
Treatment
A10-X9
Anti-Glare
A10-X7
Anti-Glare
-
Brightness
A10-X9
300-500nits
A10-X7
300-500nits
-
Viewing Direction
A10-X9
Full Viewing
A10-X7
Full Viewing
-
Aspect Ratio
A10-X9
4:3
A10-X7
4:3
-
Touch Points
A10-X9
10 Points
A10-X7
10 Points
-
Type
A10-X9
Capacitive Touch
A10-X7
Capacitive Touch
-
A10-X9
Black
A10-X7
Black
-
Video output
A10-X9
1*VGA,1*HDMI
A10-X7
1*VGA,1*HDMI
-
Serial Port
A10-X9
1*RS232(Upgradable)
A10-X7
1*RS232(Upgradable)
-
USB Port
A10-X9
2~4*USB(Upgradable)
A10-X7
2~4*USB(Upgradable)
-
Ethernet
A10-X9
1*RJ45(Upgradable)
A10-X7
1*RJ45(Upgradable)
-
Extendable Port
A10-X9
RS485, LPT, Phoenix terminal(Replace DC)
A10-X7
RS485, LPT, Phoenix terminal(Replace DC)
-
Certification
A10-X9
CE,FCC,ROHS,ISO
A10-X7
CE,FCC,ROHS,ISO
-
Dimension
A10-X9
283*225.2*56 mm
A10-X7
283*225.2*56 mm
-
Power Input
A10-X9
AC100-240V.50-60HZ
A10-X7
AC100-240V.50-60HZ
-
Power Output
A10-X9
DC12V 2A~5A
A10-X7
DC12V 2A~5A
-
Mounting Options
A10-X9
Wall Mount/Embedded Vesa Mount/Vertical Stand
A10-X7
Wall Mount/Embedded Vesa Mount/Vertical Stand
-
Weight(Net)
A10-X9
3.6KG
A10-X7
3.6KG
-
Operating Temperature
A10-X9
-20 ~ 70℃
A10-X7
-20 ~ 60℃
-
Storage Temperature
A10-X9
-10 ~ 60℃
A10-X7
-10 ~ 50℃
-
Operation Humidity
A10-X9
10% ~ 80%
A10-X7
10% ~ 80%
-
Storage Humidity
A10-X9
10% ~ 90%
A10-X7
10% ~ 90%
