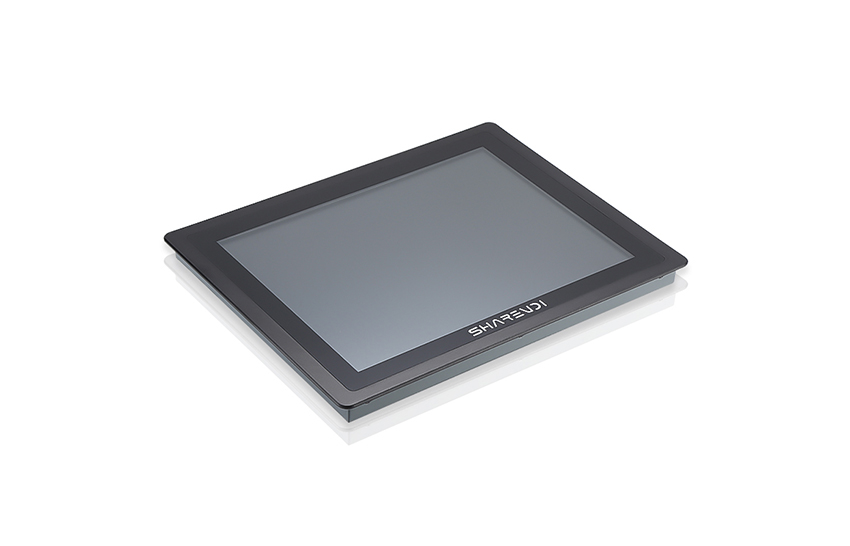

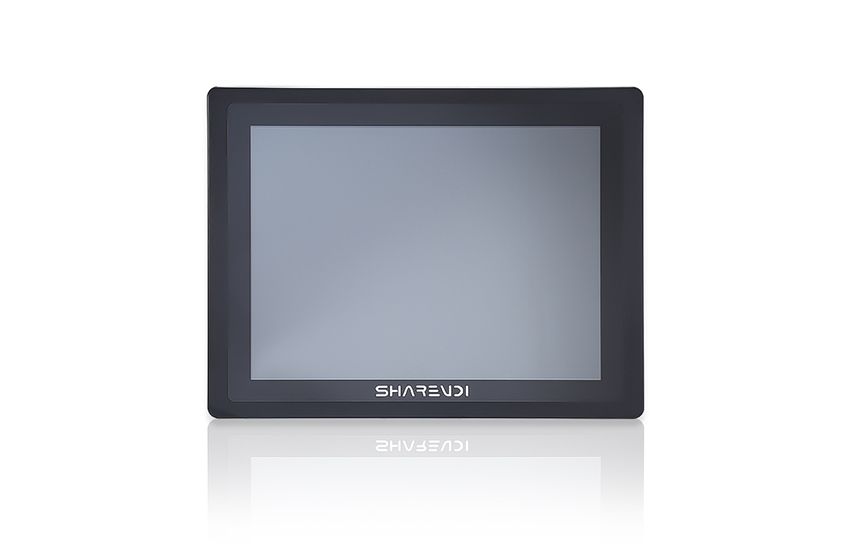

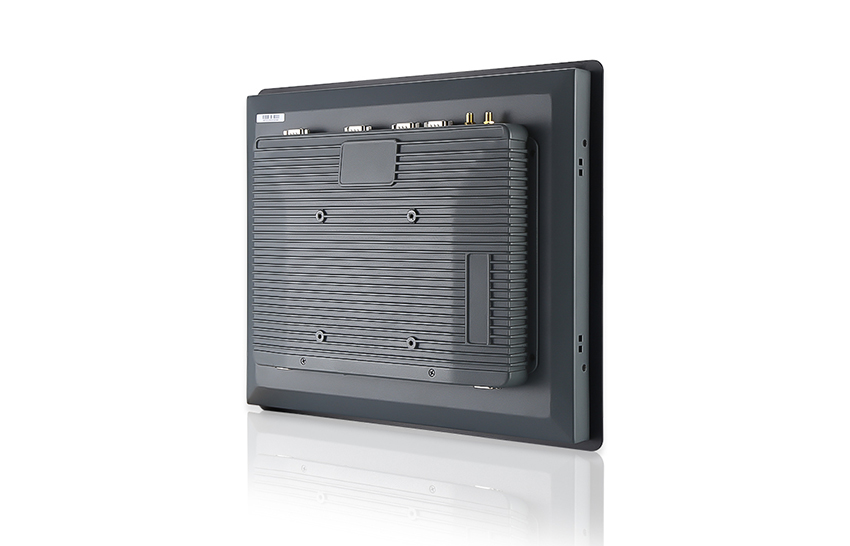

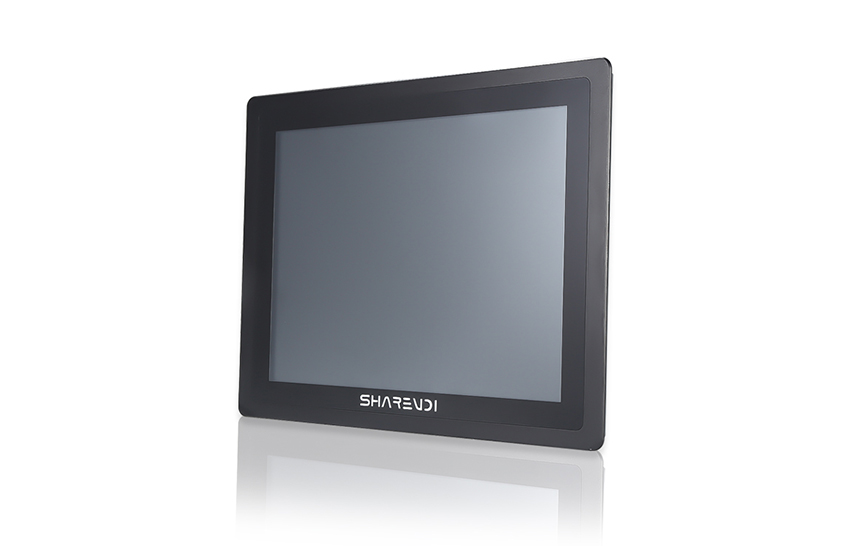

A14 Embedded Panel PC
Model: A14
● 15'' capacitive 10-point touch screen, Full IP65-rated panel
● With 1/2 x COM port (RS232 / RS485)
● With 1/2 x LAN port
● Support wide voltage 12- 64V power supply
● Support 4G LTE module,mini PCIE / M.2 expansion
● Optional installation method, VESA / Stand / Embedded
● Wide range configuration available
Data Sheet 1
Send InquiryA14 is a Windows 10 All-In-One Touch PC, equipped with intel core i3/i5/i7 processor, memory 8GB RAM, Storage 256GB SSD, dual band WIFI and 4G module supported. Power supply is 12V default, can be optional 24/36V/64V.
-
Part No.A14-AMD 6500TA14-i3/i5/i7
-
-
Processor System
CPU
AMD A6 Micro-6500T
Intel Core I3-5005U/I5-5300U/I7-5500U
RAM
DDR3 2GB/4GB/8GB
DDR3 2GB/4GB/8GB
Storage
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
Display
Panel Size
15''
15''
Max. Resolution
1024*768p
1024*768p
Max. Colors
16.7M (6-bit+Hi-FRC)
16.7M (6-bit+Hi-FRC)
Treatment
Anti-Glare
Anti-Glare
Brightness
250-500nits
250-500nits
Viewing Direction
Full Viewing
Full Viewing
Aspect Ratio
4:3
4:3
-
Touch Screen
Touch Points
10 Points
10 Points
Type
Capacitive Touch
Capacitive Touch
-
Color
Gray
Gray
-

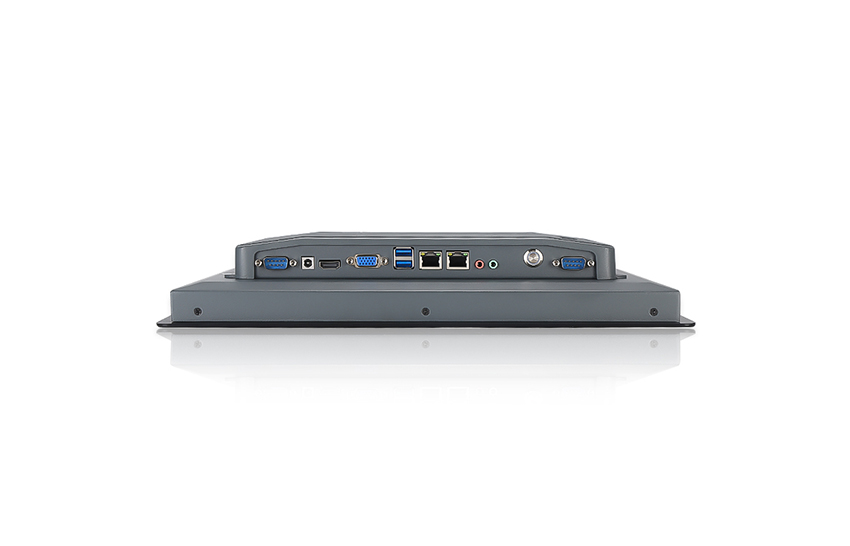

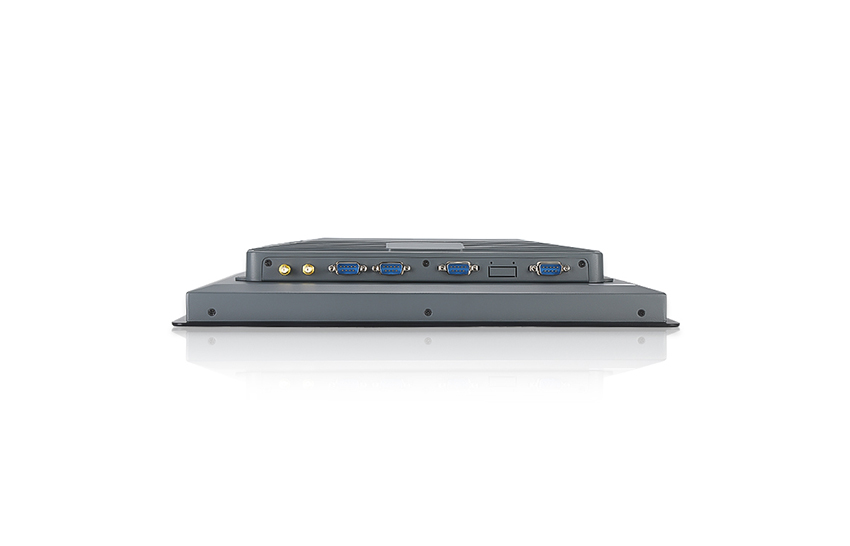

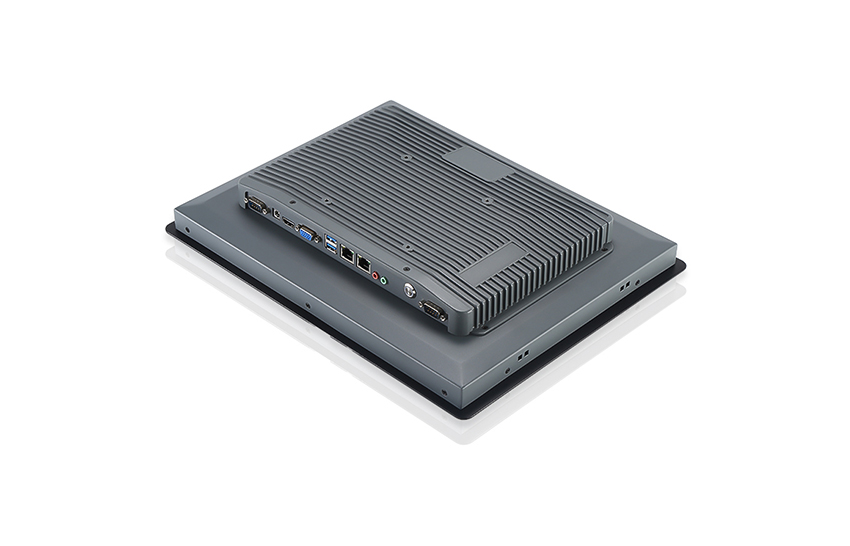

I/O Interface
Video output
1*VGA,1*HDMI
1*VGA,1*HDMI
Serial Port
1~2*RS232/RS485 (Upgradable)
1~2*RS232/RS485 (Upgradable)
USB Port
2*USB(Upgradable)
6*USB (Upgradable)
Ethernet
2*RJ45(Upgradable)
2*RJ45 (Upgradable)
Extendable Port
RS485, LPT, Phoenix terminal(Replace DC)
RS485, LPT, Phoenix terminal(Replace DC)
-
General
Certification
CE,FCC,ROHS,ISO
CE,FCC,ROHS,ISO
Dimension(W*H*D)
378*297*60.8mm
378*297*60.8mm
Power Input
AC100-240V.50-60HZ
AC100-240V.50-60HZ
Power Output
DC12V 5A
DC12V 5A

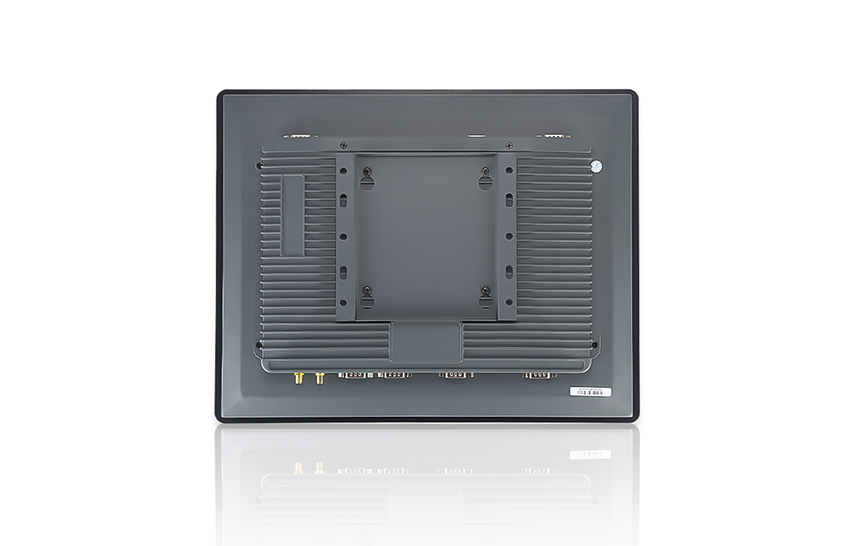

Mounting Options
Wall Mount/Embedded Vesa Mount/Vertical Stand
Wall Mount/Embedded Vesa Mount/Vertical Stand
Weight(Net)
4.3KG
4.3KG
-
Environment
Operating Temperature
-20 ~ 70℃
-20 ~ 70℃
Storage Temperature
-10 ~ 60℃
-10 ~ 60℃
Operation Humidity
10% ~ 80%
10% ~ 80%
Storage Humidity
10% ~ 90%
10% ~ 90%
-
CPU
A14-AMD 6500T
AMD A6 Micro-6500T
A14-i3/i5/i7
Intel Core I3-5005U/I5-5300U/I7-5500U
-
RAM
A14-AMD 6500T
DDR3 2GB/4GB/8GB
A14-i3/i5/i7
DDR3 2GB/4GB/8GB
-
Storage
A14-AMD 6500T
SSD 16GB/32GB/64GB/128GB/256GB/512GB
A14-i3/i5/i7
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
Panel Size
A14-AMD 6500T
15''
A14-i3/i5/i7
15''
-
Max. Resolution
A14-AMD 6500T
1024*768p
A14-i3/i5/i7
1024*768p
-
Max. Colors
A14-AMD 6500T
16.7M (6-bit+Hi-FRC)
A14-i3/i5/i7
16.7M (6-bit+Hi-FRC)
-
Treatment
A14-AMD 6500T
Anti-Glare
A14-i3/i5/i7
Anti-Glare
-
Brightness
A14-AMD 6500T
250-500nits
A14-i3/i5/i7
250-500nits
-
Viewing Direction
A14-AMD 6500T
Full Viewing
A14-i3/i5/i7
Full Viewing
-
Aspect Ratio
A14-AMD 6500T
4:3
A14-i3/i5/i7
4:3
-
Touch Points
A14-AMD 6500T
10 Points
A14-i3/i5/i7
10 Points
-
Type
A14-AMD 6500T
Capacitive Touch
A14-i3/i5/i7
Capacitive Touch
-
A14-AMD 6500T
Gray
A14-i3/i5/i7
Gray
-
Video output
A14-AMD 6500T
1*VGA,1*HDMI
A14-i3/i5/i7
1*VGA,1*HDMI
-
Serial Port
A14-AMD 6500T
1~2*RS232/RS485 (Upgradable)
A14-i3/i5/i7
1~2*RS232/RS485 (Upgradable)
-
USB Port
A14-AMD 6500T
2*USB(Upgradable)
A14-i3/i5/i7
6*USB (Upgradable)
-
Ethernet
A14-AMD 6500T
2*RJ45(Upgradable)
A14-i3/i5/i7
2*RJ45 (Upgradable)
-
Extendable Port
A14-AMD 6500T
RS485, LPT, Phoenix terminal(Replace DC)
A14-i3/i5/i7
RS485, LPT, Phoenix terminal(Replace DC)
-
Certification
A14-AMD 6500T
CE,FCC,ROHS,ISO
A14-i3/i5/i7
CE,FCC,ROHS,ISO
-
Dimension(W*H*D)
A14-AMD 6500T
378*297*60.8mm
A14-i3/i5/i7
378*297*60.8mm
-
Power Input
A14-AMD 6500T
AC100-240V.50-60HZ
A14-i3/i5/i7
AC100-240V.50-60HZ
-
Power Output
A14-AMD 6500T
DC12V 5A
A14-i3/i5/i7
DC12V 5A
-
Mounting Options
A14-AMD 6500T
Wall Mount/Embedded Vesa Mount/Vertical Stand
A14-i3/i5/i7
Wall Mount/Embedded Vesa Mount/Vertical Stand
-
Weight(Net)
A14-AMD 6500T
4.3KG
A14-i3/i5/i7
4.3KG
-
Operating Temperature
A14-AMD 6500T
-20 ~ 70℃
A14-i3/i5/i7
-20 ~ 70℃
-
Storage Temperature
A14-AMD 6500T
-10 ~ 60℃
A14-i3/i5/i7
-10 ~ 60℃
-
Operation Humidity
A14-AMD 6500T
10% ~ 80%
A14-i3/i5/i7
10% ~ 80%
-
Storage Humidity
A14-AMD 6500T
10% ~ 90%
A14-i3/i5/i7
10% ~ 90%
