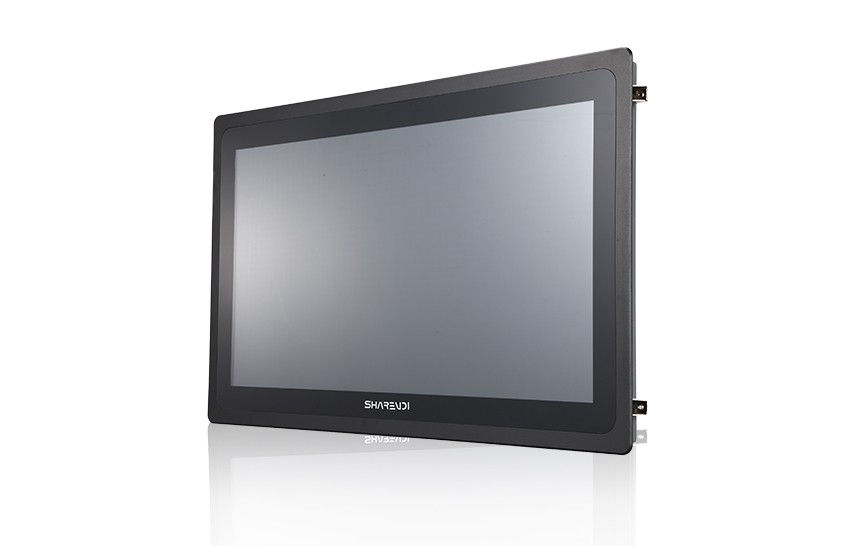

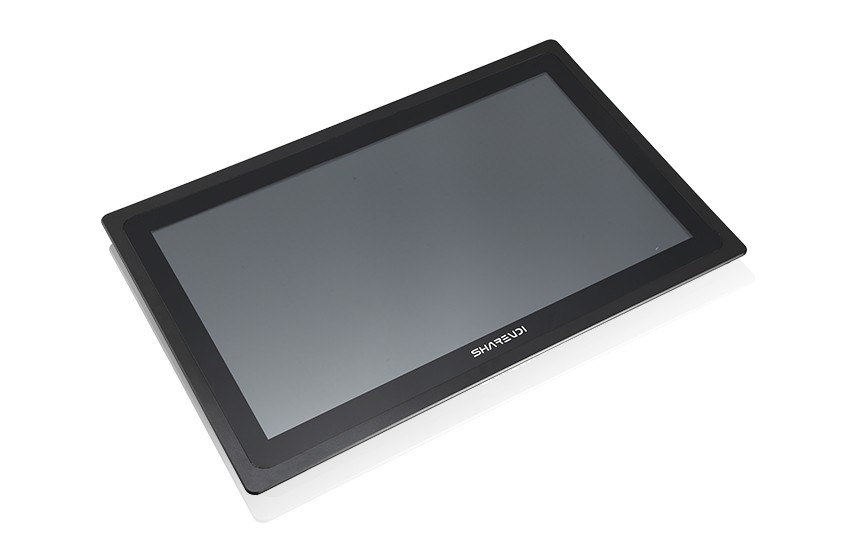

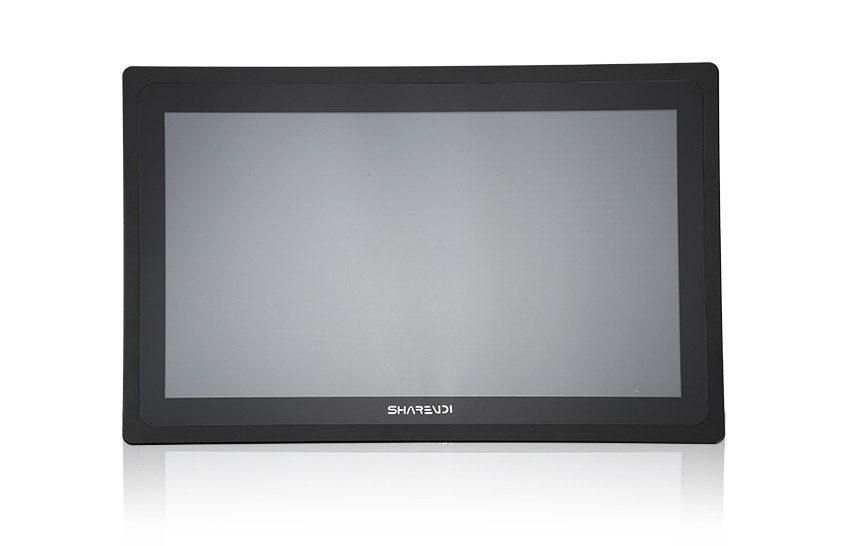

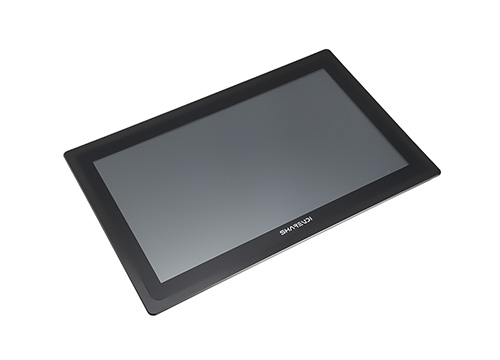

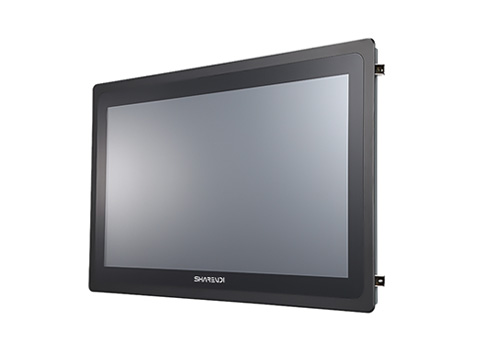

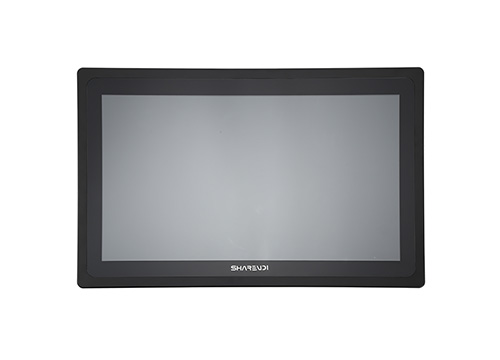

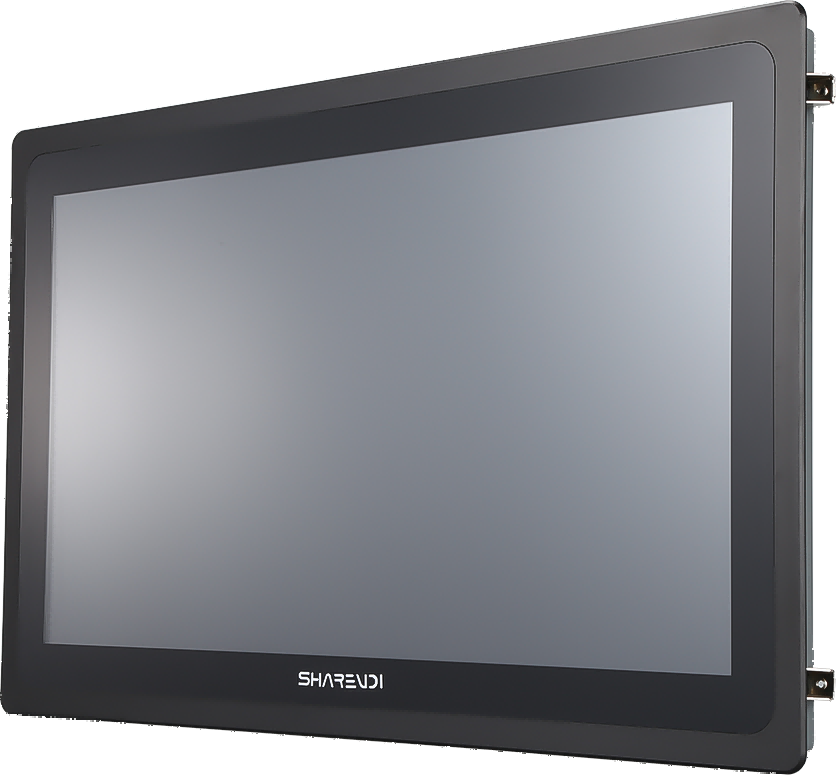

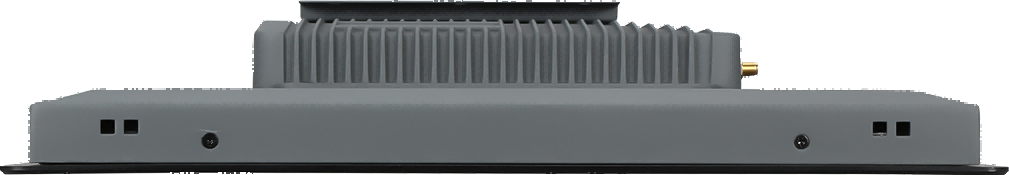

A2 Industrial Touch Screen PC
Model: A2
● Flat 21.5 '' capacitive 10-point touch screen, IP65-rated front panel
● With 1/2 x COM port (RS232 / RS485)
● With 1/2 x LAN port
● Support wide voltage 12- 64V power supply
● Support 4G LTE module,mini PCIE / M.2 expansion

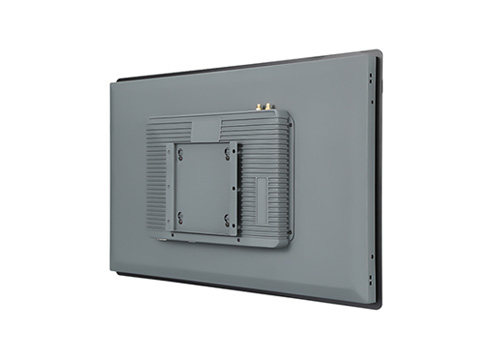

● Optional installation method, VESA / Stand / Embedded
● Wide range configuration available
Data Sheet 1
Send InquiryA2 is a IP65 rating panel PC with optional full or front water-proof and dust-proof. It has been widely used for industrial automation, KIOSK, and POS system.
-
Part No.A2-AMD 6500TA2-i3/i5/i7
-
-
Processor System
CPU
AMD A6 Micro-6500T
Intel Core I3-5005U/I5-5300U/I7-5500U
RAM
DDR3 2GB/4GB/8GB
DDR3 2GB/4GB/8GB
Storage
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
Display
Panel Size
21.5''
21.5''
Max. Resolution
1920*1080p
1920*1080p
Max. Colors
16.7M(8-bit)
16.7M(8-bit)
Treatment
Anti-Glare
Anti-Glare
Brightness
250-500nits
250-500nits
Viewing Direction
Full Viewing
Full Viewing
Aspect Ratio
16:9
16:9
-
Touch Screen
Touch Points
10 Points
10 Points
Type
Capacitive Touch
Capacitive Touch
-
Color
Gray
Gray
-

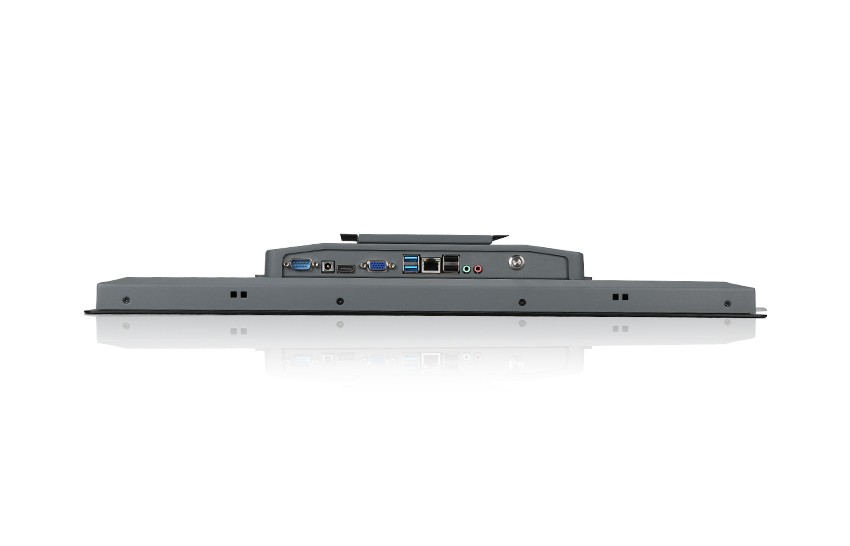

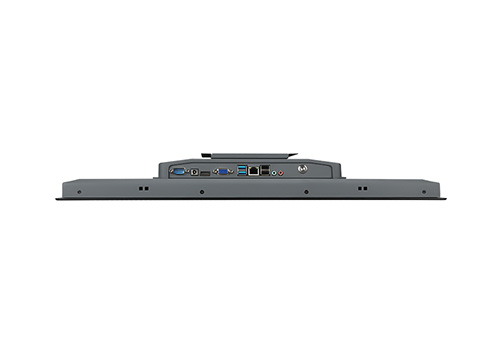

I/O Interface
Video output
1*VGA,1*HDMI
1*VGA,1*HDMI
Serial Port
1~2*RS232/RS485 (Upgradable)
1~2*RS232/RS485 (Upgradable)
USB Port
2*USB(Upgradable)
6*USB (Upgradable)
Ethernet
2*RJ45(Upgradable)
2*RJ45 (Upgradable)
Extendable Port
RS485, LPT, Phoenix terminal(Replace DC)
RS485, LPT, Phoenix terminal(Replace DC)
-
General
Certification
CE,FCC,ROHS,ISO
CE,FCC,ROHS,ISO
Dimension(W*H*D)
534*325*52.6 mm
534*325*52.6 mm
Power Input
AC100-240V.50-60HZ
AC100-240V.50-60HZ
Power Output
DC12V 5A
DC12V 5A

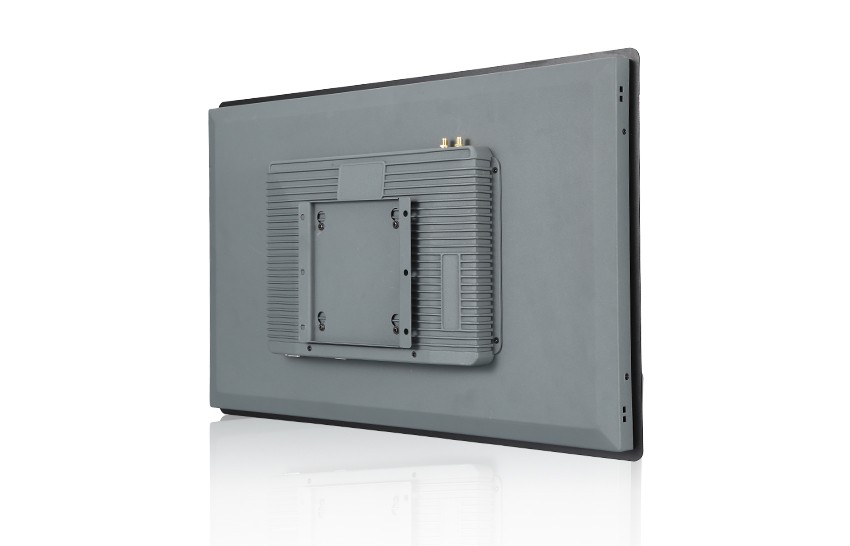

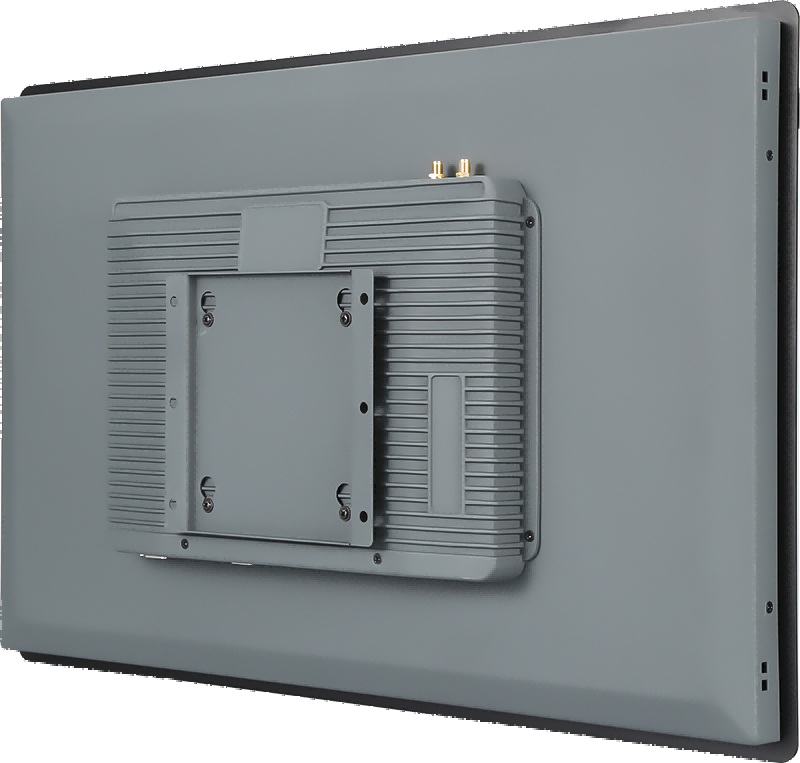

Mounting Options
Wall Mount/Embedded Vesa Mount/Vertical Stand
Wall Mount/Embedded Vesa Mount/Vertical Stand
Weight(Net)
7.5KG
7.5KG
-
Environment
Operating Temperature
-20 ~ 70℃
-20 ~ 70℃
Storage Temperature
-10 ~ 60℃
-10 ~ 60℃
Operation Humidity
10% ~ 80%
10% ~ 80%
Storage Humidity
10% ~ 90%
10% ~ 90%
-
CPU
A2-AMD 6500T
AMD A6 Micro-6500T
A2-i3/i5/i7
Intel Core I3-5005U/I5-5300U/I7-5500U
-
RAM
A2-AMD 6500T
DDR3 2GB/4GB/8GB
A2-i3/i5/i7
DDR3 2GB/4GB/8GB
-
Storage
A2-AMD 6500T
SSD 16GB/32GB/64GB/128GB/256GB/512GB
A2-i3/i5/i7
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
Panel Size
A2-AMD 6500T
21.5''
A2-i3/i5/i7
21.5''
-
Max. Resolution
A2-AMD 6500T
1920*1080p
A2-i3/i5/i7
1920*1080p
-
Max. Colors
A2-AMD 6500T
16.7M(8-bit)
A2-i3/i5/i7
16.7M(8-bit)
-
Treatment
A2-AMD 6500T
Anti-Glare
A2-i3/i5/i7
Anti-Glare
-
Brightness
A2-AMD 6500T
250-500nits
A2-i3/i5/i7
250-500nits
-
Viewing Direction
A2-AMD 6500T
Full Viewing
A2-i3/i5/i7
Full Viewing
-
Aspect Ratio
A2-AMD 6500T
16:9
A2-i3/i5/i7
16:9
-
Touch Points
A2-AMD 6500T
10 Points
A2-i3/i5/i7
10 Points
-
Type
A2-AMD 6500T
Capacitive Touch
A2-i3/i5/i7
Capacitive Touch
-
A2-AMD 6500T
Gray
A2-i3/i5/i7
Gray
-
Video output
A2-AMD 6500T
1*VGA,1*HDMI
A2-i3/i5/i7
1*VGA,1*HDMI
-
Serial Port
A2-AMD 6500T
1~2*RS232/RS485 (Upgradable)
A2-i3/i5/i7
1~2*RS232/RS485 (Upgradable)
-
USB Port
A2-AMD 6500T
2*USB(Upgradable)
A2-i3/i5/i7
6*USB (Upgradable)
-
Ethernet
A2-AMD 6500T
2*RJ45(Upgradable)
A2-i3/i5/i7
2*RJ45 (Upgradable)
-
Extendable Port
A2-AMD 6500T
RS485, LPT, Phoenix terminal(Replace DC)
A2-i3/i5/i7
RS485, LPT, Phoenix terminal(Replace DC)
-
Certification
A2-AMD 6500T
CE,FCC,ROHS,ISO
A2-i3/i5/i7
CE,FCC,ROHS,ISO
-
Dimension(W*H*D)
A2-AMD 6500T
534*325*52.6 mm
A2-i3/i5/i7
534*325*52.6 mm
-
Power Input
A2-AMD 6500T
AC100-240V.50-60HZ
A2-i3/i5/i7
AC100-240V.50-60HZ
-
Power Output
A2-AMD 6500T
DC12V 5A
A2-i3/i5/i7
DC12V 5A
-
Mounting Options
A2-AMD 6500T
Wall Mount/Embedded Vesa Mount/Vertical Stand
A2-i3/i5/i7
Wall Mount/Embedded Vesa Mount/Vertical Stand
-
Weight(Net)
A2-AMD 6500T
7.5KG
A2-i3/i5/i7
7.5KG
-
Operating Temperature
A2-AMD 6500T
-20 ~ 70℃
A2-i3/i5/i7
-20 ~ 70℃
-
Storage Temperature
A2-AMD 6500T
-10 ~ 60℃
A2-i3/i5/i7
-10 ~ 60℃
-
Operation Humidity
A2-AMD 6500T
10% ~ 80%
A2-i3/i5/i7
10% ~ 80%
-
Storage Humidity
A2-AMD 6500T
10% ~ 90%
A2-i3/i5/i7
10% ~ 90%
