Display Signage Mini PC N100

Model:

F25-N100
F25 主图1
F25 主图2
F25 主图3
F25 主图4
F25 主图5
F25 主图6
F25 主图7
F25 主图1
F25 主图2
F25 主图3
F25 主图4
F25 主图5
F25 主图6
F25 主图7

● Fanless and durable design, support 7/24h working

● Tiny size allows flexible installation

● Adding an extra fan for free to enhence thermal dissipation

● Optional Intel N100 and AMD 9420 CPU

● 4K display with AMD Radeon™ R5 Graphics

● 3 Display ports, 2 DP and 1 HDMI

● 2 Gigabit Ethernet ports

● 4 USB2.0 and 2 USB3.0,1 Type-C

● Working Temperature -10~60 ℃

A cutting-edge solution designed specifically for digital applications. This compact powerhouse combines a tiny form factor with powerful performance, making it an ideal choice for various environments, including retail, corporate, and home entertainment settings.

The Mini PC F25 is engineered to support stunning 4K resolution. With two DP and one HDMI output, it allows for versatile connectivity options, enabling users to connect multiple displays or utilize advanced video wall configurations. Equipped with two Ethernet ports, it offers robust network connectivity, ensuring reliable data transmission for real-time content updates and seamless streaming. ShareVDI Mini PC F25 boasts an impressive array of 6 USB ports and 1 Type C, facilitating easy connection of peripherals such as keyboards, mice, and external storage devices. This extensive connectivity ensures that users can tailor their setup to meet specific operational needs, whether for interactive kiosks, point-of-sale systems, or multimedia presentations.

Despite its compact size, Mini PC F25 does not compromise on performance. It is powered by a high-efficiency processor Intel N100 that delivers responsive computing capabilities, making it suitable for demanding applications.

In addition to its commercial applications, the Mini PC F25 is also perfect for home entertainment and office use. Its ability to handle 4K video playback makes it an excellent media center for streaming services, gaming, or even as a workstation for productivity tasks. The sleek design allows it to blend seamlessly into any setting, whether mounted behind a display or placed on a desk.

ShareVDI Mini PC F25 is a versatile and powerful solution for digital signage and commercial display applications. With its compact size, 4K support, extensive connectivity options, and silent operation, it is engineered to meet the demands of modern businesses while also serving as an excellent choice.

Latest ShareVDI N100 Mini PC
Latest ShareVDI N100 Mini PC

F25 is ShareVDI N100 Mini PC powered by Intel N100 processor, with small and compact design. It is specially developed for digital signage application. Configured with industrial motherboard and multiple interfaces, this PC ensure a high stable working performance and flexibility in connectivity of display applications. This N100 mini PC is engineered to meet the demands of modern workplaces, seamlessly integrating into various setups without compromising on performance or aesthetics.

Powerful Performance

ShareVDI N100 Mini PC is powered by Intel Processor N100, with 16GB RAM, 512GB SSD, the smooth visuals and responsive performance bringing good using experience.

  •  Intel Processor N100,0.8-3.4GHz, 4 Cores 4 Threads

  • Intel UHD Graphics

  • 8GB/16GB RAM DDR4

  • 128GB/256GB/512GB/1TB SSD

Powerful Performance
3xVideo output 4K resolution@60HZ
3xVideo output 4K resolution@60HZ

Equipped with 1 HDMI port and 2 DisplayPorts (DP), the ShareVDI N100 supports up to three video outputs at stunning 4K resolution at 60Hz. This capability allows for versatile display configurations, ideal for digital signage applications or multi-monitor setups in office environments, ensuring that visual content is delivered with clarity and precision.

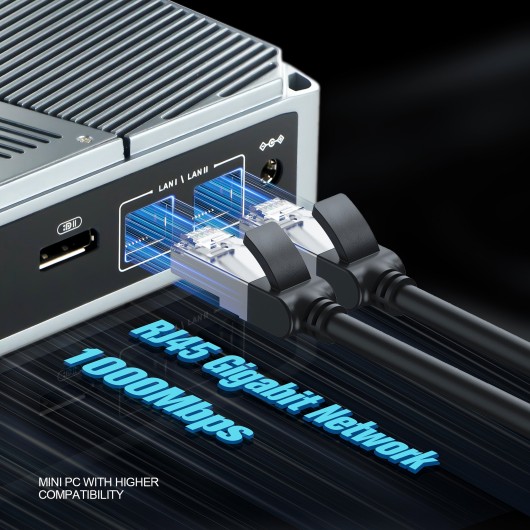

Dual Gigabit Ethernet Ports

The N100 Mini PC features 2 Gigabit Ethernet ports, providing robust network connectivity that enhances data transmission speeds and reliability. This dual-port design is particularly beneficial for environments requiring constant internet access and seamless streaming of content, making it a suitable choice for digital signage and corporate use.


Dual Gigabit Ethernet Ports

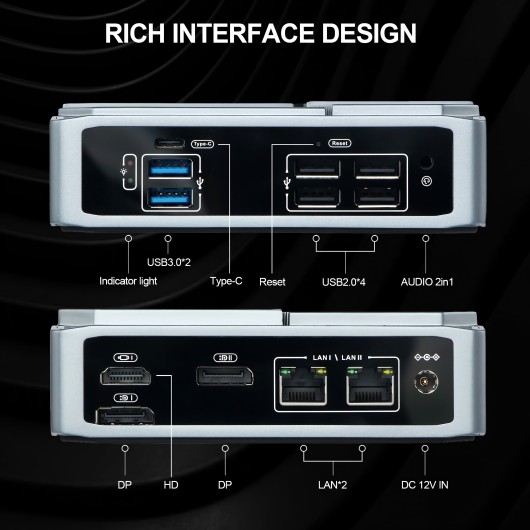

Rich Interface Options
Rich Interface Options

ShareVDI N100 Mini PC boasts an impressive array of connectivity options,  allowing users to customize their setup according to specific operational needs.

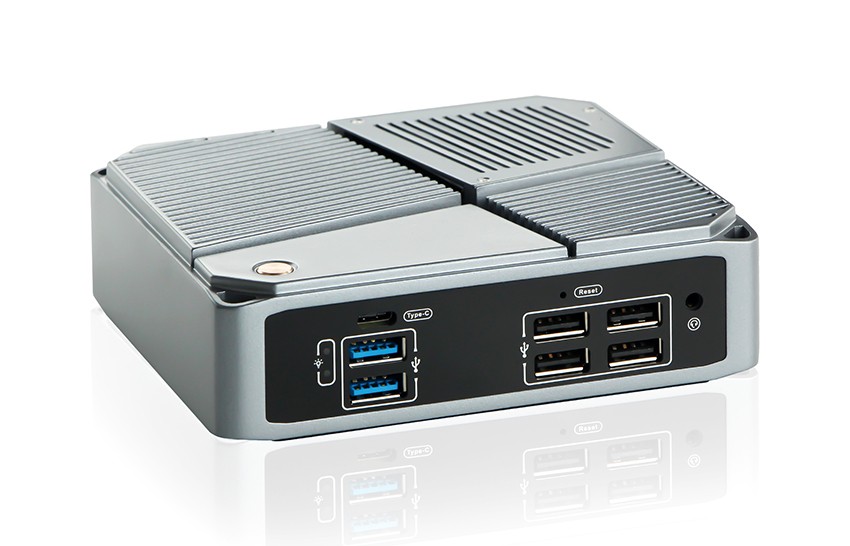

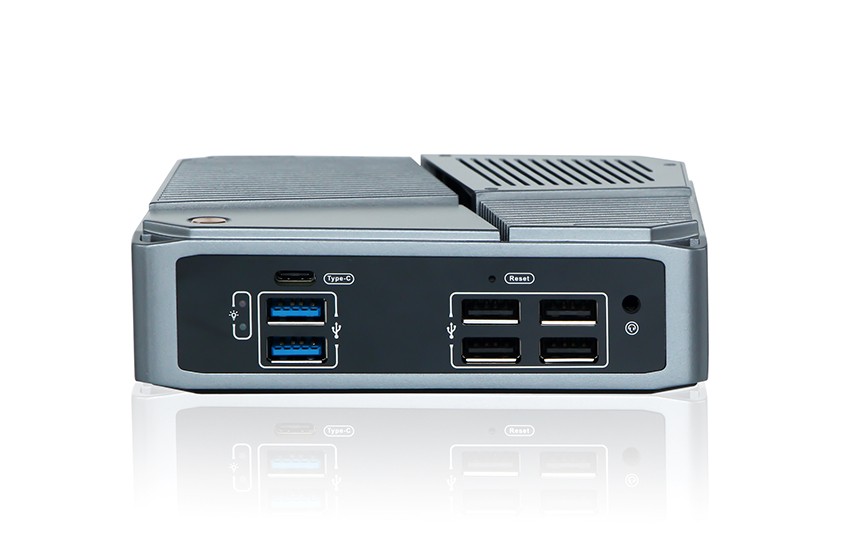

  • Front IO port: 4*USB2.0, 2*USB3.0, 1*AUDIO (2-in-1 audio port), 1*Type C, 1*CMOS_BT Button

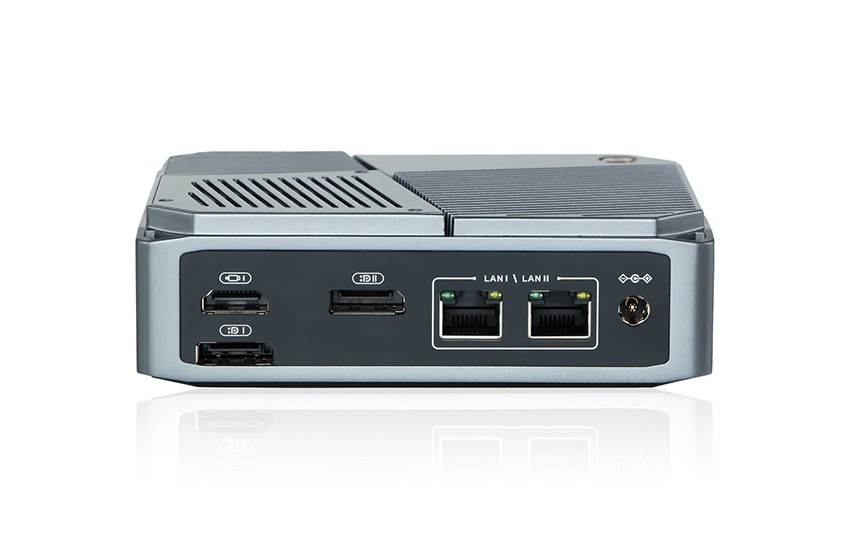

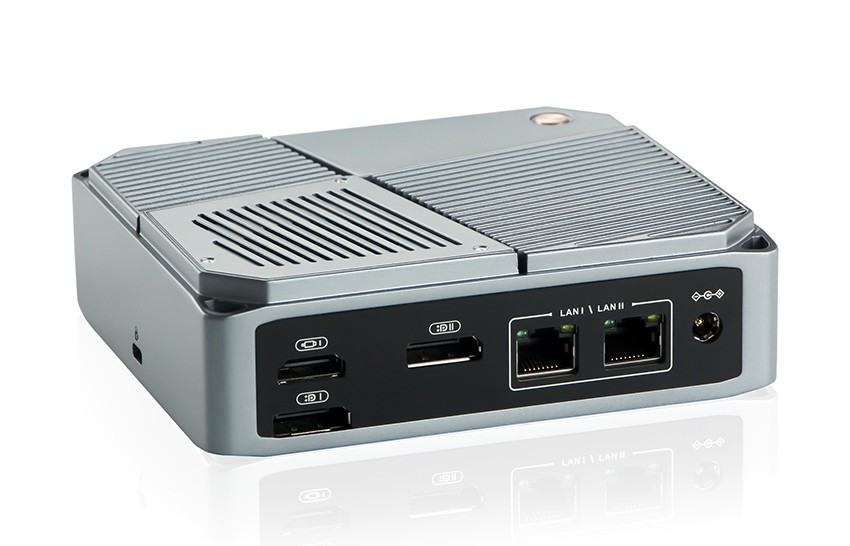

  • Rear IO port: 1*HDMI, 2*DP, 2*Ethernet, 1*DC

Built-in Expansion Capabilities
Built-in Expansion Capabilities

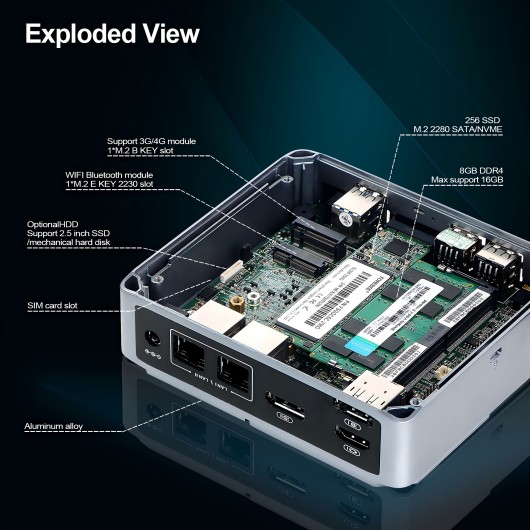

Designed for versatility, the N100 Mini PC includes a built-in socket that supports 1 DDR4 slot (max 16GB) and an M.2 slot for SATA/NVME SSDs(support both). Additionally, there is another M.2 M Key slot for 4G module and Wi-Fi/Bluetooth modules. This flexibility allows users to upgrade their systems as needed, ensuring longevity and adaptability in changing technological landscapes.

Internal Port

1xDDR4 max support 16GB, 1xM.2 SATA/NVME SSD, 1xM.2 M Key for 4G module, 1xM.2 E Key for WIFI&BT module, SIM card


PIN on board, customization acceptable

1*FP 4PIN, 1*SATA 12PIN Phoenix terminal, 1*COM1 pin (RS232), 1*F_USB3 pin 8PIN, 1*TPM pin

14PIN, 1*CPU_FAN 4PIN socket, 1 * Jme Pin 3PIN,  1 * JATX-SEL pin 3PIN

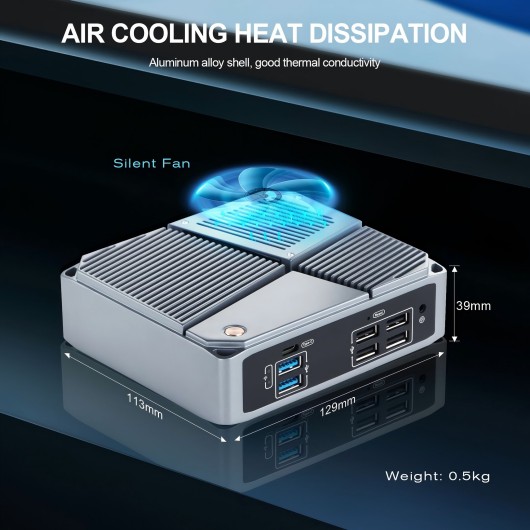

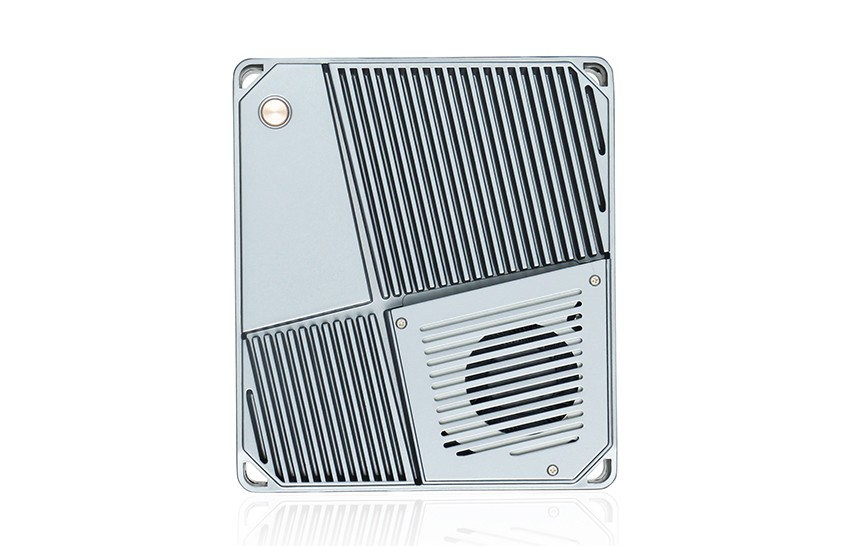

Efficient Cooling System Design

The N100 Mini PC is equipped with an aluminum chassis and heat sink to ensure the efficiency of the cooling system. An additional fan isolated from the motherboard enhances heat dissipation while maintaining a low thermal design power (TDP) of only 6W. This design supports continuous operation (24/7), making it ideal for environments where reliability is crucial.



Efficient Cooling System Design
Dual band WIFI 5G+2.4G
Dual band WIFI 5G+2.4G

The N100 Mini PC built-in dual band WIFI &Bluetooth module, which offers stable connections, high - speed data transmission, and ensures smooth network experience.

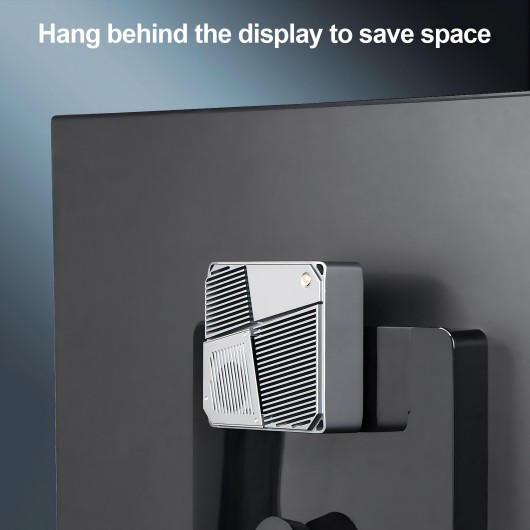

Palm-Sized PC with various Installation methods

Measuring only L129mm x W113mm x H39mm, the Digital Signage N100 Mini PC is palm-sized and designed for easy portability. It comes with VESA mount, allowing for flexible installation in various settings such as wall mounting or hanging on equipments. This compact form factor makes it an excellent choice for scenarios where space is limited.


Palm-Sized PC with various Installation methods
Specification F25-N100 & F25-9420
  • Part No.
    F25-N100
    F25-9420
  • Processor

    CPU

    Intel® Processor N100, 4 Cores / 4 Threads

    AMD 7th Gen A9-9420, Dual Core+3 Cores GPU

    Frequency

    0.8GHz

    3.0GHz

    Max Turbo Frequency

    3.4GHz

    3.6GHz

    Cache

    6 MB Intel® Smart Cache

    1MB L2 Cache

    Chipset

    Alder Lake-N

    Stoney Ridge

  • Memory

    Technology

    1*DDR4L slot

    1*DDR4L slot

    Max. Capacity

    16GB

    16GB

  • Storage

    M.2 SATA

    SSD 64GB/128GB/256GB/512GB/1TB

    SSD 64GB/128GB/256GB/512GB/1TB

    SATA

    HDD 500GB/1TB/2TB (Optional)

    Not Support HDD

  • Graphics

    Graphics

    Intel® UHD Graphics

    AMD Radeon™ R5 Graphics

  • Audio

    Audio

    HD Audio Realtek ALC 897

    HD Audio Realtek ALC 897

  • Network

    LAN

    2*Realtek 8111G Gigabit

    2*Realtek 8111H Gigabit Ethernet

    Wireless

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

    4G module

    support 4G module with available sim slot

    support 4G module with available sim slot

  • I/O Interface

    Front

    2*USB3.0, 4*USB2.0, 1*Type-C, 1*Reset, 1*Audio

    2*USB3.0, 4*USB2.0, 1*Type-C, 1*Reset, 1*Audio

    Rear

    2*LAN, 1*HDMI, 2*DP, 1*DC 12V

    2*LAN, 1*HDMI, 2*DP, 1*DC 12V

  • Extendable

    I/O Ports

    1*FP 4PIN, 1*SATA 12PIN Phoenix terminal, 1*COM1 pin (RS232), 1*F_USB3 pin 8PIN, 1*TPM pin 14PIN, 1*CPU_FAN 4PIN socket,1 * Jme Pin 3PIN, 1 * JATX-SEL pin 3PIN

    1*COM pin、1*J_COM pin、1*AT_MODE pin、1*TPM pin 14PIN、1*F_PANEL pin、1*12PIN SATA

    Module

    4G LTE , WIFI+Bluetooth Module (M.2 PCIE)

    4G LTE , WIFI+Bluetooth Module (M.2 PCIE)

  • Power

    Input

    AC100-240V. 50-60Hz DC

    AC100-240V. 50-60Hz DC

    Output

    12V-3A

    12V-3A

  • Operating System

    Windows 10、11 & Linux

    Windows 10、11 & Linux

  • Physical

    Dimension

    L 129mm*W 113mm*H 39mm

    L 129mm*W 113mm*H 39mm

    Weight(Net)

    0.5KG

    0.5KG

    Color

    Silver

    Silver

    Cooling Method

    Built-in fan cooling

    Built-in fan cooling

    Mounting Options

    Dedicated bracket; Support VESA bracket

    Dedicated bracket; Support VESA bracket

    Certification

    CE, FCC, ROHS, ISO, UL

    CE, FCC, ROHS, ISO, UL

  • Environment

    Operating Temperature

    -10~60 ℃

    -10~60 ℃

    Storage Temperature

    -10~60 ℃

    -10~60 ℃

    Operation Humidity

    0~95% (No Condensation)

    0~95% (No Condensation)

    Storage Humidity

    0~95% (No Condensation)

    0~95% (No Condensation)

Processor
  • CPU

    F25-N100

    Intel® Processor N100, 4 Cores / 4 Threads

    F25-9420

    AMD 7th Gen A9-9420, Dual Core+3 Cores GPU

  • Frequency

    F25-N100

    0.8GHz

    F25-9420

    3.0GHz

  • Max Turbo Frequency

    F25-N100

    3.4GHz

    F25-9420

    3.6GHz

  • Cache

    F25-N100

    6 MB Intel® Smart Cache

    F25-9420

    1MB L2 Cache

  • Chipset

    F25-N100

    Alder Lake-N

    F25-9420

    Stoney Ridge

Memory
  • Technology

    F25-N100

    1*DDR4L slot

    F25-9420

    1*DDR4L slot

  • Max. Capacity

    F25-N100

    16GB

    F25-9420

    16GB

Storage
  • M.2 SATA

    F25-N100

    SSD 64GB/128GB/256GB/512GB/1TB

    F25-9420

    SSD 64GB/128GB/256GB/512GB/1TB

  • SATA

    F25-N100

    HDD 500GB/1TB/2TB (Optional)

    F25-9420

    Not Support HDD

Graphics
  • Graphics

    F25-N100

    Intel® UHD Graphics

    F25-9420

    AMD Radeon™ R5 Graphics

Audio
  • Audio

    F25-N100

    HD Audio Realtek ALC 897

    F25-9420

    HD Audio Realtek ALC 897

Network
  • LAN

    F25-N100

    2*Realtek 8111G Gigabit

    F25-9420

    2*Realtek 8111H Gigabit Ethernet

  • Wireless

    F25-N100

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

    F25-9420

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

  • 4G module

    F25-N100

    support 4G module with available sim slot

    F25-9420

    support 4G module with available sim slot

I/O Interface
  • Front

    F25-N100

    2*USB3.0, 4*USB2.0, 1*Type-C, 1*Reset, 1*Audio

    F25-9420

    2*USB3.0, 4*USB2.0, 1*Type-C, 1*Reset, 1*Audio

  • Rear

    F25-N100

    2*LAN, 1*HDMI, 2*DP, 1*DC 12V

    F25-9420

    2*LAN, 1*HDMI, 2*DP, 1*DC 12V

Extendable
  • I/O Ports

    F25-N100

    1*FP 4PIN, 1*SATA 12PIN Phoenix terminal, 1*COM1 pin (RS232), 1*F_USB3 pin 8PIN, 1*TPM pin 14PIN, 1*CPU_FAN 4PIN socket,1 * Jme Pin 3PIN, 1 * JATX-SEL pin 3PIN

    F25-9420

    1*COM pin、1*J_COM pin、1*AT_MODE pin、1*TPM pin 14PIN、1*F_PANEL pin、1*12PIN SATA

  • Module

    F25-N100

    4G LTE , WIFI+Bluetooth Module (M.2 PCIE)

    F25-9420

    4G LTE , WIFI+Bluetooth Module (M.2 PCIE)

Power
  • Input

    F25-N100

    AC100-240V. 50-60Hz DC

    F25-9420

    AC100-240V. 50-60Hz DC

  • Output

    F25-N100

    12V-3A

    F25-9420

    12V-3A

Operating System
  • F25-N100

    Windows 10、11 & Linux

    F25-9420

    Windows 10、11 & Linux

Physical
  • Dimension

    F25-N100

    L 129mm*W 113mm*H 39mm

    F25-9420

    L 129mm*W 113mm*H 39mm

  • Weight(Net)

    F25-N100

    0.5KG

    F25-9420

    0.5KG

  • Color

    F25-N100

    Silver

    F25-9420

    Silver

  • Cooling Method

    F25-N100

    Built-in fan cooling

    F25-9420

    Built-in fan cooling

  • Mounting Options

    F25-N100

    Dedicated bracket; Support VESA bracket

    F25-9420

    Dedicated bracket; Support VESA bracket

  • Certification

    F25-N100

    CE, FCC, ROHS, ISO, UL

    F25-9420

    CE, FCC, ROHS, ISO, UL

Environment
  • Operating Temperature

    F25-N100

    -10~60 ℃

    F25-9420

    -10~60 ℃

  • Storage Temperature

    F25-N100

    -10~60 ℃

    F25-9420

    -10~60 ℃

  • Operation Humidity

    F25-N100

    0~95% (No Condensation)

    F25-9420

    0~95% (No Condensation)

  • Storage Humidity

    F25-N100

    0~95% (No Condensation)

    F25-9420

    0~95% (No Condensation)
