Industrial PCs/ Rugged Mini PC/ F17H- Industrial Mini PC/ K6-F17H Industrial Controller

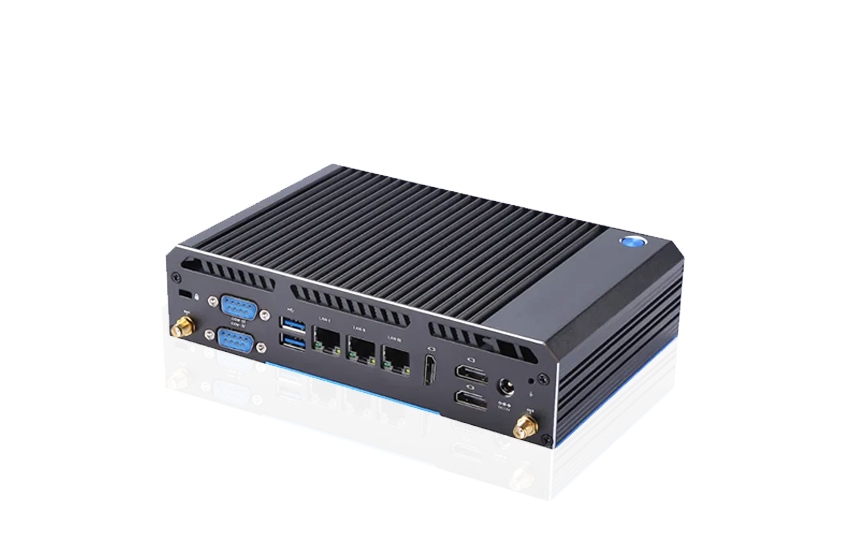

K6-F17H Industrial Controller

Model:

K6-F17H-J6412

  • Fanless industrial-grade chassis, engineered for 7×24 continuous operation

  •  Equipped with Intel® Celeron J6412 processor (Base: 2.00 GHz, Max: 2.60 GHz)

  • 3*Gigabit Ethernet NICs

  •  1*M.2 E KEY 2230 slot, supports WiFi6 and Bluetooth modules

  • 4*RS-232 serial ports, 6*USB ports

  • Supports triple-display output, equipped with 3*HDMI 2.0 ports

  • Operating temperature range: -10 ℃ to 60 ℃

  • Compatible with Windows 10/Windows 11/Linux operating systems

  • Supports VESA Bracket, Ear Mount, DIN Bracket

Data sheet Send Inquiry

ShareVDI K6-F17H is industrial rugged embedded computer is a powerhouse, equipped with Intel® Celeron J6412 processor, catering to diverse computational requirements. Boasting a fanless industrial-grade chassis, it features excellent dust-proof, shock-resistant and anti-interference performance, as well as 24/7 continuous operation. It is equipped with 3 Realtek 8111H Gigabit Ethernet cards, 4 RS-232 serial ports, 6 USB ports, and supports triple-display output via 3 HDMI 2.0 ports. Additionally, it operates in a temperature range of -10℃ to 60℃, supports multiple installation methods, and provides stable support for industrial scenario applications.


The ShareVDI F17H-J6412 is a professional industrial fanless mini pc built for long-term industrial deployment. Classified as a reliable industrial embedded computer, this celeron j6412 mini pc adopts full aluminum alloy passive cooling structure with no rotating fans. Featuring ultra-low power consumption, it eliminates fan failure risks, dust accumulation and noise issues, delivering stable operation for various embedded industrial scenarios around the clock.

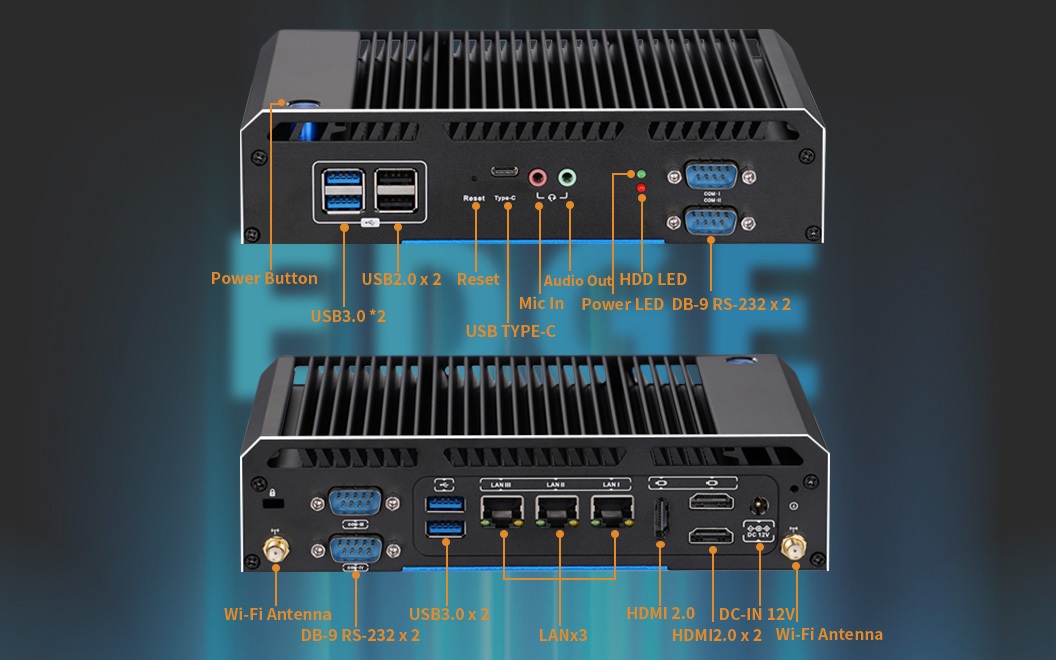

Rich Industrial I/O Interface
Rich Industrial I/O Interface

This industrial mini pc with multiple lan ports features comprehensive I/O. It has 4*DB-9 RS-232 ports expandable to RS485, plus 6*USB ports, 3*HDMI ports and 1*full-featured Type-C port. The rich interfaces easily connect industrial sensors and peripherals for diverse on-site applications.

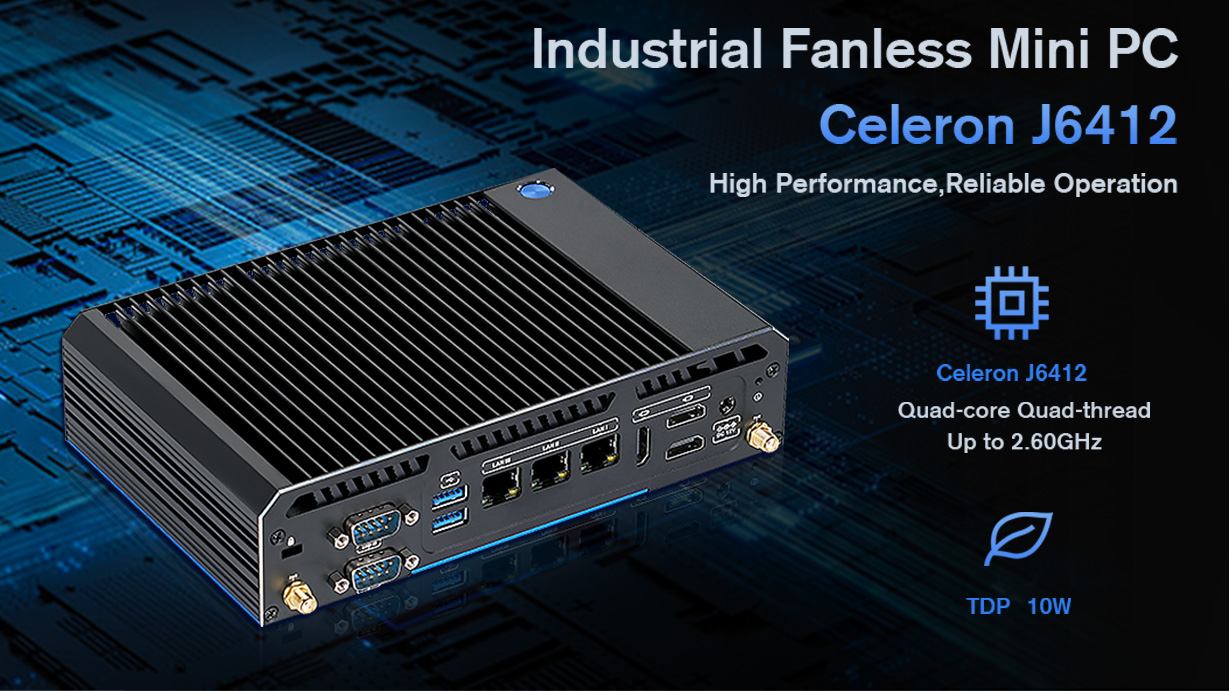

High-Efficiency Processor

Powered by Intel Celeron J6412, this quad core industrial embedded pc runs at 2.0GHz to 2.6GHz with 4 cores, 4 threads and 10W TDP. As a low power high performance industrial pc, its CPU performance is improved by 30% and graphics performance rises by 50% compared with J4125. It is a cost-effective option for light industrial computing tasks.

High-Efficiency Processor

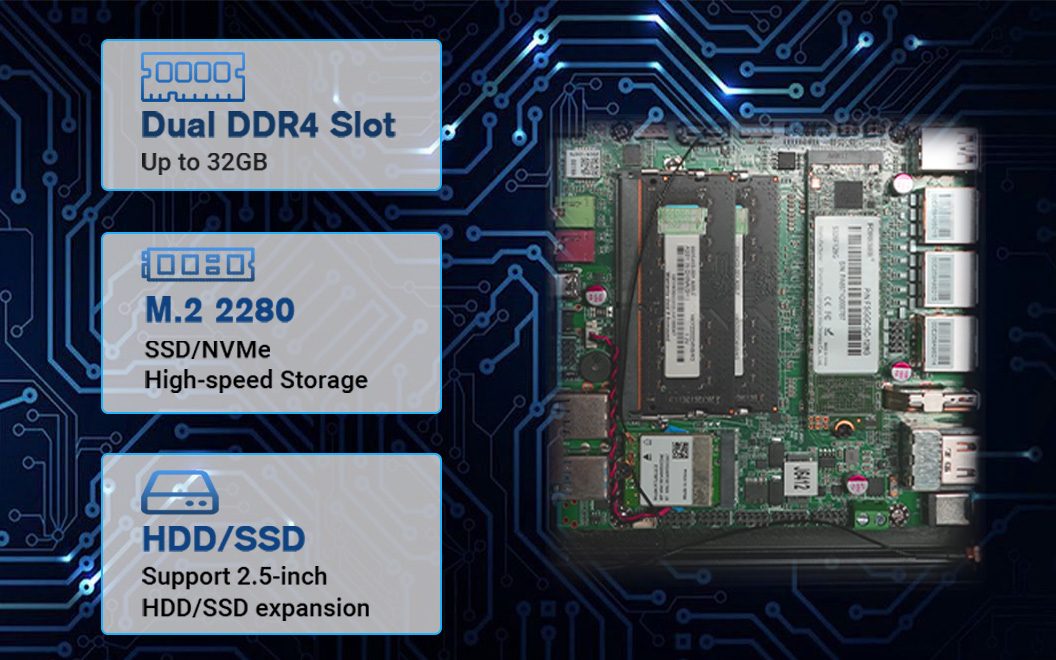

Upgradable RAM & Storage
Upgradable RAM & Storage

Designed with strong expandability, this industrial mini pc with expandable ram comes with two SO-DIMM DDR4 slots, supporting a maximum 32GB memory upgrade. As an upgradable industrial computer and nvme industrial embedded pc, it is equipped with M.2 2280 slot for NVMe and SATA SSD, an M.2 E-KEY slot for Wi-Fi modules, and also supports 2.5-inch HDD/SSD expansion. The flexible memory, storage and wireless module upgrades turn it into a high storage industrial mini pc to adapt to different data storage and transmission requirements.

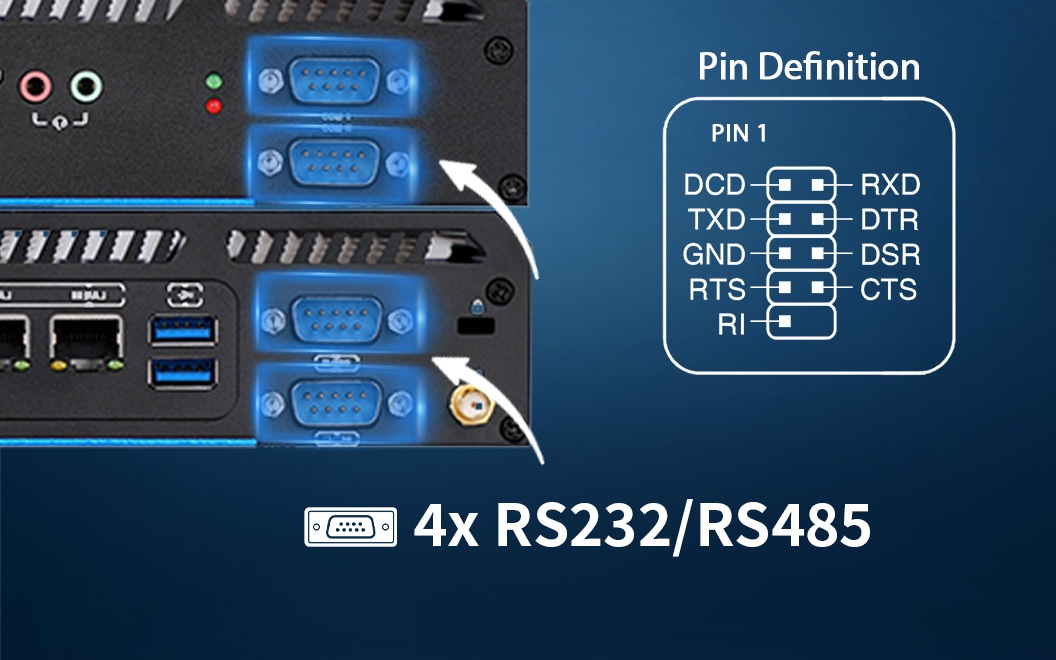

Multi RS232/485 COM

This industrial mini pc with rs232 rs485 com ports is a professional 4 com ports embedded computer and industrial serial communication pc. Four standard DB-9 RS-232 ports and onboard COM pins ensure stable serial signal transmission, and it can be configured as an rs485 industrial controller for field device communication.

Multi RS232/485 COM

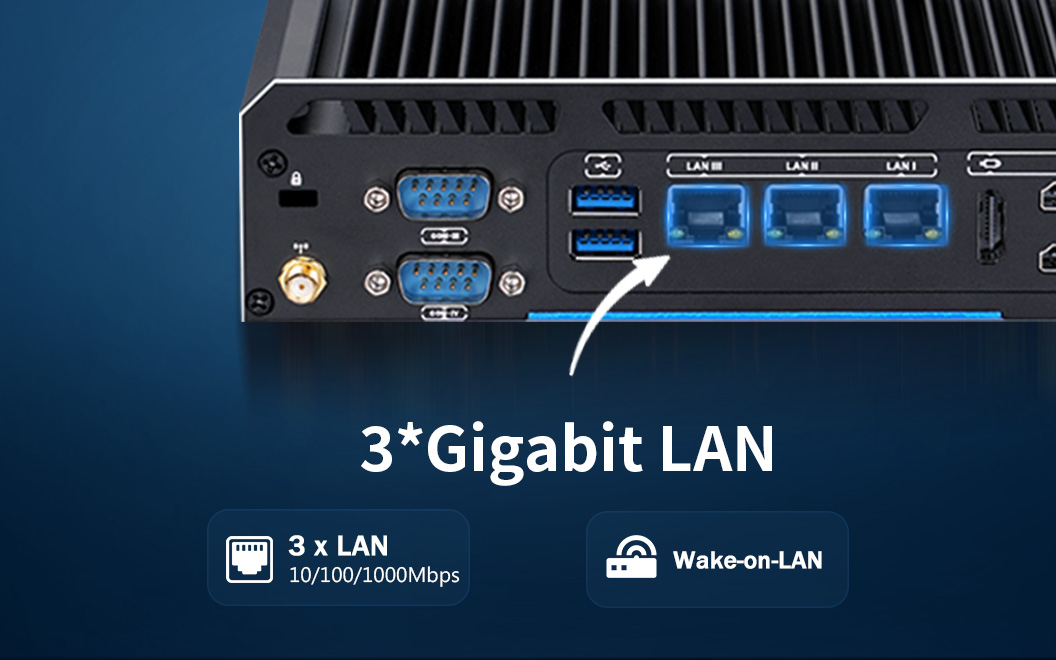

Triple Gigabit Ethernet Ports
Triple Gigabit Ethernet Ports

Featured with 3 gigabit lan ports, this 3 gigabit lan industrial mini pc is a powerful multi lan embedded computer and networking embedded controller. Adopting Realtek 8111H chips, all ports support 10/100/1000mbps high-speed network transmission. This industrial pc with wake-on-lan also integrates PXE boot and AC power recovery functions, realizing remote management and automatic startup. It is an ideal network node device for industrial networking, gateway and data transmission work.

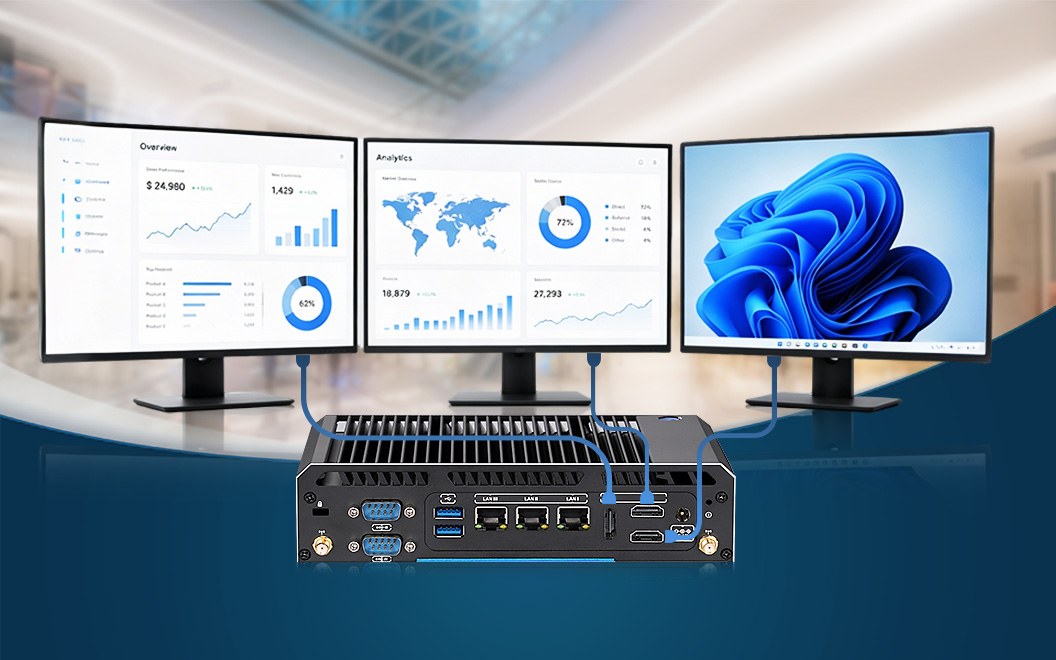

Triple 4K Display Output

This triple display industrial mini pc is configured with three HDMI 2.0 ports, becoming a powerful 3 hdmi industrial computer for multi-screen work scenarios. It supports 4K@60Hz high-resolution output and works well in both copy mode and extended mode. As a professional multi monitor industrial control pc and triple screen embedded pc, it allows operators to split data, monitor equipment status and manage systems simultaneously, greatly improving operational efficiency.

Triple 4K Display Output

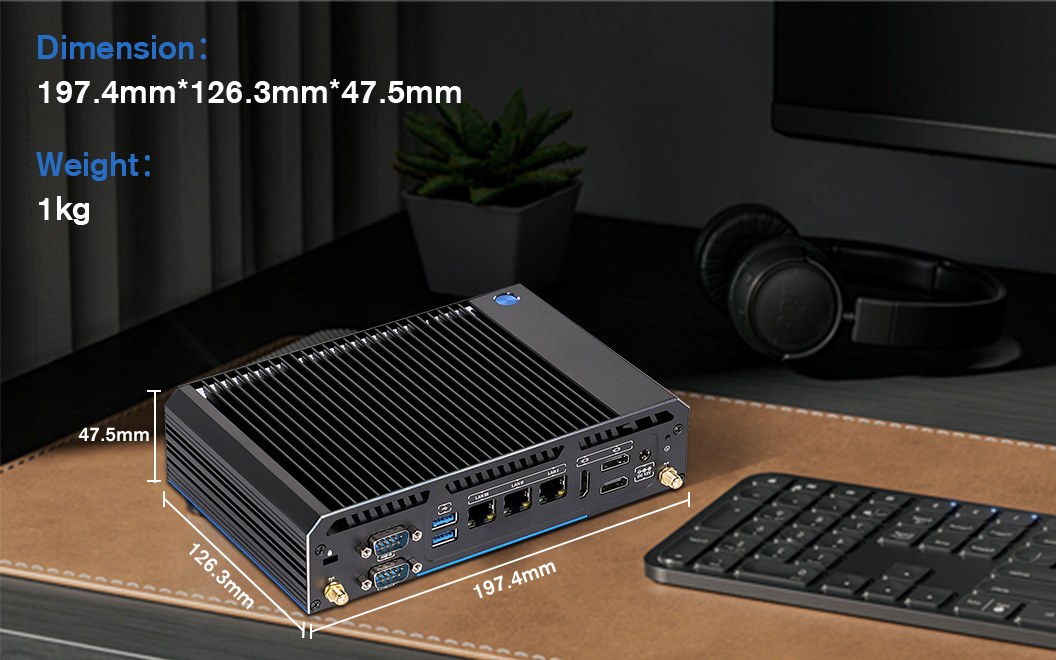

Compact Small Form Factor
Compact Small Form Factor

Boasting a compact body of 197.4×126.3×47.5mm and net weight of 1.0KG, this compact industrial mini pc is a classic small form factor embedded pc. As a lightweight industrial computer, it will not occupy too much installation space. This space-saving industrial pc is perfectly suitable for installation inside industrial cabinets, narrow equipment gaps and compact embedded devices, realizing flexible layout for limited-space scenarios.

Rugged Wide-Temp Design

This 24/7 industrial fanless pc is built as a rugged industrial mini pc to adapt to harsh working conditions. As a professional wide temperature embedded computer, it works stably within -10℃ to 60℃. The robust enclosure and optimized circuit design enable this harsh environment industrial pc to run non-stop 7 days a week in dusty, humid and temperature-fluctuating industrial sites.

Rugged Wide-Temp Design

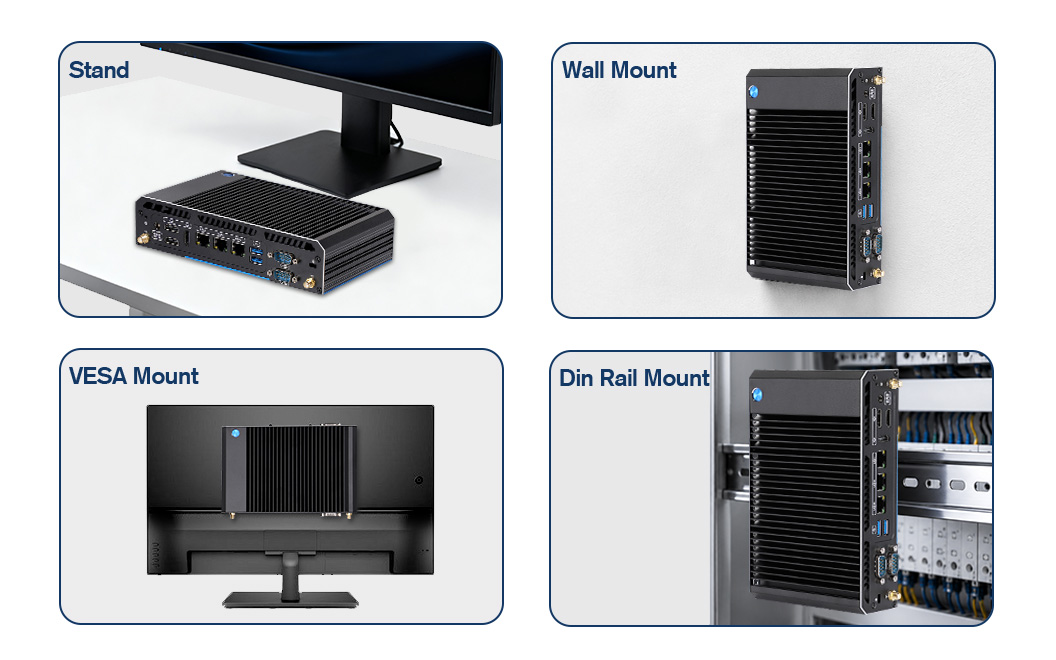

Multi-Scenario Installation
Multi-Scenario Installation

it supports four mainstream installation methods

  • Stand: Independent desktop placement, suitable for temporary and open industrial workstation deployment.

  • VESA Mount: Standard VESA hole position installation, which can be fixed on the back of monitors to save deployment space.

  • Wall Mount: Fixed installation on equipment walls and industrial cabinet panels for compact vertical layout.

  • Din Rail Mount: Compatible with standard industrial guide rails, easy for quick installation inside industrial control cabinets.

Diverse Industrial Scenarios

Tailored for industrial applications, this industrial automation mini pc acts as a reliable machine vision embedded pc on production lines. It can be deployed as an edge computing industrial pc to process on-site data in real time, or serve as an iot gateway mini pc to connect massive IoT terminals and collect operational data. It is widely applied in production line monitoring, intelligent sensing, on-site control and other industrial digital scenarios.

Diverse Industrial Scenarios
  • Part No.
    K6-F17H-J6412
  • Get A Quote
  • Processor

    CPU

    Intel® Cerelon J6412 processor，4 Cores / 4 Threads

    Frequency

    2.0GHz

    Max Turbo Frequency

    2.6GHz

    Cache

    4 MB

    Chipset

    Elkhart Lake

  • Memory

    Technology

    SO-DIMM DDR4 slot x 2

    Max. Capacity

    32GB

  • Storage

    M.2 2280 SATA/NVME

    SSD 64GB/128GB/256GB/512GB/1TB

    SATA

    HDD 500GB/1TB/2TB (Optional)

  • Graphics

    Graphics

    Intel® UHD Graphics

  • Audio

    Audio

    HD Audio realtek ALC 897

  • Network

    LAN

    10/100/1000BASE-T Ethernet (RJ45) x 3, Realtek 8111H

    Wireless

    support WlFl+ Bluetooth, support WlFl6 module（M. 2 E KEY 2230 socket）

  • I/O Interface

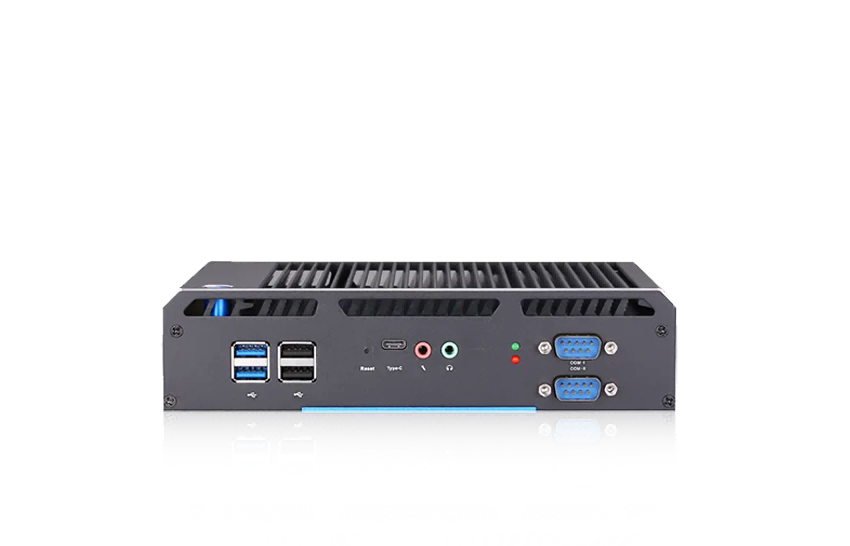

    Front

    USB3.0 x 2, USB2.0 x 2, USB TYPE-C x 1, 3.5mm Audio Out x 1, 3.5mm Mic In x 1, DB-9 RS-232 x 2, BIOS Reset Button x 1

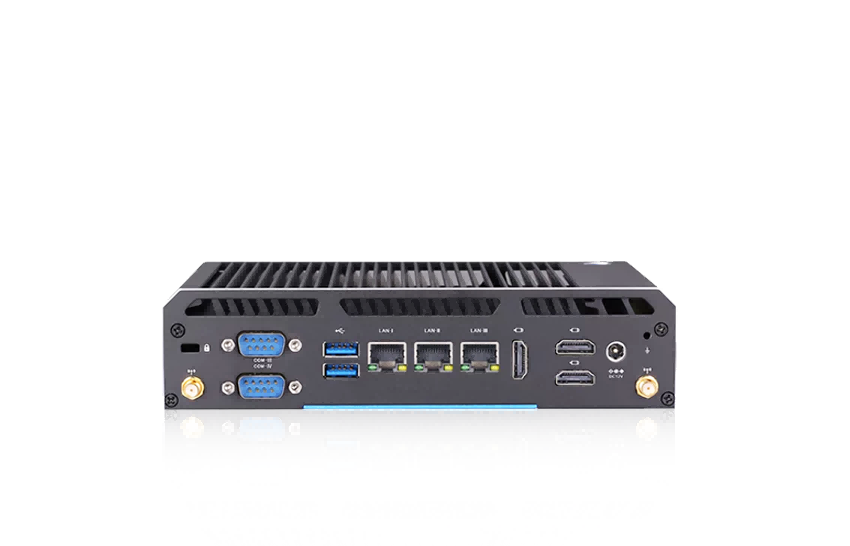

    Rear

    USB3.0 x 2, HDMI 2.0 x 3, LAN x 3, DC-IN 12V x 1, DB-9 RS-232 x 2,

  • Extendable

    I/O Ports

    COM PIN Headers (RS-232) x 4, CPU_FAN x 1, FP Pin x 1, TPM Pin x 1, GPIO Pin x 1, SATAPWR pin x 1,SATA pin x1,SPK_CON pin x1,AT_MODE pin x1,FP_USB2.0 pin x1, PW_IN1 pin x1, JP1/JP2 pin x1(SATA/NVMe Hard Drive Signal Switching), BATCON x1

    Module

    M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module；

  • Power

    Output

    12V - 5A

  • Operating System

    Windows 10, Windows 11 IoT LTSC, Linux

  • Physical

    Dimension

    L 197.4mm*W 126.3mm*H 47.5mm

    Weight(Net)

    1.0KG

    Color

    Black

    Cooling Method

    Passive cooling (natural heat dissipation)

    Mounting Options

    Dedicated Bracket; Support VESA Bracket, Optional Ear Mount/DIN Bracket

    Certification

    CE, FCC, ROHS, ISO, UL

  • Environment

    Operating Temperature

    -10~60 ℃

    Storage Temperature

    -10~60 ℃

    Operation Humidity

    0~95% (No Condensation)

    Storage Humidity

    0~95% (No Condensation)

Get A Quote
Processor
  • CPU

    K6-F17H-J6412

    Intel® Cerelon J6412 processor，4 Cores / 4 Threads

  • Frequency

    K6-F17H-J6412

    2.0GHz

  • Max Turbo Frequency

    K6-F17H-J6412

    2.6GHz

  • Cache

    K6-F17H-J6412

    4 MB

  • Chipset

    K6-F17H-J6412

    Elkhart Lake

Memory
  • Technology

    K6-F17H-J6412

    SO-DIMM DDR4 slot x 2

  • Max. Capacity

    K6-F17H-J6412

    32GB

Storage
  • M.2 2280 SATA/NVME

    K6-F17H-J6412

    SSD 64GB/128GB/256GB/512GB/1TB

  • SATA

    K6-F17H-J6412

    HDD 500GB/1TB/2TB (Optional)

Graphics
  • Graphics

    K6-F17H-J6412

    Intel® UHD Graphics

Audio
  • Audio

    K6-F17H-J6412

    HD Audio realtek ALC 897

Network
  • LAN

    K6-F17H-J6412

    10/100/1000BASE-T Ethernet (RJ45) x 3, Realtek 8111H

  • Wireless

    K6-F17H-J6412

    support WlFl+ Bluetooth, support WlFl6 module（M. 2 E KEY 2230 socket）

I/O Interface
  • Front

    K6-F17H-J6412

    USB3.0 x 2, USB2.0 x 2, USB TYPE-C x 1, 3.5mm Audio Out x 1, 3.5mm Mic In x 1, DB-9 RS-232 x 2, BIOS Reset Button x 1

  • Rear

    K6-F17H-J6412

    USB3.0 x 2, HDMI 2.0 x 3, LAN x 3, DC-IN 12V x 1, DB-9 RS-232 x 2,

Extendable
  • I/O Ports

    K6-F17H-J6412

    COM PIN Headers (RS-232) x 4, CPU_FAN x 1, FP Pin x 1, TPM Pin x 1, GPIO Pin x 1, SATAPWR pin x 1,SATA pin x1,SPK_CON pin x1,AT_MODE pin x1,FP_USB2.0 pin x1, PW_IN1 pin x1, JP1/JP2 pin x1(SATA/NVMe Hard Drive Signal Switching), BATCON x1

  • Module

    K6-F17H-J6412

    M. 2 E KEY 2230 socket x 1, support WlFl+ Bluetooth, support WlFl6 module；

Power
  • Output

    K6-F17H-J6412

    12V - 5A

Operating System

  • K6-F17H-J6412

    Windows 10, Windows 11 IoT LTSC, Linux

Physical
  • Dimension

    K6-F17H-J6412

    L 197.4mm*W 126.3mm*H 47.5mm

  • Weight(Net)

    K6-F17H-J6412

    1.0KG

  • Color

    K6-F17H-J6412

    Black

  • Cooling Method

    K6-F17H-J6412

    Passive cooling (natural heat dissipation)

  • Mounting Options

    K6-F17H-J6412

    Dedicated Bracket; Support VESA Bracket, Optional Ear Mount/DIN Bracket

  • Certification

    K6-F17H-J6412

    CE, FCC, ROHS, ISO, UL

Environment
  • Operating Temperature

    K6-F17H-J6412

    -10~60 ℃

  • Storage Temperature

    K6-F17H-J6412

    -10~60 ℃

  • Operation Humidity

    K6-F17H-J6412

    0~95% (No Condensation)

  • Storage Humidity

    K6-F17H-J6412

    0~95% (No Condensation)
