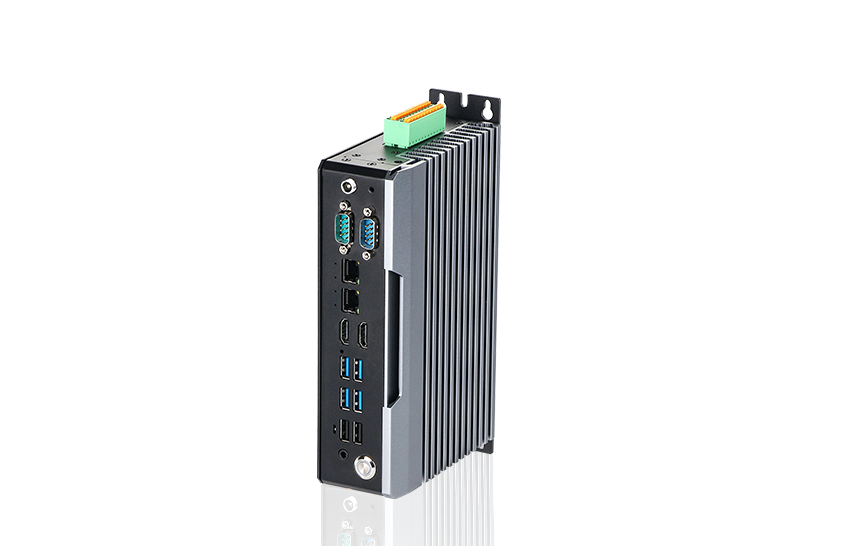

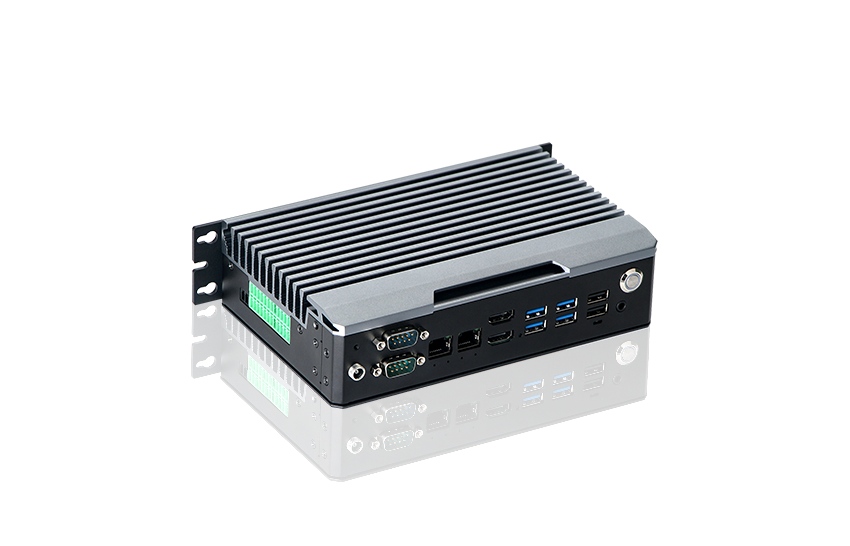

K5-F27H Industrial Computer
Model:
K5-F27H-11th
All-aluminum fanless fully enclosed design
Single-side concentrated I/O layout for easy cabling & maintenance
11th Gen Intel® Core™ i3/i5/i7 Processors and Intel® Iris® Xe Graphics
6×COM ports supporting RS232/RS485
4×LAN ports, 1 port supports EtherCAT
6×USB ports (4×USB3.0 + 2×USB2.0)
1×GPIO + 2×VCC/GND, 8DI+8DO with opto-isolation
DC 12V~24V Wide Voltage Input with Lockable Connector
Supports Win10/Win11/Linux

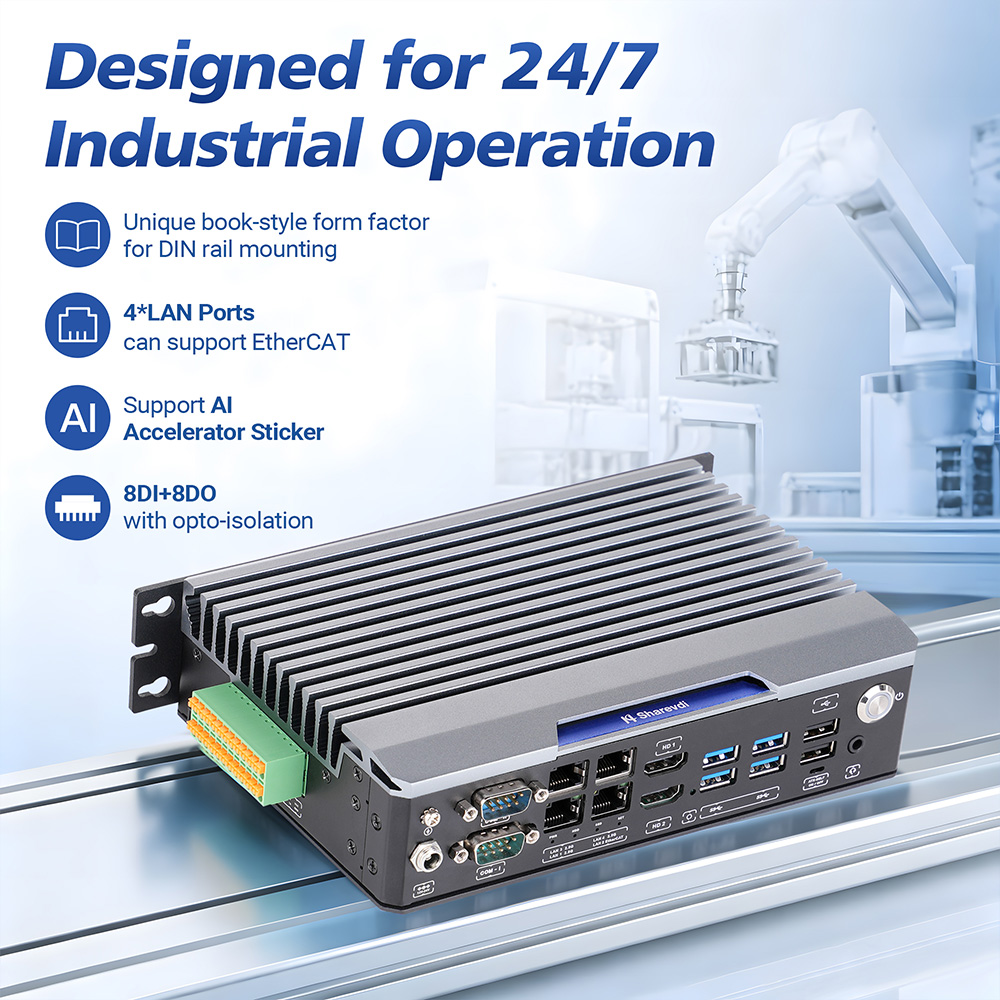

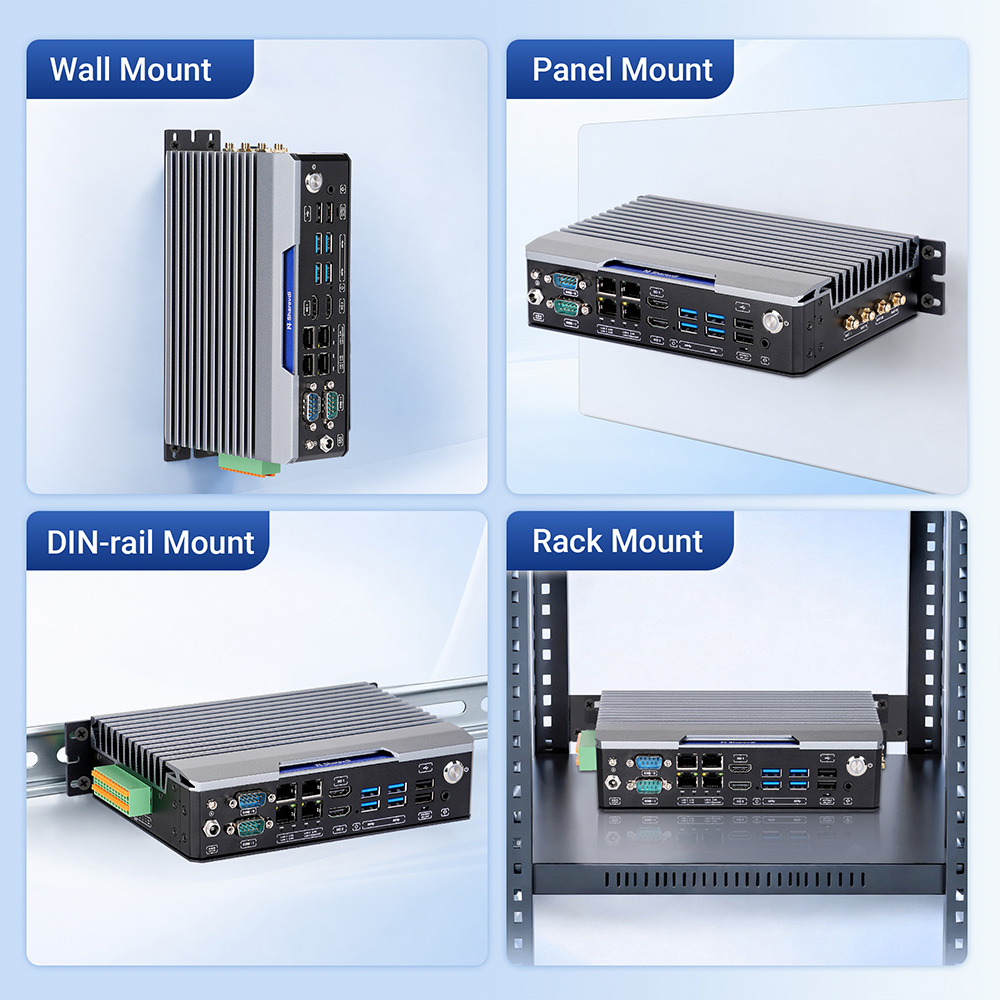

Supports wall, panel, DIN rail, rack mounting
All-aluminum fanless fully enclosed design
Single-side concentrated I/O layout for easy cabling & maintenance
11th Gen Intel® Core™ i3/i5/i7 Processors and Intel® Iris® Xe Graphics
6×COM ports supporting RS232/RS485
4×LAN ports, 1 port supports EtherCAT
6×USB ports (4×USB3.0 + 2×USB2.0)
1×GPIO + 2×VCC/GND, 8DI+8DO with opto-isolation
DC 12V~24V Wide Voltage Input with Lockable Connector
Supports Win10/Win11/Linux
Supports wall, panel, DIN rail, rack mounting
Share：

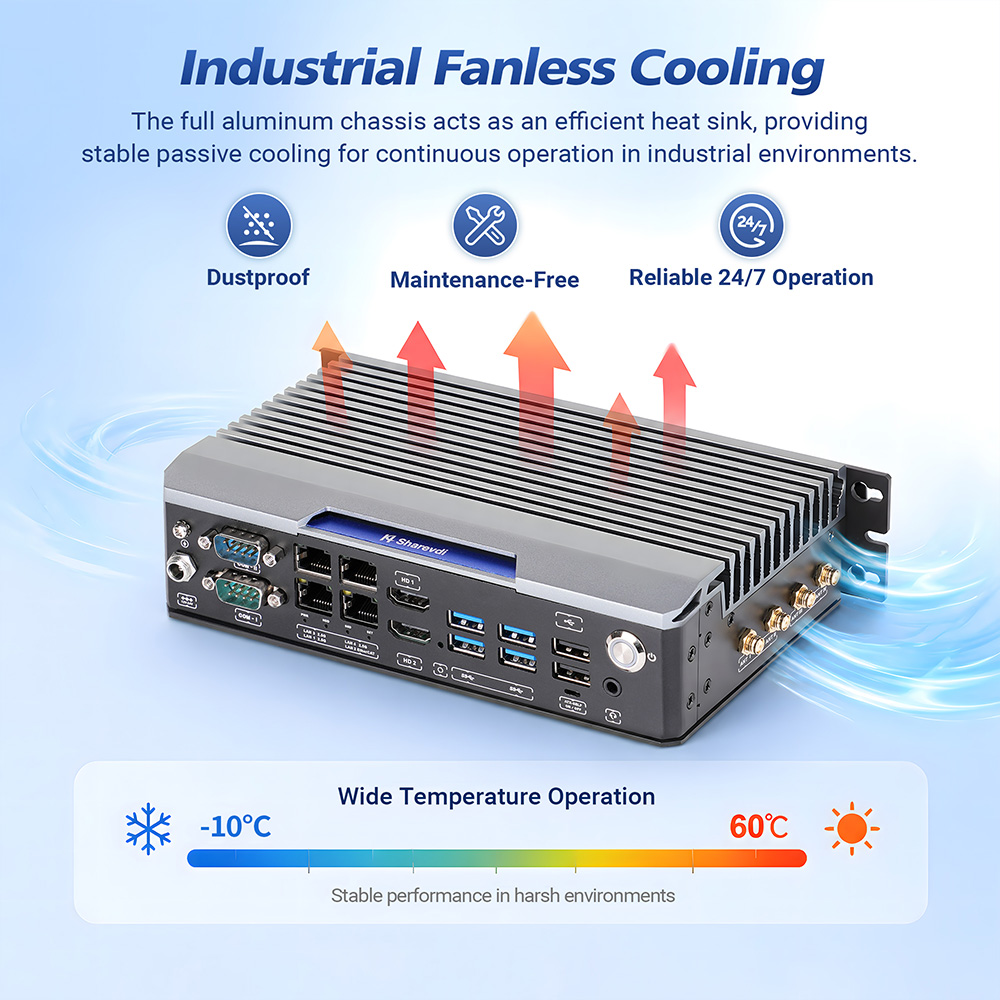

K5-F27H is a heavy-duty industrial embedded computer designed for mission-critical industrial environments. It adopts a fully enclosed aluminum alloy fanless chassis with passive thermal design and centralized I/O layout, ensuring dustproof, anti-interference, and 24/7 uninterrupted operation.
Powered by 11th Gen Intel Core i3/i5/i7 processors, it supports up to 64GB system memory, and versatile industrial I/O including 6×COM ports (RS232/RS485 configurable), 4×Gigabit Ethernet ports, dedicated GPIO interface, and 1×CAN BUS 2.0 industrial fieldbus.

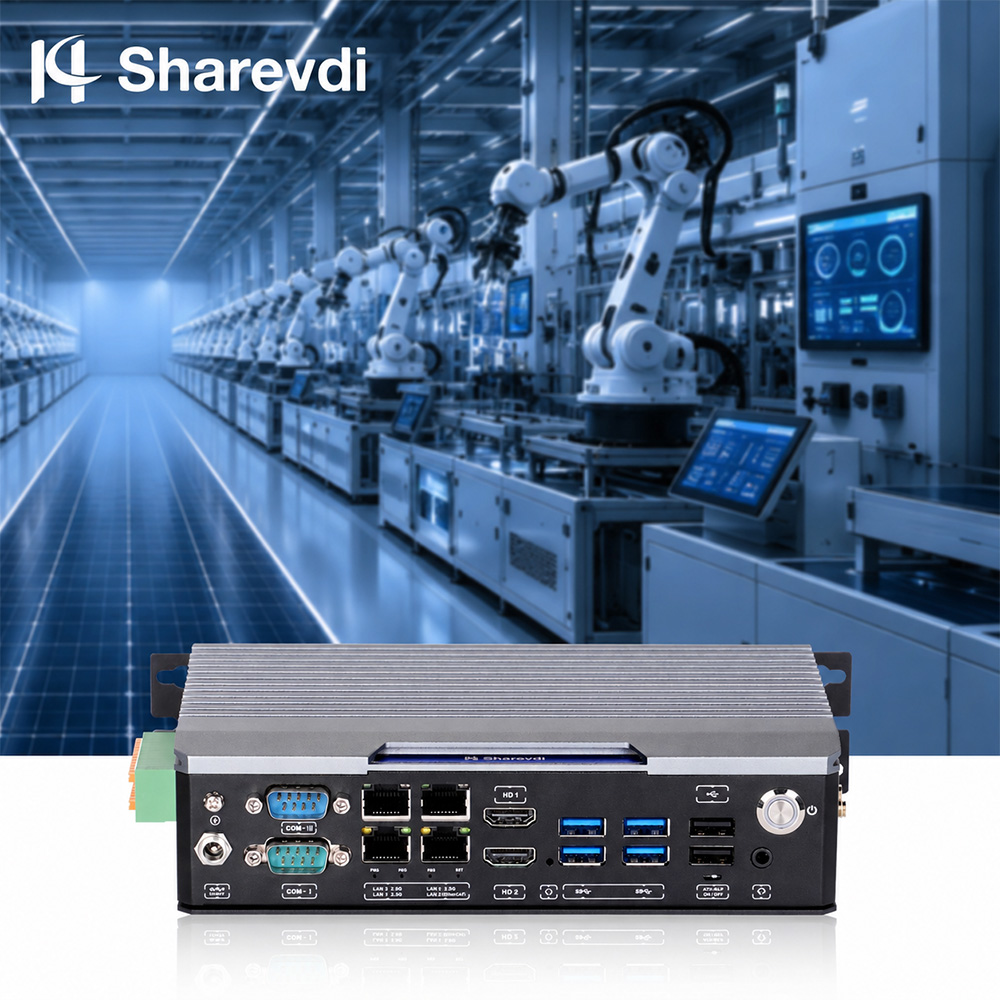

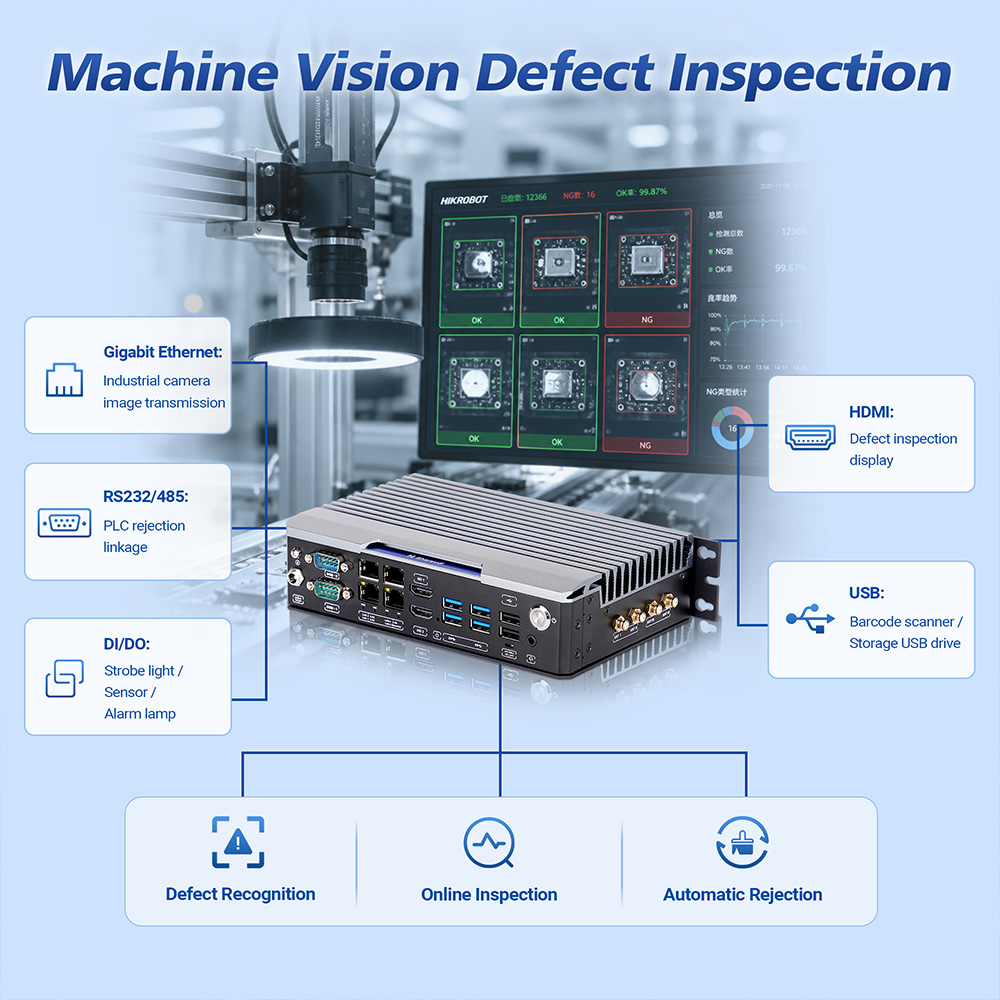

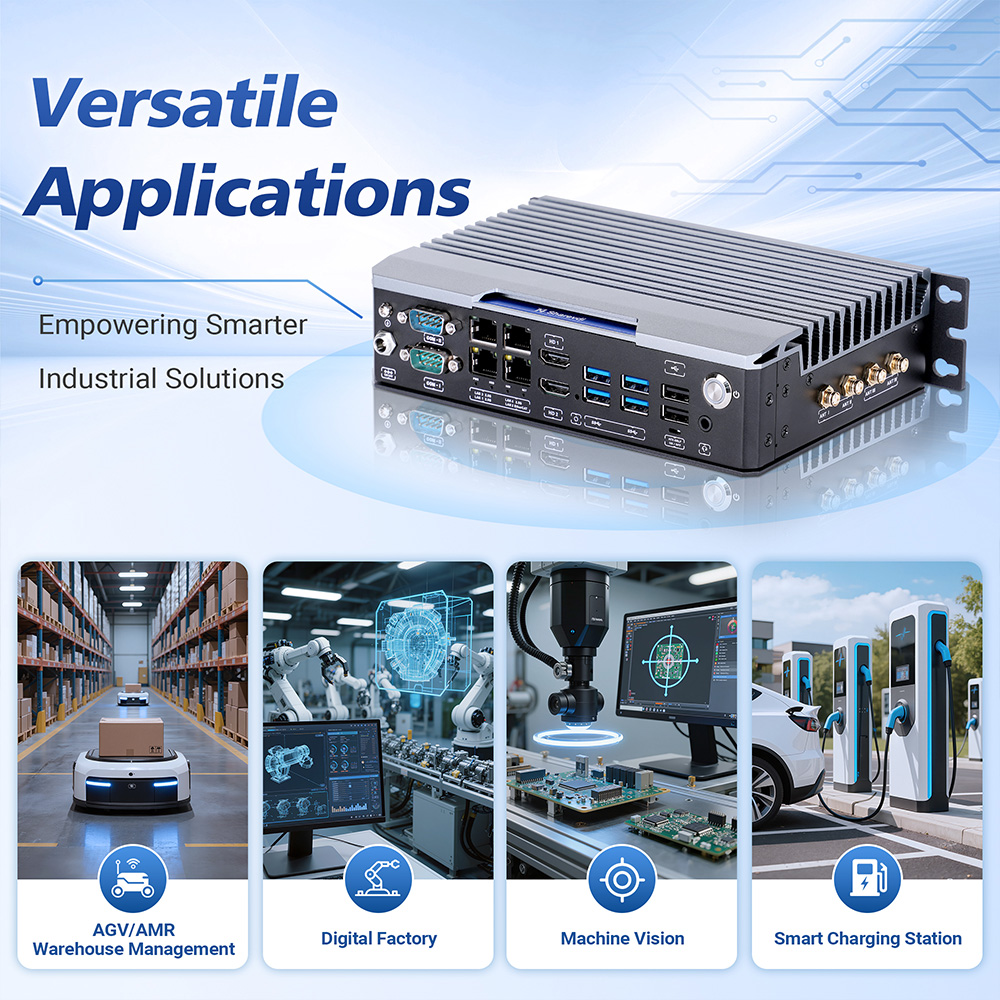

With wide voltage input and wide temperature operation, it is perfectly suited for industrial automation, production line inspection, smart parks, IoT gateways and intelligent security, driving industrial digital transformation.

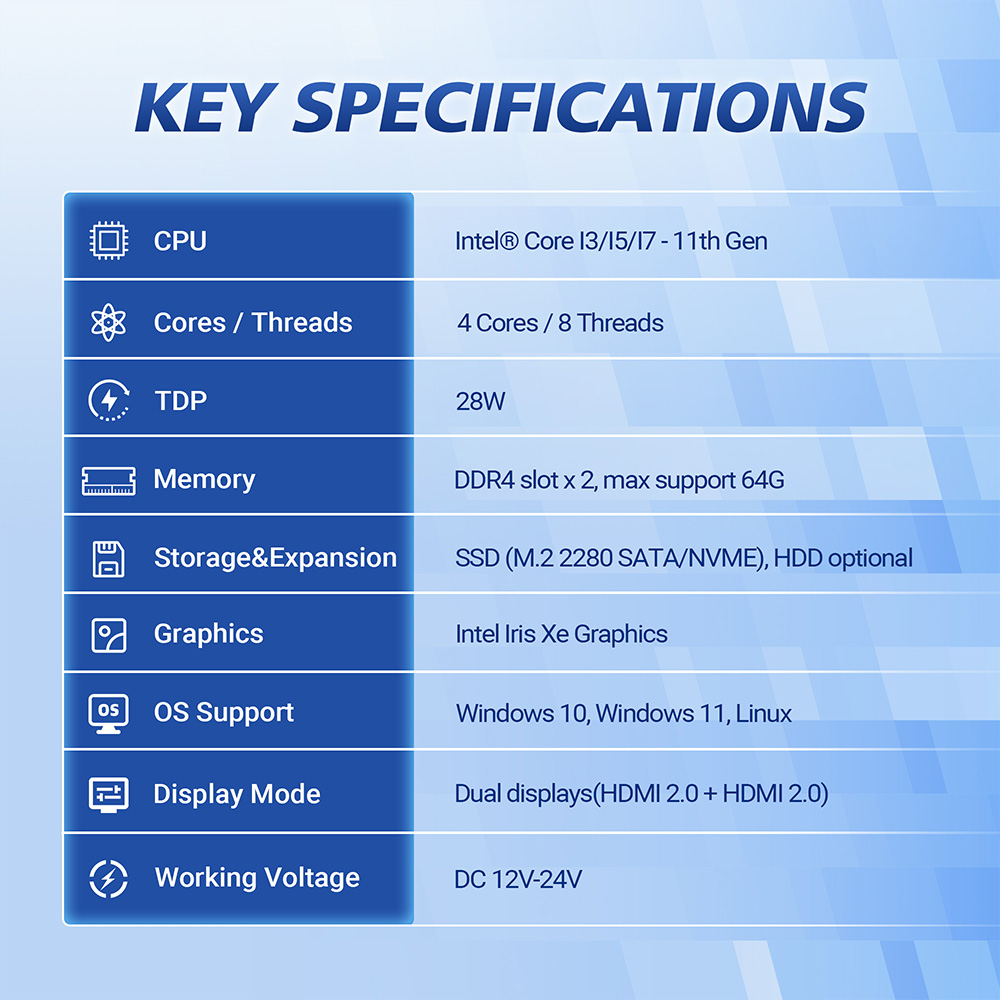

K5-F27H-11th
-
Part No.K5-F27H
-
-
System
CPU
Intel® Core I3/I5/I7 - 11th Gen
Cores/Threads
4 Cores / 8 Threads
Cache
8 MB Intel® Smart Cache
-
Memory
Technology
2*SO-DIMM DDR4 slot
Max. Capacity
64G
-
Storage
M.2 2280 SATA/NVME
SSD
SATA
Support 2.5-inch HDD/SSD expansion
-

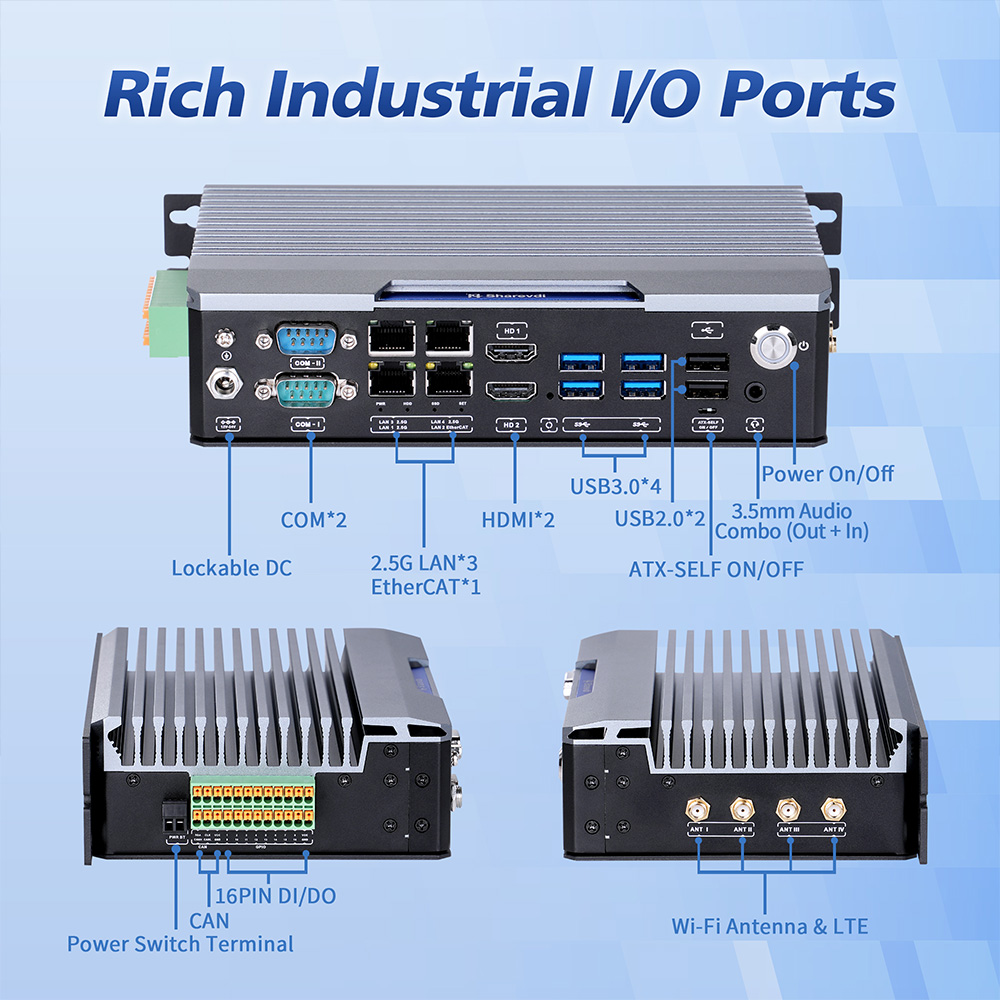

I/O
COM
6*COM (RS232/RS485)
LAN
4*LAN ( 1*port supports EtherCAT)
USB
4*USB3.0 + 2*USB2.0
GPIO
1*16 PIN GPIO
-
Power
Working Voltage
DC 12V~24V
-
Software
OS Support
Windows 10, Windows 11, Linux
-
Environment
Operating Temperature
-10~60℃ (14~140°F)
Storage Temperature
-10~60℃ (14~140°F)
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
