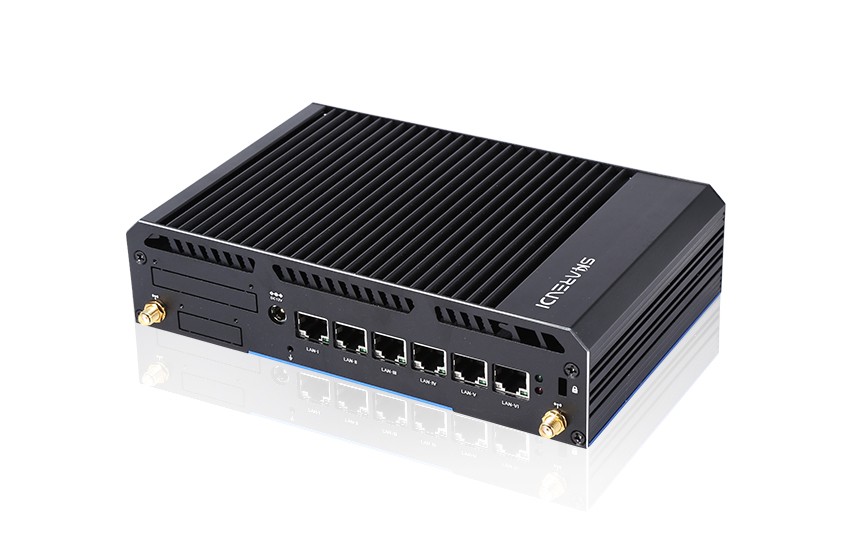

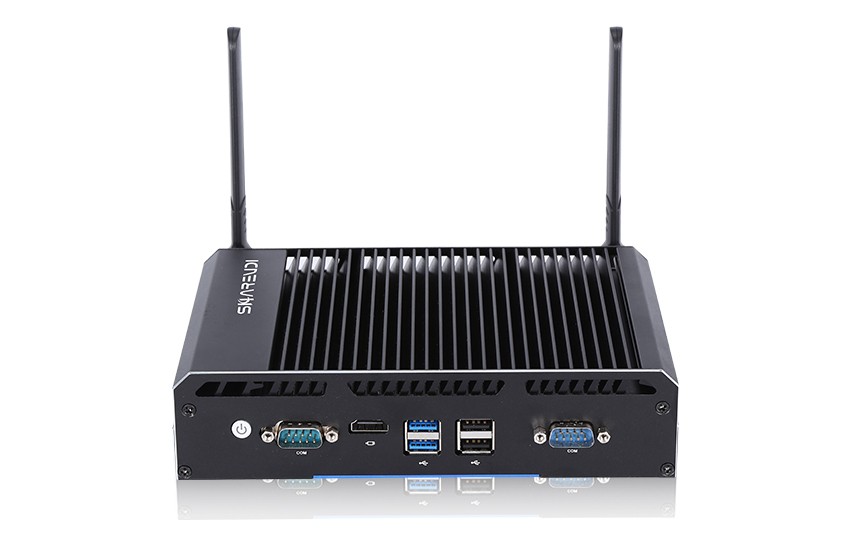

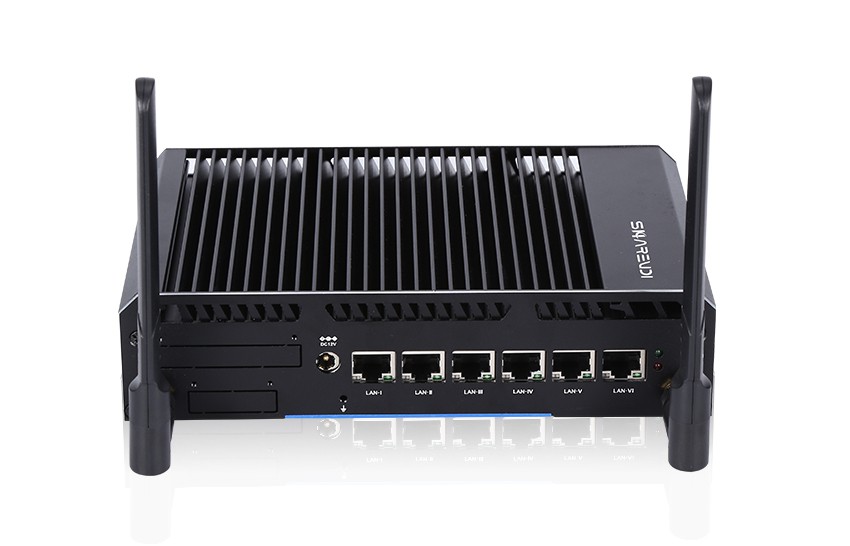

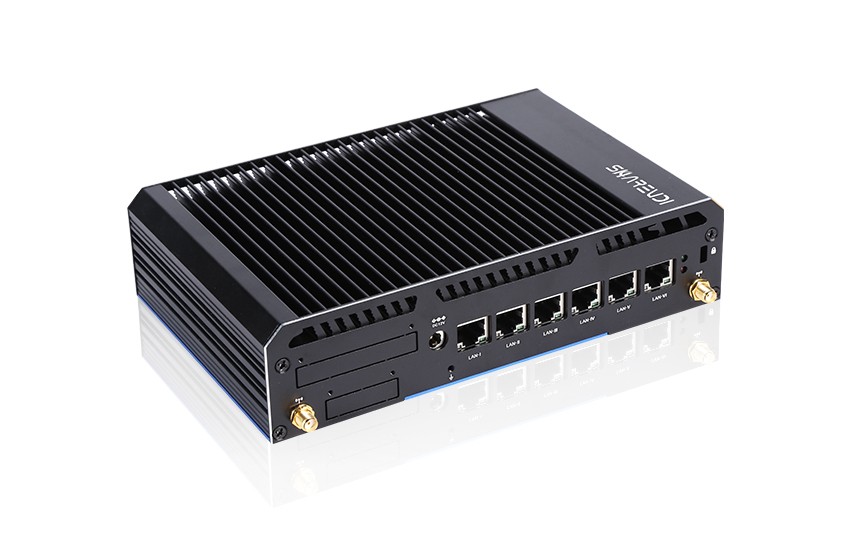

K3-F19 Firewall Computer
Model: K3-F19
● Intel core i3-6006 processor
● Industrial and compact design
● 6x Intel LAN Ports
● Optional RS232/RS485/GPIO
● 12V ~ 64V wide range power input
● Support AES-NI
● Support WIFI
● Support multiple Operating System
● Support RPL / PXE diskless boot, wake on lan, WDT
● Applied in Firewall, VPN , Network Server, Network Security, Router etc.
Data Sheet 1
Send InquiryWith 6x Intel 1GbE and pfsense, K3-F19 can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS. It supports Windows, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc.
-
Part No.K3-F19-6006
-
-
Processor
CPU
Intel Core i3 6006U
Core Number
2 Cores / 4 Threads
Frequency
2.0GHz
Max Turbo Frequency
2.0GHz
Chipset
Skylake
-
Memory
Technology
2*DDR4 slots
Max. Capacity
32GB
-
Storage
MSATA
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
Graphics
Intel HD Graphics 520
-
Audio
HD Audio realtek ALC 662
-
Network
LAN
10/100/1000Mbps Adaptive, 6* Intel i211A
-
I/O Interface
Front

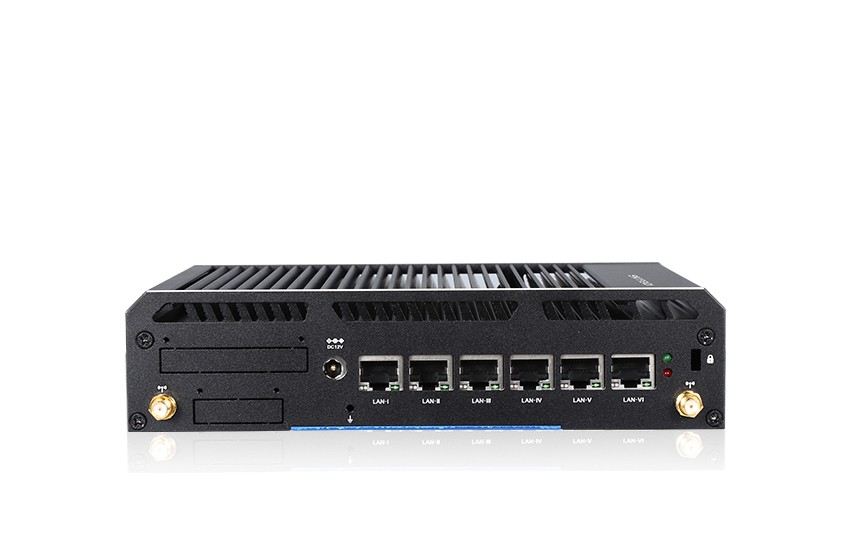

6*RJ45 Gigabit LAN, DC 12V
Rear

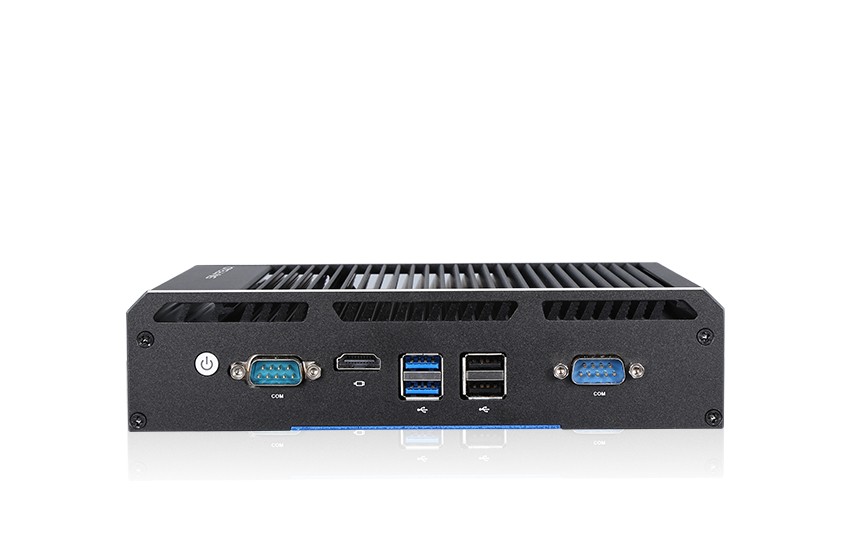

1*COM, HDMI, 2*USB3.0, 2*USB2.0
-
Extendable
Module
WIFI+Bluetooth Module (Mini PCIE)
Antenna
External antennas
-
Power
Input
AC100-240V.50-60HZ
Output
12V - 5A
-
Operating System
Windows/Linux/Pfsense
-
Physical
Dimension
L 197.4mm*W 126.3mm*H 47.5m
Weight(Net)
1.0KG
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Desk/ Wall Mount/Embedded/ DIN Rail
Certification
CE,FCC,ROHS,ISO
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
K3-F19-6006
Intel Core i3 6006U
-
Core Number
K3-F19-6006
2 Cores / 4 Threads
-
Frequency
K3-F19-6006
2.0GHz
-
Max Turbo Frequency
K3-F19-6006
2.0GHz
-
Chipset
K3-F19-6006
Skylake
-
Technology
K3-F19-6006
2*DDR4 slots
-
Max. Capacity
K3-F19-6006
32GB
-
MSATA
K3-F19-6006
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
K3-F19-6006
Intel HD Graphics 520
-
K3-F19-6006
HD Audio realtek ALC 662
-
LAN
K3-F19-6006
10/100/1000Mbps Adaptive, 6* Intel i211A
-
Front
K3-F19-6006
6*RJ45 Gigabit LAN, DC 12V
-
Rear
K3-F19-6006
1*COM, HDMI, 2*USB3.0, 2*USB2.0
-
Module
K3-F19-6006
WIFI+Bluetooth Module (Mini PCIE)
-
Antenna
K3-F19-6006
External antennas
-
Input
K3-F19-6006
AC100-240V.50-60HZ
-
Output
K3-F19-6006
12V - 5A
-
K3-F19-6006
Windows/Linux/Pfsense
-
Dimension
K3-F19-6006
L 197.4mm*W 126.3mm*H 47.5m
-
Weight(Net)
K3-F19-6006
1.0KG
-
Color
K3-F19-6006
Black
-
Cooling Method
K3-F19-6006
Fanless Passive Cooling
-
Mounting Options
K3-F19-6006
Desk/ Wall Mount/Embedded/ DIN Rail
-
Certification
K3-F19-6006
CE,FCC,ROHS,ISO
-
Operating Temperature
K3-F19-6006
-10~60 ℃
-
Storage Temperature
K3-F19-6006
-10~60 ℃
-
Operation Humidity
K3-F19-6006
0~95% (No Condensation)
-
Storage Humidity
K3-F19-6006
0~95% (No Condensation)
