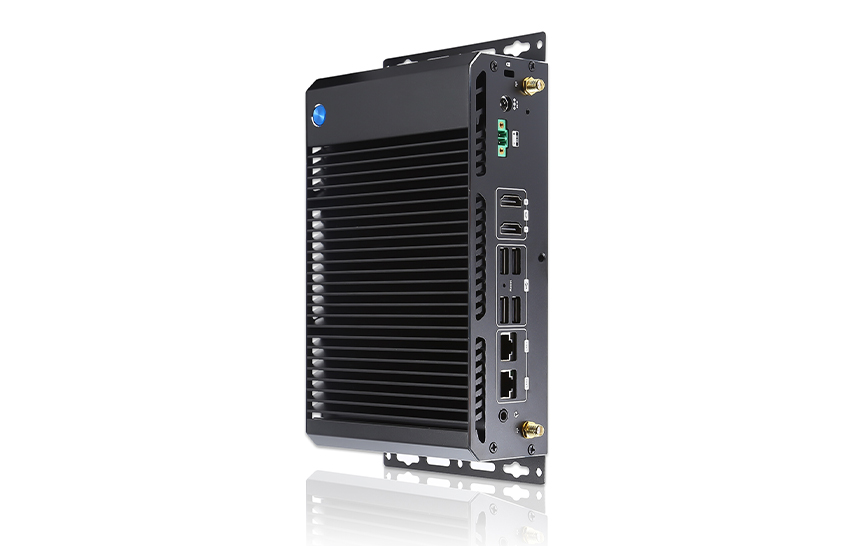

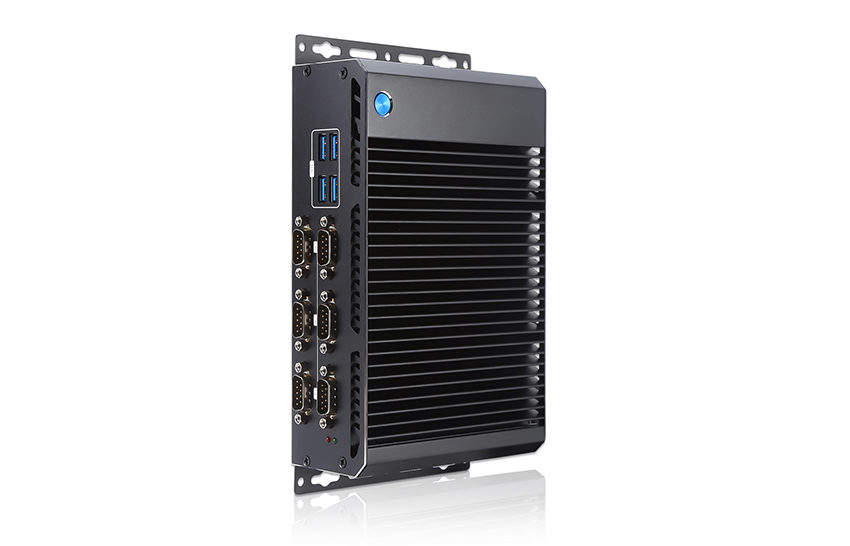

K5-F18 Industrial Mini PC
Model:
K5-F18-6300U
● Intel Core i3-6006U/Core i5-6300U processor
● Support Intel vPro technology
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● Flexible expansion for I/O ports
● 6x COM ports (RS232, RS485)
● Dual Intel Gigabit LAN, 1x intel i211AT*1, 1x intel i219*1
● Dual Display (2xHDMI)
● 12V ~64V wide range power input
● Wide temperature -20~65°C
● Support Din rail, Embedded, Stand, Mount installation
The K5-F18 industrial mini PC is equipped with Intel® i211AT and i219 gigabit Ethernet as well as 6*RS232 DB9 serial ports. It is capable of being utilized for controlling and operating industrial processes automation, and for monitoring systems and machines in the most demanding manufacturing and process environments. Moreover, it can undertake numerous networking and communication tasks. This industrial computer model incorporates Intel vPro Technology, which offers simpler and more efficient remote IT management and provides enhanced security.
-
Part No.K3-F18-6006UK5-F18-6300U
-
-
Processor
CPU
Intel Core i3-6006U，2 Cores / 4 Threads
Intel Core i5-6300U，2 Cores / 4 Threads
Frequency
2.0GHz
2.40GHz
Max Turbo Frequency
2.0GHz
3.00GHz
Cache
3 MB Intel® Smart Cache
3 MB Intel® Smart Cache
Chipset
Skylake
Skylake
-
Memory
Technology
2*DDR4L slots
2*DDR4L slots
Max. Capacity
32GB
32GB
-
Storage
M.2 SATA
SSD 64GB/128GB/256GB/512GB/1TB
SSD 64GB/128GB/256GB/512GB/1TB
SATA
HDD 500GB/1TB/2TB (Optional)
HDD 500GB/1TB/2TB (Optional)
-
Graphics
Intel® HD Graphics 520
Intel® HD Graphics 520
-
Audio
Audio
HD Audio realtek ALC 687
HD Audio realtek ALC 687
-
Network
LAN
intel i211AT*1，intel i219*1
intel i211AT*1，intel i219*1
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-

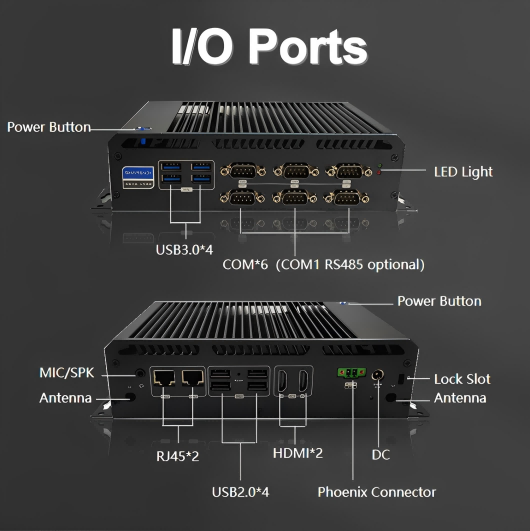

I/O Interface

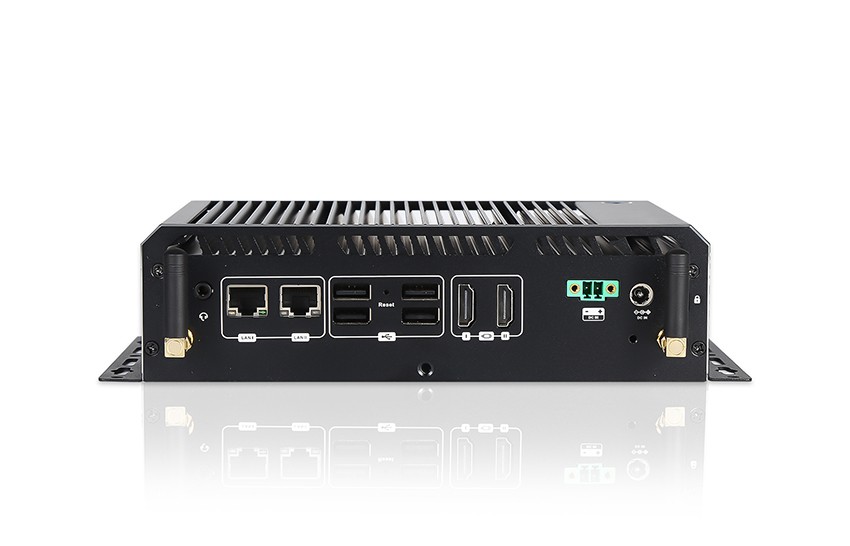

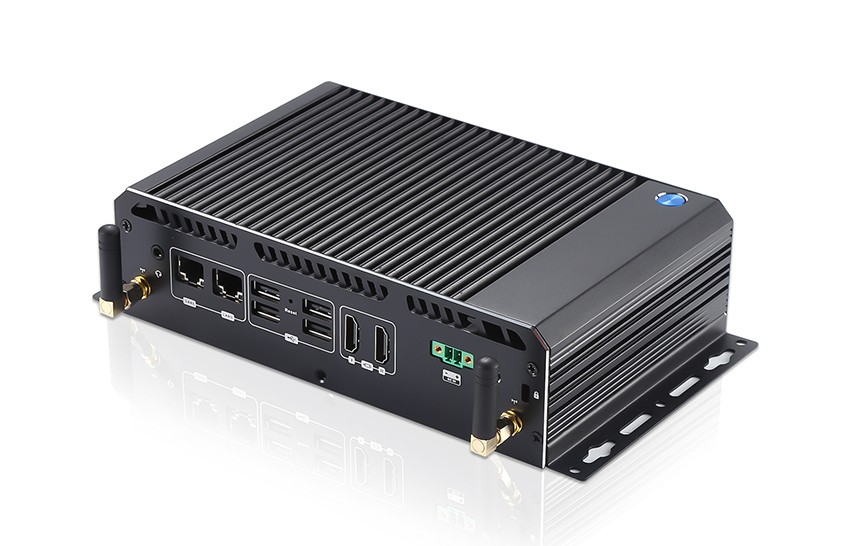

Front
2*HDMI, 4*USB2.0, 2*Ethernet RJ45, 2*DC_IN(5525+Phoenix Connector),1*MIC& SPK
2*HDMI, 4*USB2.0, 2*Ethernet RJ45, 2*DC_IN(5525+Phoenix Connector),1*MIC& SPK

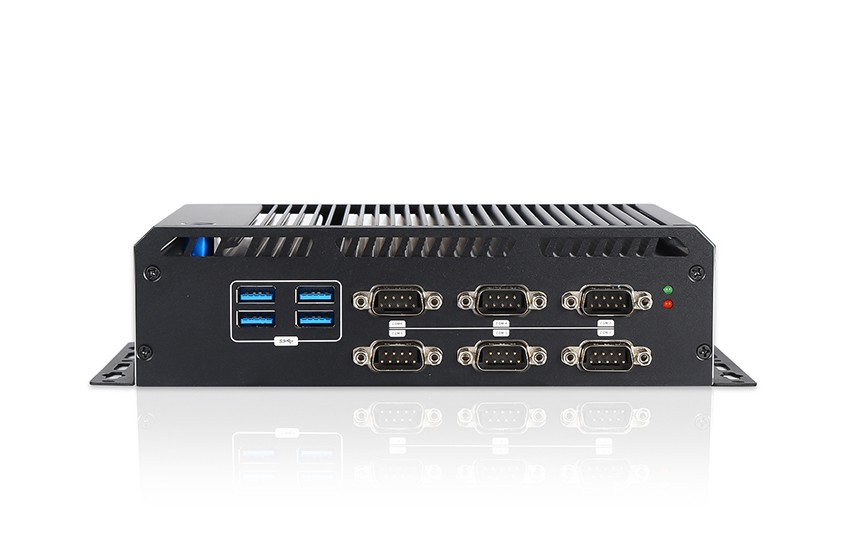

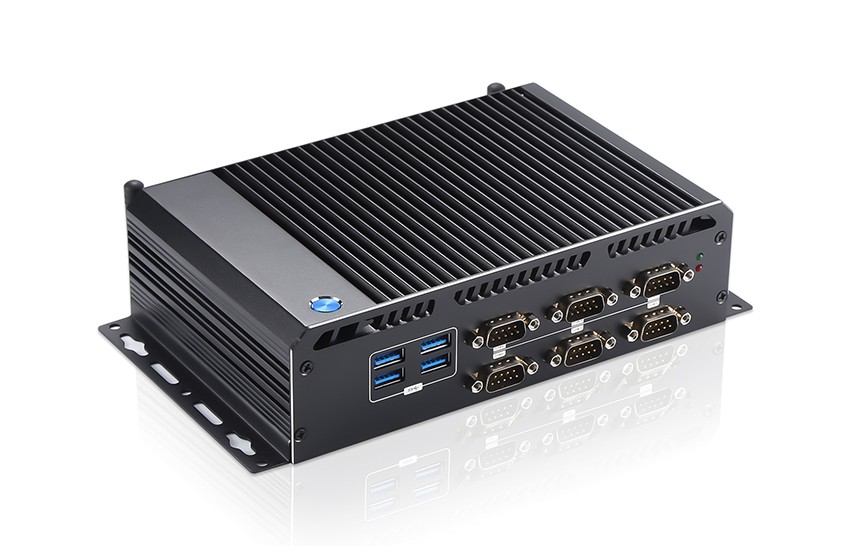

Rear
4*USB3.0, 6*Serial RS232/RS485 COM (Optional)
4*USB3.0, 6*Serial RS232/RS485 COM (Optional)
-
Extendable
I/O
1*10pin GPIO，1*4pin CPU_FAN，1*FP，1*SPK，1*SIM
1*10pin GPIO，1*4pin CPU_FAN，1*FP，1*SPK，1*SIM
Module
WIFI+Bluetooth Module (M.2 PCIE)/ 4G Module (optional）
WIFI+Bluetooth Module (M.2 PCIE)/ 4G Module (optional）
-
Power
Input
AC100-240V. 50-60Hz DC
AC100-240V. 50-60Hz DC
Output
12V-5A
12V-5A
Wide Voltage
12-64V phoenix connector（Optional）
12-64V phoenix connector（Optional）
-
Operating System
Windows/Linux
Windows/Linux
-
Physical
Dimension
L 197.4mm * W 126.6mm *H 54mm
L 197.4mm * W 126.6mm *H 54mm
Weight(Net)
1.3KG
1.3KG
Color
Black
Black

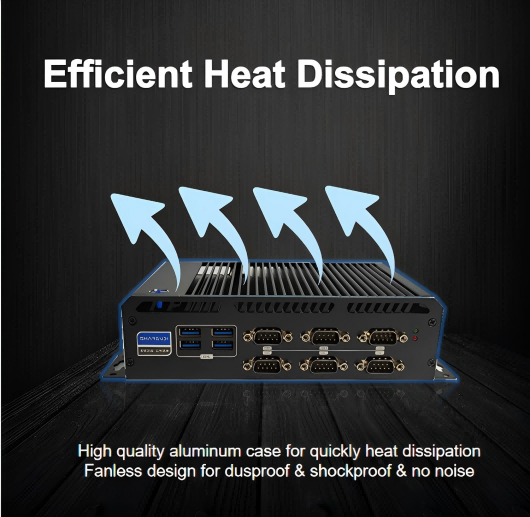

Cooling Method
Fanless Passive Cooling
Fanless Passive Cooling
Mounting Options
VESA Mount、Din Rail、Embedded (Optional)
VESA Mount、Din Rail、Embedded (Optional)
Certification
CE, FCC, ROHS, ISO, UL
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~65 ℃
-10~65 ℃
Storage Temperature
-10~60 ℃
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
0~95% (No Condensation)
-
CPU
K3-F18-6006U
Intel Core i3-6006U，2 Cores / 4 Threads
K5-F18-6300U
Intel Core i5-6300U，2 Cores / 4 Threads
-
Frequency
K3-F18-6006U
2.0GHz
K5-F18-6300U
2.40GHz
-
Max Turbo Frequency
K3-F18-6006U
2.0GHz
K5-F18-6300U
3.00GHz
-
Cache
K3-F18-6006U
3 MB Intel® Smart Cache
K5-F18-6300U
3 MB Intel® Smart Cache
-
Chipset
K3-F18-6006U
Skylake
K5-F18-6300U
Skylake
-
Technology
K3-F18-6006U
2*DDR4L slots
K5-F18-6300U
2*DDR4L slots
-
Max. Capacity
K3-F18-6006U
32GB
K5-F18-6300U
32GB
-
M.2 SATA
K3-F18-6006U
SSD 64GB/128GB/256GB/512GB/1TB
K5-F18-6300U
SSD 64GB/128GB/256GB/512GB/1TB
-
SATA
K3-F18-6006U
HDD 500GB/1TB/2TB (Optional)
K5-F18-6300U
HDD 500GB/1TB/2TB (Optional)
-
K3-F18-6006U
Intel® HD Graphics 520
K5-F18-6300U
Intel® HD Graphics 520
-
Audio
K3-F18-6006U
HD Audio realtek ALC 687
K5-F18-6300U
HD Audio realtek ALC 687
-
LAN
K3-F18-6006U
intel i211AT*1，intel i219*1
K5-F18-6300U
intel i211AT*1，intel i219*1
-
Wireless
K3-F18-6006U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
K5-F18-6300U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
Front
K3-F18-6006U
2*HDMI, 4*USB2.0, 2*Ethernet RJ45, 2*DC_IN(5525+Phoenix Connector),1*MIC& SPK
K5-F18-6300U
2*HDMI, 4*USB2.0, 2*Ethernet RJ45, 2*DC_IN(5525+Phoenix Connector),1*MIC& SPK
-
Rear
K3-F18-6006U
4*USB3.0, 6*Serial RS232/RS485 COM (Optional)
K5-F18-6300U
4*USB3.0, 6*Serial RS232/RS485 COM (Optional)
-
I/O
K3-F18-6006U
1*10pin GPIO，1*4pin CPU_FAN，1*FP，1*SPK，1*SIM
K5-F18-6300U
1*10pin GPIO，1*4pin CPU_FAN，1*FP，1*SPK，1*SIM
-
Module
K3-F18-6006U
WIFI+Bluetooth Module (M.2 PCIE)/ 4G Module (optional）
K5-F18-6300U
WIFI+Bluetooth Module (M.2 PCIE)/ 4G Module (optional）
-
Input
K3-F18-6006U
AC100-240V. 50-60Hz DC
K5-F18-6300U
AC100-240V. 50-60Hz DC
-
Output
K3-F18-6006U
12V-5A
K5-F18-6300U
12V-5A
-
Wide Voltage
K3-F18-6006U
12-64V phoenix connector（Optional）
K5-F18-6300U
12-64V phoenix connector（Optional）
-
K3-F18-6006U
Windows/Linux
K5-F18-6300U
Windows/Linux
-
Dimension
K3-F18-6006U
L 197.4mm * W 126.6mm *H 54mm
K5-F18-6300U
L 197.4mm * W 126.6mm *H 54mm
-
Weight(Net)
K3-F18-6006U
1.3KG
K5-F18-6300U
1.3KG
-
Color
K3-F18-6006U
Black
K5-F18-6300U
Black
-
Cooling Method
K3-F18-6006U
Fanless Passive Cooling
K5-F18-6300U
Fanless Passive Cooling
-
Mounting Options
K3-F18-6006U
VESA Mount、Din Rail、Embedded (Optional)
K5-F18-6300U
VESA Mount、Din Rail、Embedded (Optional)
-
Certification
K3-F18-6006U
CE, FCC, ROHS, ISO, UL
K5-F18-6300U
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K3-F18-6006U
-10~65 ℃
K5-F18-6300U
-10~65 ℃
-
Storage Temperature
K3-F18-6006U
-10~60 ℃
K5-F18-6300U
-10~60 ℃
-
Operation Humidity
K3-F18-6006U
0~95% (No Condensation)
K5-F18-6300U
0~95% (No Condensation)
-
Storage Humidity
K3-F18-6006U
0~95% (No Condensation)
K5-F18-6300U
0~95% (No Condensation)
