K3-F17H Din Rail Industrial PC
Model: K3-F17H
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● Flexible expansion for I/O ports
● 3 x RS232/ RS485 + 1-2 x GPIO
● 2 x Ethernet ports
● Support 4G LTE module
● Support TPM 2.0 (optional)
● 12V ~ 64V wide range power input
● Wide temperature -20~65°C
Data Sheet 1
Send InquiryK3-F17H is an industrial box PC with multiple interfaces and extendable I/O ports. It adopt industrial grade components for the design of 7/24 working in extreme conditions, operating temperature from -10 to 65 °C. Widely used in self-service equipment, transportation, medical, industrial automation etc.
-
Part No.K3-F17H-5005UK3-F17H-6006U
-
-
Processor
CPU
Intel Core I3-5005U
Intel Core I3-6006U
Core Number
2 Cores / 4 Threads
2 Cores / 4 Threads
Frequency
2.0GHz
2.0GHz
Max Turbo Frequency
2.0GHz
2.0GHz
Chipset
Broadwell
Broadwell
-
Memory
Technology
2*DDR3L slots
2*DDR3L slots
Max. Capacity
16GB
16GB
-
Storage
MSATA
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SATA
HDD 500GB/1TB/2TB (Optional )
HDD 500GB/1TB/2TB (Optional )
-
Graphics
Graphics
Intel HD Graphics 5500
Intel® HD Graphics 520
-
Audio
Audio
HD Audio realtek ALC 662
HD Audio realtek ALC 662
-

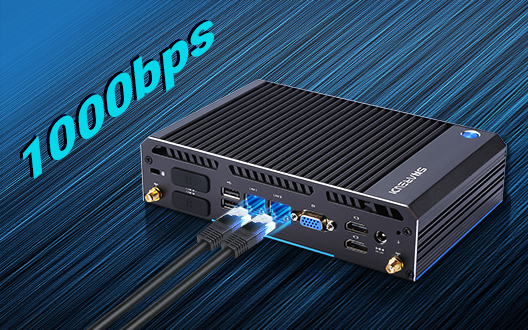

Network
LAN
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-

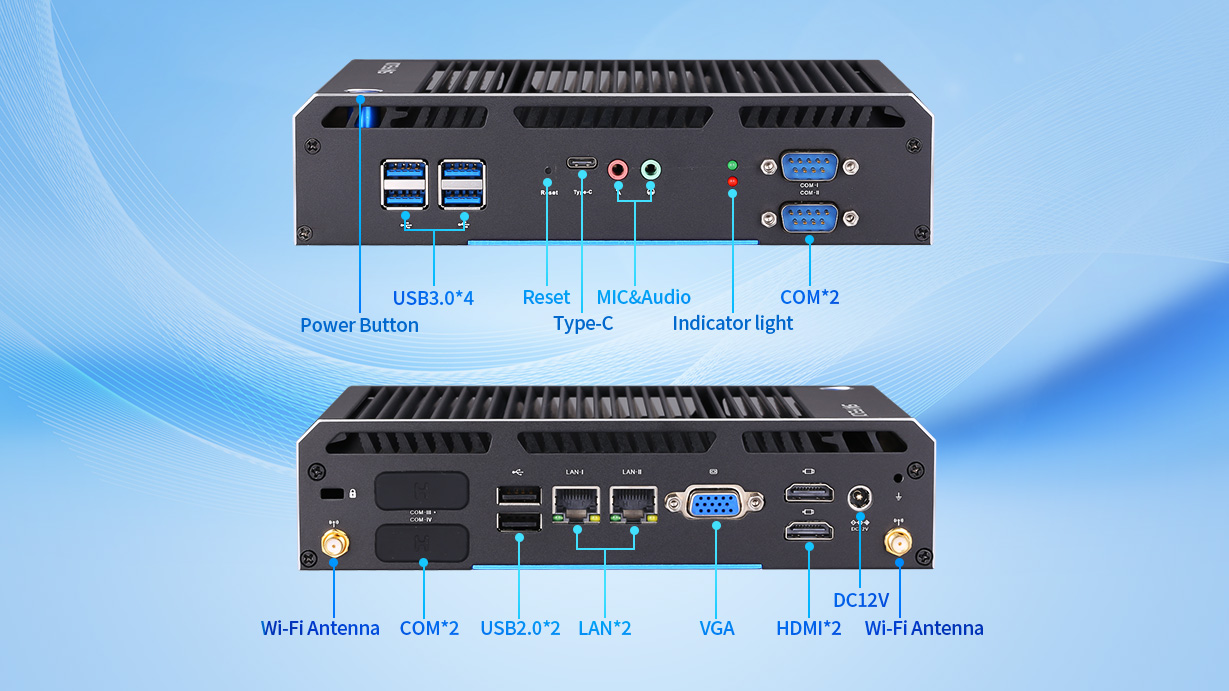

I/O Interface

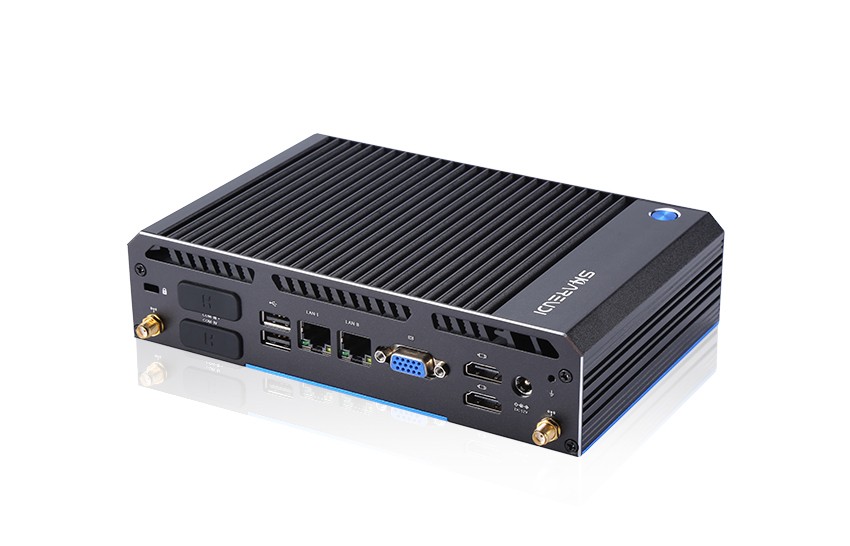

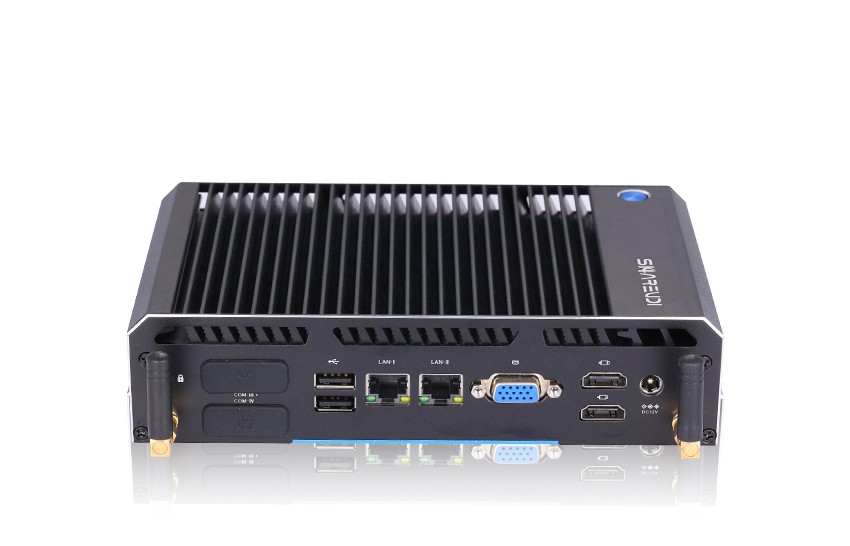

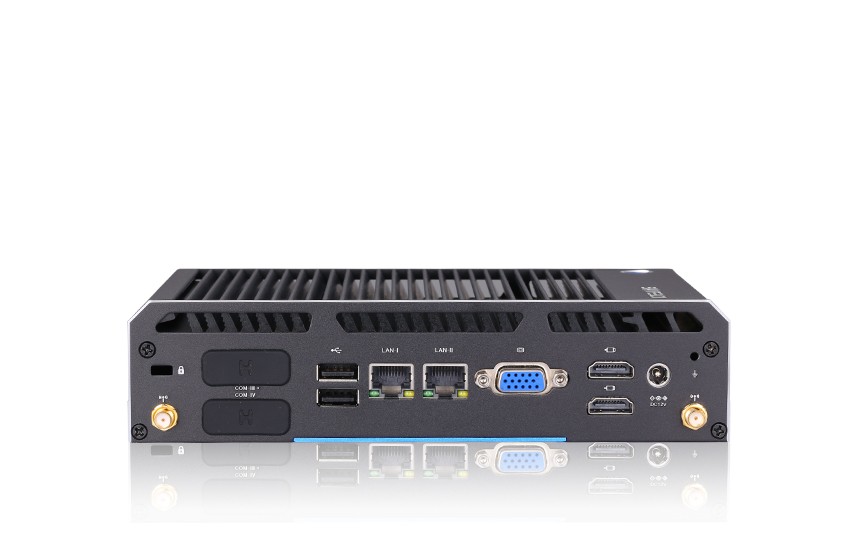

Front
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45,DC 12V

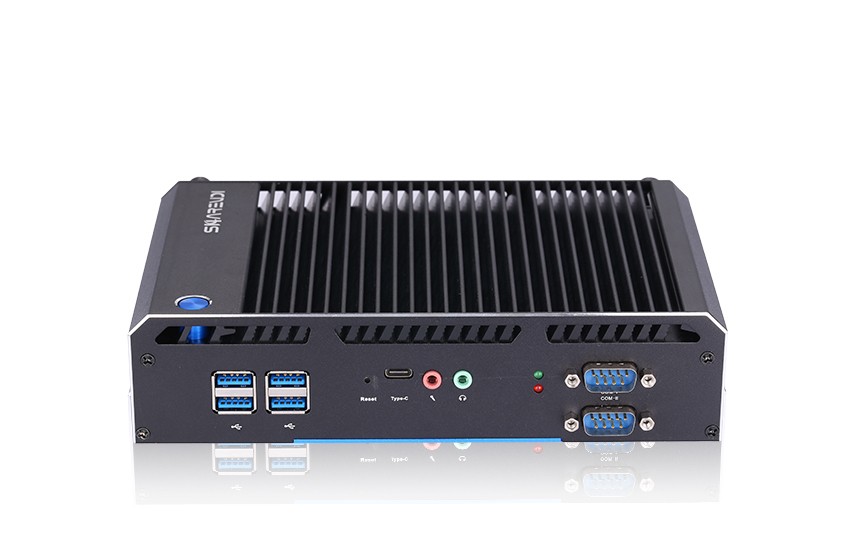

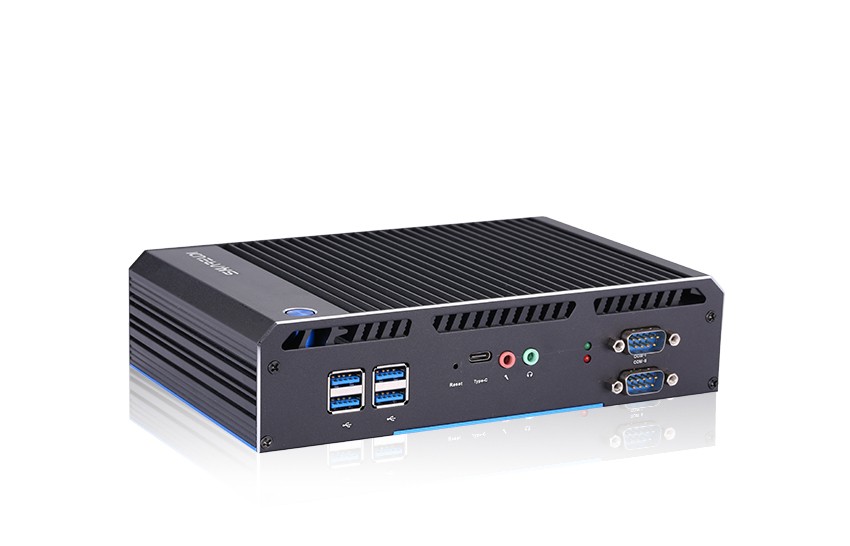

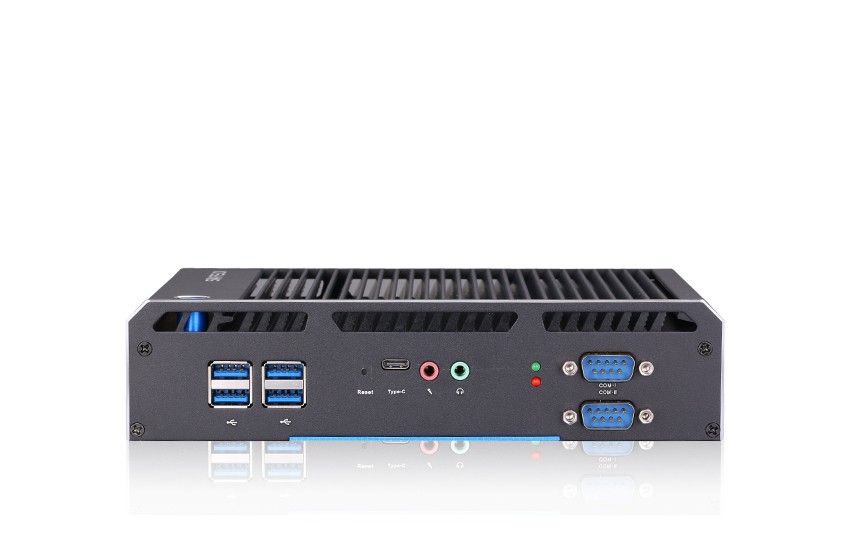

Rear
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
Extendable
I/O
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
1*4Pin AT、1*JHDMI1、1*JVGA、1*F_AUDIO、3*F_USB2.0、1 * FPANEL、1*SATA HDD、 1* JSATA_PWR1、2*CPU（CFAN1,SFAN1）、1 *TPM、1 *SPEAKER、1*IVCN1、 1*JPS2、 1*GPIO2、1*PRINT1
Module
WIFI+Bluetooth Module (M.2 PCIE)
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V.50-60HZ DC
AC100-240V.50-60HZ DC
Output
12V-5A
12V-5A
Wide Voltage
12-64V phoenix connector （Optional）
12-64V phoenix connector（Optional）
-
Operating System
Windows/Linux
Windows/Linux
-
Physical
Dimension
L 197.4mm*W 126.3mm*H 47.5mm
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0KG
1.0KG
Color
Black
Black
Cooling Method
Fanless Passive Cooling
Fanless Passive Cooling

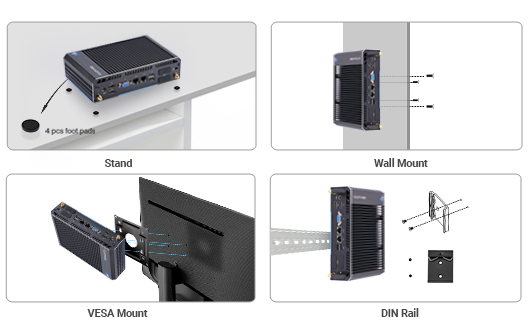

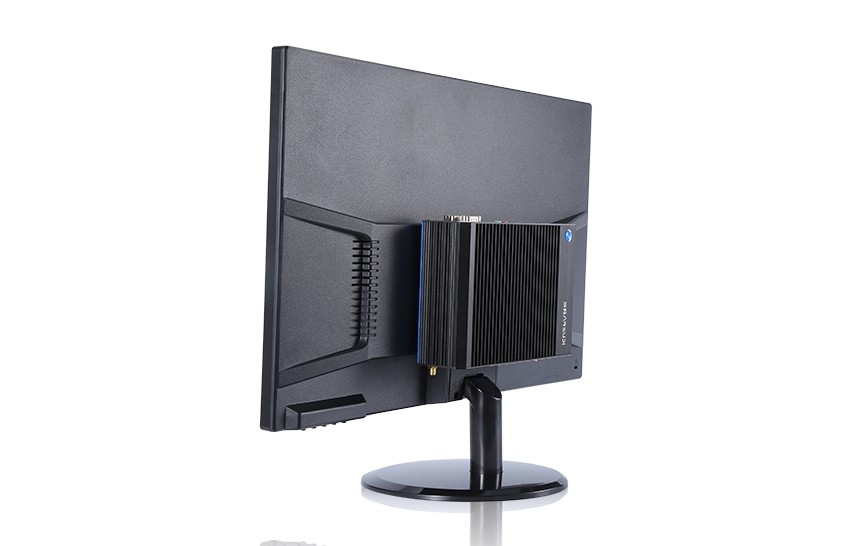

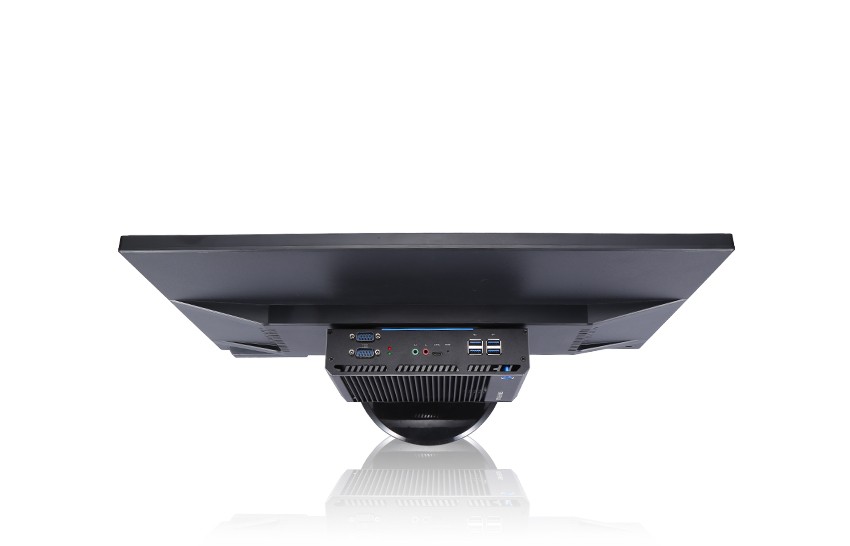

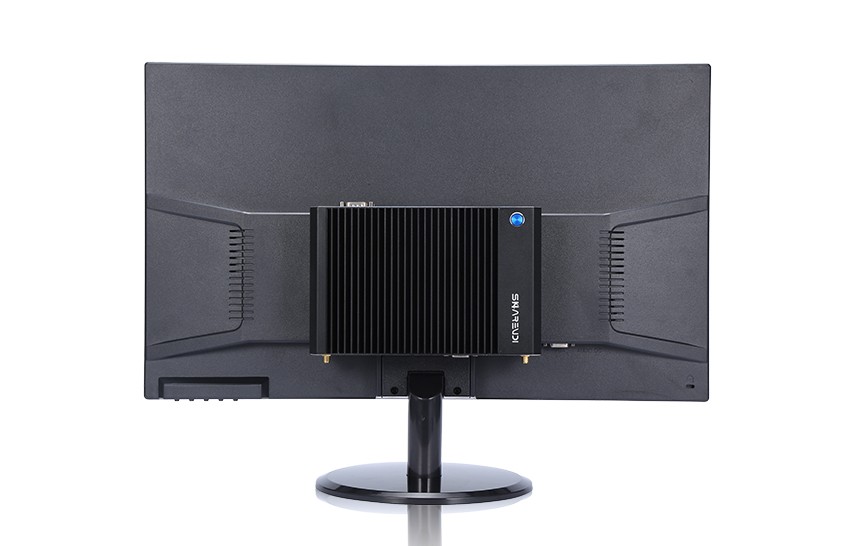

Mounting Options
Desk / Wall Mount / Embedded / DIN Rail
Desk / Wall Mount / Embedded / DIN Rail
Certification
CE, FCC, ROHS, ISO, UL
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~65 ℃
-10~65 ℃
Storage Temperature
-10~60 ℃
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
0~95% (No Condensation)
-
CPU
K3-F17H-5005U
Intel Core I3-5005U
K3-F17H-6006U
Intel Core I3-6006U
-
Core Number
K3-F17H-5005U
2 Cores / 4 Threads
K3-F17H-6006U
2 Cores / 4 Threads
-
Frequency
K3-F17H-5005U
2.0GHz
K3-F17H-6006U
2.0GHz
-
Max Turbo Frequency
K3-F17H-5005U
2.0GHz
K3-F17H-6006U
2.0GHz
-
Chipset
K3-F17H-5005U
Broadwell
K3-F17H-6006U
Broadwell
-
Technology
K3-F17H-5005U
2*DDR3L slots
K3-F17H-6006U
2*DDR3L slots
-
Max. Capacity
K3-F17H-5005U
16GB
K3-F17H-6006U
16GB
-
MSATA
K3-F17H-5005U
SSD 16GB/32GB/64GB/128GB/256GB/512GB
K3-F17H-6006U
SSD 16GB/32GB/64GB/128GB/256GB/512GB
-
SATA
K3-F17H-5005U
HDD 500GB/1TB/2TB (Optional )
K3-F17H-6006U
HDD 500GB/1TB/2TB (Optional )
-
Graphics
K3-F17H-5005U
Intel HD Graphics 5500
K3-F17H-6006U
Intel® HD Graphics 520
-
Audio
K3-F17H-5005U
HD Audio realtek ALC 662
K3-F17H-6006U
HD Audio realtek ALC 662
-
LAN
K3-F17H-5005U
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
K3-F17H-6006U
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
-
Wireless
K3-F17H-5005U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
K3-F17H-6006U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
Front
K3-F17H-5005U
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
K3-F17H-6006U
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45,DC 12V
-
Rear
K3-F17H-5005U
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
K3-F17H-6006U
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
I/O
K3-F17H-5005U
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
K3-F17H-6006U
1*4Pin AT、1*JHDMI1、1*JVGA、1*F_AUDIO、3*F_USB2.0、1 * FPANEL、1*SATA HDD、 1* JSATA_PWR1、2*CPU（CFAN1,SFAN1）、1 *TPM、1 *SPEAKER、1*IVCN1、 1*JPS2、 1*GPIO2、1*PRINT1
-
Module
K3-F17H-5005U
WIFI+Bluetooth Module (M.2 PCIE)
K3-F17H-6006U
WIFI+Bluetooth Module (M.2 PCIE)
-
Input
K3-F17H-5005U
AC100-240V.50-60HZ DC
K3-F17H-6006U
AC100-240V.50-60HZ DC
-
Output
K3-F17H-5005U
12V-5A
K3-F17H-6006U
12V-5A
-
Wide Voltage
K3-F17H-5005U
12-64V phoenix connector （Optional）
K3-F17H-6006U
12-64V phoenix connector（Optional）
-
K3-F17H-5005U
Windows/Linux
K3-F17H-6006U
Windows/Linux
-
Dimension
K3-F17H-5005U
L 197.4mm*W 126.3mm*H 47.5mm
K3-F17H-6006U
L 197.4mm*W 126.3mm*H 47.5mm
-
Weight(Net)
K3-F17H-5005U
1.0KG
K3-F17H-6006U
1.0KG
-
Color
K3-F17H-5005U
Black
K3-F17H-6006U
Black
-
Cooling Method
K3-F17H-5005U
Fanless Passive Cooling
K3-F17H-6006U
Fanless Passive Cooling
-
Mounting Options
K3-F17H-5005U
Desk / Wall Mount / Embedded / DIN Rail
K3-F17H-6006U
Desk / Wall Mount / Embedded / DIN Rail
-
Certification
K3-F17H-5005U
CE, FCC, ROHS, ISO, UL
K3-F17H-6006U
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K3-F17H-5005U
-10~65 ℃
K3-F17H-6006U
-10~65 ℃
-
Storage Temperature
K3-F17H-5005U
-10~60 ℃
K3-F17H-6006U
-10~60 ℃
-
Operation Humidity
K3-F17H-5005U
0~95% (No Condensation)
K3-F17H-6006U
0~95% (No Condensation)
-
Storage Humidity
K3-F17H-5005U
0~95% (No Condensation)
K3-F17H-6006U
0~95% (No Condensation)
