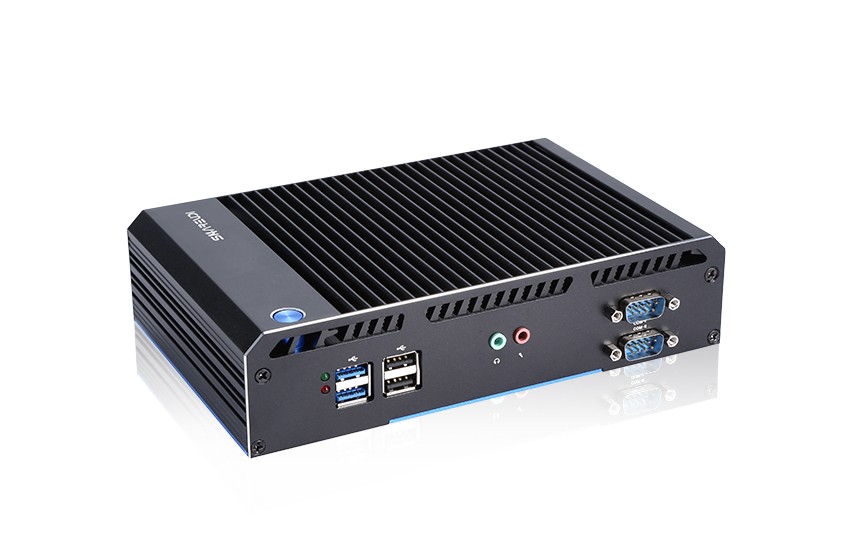

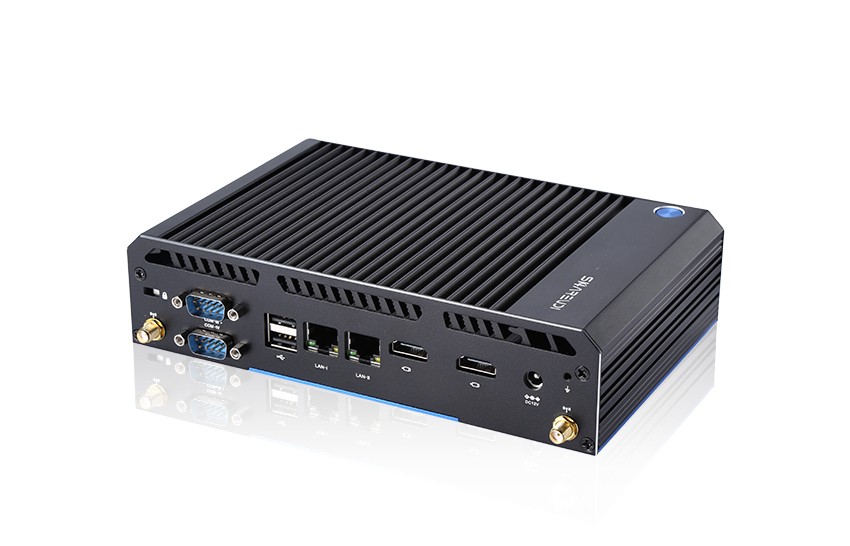

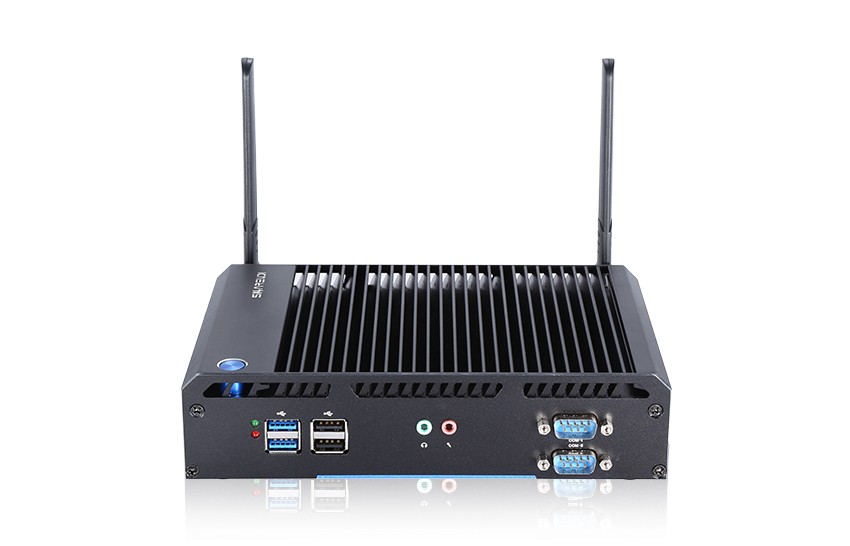

K6-F17H Fanless Industrial PC
Model: K6-F17H
● Dual Ethernet ports 10/100/1000 Mbps LAN
● Dual HDMI up to 4K resolution
● Support DIN-Rail Installation
● 12V ~ 64V wide range power input
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● 3 x RS232/ RS485 + 1-2 x GPIO
● -20 ~ 65 °C extended operating temperature
● Windows 10 IoT preinstalled
Data Sheet 1
Send InquiryK6-F17H Industrial PC model has 2HDMI port, 2 GbE, and 4 RS232 Serial port available. It adopt industrial grade components for the design of 7/24 working in extreme conditions, operating temperature from -10 to 65 °C. Widely used in self-service equipment, transportation, medical, industrial automation etc.
-
Part No.K6-F17H-N2840K6-F17H-N2940
-
-
Processor
CPU
Intel Celeron N2840
Intel Celeron N2940
Core Number
2 Cores / 4 Threads
4 Cores / 4 Threads
Frequency
2.16GHz
1.83GHz
Max Turbo Frequency
2.58GHz
2.25GHz
Chipset
Baytrail
Baytrail
-
Memory
Technology
1*DDR3L slots
1*DDR3L slots
Max. Capacity
8GB
8GB
-
Storage
MSATA
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SSD 16GB/32GB/64GB/128GB/256GB/512GB
SATA
HDD 500GB/1TB/2TB (Optional )
HDD 500GB/1TB/2TB (Optional )
-
Graphics
Graphics
Intel® HD Graphics for Intel Atom® Processor Z3700 Series
Intel® HD Graphics for Intel Atom® Processor Z3700 Series
-
Audio
Audio
HD Audio realtek ALC 662
HD Audio realtek ALC 662
-
Network
LAN
10/100/1000Mbps Adaptive, RTL 8111E
10/100/1000Mbps Adaptive, RTL 8111E
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
I/O Interface

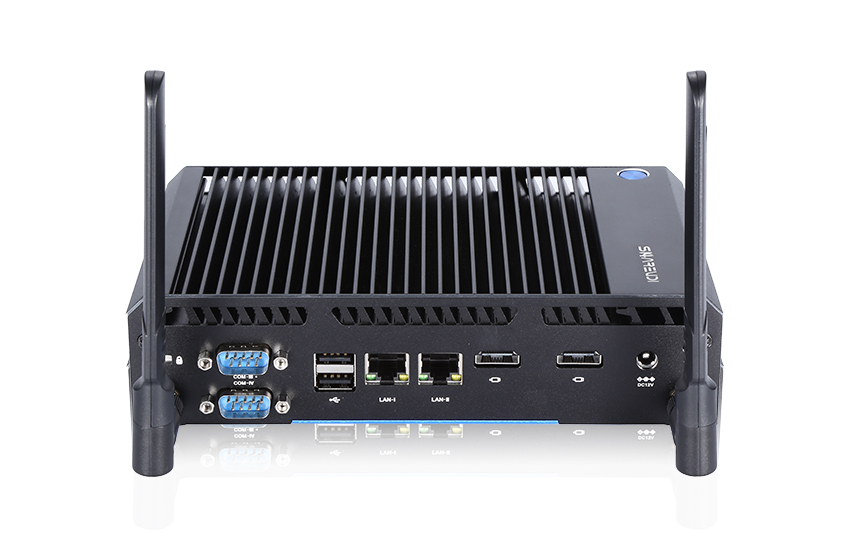

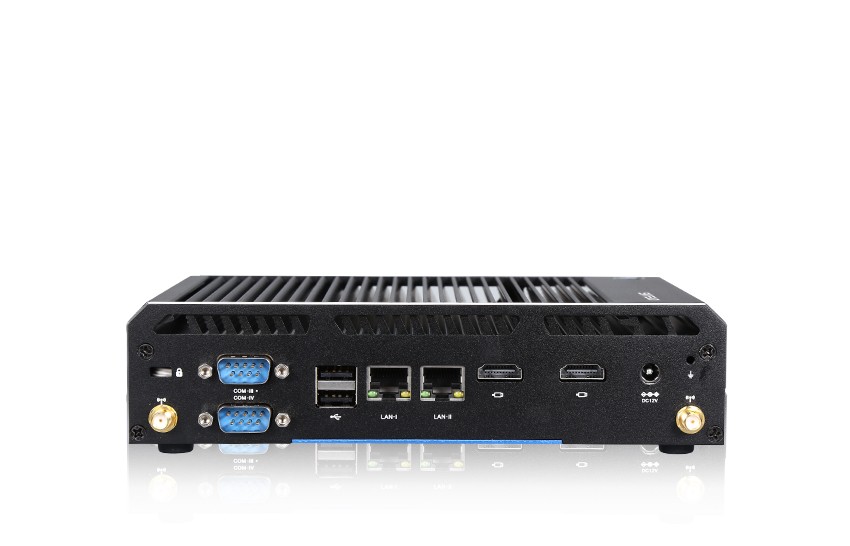

Front
2*HDMI, 2*USB2.0, 2*Ethernet RJ45,DC 12V
2*HDMI, 2*USB2.0, 2*Ethernet RJ45,2*Serial RS232/RS485(Optional),DC 12V

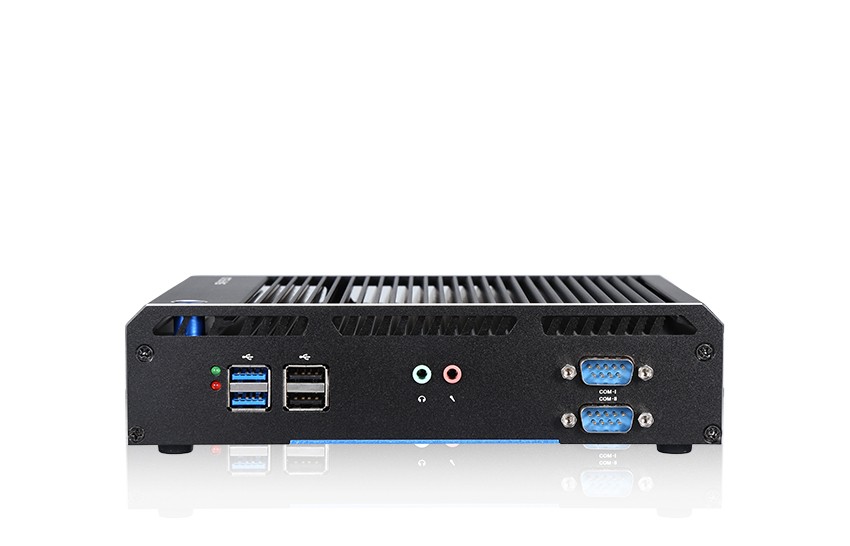

Rear
2*USB3.0, 2*USB2.0, 1*MIC& SPK, 2*Serial RS232/RS485
2*USB3.0, 2*USB2.0, 1*MIC& SPK, 2*Serial RS232/RS485
-
Extendable
I/O
1*FP、1*JP3、4*COM、1*GPIO
1*FP、1*JP3、4*COM、1*GPIO
Module
WIFI+Bluetooth Module (M.2 PCIE)
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V.50-60HZ DC
AC100-240V.50-60HZ DC
Output
12V-3A
12V-3A
Wide Voltage
12-64V phoenix connector （Optional）
12-64V phoenix connector（Optional）
-
Operating System
Windows/Linux
Windows/Linux
-
Physical
Dimension
L 197.4mm*W 126.3mm*H 47.5mm
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0KG
1.0KG
Color
Black
Black
Cooling Method
Fanless Passive Cooling
Fanless Passive Cooling
Mounting Options
Desk / Wall Mount / Embedded / DIN Rail
Desk / Wall Mount / Embedded / DIN Rail
Certification
CE, FCC, ROHS, ISO, UL
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~65 ℃
-10~65 ℃
Storage Temperature
-10~60 ℃
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
0~95% (No Condensation)
-
