K6-G5 Embedded Fanless PC
Model: K6-G5-J6412
● Intel Celeron J6412 processor
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● Dual Intel Gigabit LAN
● Intel® UHD Graphics for 10th Gen Intel® Processors
● HDMI+VGA, support dual displays
● 2COM RS232
● TPM2.0 security encryption
● Wide temperature -20~65°C
● Support Din rail, Embedded, Stand, Mount installation
Data Sheet 1
Send InquiryThe K6-G5 Embedded Fanless PC is powered by an Intel Celeron J6412 processor and constructed with high-quality all-aluminum material. It comes equipped with multiple I/O ports and is highly recommended for use in various fields such as Industrial automation, POS systems, kiosks, transport logistics, warehouses, and electronic education.
-
Part No.K6-G5-J6412
-
-
Processor
CPU
Intel Celeron J6412, 4 Cores / 4 Threads
Frequency
2.0GHz
Max Turbo Frequency
2.6GHz
Cache
1.5 MB L2 Cache
Chipset
Elkhart Lake
-
Memory
Technology
1*SO-DIMM DDR4
Max. Capacity
16GB
-
Storage
M.2 SATA
SSD 64GB/128GB/256GB/512GB/1TB
SATA
HDD 500GB/1TB/2TB (Optional)
-
Graphics
Intel® UHD Graphics for 10th Gen Intel® Processors
-
Audio
Audio
HD Audio realtek ALC 897
-
Network
LAN
2*10/100/1000Mbps Adaptive, RTL 8111H
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
I/O Interface
Front

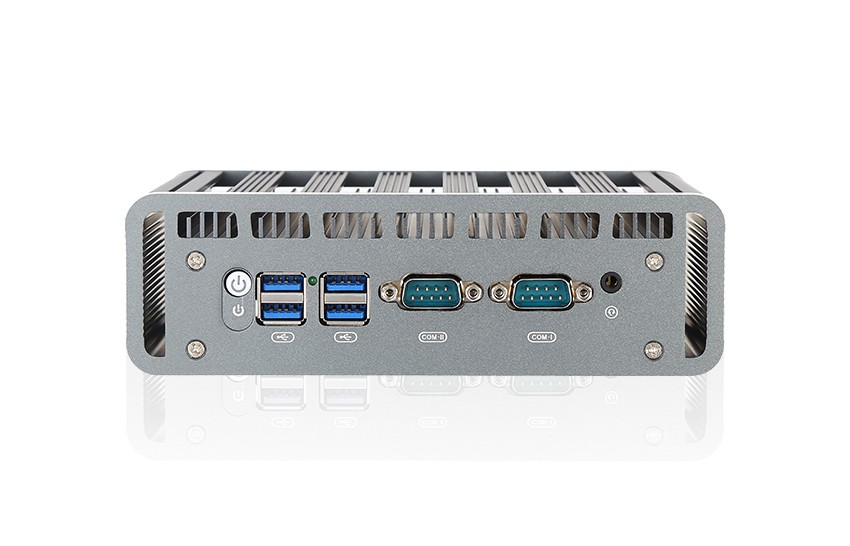

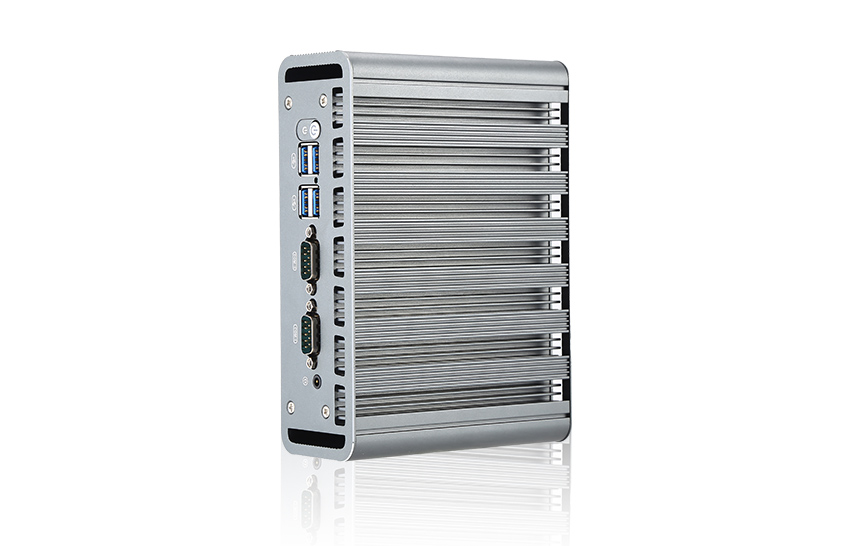

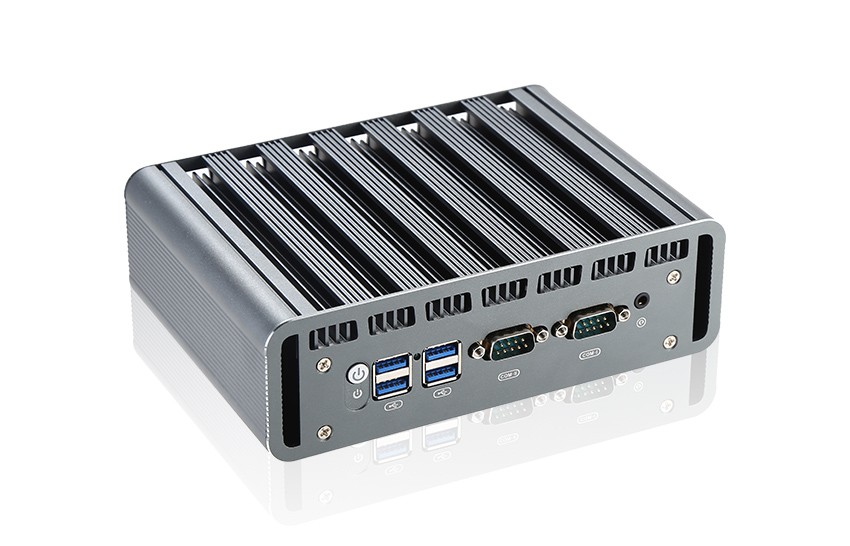

4*USB3.0, 2*RS232 COM, 1*Power ON/OFF,1*Audio 2-in-1
Rear

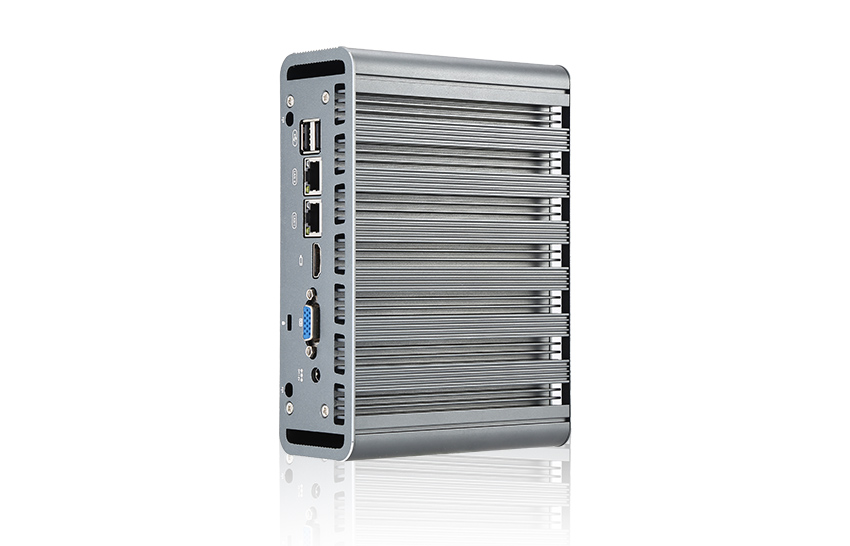

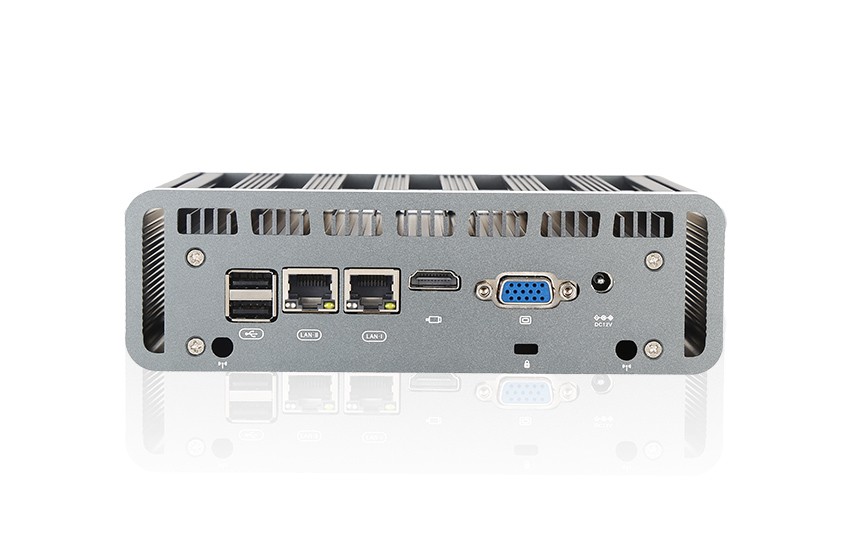

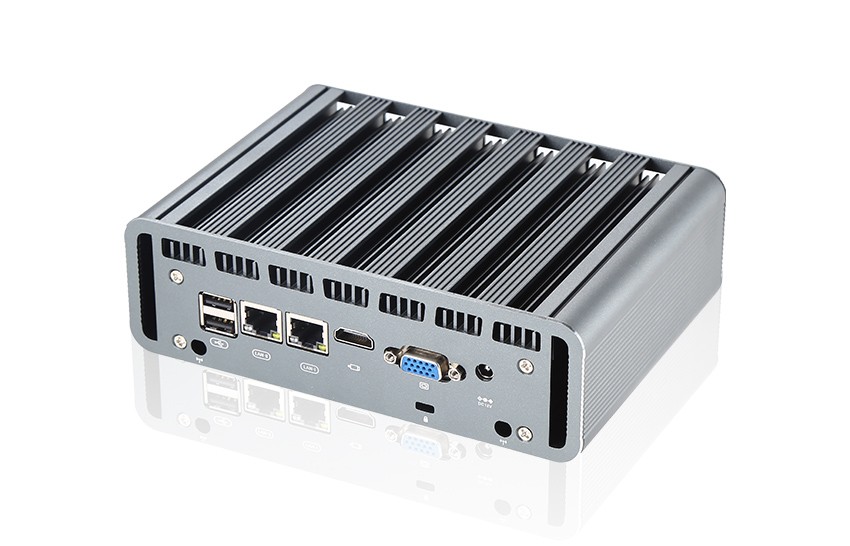

2*USB2.0, 2*RJ45,1*HDMI,1*VGA,1*DC 12V
-
Extendable
I/O
1*RPW1 (set to start automatically after power on), 1*F-PANEL, 2*JCOM, 2*RS485/RS232 signal switching (COM1 and COM2), 1*SATA and power supply, 1*DC_IN, 1*9 PIN F_USB1, 1*4PIN F_USB2
Module
WIFI+Bluetooth Module/ 4G Module(Mini PCIE),with SIM card slot
-
Power
Input
AC100-240V. 50-60Hz DC
Output
12V-3A
-
Operating System
Windows/Linux
-
Physical
Dimension
L 177.5mm*W 126.5mm*H 55mm
Weight(Net)
1.3KG
Color
Sliver
Cooling Method
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
K6-G5-J6412
Intel Celeron J6412, 4 Cores / 4 Threads
-
Frequency
K6-G5-J6412
2.0GHz
-
Max Turbo Frequency
K6-G5-J6412
2.6GHz
-
Cache
K6-G5-J6412
1.5 MB L2 Cache
-
Chipset
K6-G5-J6412
Elkhart Lake
-
Technology
K6-G5-J6412
1*SO-DIMM DDR4
-
Max. Capacity
K6-G5-J6412
16GB
-
M.2 SATA
K6-G5-J6412
SSD 64GB/128GB/256GB/512GB/1TB
-
SATA
K6-G5-J6412
HDD 500GB/1TB/2TB (Optional)
-
K6-G5-J6412
Intel® UHD Graphics for 10th Gen Intel® Processors
-
Audio
K6-G5-J6412
HD Audio realtek ALC 897
-
LAN
K6-G5-J6412
2*10/100/1000Mbps Adaptive, RTL 8111H
-
Wireless
K6-G5-J6412
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
Front
K6-G5-J6412
4*USB3.0, 2*RS232 COM, 1*Power ON/OFF,1*Audio 2-in-1
-
Rear
K6-G5-J6412
2*USB2.0, 2*RJ45,1*HDMI,1*VGA,1*DC 12V
-
I/O
K6-G5-J6412
1*RPW1 (set to start automatically after power on), 1*F-PANEL, 2*JCOM, 2*RS485/RS232 signal switching (COM1 and COM2), 1*SATA and power supply, 1*DC_IN, 1*9 PIN F_USB1, 1*4PIN F_USB2
-
Module
K6-G5-J6412
WIFI+Bluetooth Module/ 4G Module(Mini PCIE),with SIM card slot
-
Input
K6-G5-J6412
AC100-240V. 50-60Hz DC
-
Output
K6-G5-J6412
12V-3A
-
K6-G5-J6412
Windows/Linux
-
Dimension
K6-G5-J6412
L 177.5mm*W 126.5mm*H 55mm
-
Weight(Net)
K6-G5-J6412
1.3KG
-
Color
K6-G5-J6412
Sliver
-
Cooling Method
K6-G5-J6412
Fanless Passive Cooling
-
Mounting Options
K6-G5-J6412
Dedicated bracket; Support VESA bracket
-
Certification
K6-G5-J6412
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K6-G5-J6412
-10~60 ℃
-
Storage Temperature
K6-G5-J6412
-10~60 ℃
-
Operation Humidity
K6-G5-J6412
0~95% (No Condensation)
-
Storage Humidity
K6-G5-J6412
0~95% (No Condensation)
