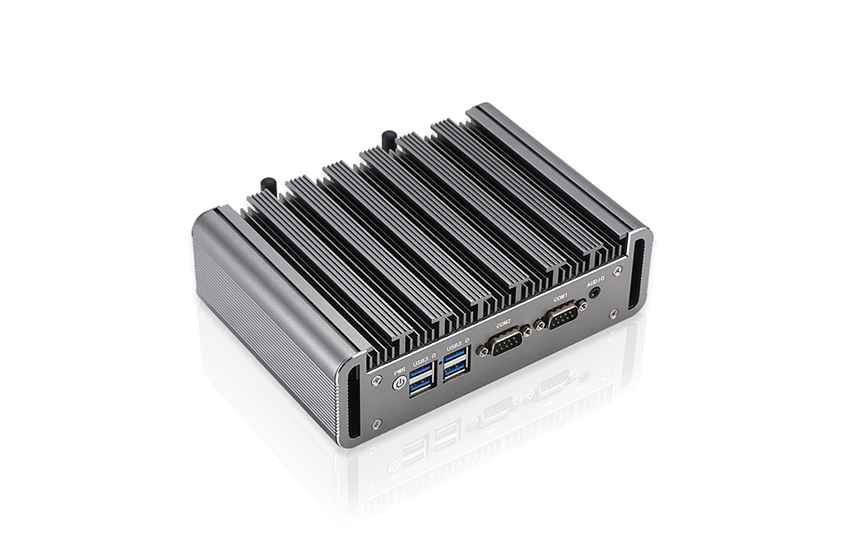

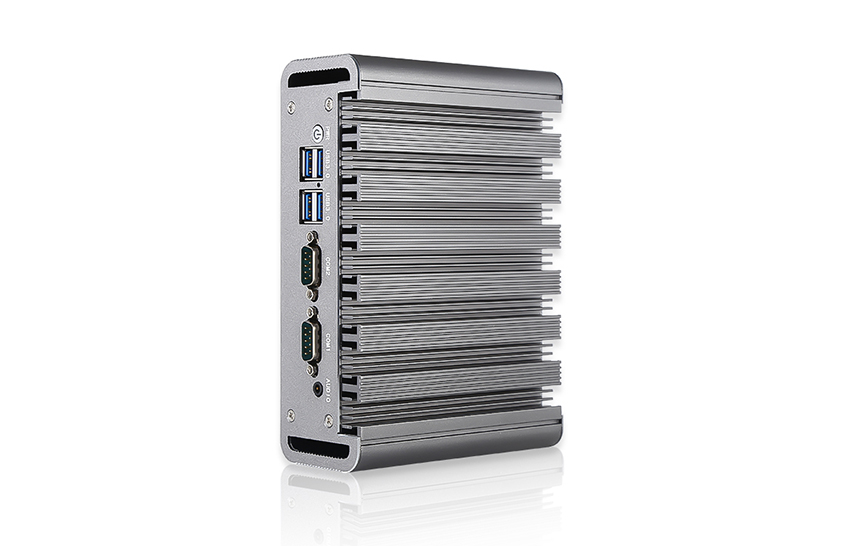

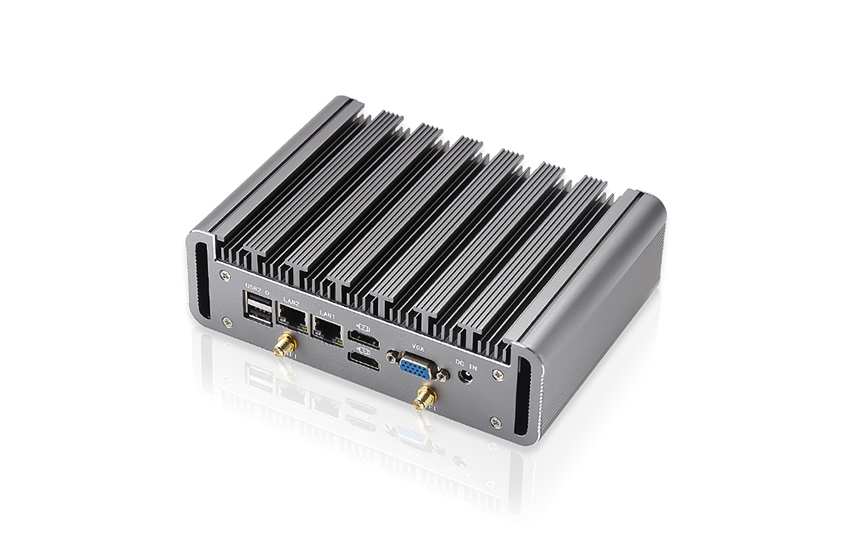

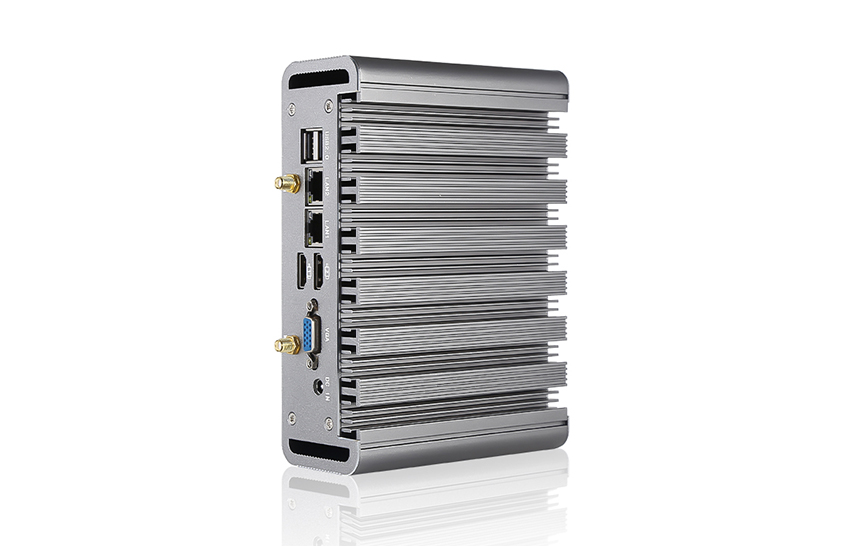

K7-G5 Barebone Fanless Mini PC
Model: K7-G5-5500U
● Intel 5th Gen Core i3/i5/i7 Mini PC
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● Dual Intel Gigabit LAN
● Intel HD Graphics 5500
● 2HDMI+VGA,support triple displays
● 2COM RS232
● TPM2.0 security encryption
● Wide temperature -20~65°C
● Support Din rail, Embedded, Stand, Mount installation
Data Sheet 1
Send InquiryThe K7-G5 Barebone Fanless Mini PC is equipped with an Intel 5th Gen processor and is crafted from high-quality all-aluminum material. It features multiple I/O ports and is highly recommended for applications in Industrial automation, POS systems, kiosks, transport logistics, warehouses, electronic education, and other similar fields.
-
Part No.K7-G5-5500U
-
-
Processor
CPU
Intel Core i7-5500U, 2 Cores/4 Threads
Frequency
2.4GHz
Max Turbo Frequency
3.0GHz
Cache
3 MB Cache
Chipset
Broadwell
-
Memory
Technology
1*SO-DIMM DDR3L
Max. Capacity
8GB
-
Storage
mSATA
SSD 32GB/64GB/128GB/256GB/512GB
SATA
HDD 500GB/1TB/2TB (Optional)
-
Graphics
Intel HD Graphics 5500
-
Audio
Audio
HD Audio realtek ALC 662
-
Network
LAN
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111G
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
I/O Interface

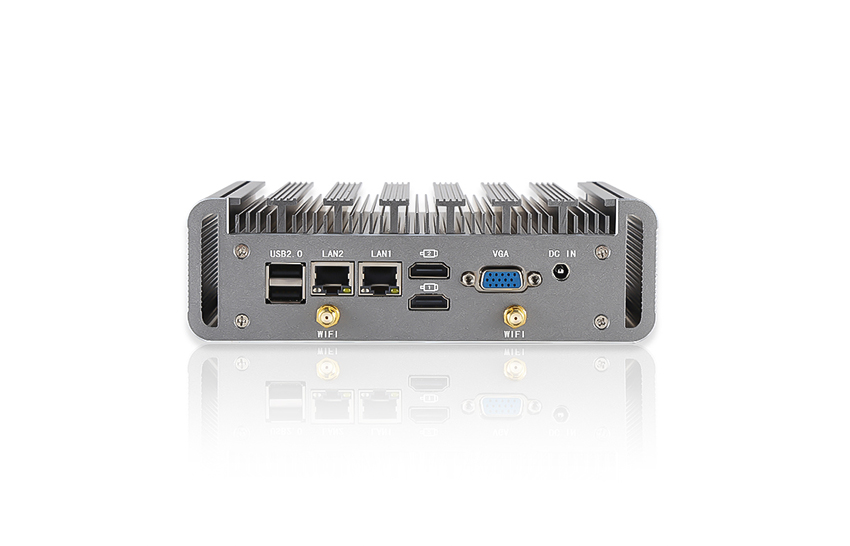

Front
2*HDMI,1*VGA, 2*USB2.0, 2*Ethernet RJ45, 1*DC_IN

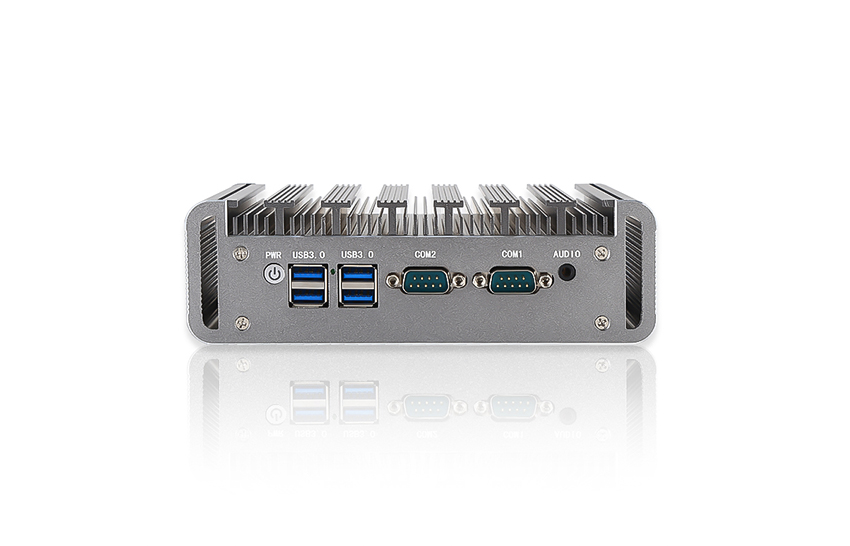

Rear
4*USB3.0, 2*Serial RS232/RS485 COM,1*MIC&SPK
-
Extendable
I/O
4*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
Module
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V. 50-60Hz DC
Output
12V-5A
-
Operating System
Windows/Linux
-
Physical
Dimension
L 178mm*W 123.5mm*H 55mm
Weight(Net)
1.3KG
Color
Sliver
Cooling Method
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~50 ℃
Storage Temperature
-20~60 ℃
Operation Humidity
30~80% (No Condensation)
Storage Humidity
30~80% (No Condensation)
-
CPU
K7-G5-5500U
Intel Core i7-5500U, 2 Cores/4 Threads
-
Frequency
K7-G5-5500U
2.4GHz
-
Max Turbo Frequency
K7-G5-5500U
3.0GHz
-
Cache
K7-G5-5500U
3 MB Cache
-
Chipset
K7-G5-5500U
Broadwell
-
Technology
K7-G5-5500U
1*SO-DIMM DDR3L
-
Max. Capacity
K7-G5-5500U
8GB
-
mSATA
K7-G5-5500U
SSD 32GB/64GB/128GB/256GB/512GB
-
SATA
K7-G5-5500U
HDD 500GB/1TB/2TB (Optional)
-
K7-G5-5500U
Intel HD Graphics 5500
-
Audio
K7-G5-5500U
HD Audio realtek ALC 662
-
LAN
K7-G5-5500U
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111G
-
Wireless
K7-G5-5500U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
Front
K7-G5-5500U
2*HDMI,1*VGA, 2*USB2.0, 2*Ethernet RJ45, 1*DC_IN
-
Rear
K7-G5-5500U
4*USB3.0, 2*Serial RS232/RS485 COM,1*MIC&SPK
-
I/O
K7-G5-5500U
4*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
-
Module
K7-G5-5500U
WIFI+Bluetooth Module (M.2 PCIE)
-
Input
K7-G5-5500U
AC100-240V. 50-60Hz DC
-
Output
K7-G5-5500U
12V-5A
-
K7-G5-5500U
Windows/Linux
-
Dimension
K7-G5-5500U
L 178mm*W 123.5mm*H 55mm
-
Weight(Net)
K7-G5-5500U
1.3KG
-
Color
K7-G5-5500U
Sliver
-
Cooling Method
K7-G5-5500U
Fanless Passive Cooling
-
Mounting Options
K7-G5-5500U
Dedicated bracket; Support VESA bracket
-
Certification
K7-G5-5500U
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K7-G5-5500U
-10~50 ℃
-
Storage Temperature
K7-G5-5500U
-20~60 ℃
-
Operation Humidity
K7-G5-5500U
30~80% (No Condensation)
-
Storage Humidity
K7-G5-5500U
30~80% (No Condensation)
