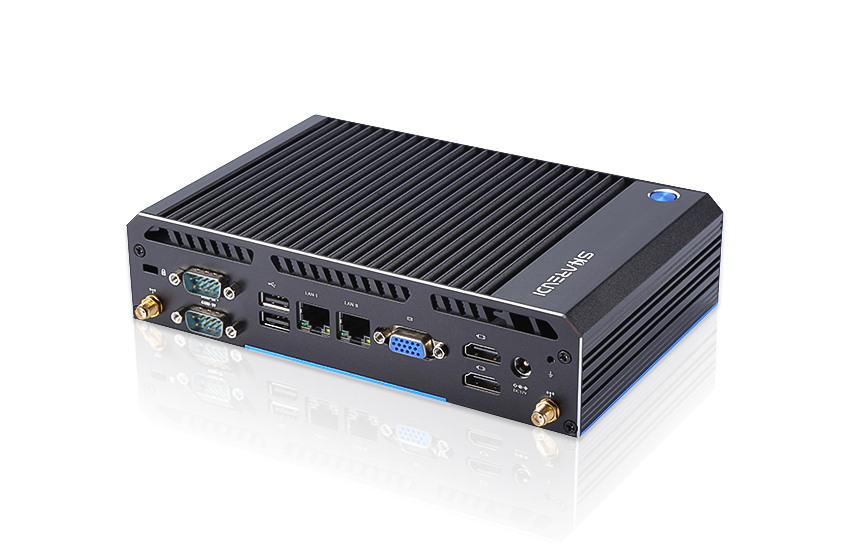

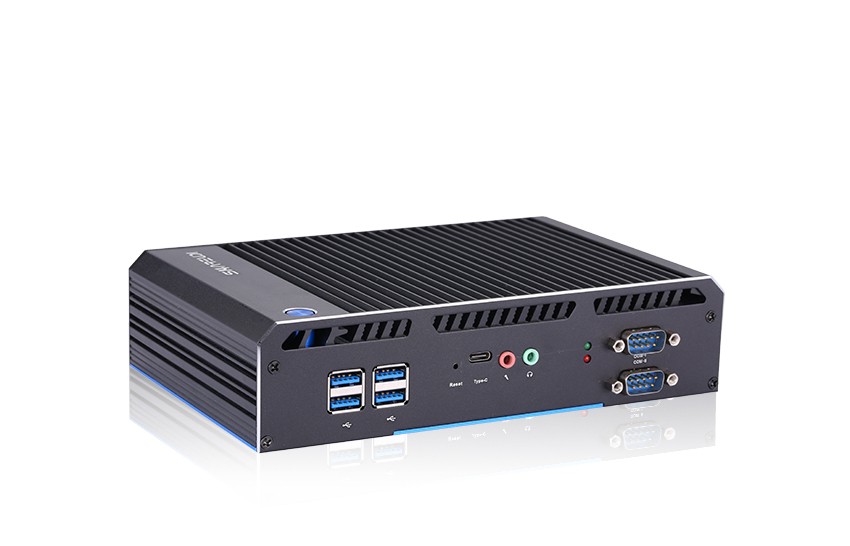

K7-F17H Industrial PC Fanless i7

Model: K7-F17H

● Industrial Fanless System with compact rugged design

● Powered by Intel Core i7 processor

● Extendable 4 xCOM RS232/RS485

● 2 x Ethernet ports

● Support 4G LTE module

● Optional TPM 2.0 support

● 12V ~ 64V wide range power input

● Anti-vibration & shock proof, industrial grade design for 7/24 use

● Working temperature: -20 - 65 °C

Data Sheet 1 Send Inquiry

The K7-F17H is a robust industrial PC that is powered by an Intel i7 processor. It comes with 4 COM RS232/RS485 ports as a standard configuration. This industrial PC stands out for its multiple and customizable I/O options, along with excellent durability, making it highly suitable for various industrial applications.

Specification K7-F17H
Get A Quote
Processor
  • CPU

    K7-F17H-5500U

    Intel Core i7-5500U, 2 Cores/4 Threads

    K7-F17H-5600U

    Intel Core i7-5600U, 2 Cores/4 Threads

  • Frequency

    K7-F17H-5500U

    2.4GHz

    K7-F17H-5600U

    2.6GHz

  • Max Turbo Frequency

    K7-F17H-5500U

    3.0GHz

    K7-F17H-5600U

    3.2GHz

  • Cache

    K7-F17H-5500U

    4 MB Cache

    K7-F17H-5600U

    4 MB Cache

  • Chipset

    K7-F17H-5500U

    Broadwell

    K7-F17H-5600U

    Broadwell

Memory
  • Technology

    K7-F17H-5500U

    2*DDR3L slots

    K7-F17H-5600U

    2*DDR3L slots

  • Max. Capacity

    K7-F17H-5500U

    16GB

    K7-F17H-5600U

    16GB

Storage
  • MSATA

    K7-F17H-5500U

    SSD 32GB/64GB/128GB/256GB/512GB

    K7-F17H-5600U

    SSD 32GB/64GB/128GB/256GB/512GB

  • SATA

    K7-F17H-5500U

    HDD 500GB/1TB/2TB (Optional)

    K7-F17H-5600U

    HDD 500GB/1TB/2TB (Optional)

Graphics

  • K7-F17H-5500U

    Intel HD Graphics 5500

    K7-F17H-5600U

    Intel HD Graphics 5500

Audio

  • K7-F17H-5500U

    HD Audio realtek ALC 662

    K7-F17H-5600U

    HD Audio realtek ALC 662

Network
  • LAN

    K7-F17H-5500U

    2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111HE

    K7-F17H-5600U

    2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111HE

  • Wireless

    K7-F17H-5500U

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

    K7-F17H-5600U

    802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module

I/O Interface

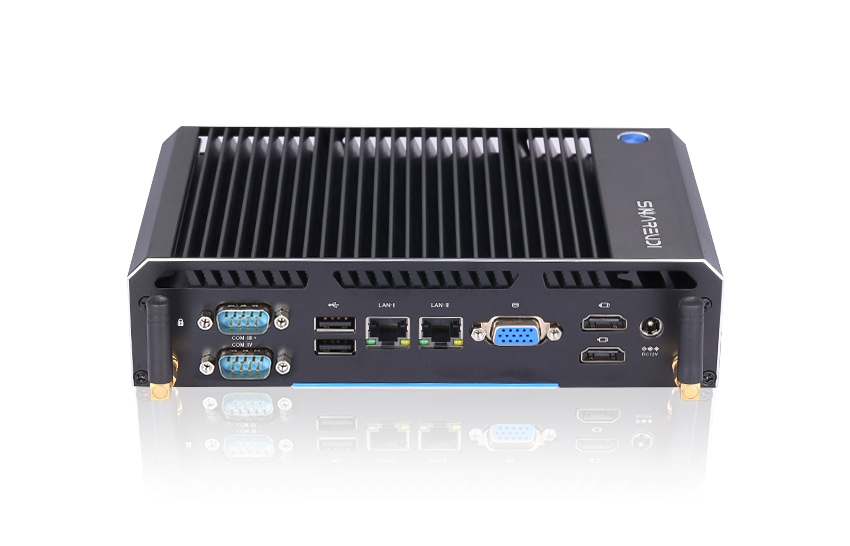

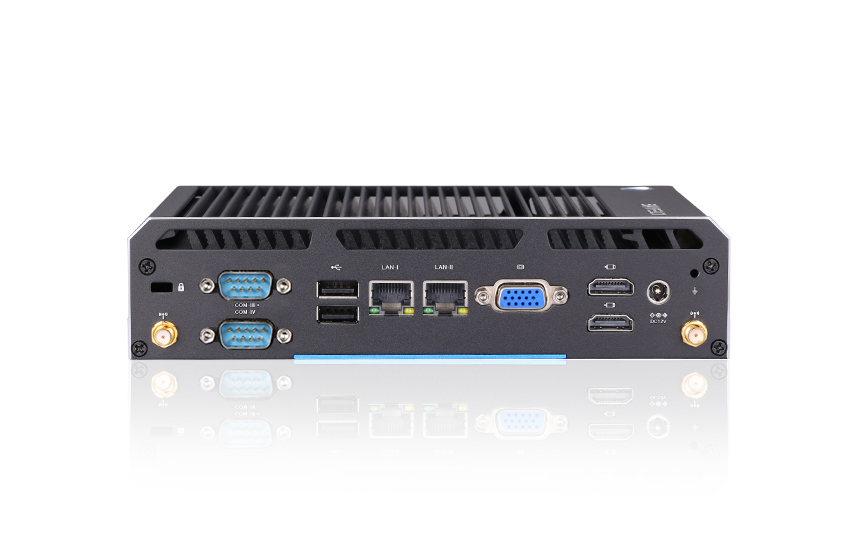

  • Front

    K7-F17H-5500U

    2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional), DC 12V

    K7-F17H-5600U

    2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional), DC 12V

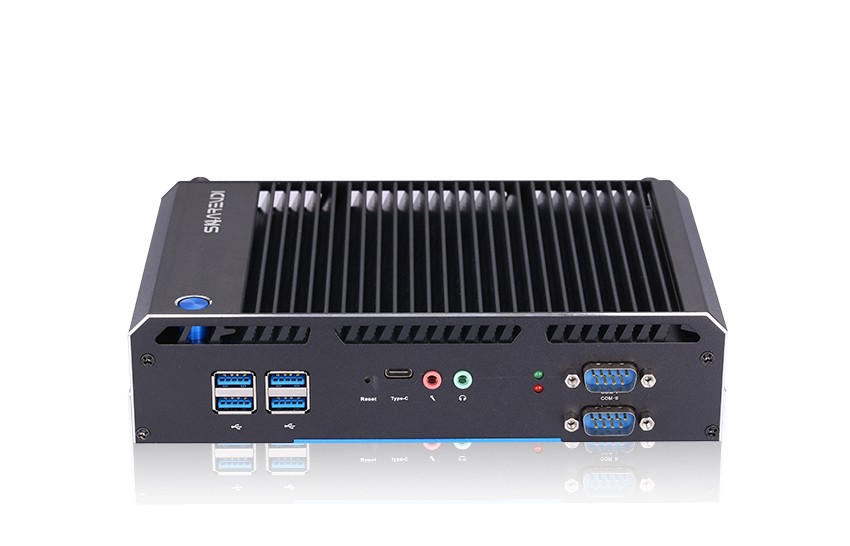

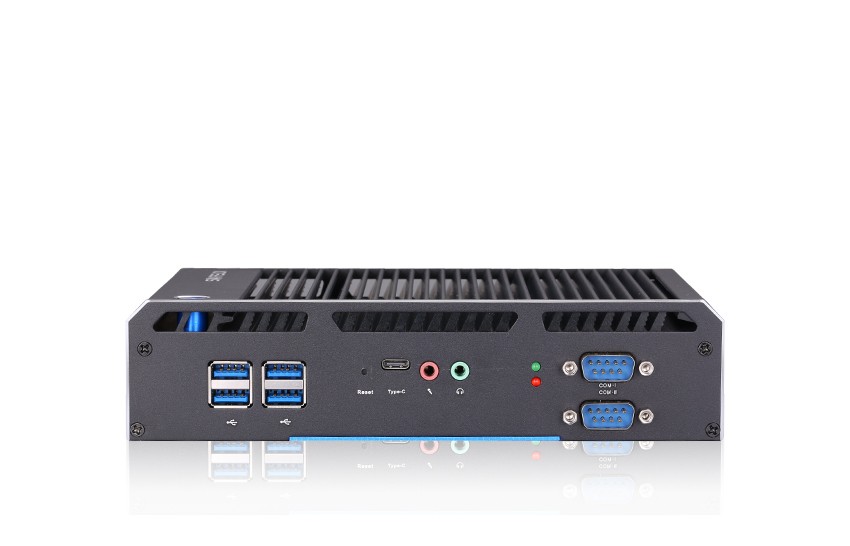

  • Rear

    K7-F17H-5500U

    4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485

    K7-F17H-5600U

    4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485

Extendable
  • I/O

    K7-F17H-5500U

    1*4Pin AT、1*JHDMI1、1*JVGA、1*F_AUDIO、3*F_USB2.0、1 * FPANEL、1*SATA HDD、 1 * JSATA_PWR1、2*CPU（CFAN1,SFAN1）、4*COM、1 *TPM、1 *SPEAKER、1*IVCN1、 1*JPS2、1*GPIO2、1*PRINT1

    K7-F17H-5600U

    1*4Pin AT、1*JHDMI1、1*JVGA、1*F_AUDIO、3*F_USB2.0、1 * FPANEL、1*SATA HDD、 1 * JSATA_PWR1、2*CPU（CFAN1,SFAN1）、4*COM、1 *TPM、1 *SPEAKER、1*IVCN1、 1*JPS2、1*GPIO2、1*PRINT1

  • Module

    K7-F17H-5500U

    WIFI+Bluetooth Module (M.2 PCIE)

    K7-F17H-5600U

    WIFI+Bluetooth Module (M.2 PCIE)

Power
  • Input

    K7-F17H-5500U

    AC100-240V. 50-60Hz DC

    K7-F17H-5600U

    AC100-240V. 50-60Hz DC

  • Output

    K7-F17H-5500U

    12V - 5A

    K7-F17H-5600U

    12V - 5A

  • Wide Voltage

    K7-F17H-5500U

    12-64V phoenix connector（Optional）

    K7-F17H-5600U

    12-64V phoenix connector（Optional）

Operating System

  • K7-F17H-5500U

    Windows/Linux

    K7-F17H-5600U

    Windows/Linux

Physical
  • Dimension

    K7-F17H-5500U

    L 197.4mm*W 126.3mm*H 47.5mm

    K7-F17H-5600U

    L 197.4mm*W 126.3mm*H 47.5mm

  • Weight(Net)

    K7-F17H-5500U

    1.0kg

    K7-F17H-5600U

    1.0kg

  • Color

    K7-F17H-5500U

    Black

    K7-F17H-5600U

    Black

  • Cooling Method

    K7-F17H-5500U

    Fanless Passive Cooling

    K7-F17H-5600U

    Fanless Passive Cooling

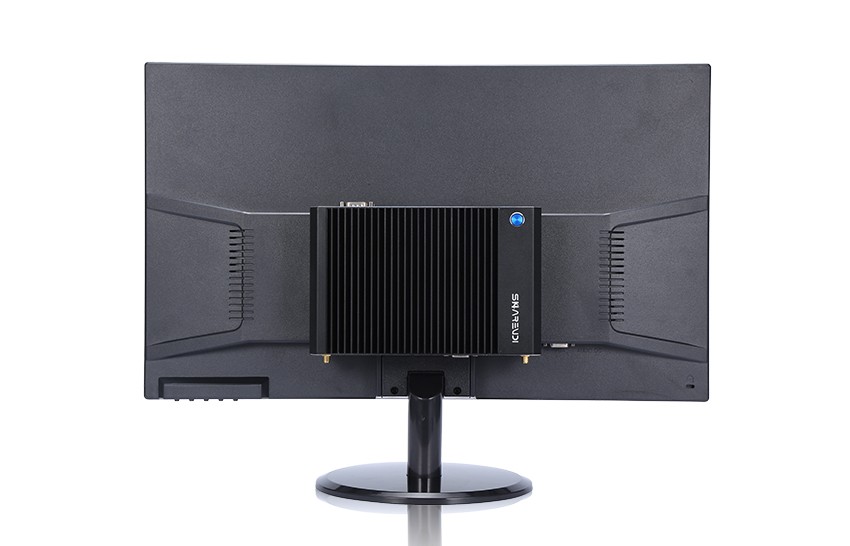

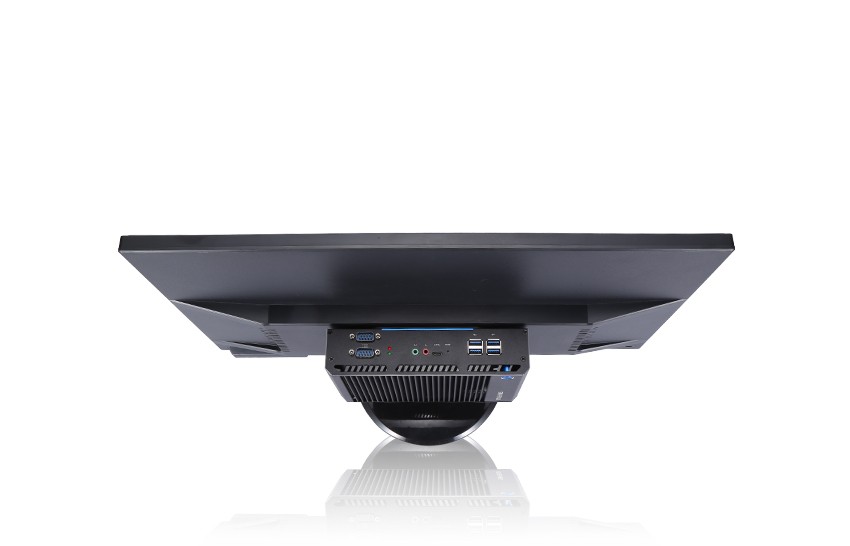

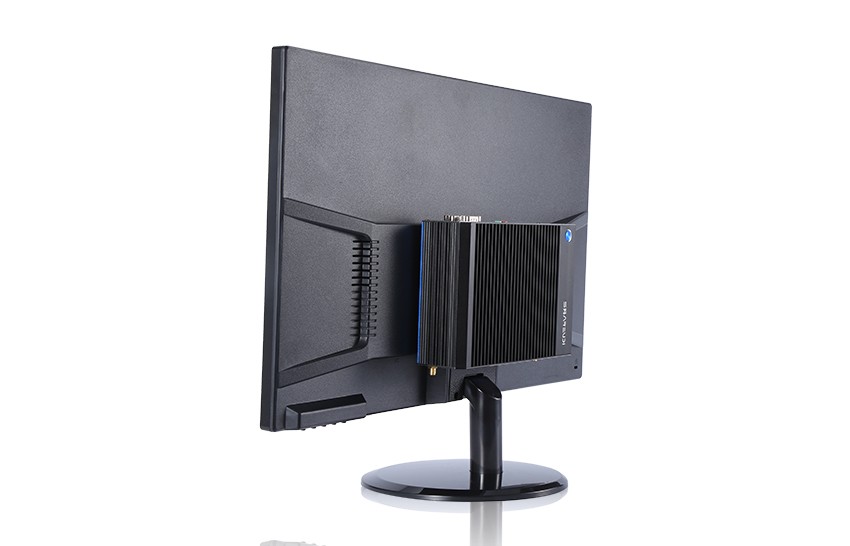

  • Mounting Options

    K7-F17H-5500U

    Dedicated bracket; Support VESA bracket

    K7-F17H-5600U

    Dedicated bracket; Support VESA bracket

  • Certification

    K7-F17H-5500U

    CE, FCC, ROHS, ISO, UL

    K7-F17H-5600U

    CE, FCC, ROHS, ISO, UL

Environment
  • Operating Temperature

    K7-F17H-5500U

    -10~60 ℃

    K7-F17H-5600U

    -10~60 ℃

  • Storage Temperature

    K7-F17H-5500U

    -10~60 ℃

    K7-F17H-5600U

    -10~60 ℃

  • Operation Humidity

    K7-F17H-5500U

    0~95% (No Condensation)

    K7-F17H-5600U

    0~95% (No Condensation)

  • Storage Humidity

    K7-F17H-5500U

    0~95% (No Condensation)

    K7-F17H-5600U

    0~95% (No Condensation)
