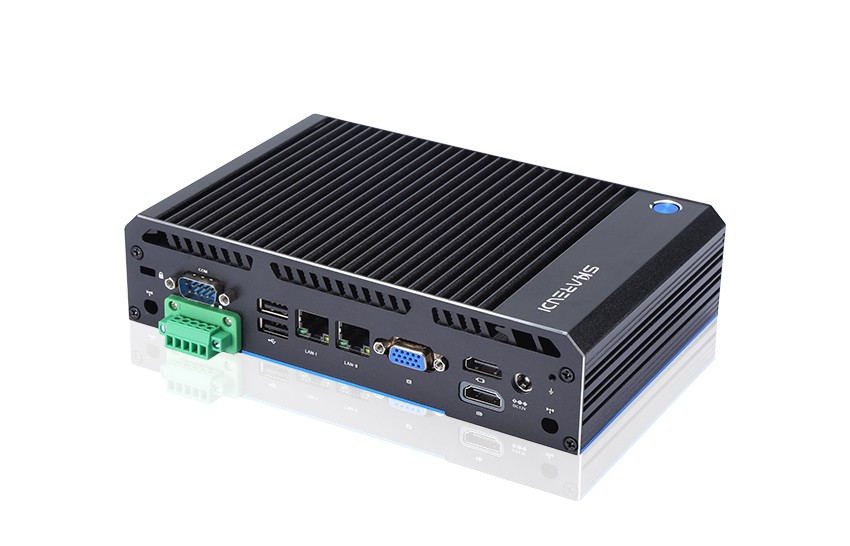

K7-F17H Rugged Embedded PC
Model: K7-F17H-7500U
● Dual Ethernet ports 10/100/1000 Mbps LAN
● Dual HDMI up to 4K resolution
● Support DIN-Rail Installation
● 12V ~ 64V wide range power input
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● 3 x RS232/ RS485 + 1-2 x GPIO
● -20 ~ 65 °C extended operating temperature
● Preinstalled with Windows 10 IoT
Data Sheet 1
Send InquiryThe ShareVDI K7-F17H is a formidable industrial embedded PC driven by an Intel Core i7 processor. This industrial embedded computer is furnished with multiple interfaces and expandable I/O ports, fulfilling diverse connectivity requirements. Crafted with high-quality, industrial-grade components, this embedded PC guarantees reliable performance even in extreme conditions, operating smoothly within a temperature range of -10 to 65°C. With its rugged design, the K7-F17H industrial PC embedded is ideally suited for a wide variety of applications, ranging from self-service equipment and transportation systems to medical devices and industrial automation.
As a professional embedded PC manufacturer, ShareVDI offers the K7-F17H rugged embedded computer, which stands out as a dependable solution for demanding environments where continuous operation is of utmost importance.
-
Part No.K7-F17H-7500U
-
-
Processor
CPU
Intel Core i7-7500U，2 Cores / 4 Threads
Frequency
2.70GHz
Max Turbo Frequency
3.50GHz
Cache
4 MB Intel® Smart Cache
Chipset
Kaby Lake
-
Memory
Technology
2*DDR3L slots
Max. Capacity
16 GB
-
Storage
MSATA
SSD 32GB/64GB/128GB/256GB/512GB
SATA
HDD 500GB/1TB/2TB (Optional)
-
Graphics
Graphics
Intel® HD Graphics 620
-
Audio
Audio
HD Audio realtek ALC 662
-
Network
LAN
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
I/O Interface

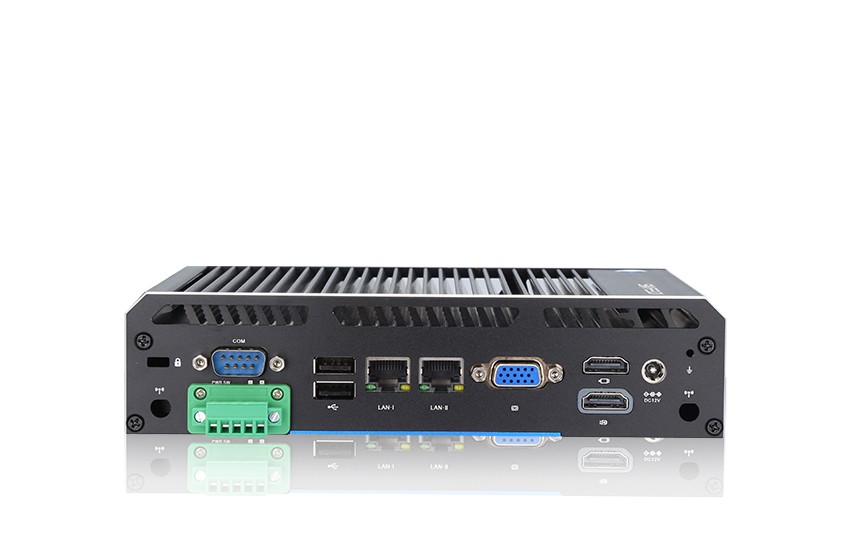

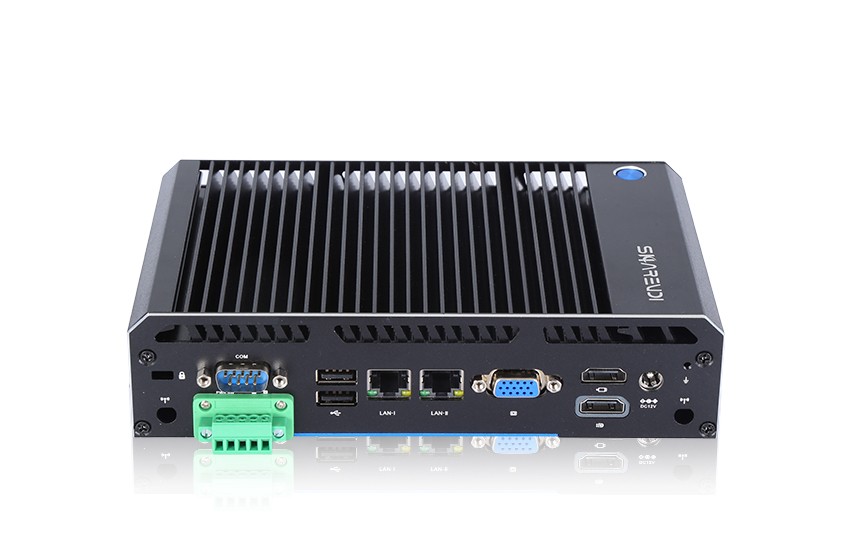

Front
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V

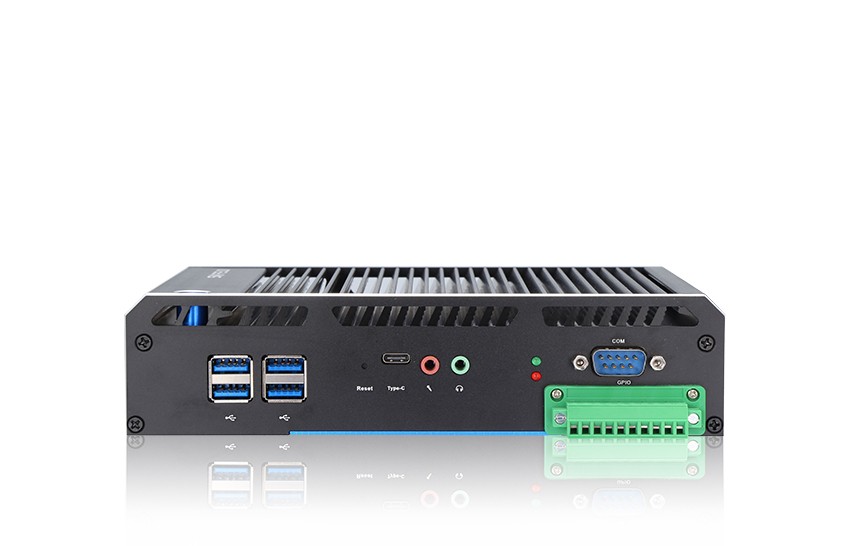

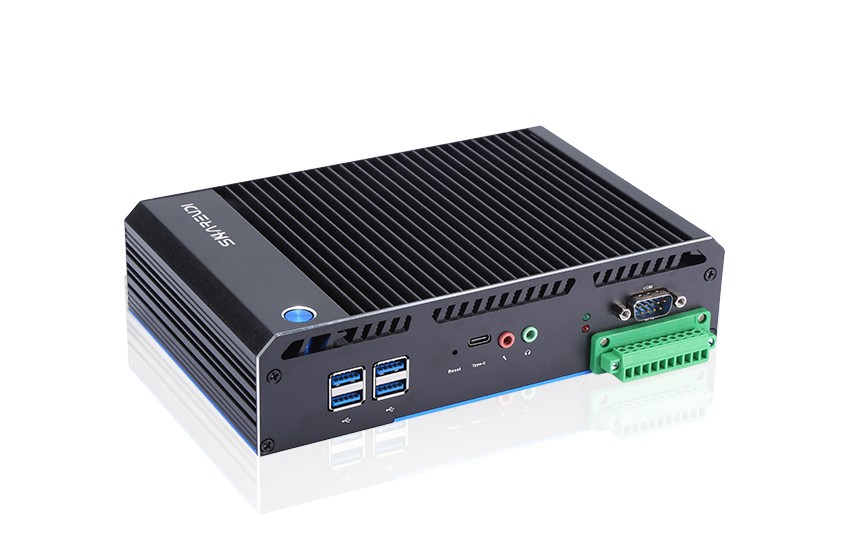

Rear
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
Extendable
I/O
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
Module
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V. 50-60Hz DC
Output
12V-5A
Wide Voltage
12-64V phoenix connector（Optional）
-
Operating System
Windows/Linux
-
Physical
Dimension
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0KG
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~60 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
CPU
K7-F17H-7500U
Intel Core i7-7500U，2 Cores / 4 Threads
-
Frequency
K7-F17H-7500U
2.70GHz
-
Max Turbo Frequency
K7-F17H-7500U
3.50GHz
-
Cache
K7-F17H-7500U
4 MB Intel® Smart Cache
-
Chipset
K7-F17H-7500U
Kaby Lake
-
Technology
K7-F17H-7500U
2*DDR3L slots
-
Max. Capacity
K7-F17H-7500U
16 GB
-
MSATA
K7-F17H-7500U
SSD 32GB/64GB/128GB/256GB/512GB
-
SATA
K7-F17H-7500U
HDD 500GB/1TB/2TB (Optional)
-
Graphics
K7-F17H-7500U
Intel® HD Graphics 620
-
Audio
K7-F17H-7500U
HD Audio realtek ALC 662
-
LAN
K7-F17H-7500U
2x Ethernet 10/100/1000Mbps Adaptive, RTL 8111E
-
Wireless
K7-F17H-7500U
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
Front
K7-F17H-7500U
2*HDMI, 1*VGA, 2*USB2.0, 2*Ethernet RJ45, 2*Serial RS232/RS485(Optional),DC 12V
-
Rear
K7-F17H-7500U
4*USB3.0, 1*Type-C, 1*MIC& SPK, 2*Serial RS232/RS485
-
I/O
K7-F17H-7500U
2*COM-1 Pin、1*CPU-FAN、1*JP1 Pin、1*FP AUDIO Pin、1*JP3 Pin、1*TPM Pin、1*PCIE-GPIO Pin、1*BAT_CON(Battery)、1*Power Switch indicator Pin
-
Module
K7-F17H-7500U
WIFI+Bluetooth Module (M.2 PCIE)
-
Input
K7-F17H-7500U
AC100-240V. 50-60Hz DC
-
Output
K7-F17H-7500U
12V-5A
-
Wide Voltage
K7-F17H-7500U
12-64V phoenix connector（Optional）
-
K7-F17H-7500U
Windows/Linux
-
Dimension
K7-F17H-7500U
L 197.4mm*W 126.3mm*H 47.5mm
-
Weight(Net)
K7-F17H-7500U
1.0KG
-
Color
K7-F17H-7500U
Black
-
Cooling Method
K7-F17H-7500U
Fanless Passive Cooling
-
Mounting Options
K7-F17H-7500U
Dedicated bracket; Support VESA bracket
-
Certification
K7-F17H-7500U
CE, FCC, ROHS, ISO, UL
-
Operating Temperature
K7-F17H-7500U
-10~60 ℃
-
Storage Temperature
K7-F17H-7500U
-10~60 ℃
-
Operation Humidity
K7-F17H-7500U
0~95% (No Condensation)
-
Storage Humidity
K7-F17H-7500U
0~95% (No Condensation)
