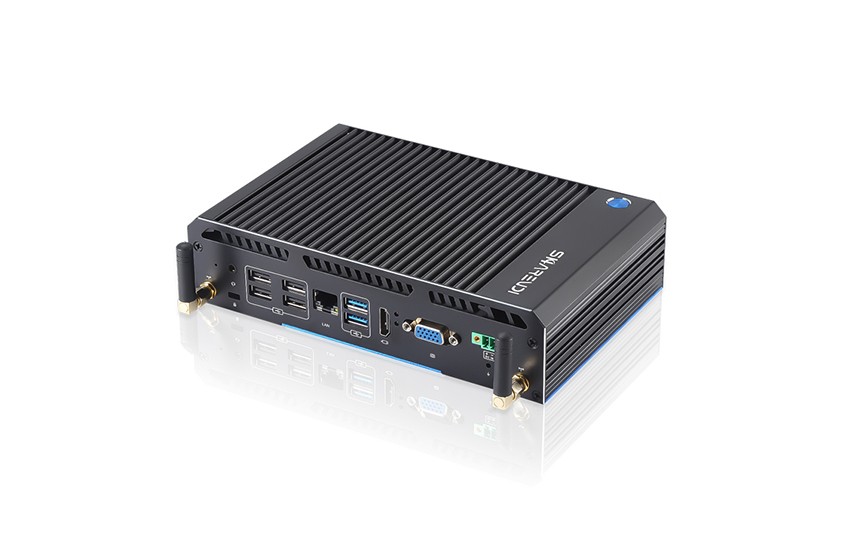

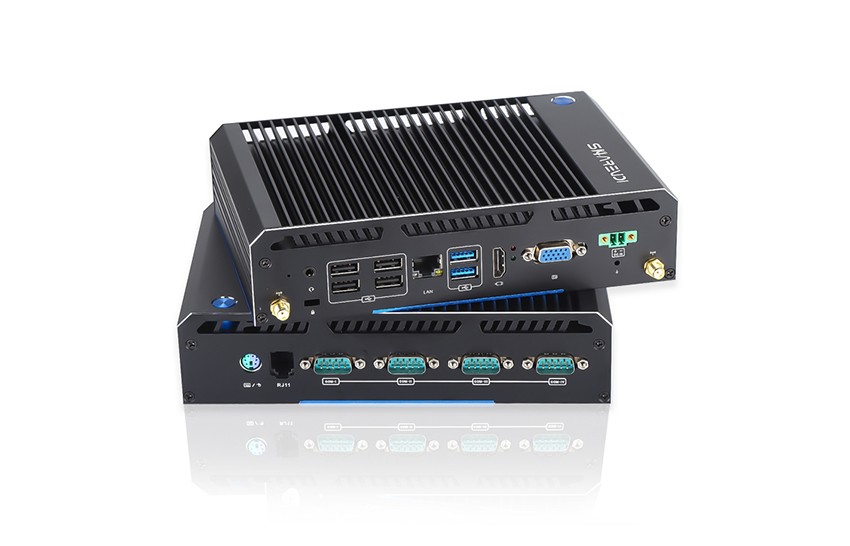

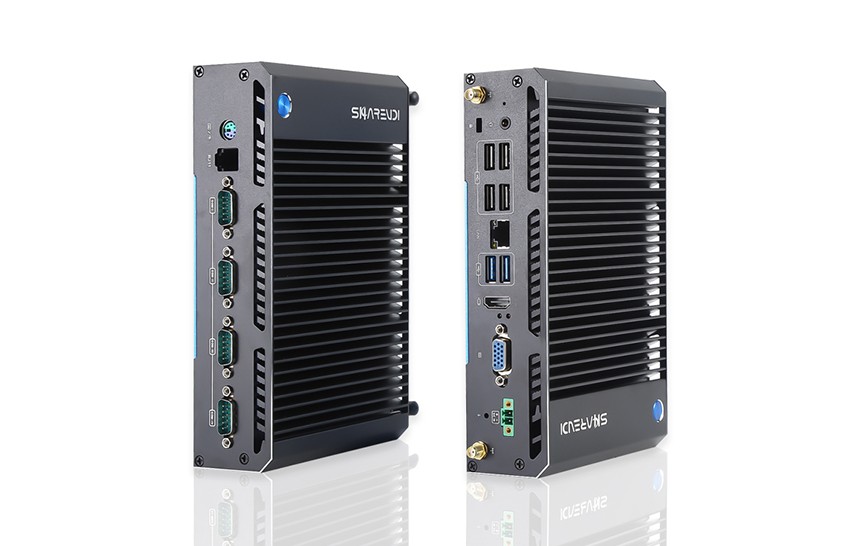

K8-F17HI Fanless POS Computer
Model: K8-F17HI-N3710
● Intel Pentium N3710 quad core processor
● Anti-vibration & shock proof, industrial grade design for 7/24 use
● Flexible expansion for I/O ports
● 4x COM ports , RS232/ RS485 (0V/5V/12V)
● 1x Gigabit LAN, support POE function
● Dual Display (HDMI+VGA)
● 1x RJ11 port
● 1x PS/2 port
● 12V ~64V wide range power input
● Wide temperature -20~65°C
● Support Din rail, Embedded, Stand, Mount installation
Data Sheet 1
Send InquiryThe K8-F17HI is a fanless POS computer boasting a small size and conveniently positioned connectors. Its sleek box design will look impeccable in any environment, even in confined spaces. This product is highly ideal for retail settings, financial institutions, banks, points of sale, and more.
-
Part No.K8-F17HI-N3710
-
-
Processor
CPU
Intel Pentium N3710，4 Cores / 4 Threads
Frequency
1.60 GHz
Max Turbo Frequency
2.56 GHz
Cache
2 MB L2 Cache
Chipset
Braswell
-
Memory
Technology
1*SO-DIMM DDR3 slot
Max. Capacity
8GB
-
Storage
M.2 SATA
SSD 64GB/128GB/256GB/512GB/1TB
SATA
HDD 500GB/1TB/2TB (Optional)
-
Graphics
Graphics
Intel® HD Graphics
-
Audio
Audio
HD Audio ALC 897
-
Network
LAN
10/100/1000Mbps Adaptive, RTL 8111H / RTL8111GUS
Wireless
802.11b/g/n 2.4G 1T/1R WiFi with Bluetooth V2.1+EDR/Bluetooth 3.0+HS/4.0 or IEEE 802.11a/b/g/n/ac Wireless LAN 1T1R and Bluetooth 4.2 Combo Module
-
I/O Interface

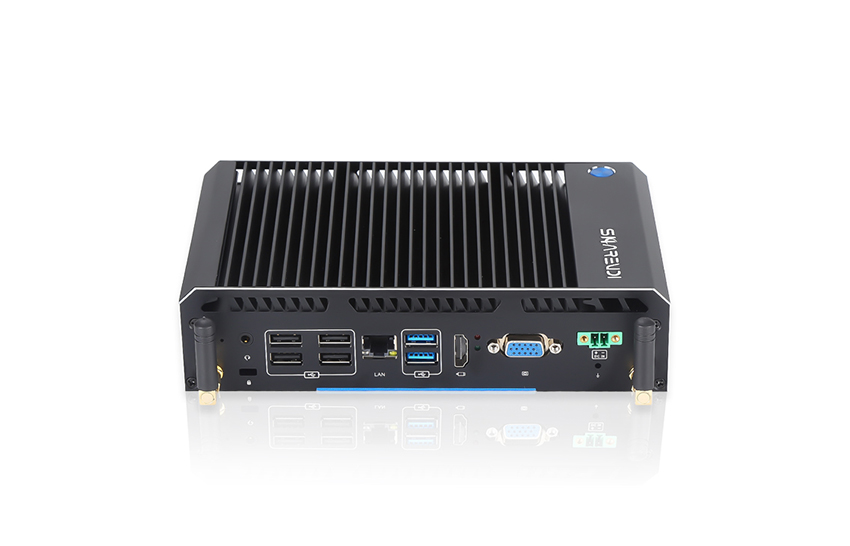

Front
1*HDMI,1*VGA, 2*USB3.0, 4*USB2.0, 1*Ethernet RJ45, 1*DC_IN(Phoenix Connector),1*MIC& SPK

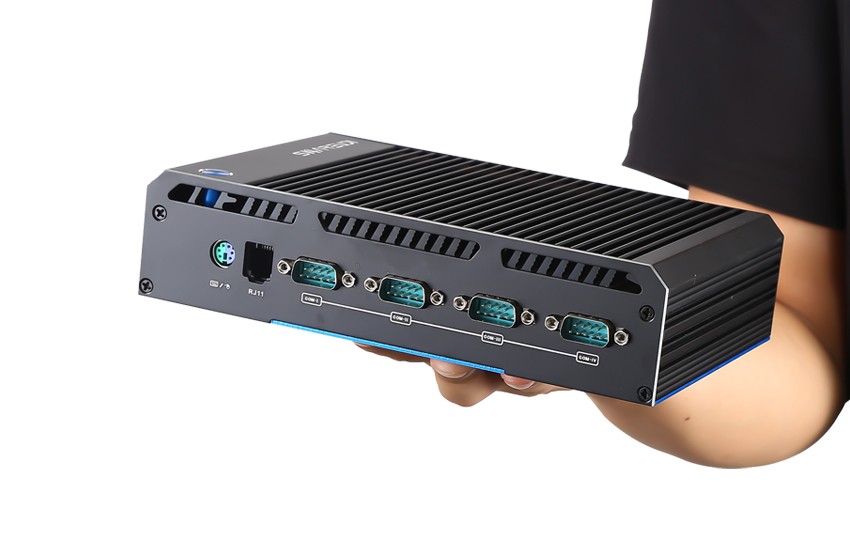

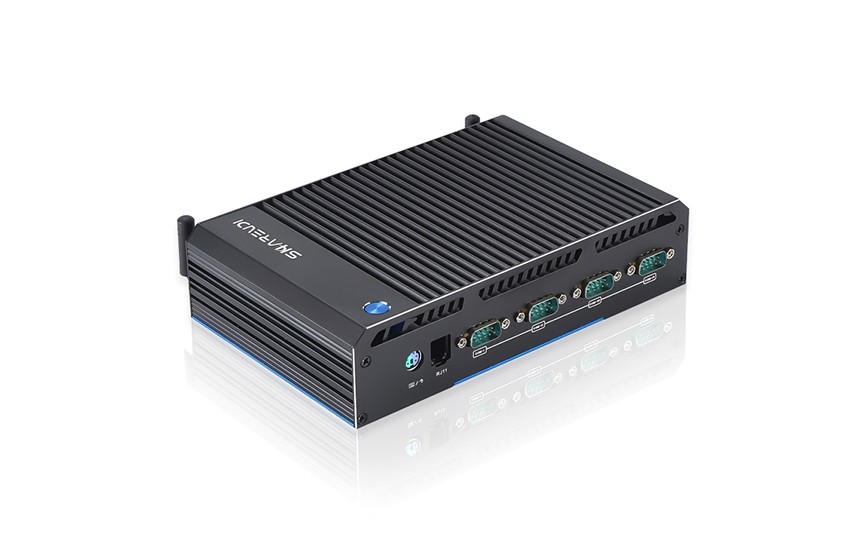

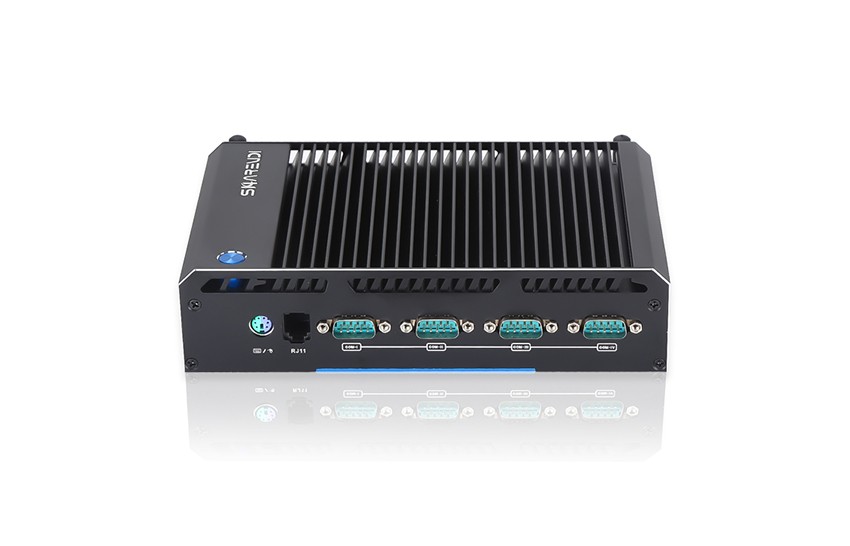

Rear
1*RJ11, 1*PS/2, 4*Serial RS232/RS485 COM (Optional)
-
Extendable
I/O
4*COM 、1*F-PANEL 、1*PCIE GPIO 、1*CPU-FAN、1*TPM Pin、1*SATA HDD（SATA III） 1* LVDS、1*SPEAKER(4pin)、1*SIM、1*CMOS、AT_MODE(AUTO_PWR) 、1*6pin 、1*USB2.0
Module
WIFI+Bluetooth Module (M.2 PCIE)
-
Power
Input
AC100-240V. 50-60Hz DC
Output
12V-3A
Wide Voltage
12-64V phoenix connector （Optional）
-
Operating System
Windows /Linux
-
Physical
Dimension
L 197.4mm*W 126.3mm*H 47.5mm
Weight(Net)
1.0KG
Color
Black
Cooling Method
Fanless Passive Cooling
Mounting Options
Dedicated bracket; Support VESA bracket
Certification
CE, FCC, ROHS, ISO, UL
-
Environment
Operating Temperature
-10~65 ℃
Storage Temperature
-10~60 ℃
Operation Humidity
0~95% (No Condensation)
Storage Humidity
0~95% (No Condensation)
-
