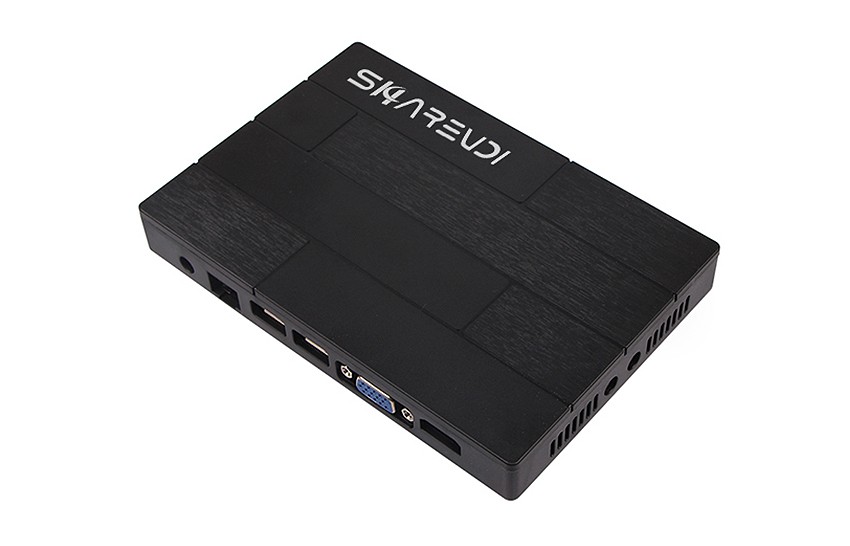

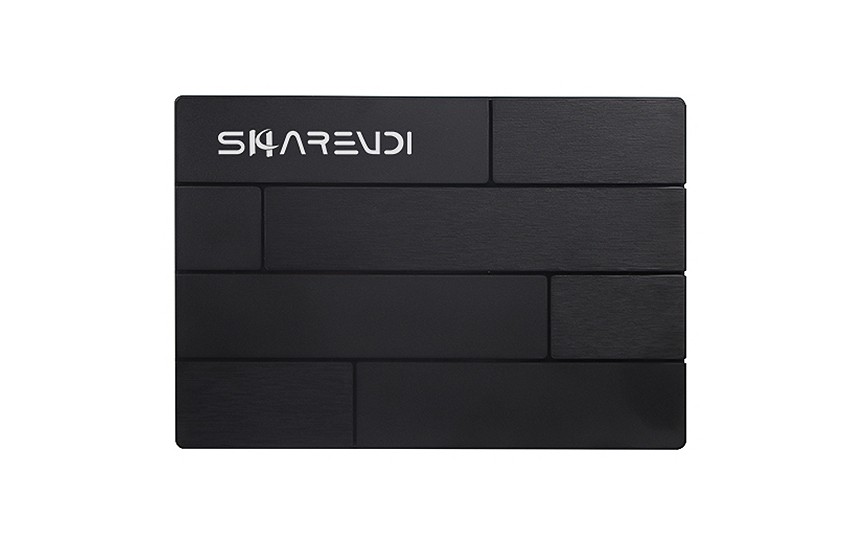

X7 Digital Sigange Displayer
Model: X7
Support the mainstream video format and image decoding,dual screen different display function
Dual 6/8/10 bit LVDS Interface, support 2K level output, can drive 7 "to 108" 2K display screen
Support eDP display interface output
Support 4K * 2K Class hd-mi-2160P output
Support 4K video playback.
Support infrared remote control, BT, 4G/3G module
Support serial port expansion/IO port extension /MIPI camera /hd-mi_OUT output and other functions.
Data Sheet 1
Send InquiryX7 adopts the Rockchip RK3288 quad-core chip scheme, supprt mainstream video format and image decoding, dual screen display, which is good for Digital Signage , Advertising machine, POS, Industrial Control etc.
-
Part No.X7-RK3288
-
-
General
Certification
CE,FCC,ROHS,ISO
Dimension(W*H*D)
157*157*107mm
Mounting Options

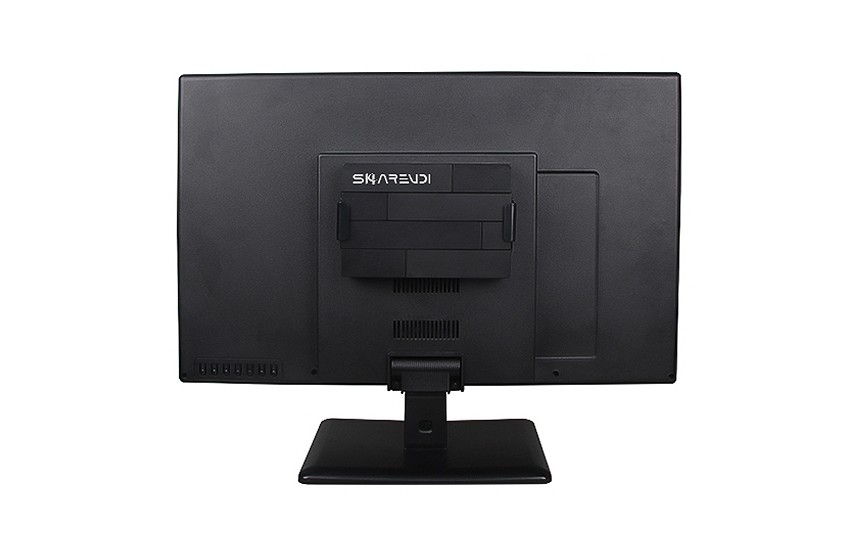

Embedded Vesa Mount/Vertical Stand
Cooling Method
Fan cooling
Weight(Net)
0.4kg
-
Color
Black
-
Processor System
CPU
RK3288 Cortex-A17
Core Number
2 Cores
Frequency
1.8GHZ *4
Chipset
ARM
Graphics
Mail-T764
-
Audio
MP3, WAV, APE, FLAC, M4A
-
Memory
Technology
DDR3L 1866 MHz
Max. Capacity
2GB
-
Storage
MSATA
Onboard 16GB EMMC（32GB optional）
SATA
NONE
-
I/O Interface
Front

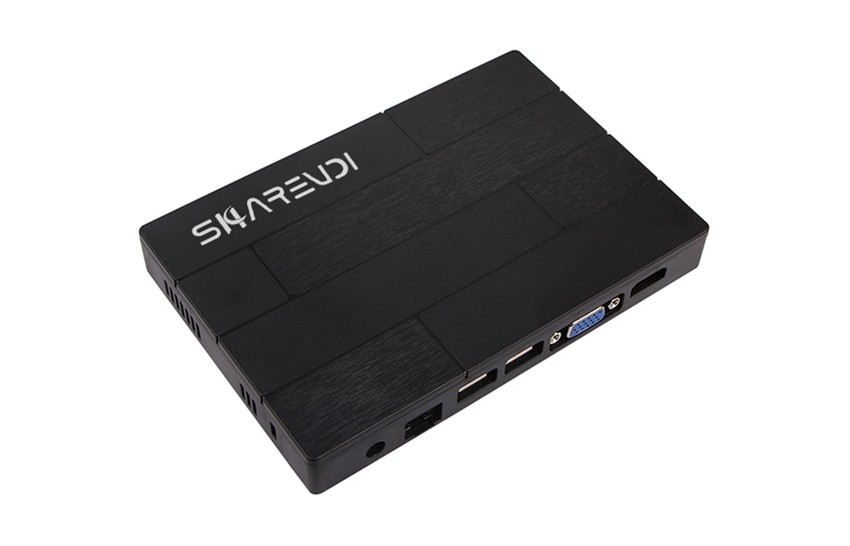

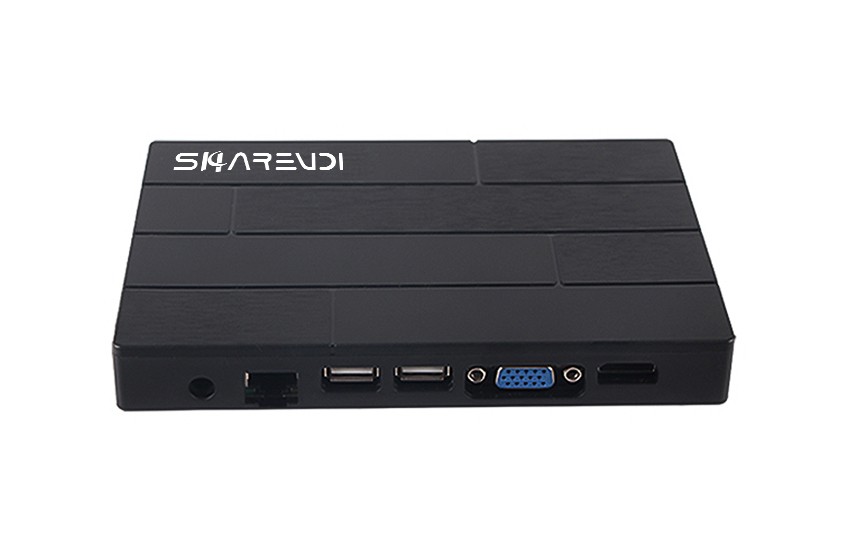

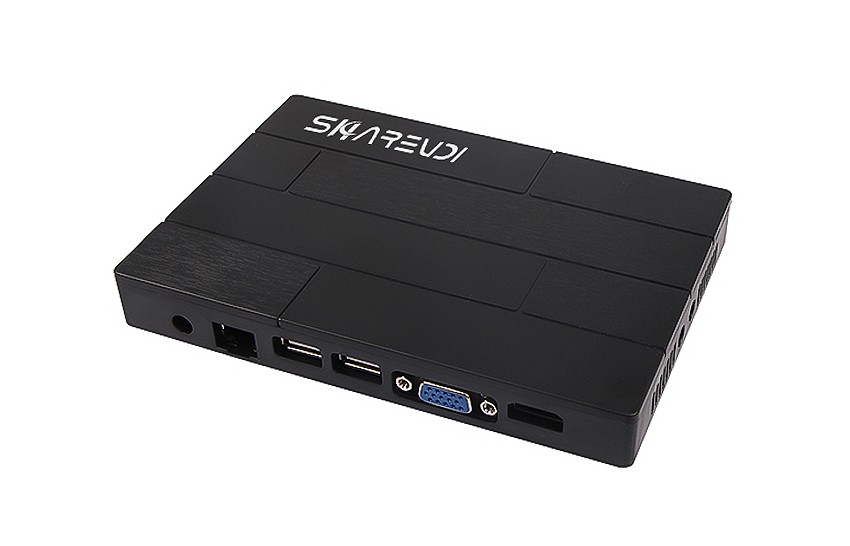

DC Connector(5V IN), Ethernet, USB,VGA, HDMI
Rear

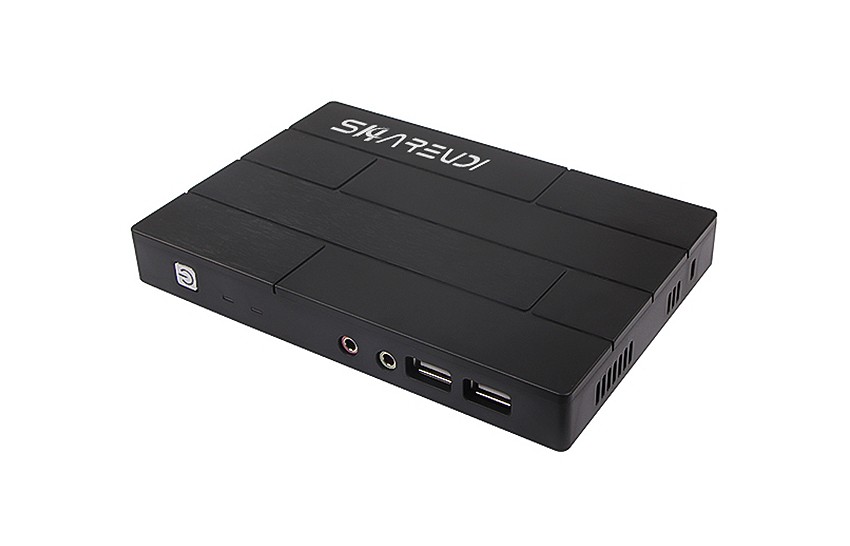

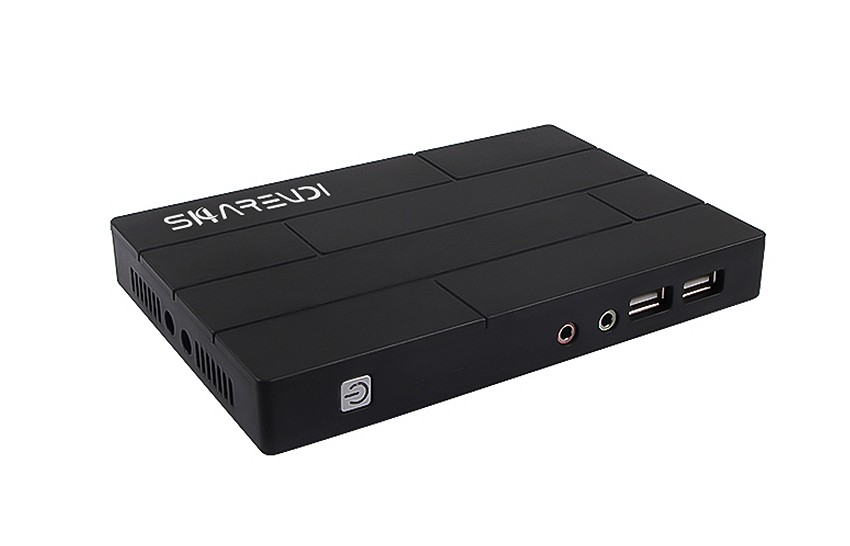

MIC JACK, Speaker, 2*USB-HOST JACK
-
Network
10/100/1000Mb
-
WIFI
Module
1*mini PCIE-half port wifi module
1*mini PCIE full port 3G/4G module
Antenna
2*inner RF cable and 2* external antennas
-
Power
Input Voltage
AC100-240V.50-60HZ
Connector Type
DC Plug in
Power Output
DC5V 3A
-
Software Specification
OS
Android 7.1/Ubuntu18.04
Default Application
Camera, Browser, Resource Manager, Clock, Alarm, Calculator
Language
Multi languages
Input
Standard Andriod Keyboard
Network
Browser -ChromeLite
System Management
APK installer
Automatic Recovery after system breaks,7*24 hours unattended
System setting
Support OTA Remote Upgrade
-
Certification
X7-RK3288
CE,FCC,ROHS,ISO
-
Dimension(W*H*D)
X7-RK3288
157*157*107mm
-
Mounting Options
X7-RK3288
Embedded Vesa Mount/Vertical Stand
-
Cooling Method
X7-RK3288
Fan cooling
-
Weight(Net)
X7-RK3288
0.4kg
-
X7-RK3288
Black
-
CPU
X7-RK3288
RK3288 Cortex-A17
-
Core Number
X7-RK3288
2 Cores
-
Frequency
X7-RK3288
1.8GHZ *4
-
Chipset
X7-RK3288
ARM
-
Graphics
X7-RK3288
Mail-T764
-
X7-RK3288
MP3, WAV, APE, FLAC, M4A
-
Technology
X7-RK3288
DDR3L 1866 MHz
-
Max. Capacity
X7-RK3288
2GB
-
MSATA
X7-RK3288
Onboard 16GB EMMC（32GB optional）
-
SATA
X7-RK3288
NONE
-
Front
X7-RK3288
DC Connector(5V IN), Ethernet, USB,VGA, HDMI
-
Rear
X7-RK3288
MIC JACK, Speaker, 2*USB-HOST JACK
-
X7-RK3288
10/100/1000Mb
-
Module
X7-RK3288
1*mini PCIE-half port wifi module
-
X7-RK3288
1*mini PCIE full port 3G/4G module
-
Antenna
X7-RK3288
2*inner RF cable and 2* external antennas
-
Input Voltage
X7-RK3288
AC100-240V.50-60HZ
-
Connector Type
X7-RK3288
DC Plug in
-
Power Output
X7-RK3288
DC5V 3A
-
OS
X7-RK3288
Android 7.1/Ubuntu18.04
-
Default Application
X7-RK3288
Camera, Browser, Resource Manager, Clock, Alarm, Calculator
-
Language
X7-RK3288
Multi languages
-
Input
X7-RK3288
Standard Andriod Keyboard
-
Network
X7-RK3288
Browser -ChromeLite
-
System Management
X7-RK3288
APK installer
-
X7-RK3288
Automatic Recovery after system breaks,7*24 hours unattended
-
X7-RK3288
System setting
-
X7-RK3288
Support OTA Remote Upgrade
