Features of ARM architecture embedded motherboard

The embedded motherboard can be understood as the CPU board embedded in the device for control and data processing, that is the "brain" of the device. When the motherboard is embedded into the device, of course, there will be stricter requirements on the volume and power consumption of the motherboard (the heat dissipation problem of the embedded motherboard). Nowadays, the use of embedded in the industry has also become extremely extensive. What are the characteristics of ARM architecture embedded motherboard?

Ⅰ.Working time and environment: The ARM motherboard is not limited by time, and can be turned on all the time without maintenance by personnel. In the case of power regulation, as long as the power is turned on, it will start automatically, and there is no need for personnel to start or shut down.

Ⅱ. Power consumption: The power consumption of the ARM motherboard is extremely low, such as the ShareVDI industrial tablet computer (using the ARM architecture), when the backlight is turned off, the overall power consumption of the motherboard is only about 1W.

Ⅲ. Heat dissipation: The ARM motherboard does not heat up, and the temperature of the motherboard is generally room temperature, so it can be turned on and work online for many years without any problems.

Ⅳ. The boot time: The boot speed of the ARM motherboard is very fast, generally only a few seconds.

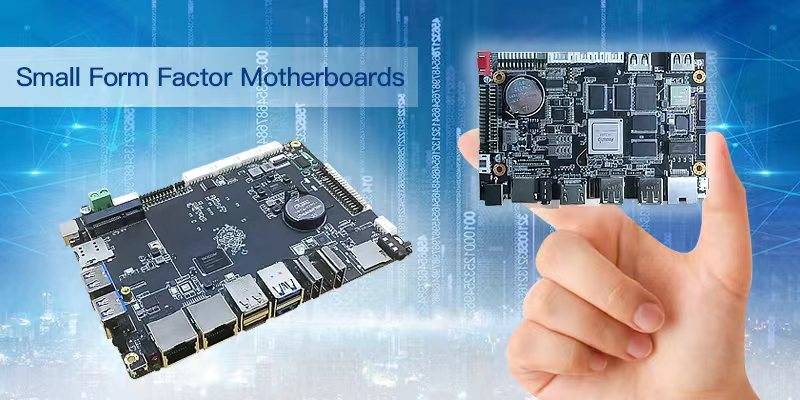

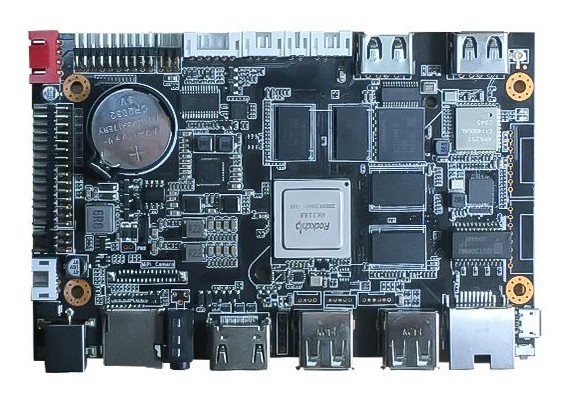

ShareVDI small form factor motherboard H328

1. Based on Rockchip RK3288 quad-core 1.8GHz Cortex-A17, quad-core GPU Mail-T764 processor

2. Onboard DDR3 2G high-speed memory, eMMC high-speed storage hard disk 16G

3. Support LVDS/eDP/HDMI multiple display interfaces, support independent dual display

4. 4* USB(one of USB is OTG)

5. Support Android 7.1, optional Android10.0

6. Main board size: 125mmx 80mm

Rockchip RK3288 is a new quad-core ARM A17 core, a high-performance chip that supports Mali-T76x series GPUs and 4K hardware solution H.265, and supports mainstream audio, video formats and picture decoding. Supports dual-screen different display function, dual 6/8/10-bit LVDS interface, which can drive 7’’ to 108’’ 1080P display, it also optional supports eDP/MIPI display interface output. Supports 4K HDMI-2160P output, supports 4K video playback. Supports infrared remote control, WIFI/Bluetooth, 4G/3G module, gravity sensor, GPS, serial port, GPIO, camera and other functions, rich interfaces, these are widely used in advertising machines, interactive all-in-one machines, security, industrial control and other intelligent control fields. Due to the characteristics of its hardware platform and Android intelligence, it can be used on the main board of the intelligent terminal when human-computer interaction and network device interaction are required.
