K8-F12 Pfsense Mini PC

Model:

K8-F12

● Intel pentium N3700 processor

● RAM up to 8GB, SSD up to 512GB

● Fanless and durable design
● 4x Intel LAN Ports

● Support AES-NI

● Support WIFI, SIM card and 4G Module
● Support multiple Operating System

● support RPL / PXE diskless boot, wake on lan, WDT

K8-F12 adopt 4 Intel I225 Gigabit Ethernet ,allows you to secure your network with a compact, fanless & silent firewall,which is more powerful than common router. The OS support Windows,Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, etc

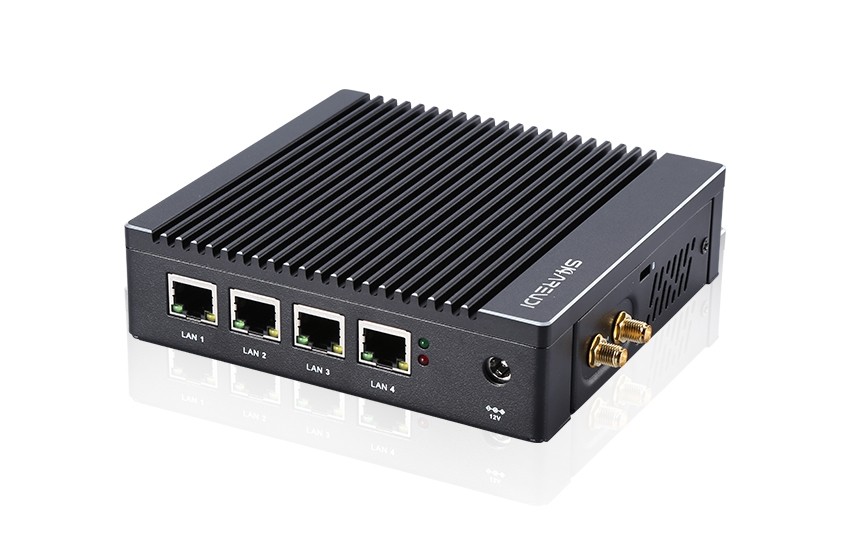

Firewall PC 4LAN with Pentium N3700 in NUC Design
Firewall PC 4LAN with Pentium N3700 in NUC Design

The firewall PC K8-F12 in NUC design houses a Pentium N3700 processor. Four network ports enhance connectivity. It's compact yet powerful, suitable for diverse applications. The processor ensures stable performance for multitasking. Ideal for small offices or home networks, its efficient design allows for easy setup and maintenance, making it a reliable choice for network-intensive tasks within limited space.

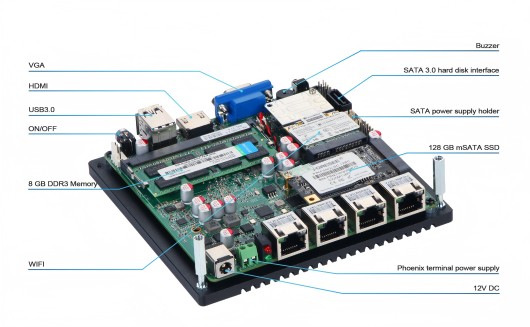

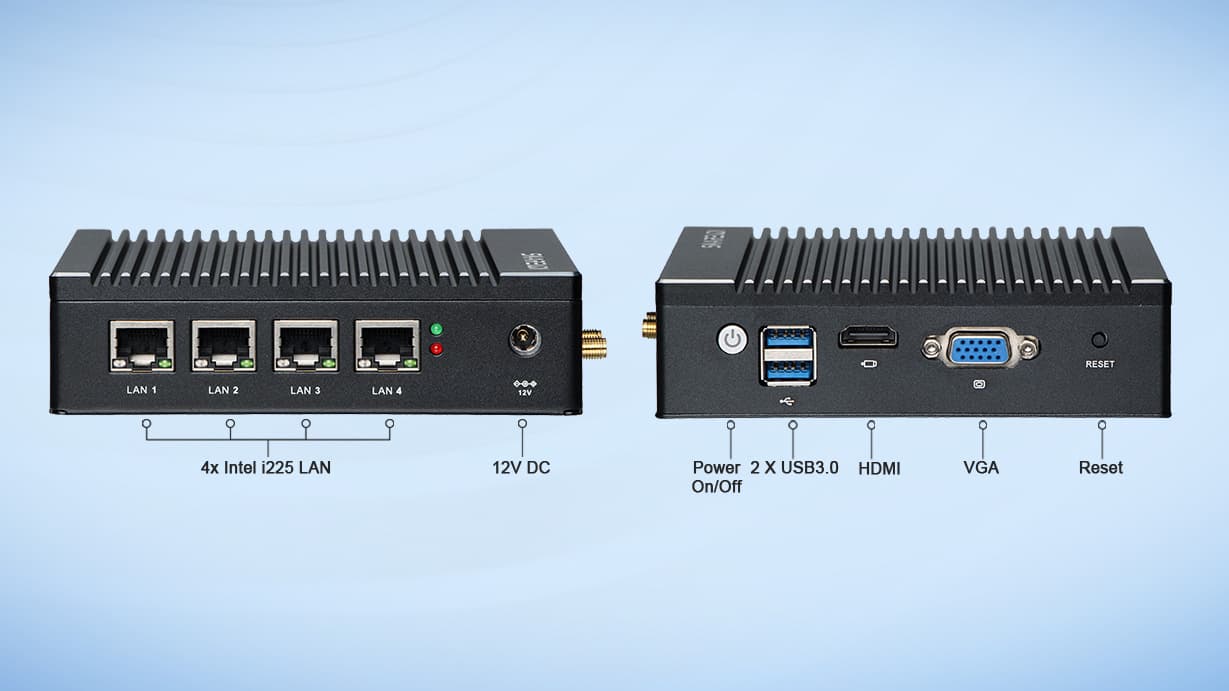

Firewall PC K8 - F12 Interface Insights

The Firewall PC K8 - F12 is equipped with a rich set of interfaces. It features 4x Intel LAN ports for reliable network connectivity, a SATA 3.0 hard disk interface along with a SATA power supply holder for storage expansion. A buzzer is included for audible alerts. With optional memory and hard disk capacities, it offers flexibility. The WIFI/4G module enables wireless connections. HDMI and VGA ports support display output, USB3.0 for high - speed data transfer, and a 12V DC power input, making it suitable for various security and networking applications.

Firewall PC K8 - F12 Interface Insights

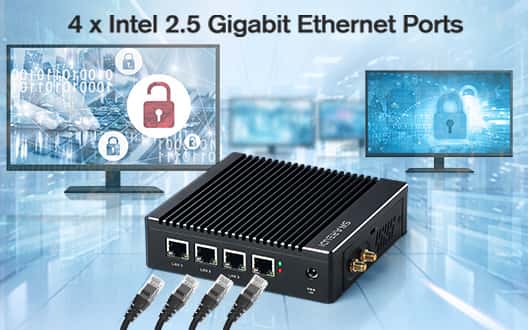

Network Performance Showcase
Network Performance Showcase

The Firewall Device K8 - F12 exhibits remarkable network capabilities. With 4x Gigabit Ethernet, it ensures stable wired connections. The 2.4G WIFI module, supporting 802.11 b/g and operating via USB channel, offers convenient wireless access. This combination provides flexible and efficient network performance, suitable for diverse networking scenarios, enhancing data transfer speed and connectivity reliability.

Firewall PC K8 - F12 Function Highlights

The Firewall PC K8 - F12 offers multiple key functions. It supports PXE for network booting, Auto - Power - on for automated startup, Wake - on - LAN for remote activation. With AES NI support, it enhances network and data security. This device ensures system stability and reliability, making it an ideal choice for safeguarding network infrastructure and maintaining efficient data management operations.

Firewall PC K8 - F12  Function Highlights

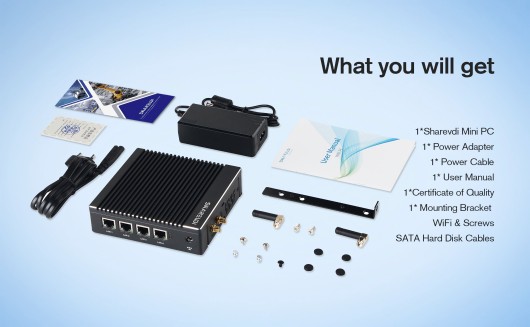

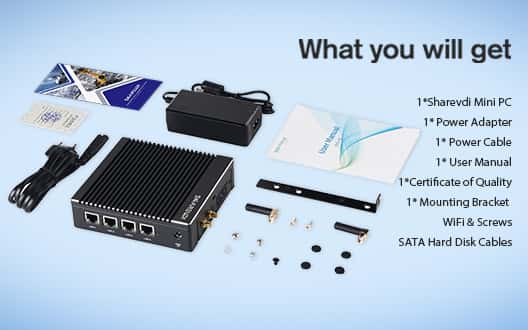

What You'll Get with Firewall Device K8 - F12
What You'll Get with Firewall Device K8 - F12

When you purchase the Firewall Device K8 - F12, you will get a comprehensive package. It includes a Share VDI firewall router for versatile computing. A power adapter and cable for power supply. A user manual to guide you. A certificate of quality for assurance. A mounting bracket for installation. WIFI components and screws. Also, a SATA hard disk cable for storage connection, fulfilling all your basic setup and operation needs.

Specification K8-F12
  • Part No.
    K8-F12-3700
  • Processor

    CPU

    Intel Pentium N3700

    Core Number

    4 Cores/4 Threads

    Frequency

    1.6GHz

    Max Turbo Frequency

    2.4GHz

    Chipset

    Braswell

  • Memory

    Technology

    1*DDR3L slots

    Max. Capacity

    8GB

  • Storage

    MSATA

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

    SATA

    HDD 500GB/1TB/2TB (Optional )

  • Graphics

    Intel HD Graphics

  • Audio

    HD Audio realtek ALC 662

  • Network

    LAN

    Intel I225 Gigabit Ethernet Controller

  • I/O Interface

    Front

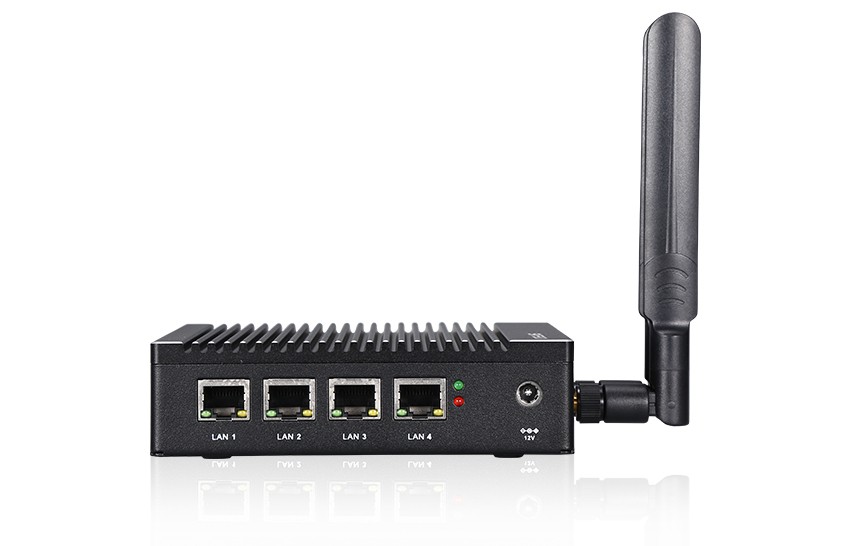

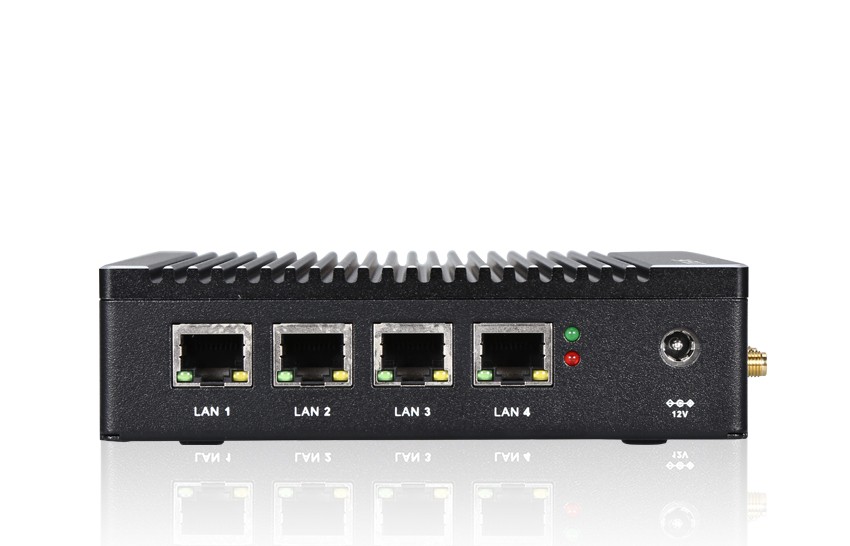

    4*RJ45 Gigabit LAN,DC12V Input, Indicator light

    Rear

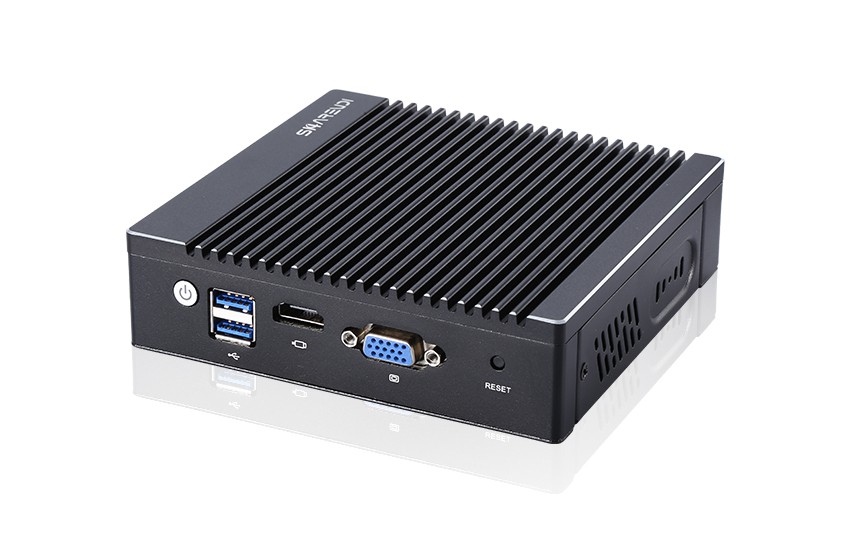

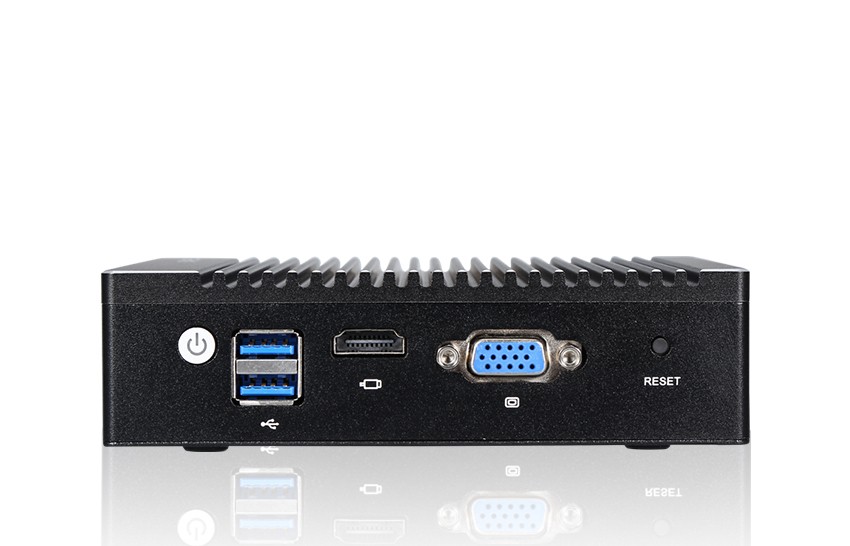

    2*USB3.0, HDMI,VGA,Power ON/OFF, Reset

  • Extendable

    Module

    WIFI+Bluetooth Module (1 x M.2_PCIE), SIM slot

    Antenna

    External antennas

  • Power

    Input

    AC100-240V.50-60HZ DC

    Output

    12V - 3A

  • Operating System

    Windows/Linux/Pfsense

  • Physical

    Dimension

    L 133.8mm*W 126.6mm*H 36.5mm

    Weight

    0.6kg

    Color

    Black

    Cooling Method

    Fanless Passive Cooling

    Mounting Options

    Desk/ Wall Mount/Embedded

    Certification

    CE,FCC,ROHS,ISO,UL

  • Environment

    Operating Temperature

    -10~60 ℃

    Storage Temperature

    -10~60 ℃

    Operation Humidity

    0~95% (No Condensation)

    Storage Humidity

    0~95% (No Condensation)

Processor
  • CPU

    K8-F12-3700

    Intel Pentium N3700

  • Core Number

    K8-F12-3700

    4 Cores/4 Threads

  • Frequency

    K8-F12-3700

    1.6GHz

  • Max Turbo Frequency

    K8-F12-3700

    2.4GHz

  • Chipset

    K8-F12-3700

    Braswell

Memory
  • Technology

    K8-F12-3700

    1*DDR3L slots

  • Max. Capacity

    K8-F12-3700

    8GB

Storage
  • MSATA

    K8-F12-3700

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

  • SATA

    K8-F12-3700

    HDD 500GB/1TB/2TB (Optional )

Graphics
  • K8-F12-3700

    Intel HD Graphics

Audio
  • K8-F12-3700

    HD Audio realtek ALC 662

Network
  • LAN

    K8-F12-3700

    Intel I225 Gigabit Ethernet Controller

I/O Interface
  • Front

    K8-F12-3700

    4*RJ45 Gigabit LAN,DC12V Input, Indicator light

  • Rear

    K8-F12-3700

    2*USB3.0, HDMI,VGA,Power ON/OFF, Reset

Extendable
  • Module

    K8-F12-3700

    WIFI+Bluetooth Module (1 x M.2_PCIE), SIM slot

  • Antenna

    K8-F12-3700

    External antennas

Power
  • Input

    K8-F12-3700

    AC100-240V.50-60HZ DC

  • Output

    K8-F12-3700

    12V - 3A

Operating System
  • K8-F12-3700

    Windows/Linux/Pfsense

Physical
  • Dimension

    K8-F12-3700

    L 133.8mm*W 126.6mm*H 36.5mm

  • Weight

    K8-F12-3700

    0.6kg

  • Color

    K8-F12-3700

    Black

  • Cooling Method

    K8-F12-3700

    Fanless Passive Cooling

  • Mounting Options

    K8-F12-3700

    Desk/ Wall Mount/Embedded

  • Certification

    K8-F12-3700

    CE,FCC,ROHS,ISO,UL

Environment
  • Operating Temperature

    K8-F12-3700

    -10~60 ℃

  • Storage Temperature

    K8-F12-3700

    -10~60 ℃

  • Operation Humidity

    K8-F12-3700

    0~95% (No Condensation)

  • Storage Humidity

    K8-F12-3700

    0~95% (No Condensation)
