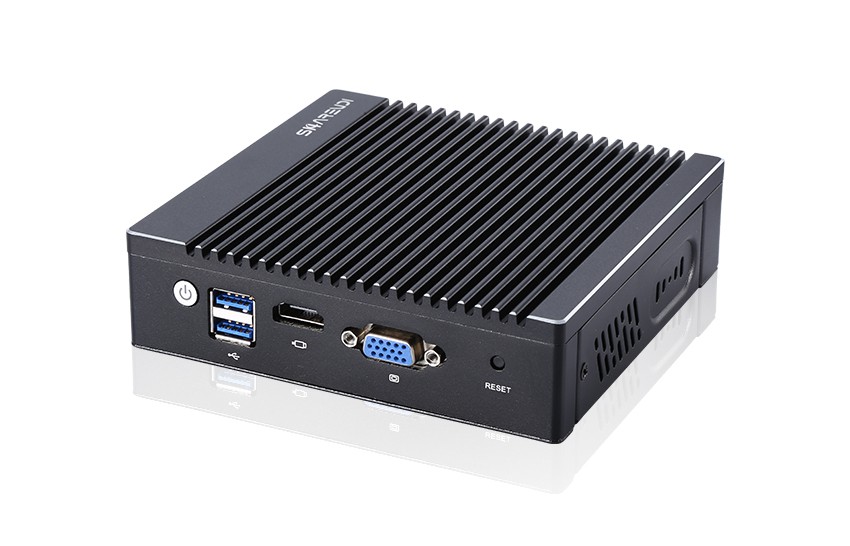

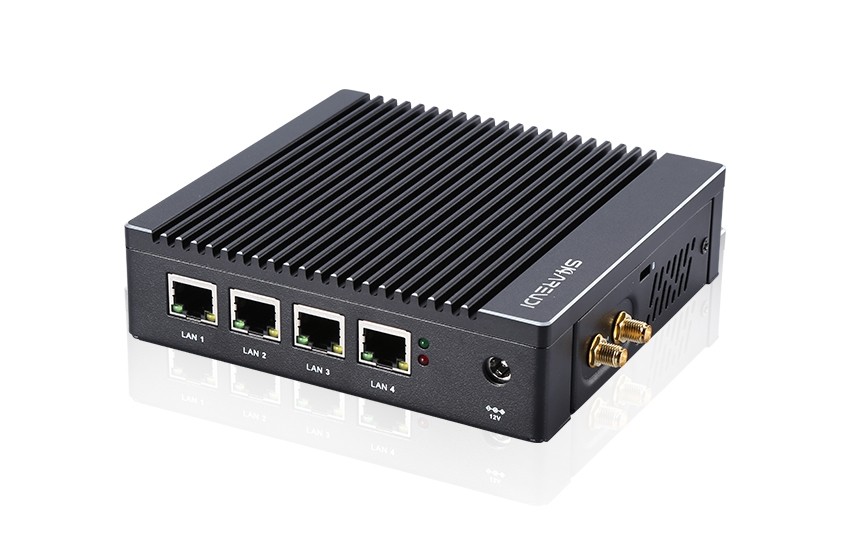

K6-F12 Firewall PC 4LAN

Model:

K6-F12

● Intel Celeron J4125 processor

● RAM up to 8GB, SSD up to 512GB

● Fanless and durable design
● 4x Intel LAN Ports

● Support AES-NI

● Support WIFI, SIM card and 4G Module
● Support multiple Operating System

● Support RPL / PXE diskless boot, wake on lan, WDT


With 4x Intel 2.5GbE and pfsense, K6-F12 can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS. It supports Windows, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc.

Pfsense Mini PC with Celeron J4125 in NUC Design
Pfsense Mini PC with Celeron J4125 in NUC Design

The Pfsense Mini PC K6-F12 in NUC design houses a Celeron J4125 processor. Four network ports enhance connectivity. It's compact yet powerful, suitable for diverse applications. The processor ensures stable performance for multitasking. Ideal for small offices or home networks, its efficient design allows for easy setup and maintenance, making it a reliable choice for network-intensive tasks within limited space.

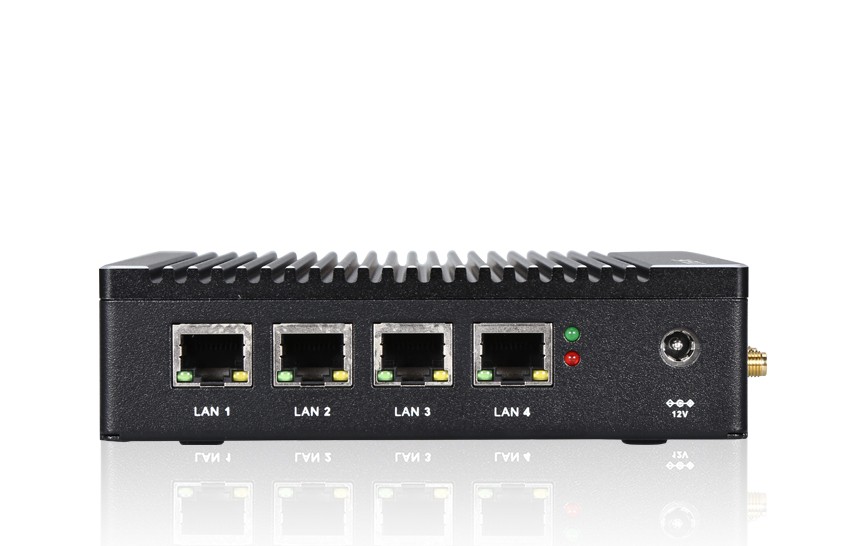

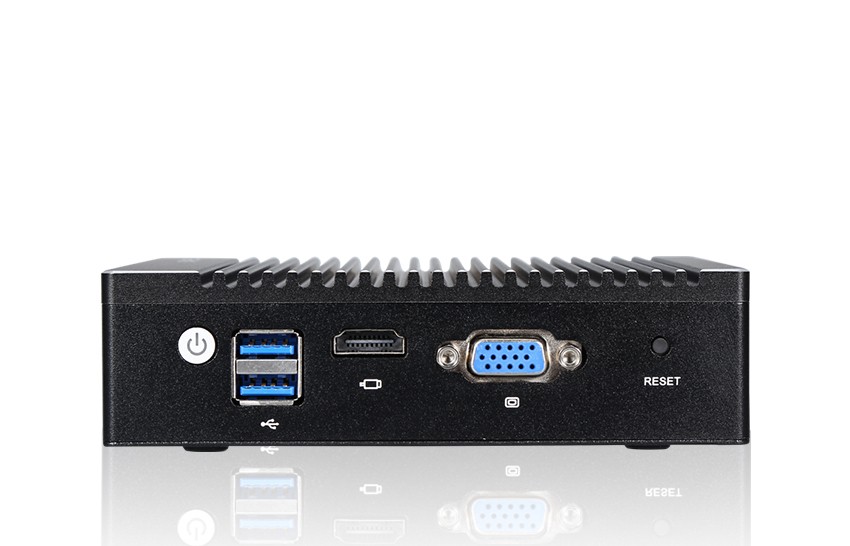

Firewall Mini PC K6 - F12 Interface Insights

The Firewall PC K6 - F12 is equipped with a rich set of interfaces. It features 4x Intel LAN ports for reliable network connectivity, a SATA 3.0 hard disk interface along with a SATA power supply holder for storage expansion. A buzzer is included for audible alerts. With optional memory and hard disk capacities, it offers flexibility. The WIFI/4G module enables wireless connections. HDMI and VGA ports support display output, USB3.0 for high - speed data transfer, and a 12V DC power input, making it suitable for various security and networking applications.

Firewall Mini PC K6 - F12 Interface Insights
Network Performance Showcase
Network Performance Showcase

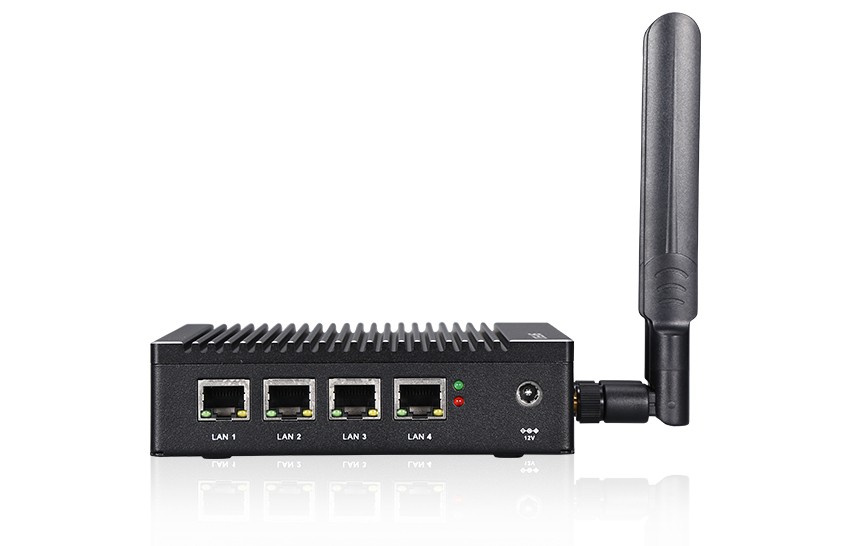

The Firewall Device K6 - F12 exhibits remarkable network capabilities. With 4xGigabit Ethernet, it ensures stable wired connections. The 2.4G WIFI module, supporting 802.11 b/g and operating via USB channel, offers convenient wireless access. This combination provides flexible and efficient network performance, suitable for diverse networking scenarios, enhancing data transfer speed and connectivity reliability.

Firewall PC K6 - F12 Function Highlights

The Firewall PC K6 - F12 offers multiple key functions. It supports PXE for network booting, Auto - Power - on for automated startup, Wake - on - LAN for remote activation. With AES NI support, it enhances network and data security. This device ensures system stability and reliability, making it an ideal choice for safeguarding network infrastructure and maintaining efficient data management operations.

Firewall PC K6 - F12  Function Highlights
What You'll Get with Firewall PC K6 - F12
What You'll Get with Firewall PC K6 - F12

When you purchase the Firewall PC K6 - F12, you will get a comprehensive package. It includes a Share VDI Mini PC for versatile computing. A power adapter and cable for power supply. A user manual to guide you. A certificate of quality for assurance. A mounting bracket for installation. WIFI components and screws. Also, a SATA hard disk cable for storage connection, fulfilling all your basic setup and operation needs.

Specification K6-F12-J4125
  • Part No.
    K6-F12-J4125
  • Processor

    CPU

    Intel Celeron J4125

    Core Number

    4 Cores/4 Threads

    Frequency

    2.0GHz

    Max Turbo Frequency

    2.7GHz

    Chipset

    Gemini Lake

  • Memory

    Technology

    1*DDR4 SO-DIMM

    Max. Capacity

    16GB

  • Storage

    MSATA

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

    SATA

    Not support HDD

  • Graphics

    Intel® UHD Graphics 600

  • Audio

    HD Audio realtek ALC 662

  • Network

    LAN

    4 x INTEL I225-V

  • I/O Interface

    Front

    4*RJ45 Gigabit LAN, DC12V Input

    Rear

    2*USB3.0, HDMI, VGA, Power ON/OFF, Reset

  • Extendable

    Module

    WIFI+Bluetooth Module (1 x M.2_PCIE), SIM slot

    Antenna

    External antennas

  • Power

    Input

    AC100-240V. 50-60Hz

    Output

    DC 12V - 3A

  • Operating System

    Windows/Linux/Pfsense

  • Physical

    Dimension

    L 133.8mm*W 126.6mm*H 36.5mm

    Weight

    0.6kg

    Color

    Black

    Cooling Method

    Fanless Passive Cooling

    Mounting Options

    VESA bracket / Vertical Stand

    Certification

    CE, FCC, ROHS, ISO

  • Environment

    Operating Temperature

    -10~60 ℃

    Storage Temperature

    -10~60 ℃

    Operation Humidity

    0~95% (No Condensation)

    Storage Humidity

    0~95% (No Condensation)

Processor
  • CPU

    K6-F12-J4125

    Intel Celeron J4125

  • Core Number

    K6-F12-J4125

    4 Cores/4 Threads

  • Frequency

    K6-F12-J4125

    2.0GHz

  • Max Turbo Frequency

    K6-F12-J4125

    2.7GHz

  • Chipset

    K6-F12-J4125

    Gemini Lake

Memory
  • Technology

    K6-F12-J4125

    1*DDR4 SO-DIMM

  • Max. Capacity

    K6-F12-J4125

    16GB

Storage
  • MSATA

    K6-F12-J4125

    SSD 16GB/32GB/64GB/128GB/256GB/512GB

  • SATA

    K6-F12-J4125

    Not support HDD

Graphics
  • K6-F12-J4125

    Intel® UHD Graphics 600

Audio
  • K6-F12-J4125

    HD Audio realtek ALC 662

Network
  • LAN

    K6-F12-J4125

    4 x INTEL I225-V

I/O Interface
  • Front

    K6-F12-J4125

    4*RJ45 Gigabit LAN, DC12V Input

  • Rear

    K6-F12-J4125

    2*USB3.0, HDMI, VGA, Power ON/OFF, Reset

Extendable
  • Module

    K6-F12-J4125

    WIFI+Bluetooth Module (1 x M.2_PCIE), SIM slot

  • Antenna

    K6-F12-J4125

    External antennas

Power
  • Input

    K6-F12-J4125

    AC100-240V. 50-60Hz

  • Output

    K6-F12-J4125

    DC 12V - 3A

Operating System
  • K6-F12-J4125

    Windows/Linux/Pfsense

Physical
  • Dimension

    K6-F12-J4125

    L 133.8mm*W 126.6mm*H 36.5mm

  • Weight

    K6-F12-J4125

    0.6kg

  • Color

    K6-F12-J4125

    Black

  • Cooling Method

    K6-F12-J4125

    Fanless Passive Cooling

  • Mounting Options

    K6-F12-J4125

    VESA bracket / Vertical Stand

  • Certification

    K6-F12-J4125

    CE, FCC, ROHS, ISO

Environment
  • Operating Temperature

    K6-F12-J4125

    -10~60 ℃

  • Storage Temperature

    K6-F12-J4125

    -10~60 ℃

  • Operation Humidity

    K6-F12-J4125

    0~95% (No Condensation)

  • Storage Humidity

    K6-F12-J4125

    0~95% (No Condensation)
